#03866
Testing devicesNOYAFANF-8601S

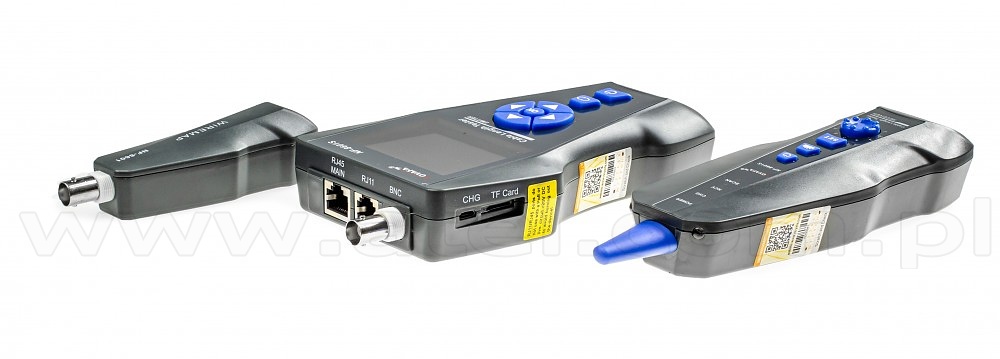

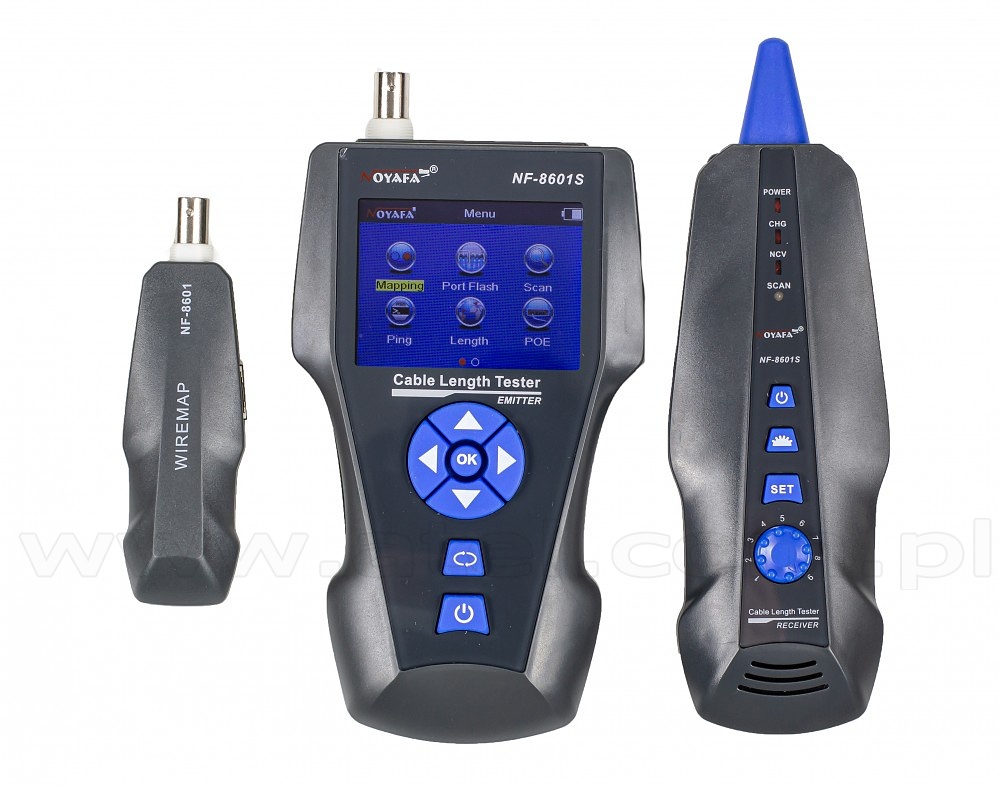

Cable tester RJ-45, w/LCD, wire tracker, ping testing, TDR (NOYAFA NF-8601S)

The NF-8601S cable tester is an advanced device for complex network cabling tests.

The device is equipped with a colourful, backlit, 320z240 LCD display.

A noteworthy feature is the ability to perform a ping test with packet loss and latency measurement. In addition, the tester allows you to measure PoE voltage on each line and export the measurement data to an external micro SD memory card.

The NF-8601S tester measures the cable length and the distance from the fault using the TDR technology.

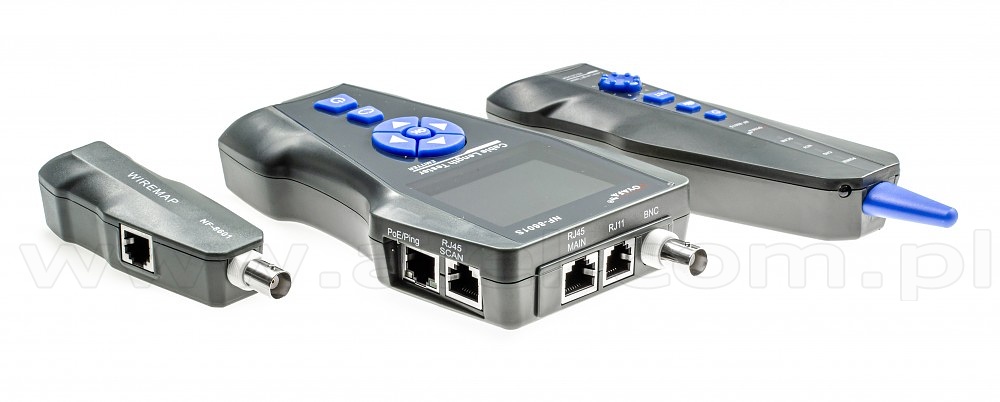

Tested cabling RJ45,
RJ11,
BNC
Functionality location of the damage site,
cable length measurement,
detection of short circuit; interruptions; reverse connections,
measurement of the distance to damage,
dynamic calibration of cable lenght measurement,
temperature compensation,
sound signaling,
Wiring tests cable lenght,
connection map,
digital pair finder with generator,
LAN testing ICMP ping,
flash port
Cable length measurement 101500m
Setting the electric capacity of the tested cable yes
Measurement of the distance to damage yes
Ping test delay,
lost packets
Ergonomics big and clear LCD display (320x240 pixels),
automatic shutdown,
long operating time,

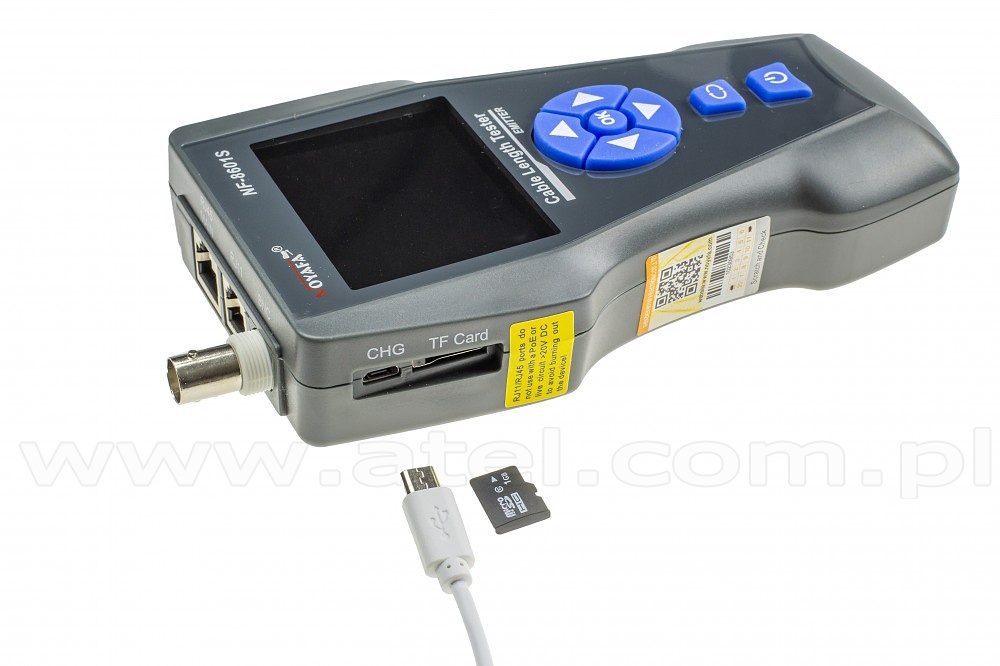

export of measurement data to a micro SD card
Power in-built battery,
micro USB charging
Dimensions 173x92x34 mm (main),183x58x35 mm (reciever)
Warranty 12 months
Manufacturer NOYAFA

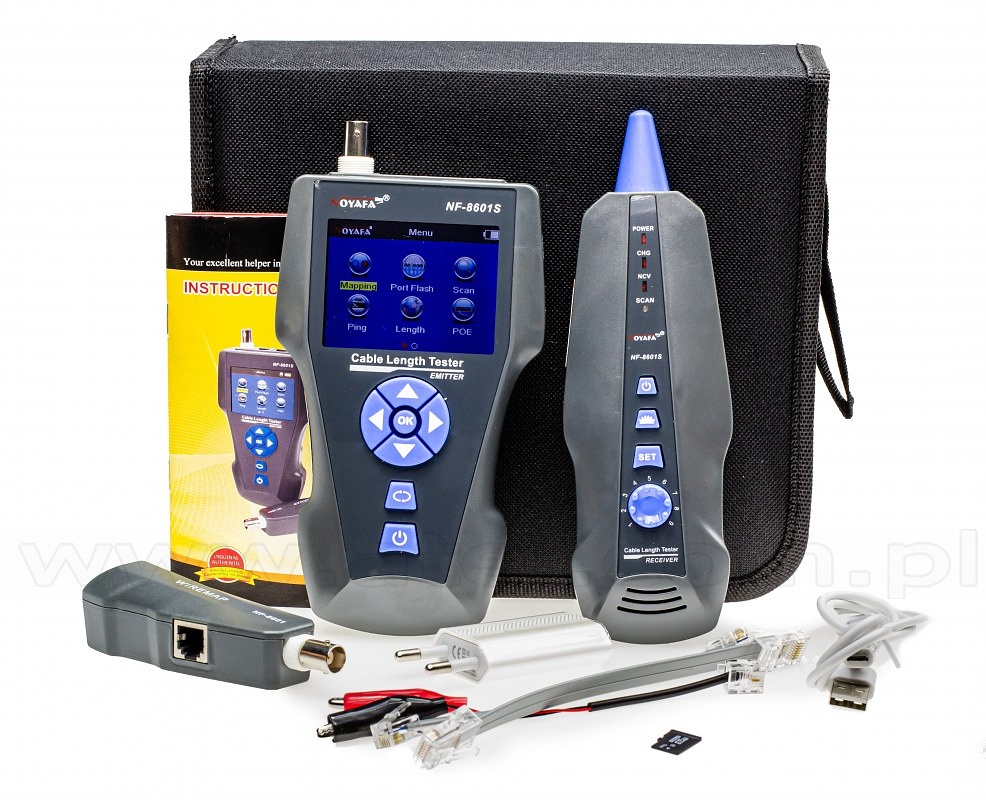

The kit includes:
- main unit,
- wire pair tracker,
- USB A (M) - micro USB (M) connector,
- crocodile clips,
- RJ45-RJ45 and RJ11-RJ11 connectors,
- terminator,
- case.

ADVANCED CABLE TESTERS
TAGS: PoE
Net Price: 153,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
