#03081
Testing devicesNOYAFANF-8108M

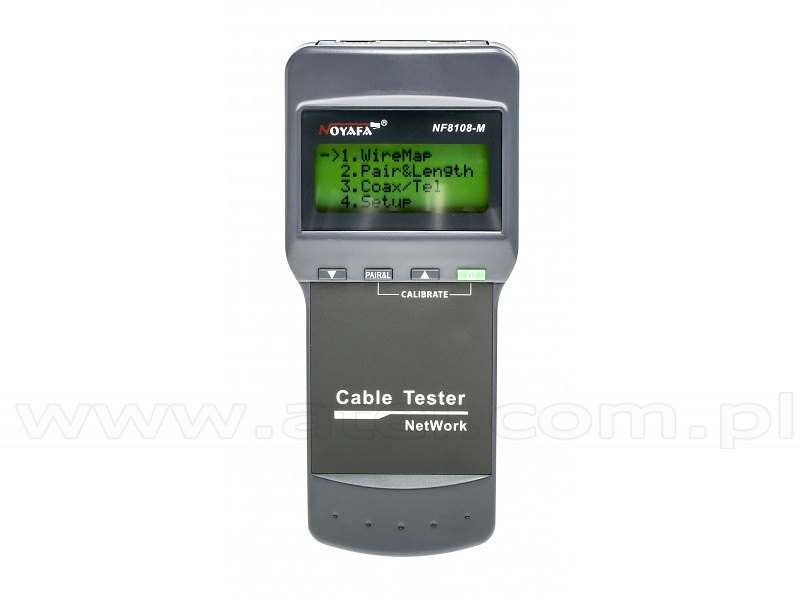

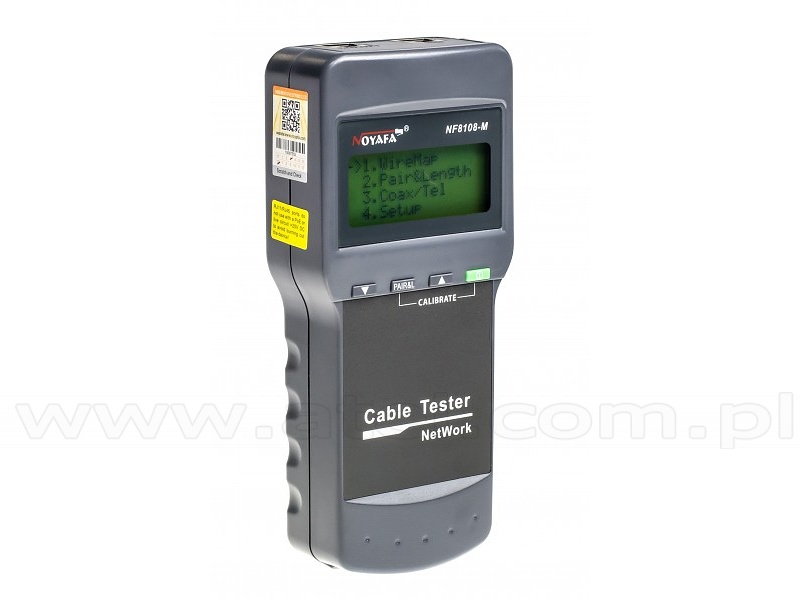

Cable tester RJ-45, w/LCD and 8 external terminators (NOYAFA NF-8108M)

The NF8108 cable tester is used to measure cable continuity. It enables the measurement of connection errors in UTP / STP twisted pairs. The device is equipped with an LCD display.
Display LCD (53x25mm)
Frequency of the audible signal 225Hz (after connecting the terminator)
Max. length of the tested cabling 300m
Length measuring accuracy 95%
Max. current <70mA
Function selection three buttons,
on / off button
Power supply 4x1.5V (about 50 hours of work),
automatic shutdown
Tester dimensions 184x84x46mm
Terminator dimensions 78 x 33 x 22mm
Packaging cardboard box + soft case
Warranty 12 months
Manufacturer NOYAFA
Calibration of the tester should be performed on a connector with a length of at least 10m.

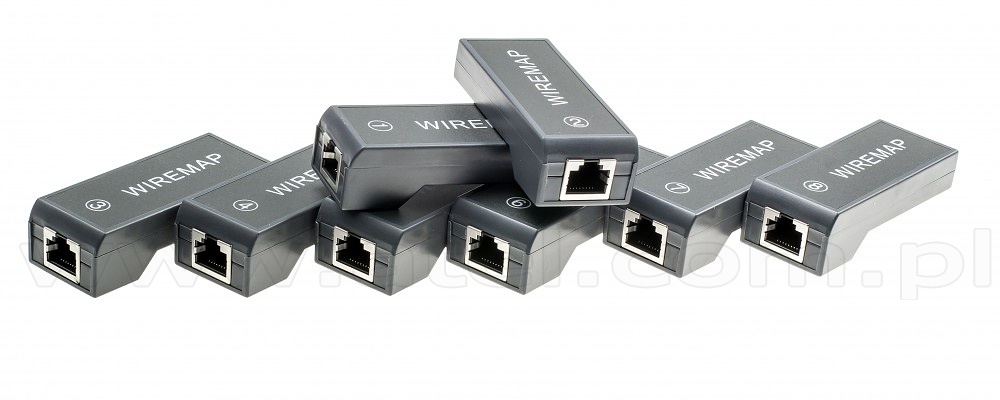

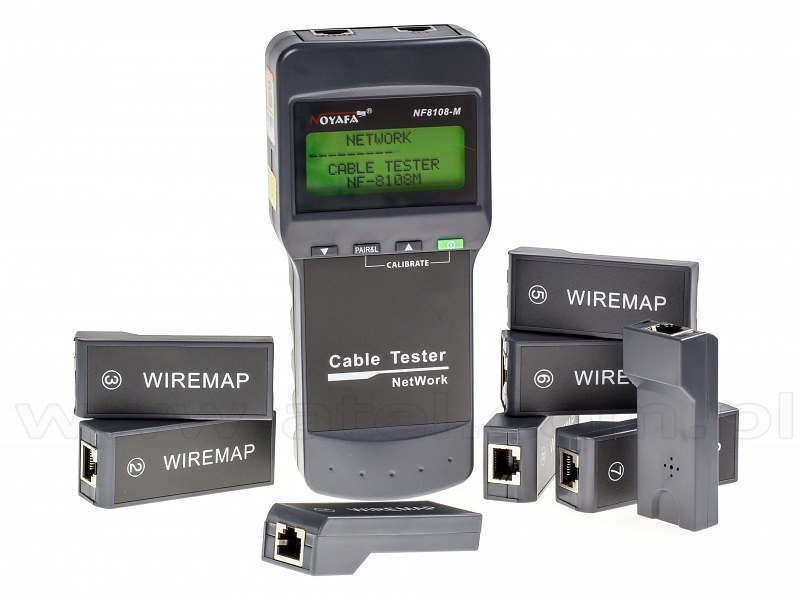

The kit includes a tester, 8 numbered terminators, and a soft case.

User Manual (1,58 MB)
ADVANCED CABLE TESTERS
NF8108
Net Price: 57,10 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
