#03884
Testing devicesNOYAFANF-8209S

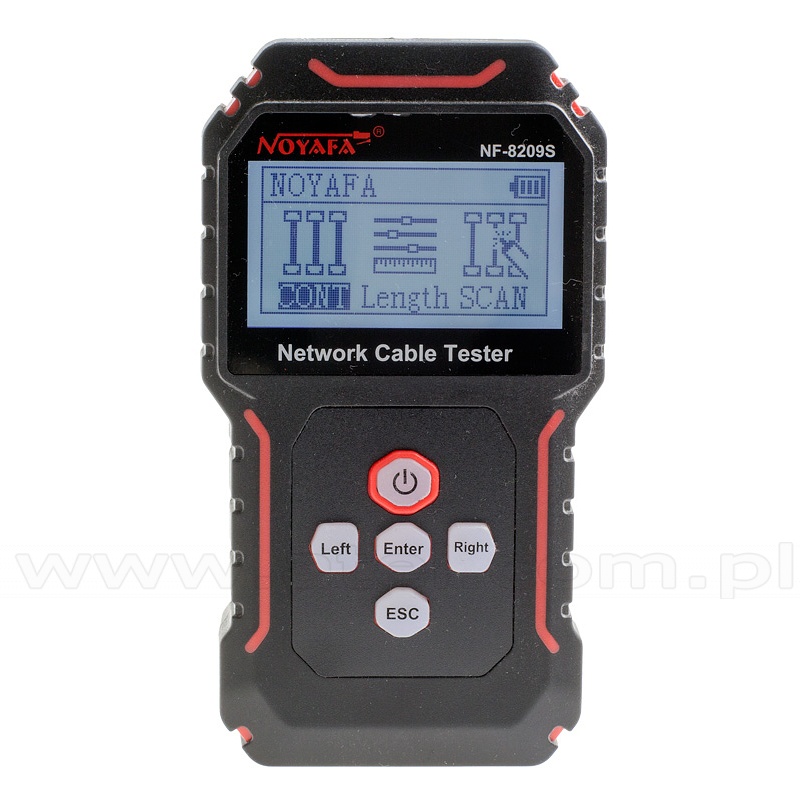

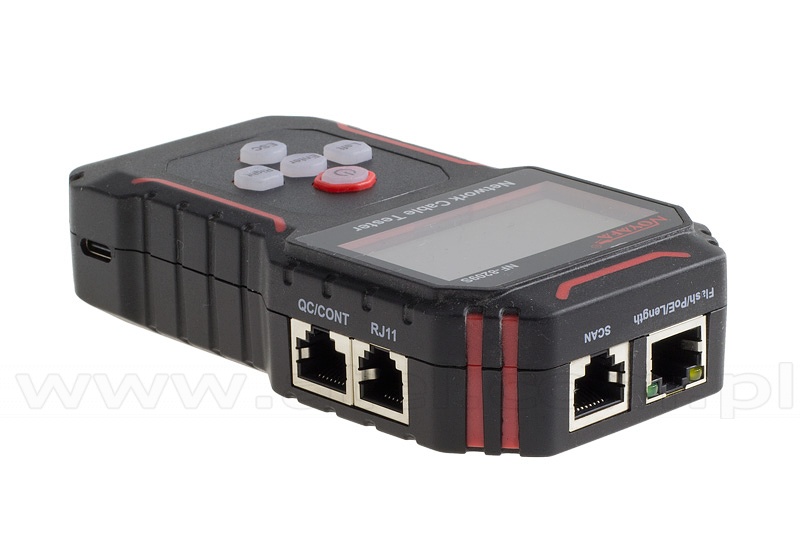

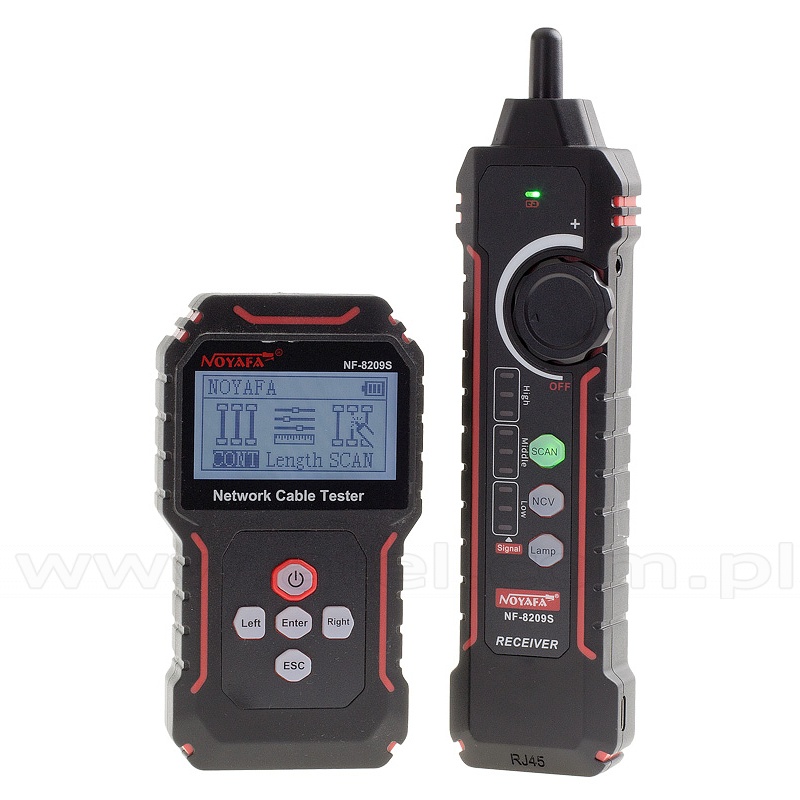

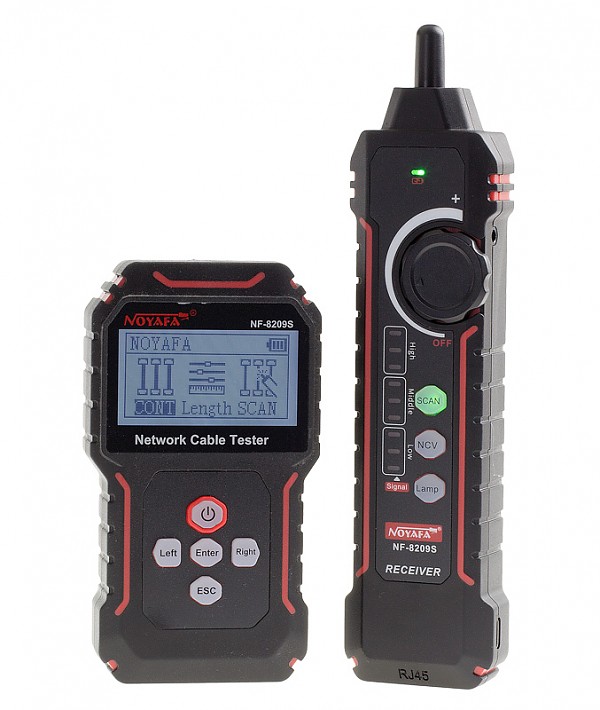

Cable tester RJ-45, w/LCD. PoE and port flash (NOYAFA NF-8209S)

The NF8209S cable tester is used to measure cable continuity. It enables the measurement of connection errors in UTP / STP twisted pairs. The device is equipped with an LCD display.
PoE detection and identify the standard (IEEE802.3at/af / non standard)
Display LCD 128x64 dot-matrix with backlight
Frequency of analogue generator 455kHz
Max. length of the tested cabling 200m (length test),
600m (wiremap)
Length measuring accuracy 1.6m
Max. current <130mA (emitter),
<100mA (reciever)
Function selection graphical menu

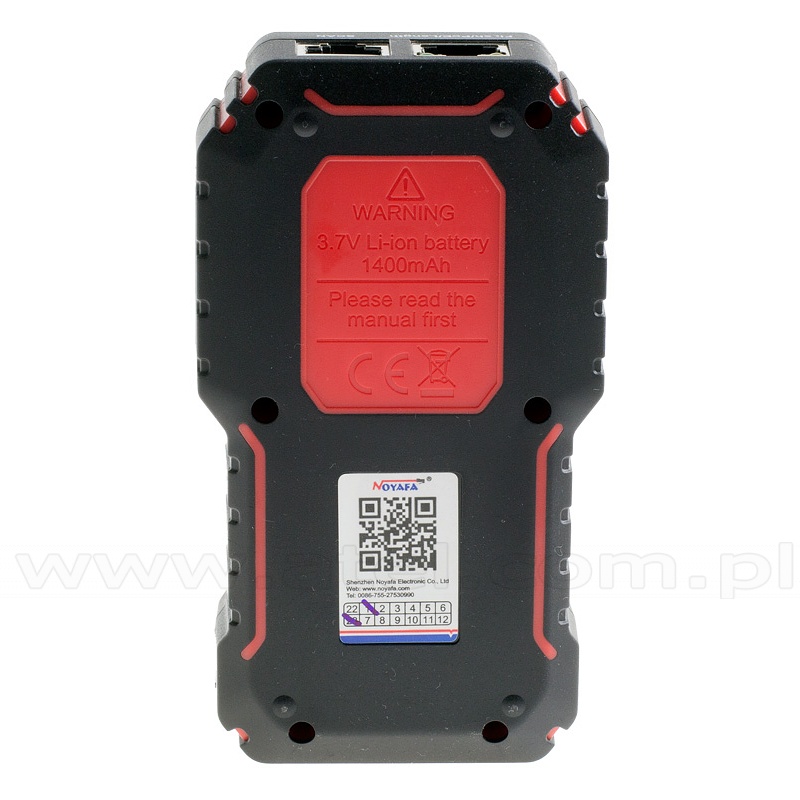

Power supply 3.7V 1400mAh polymer lithium battery (both transmitter and reciever)
PoE test range 560V
Packaging cardboard box + soft case
Warranty 12 months
Manufacturer NOYAFA

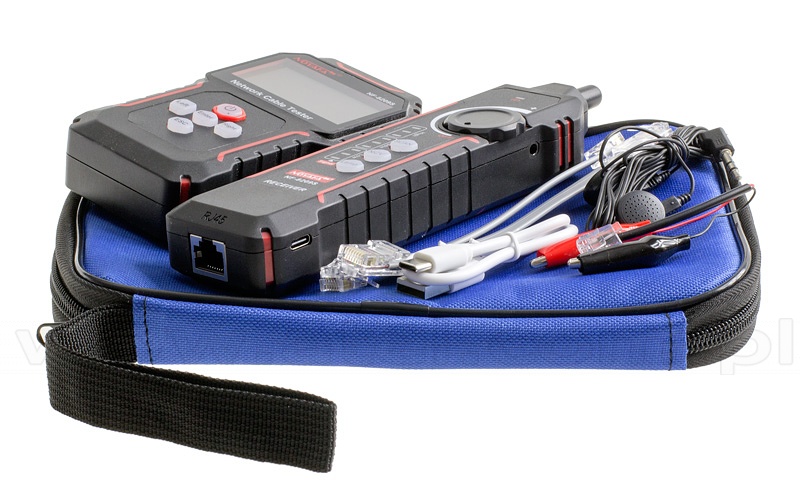

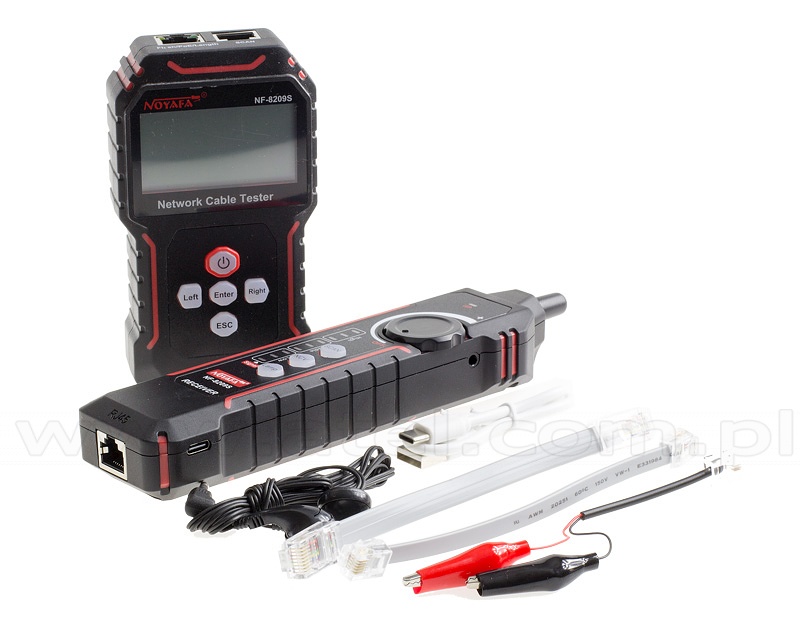

The kit includes:
- emitter,
- reciever,
- connection wires,
- soft case

User Manual (3,73 MB)
ADVANCED CABLE TESTERS
TAGS: PoE
Net Price: 66,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
