#03808
Testing devices › NOYAFA › NF-8601W

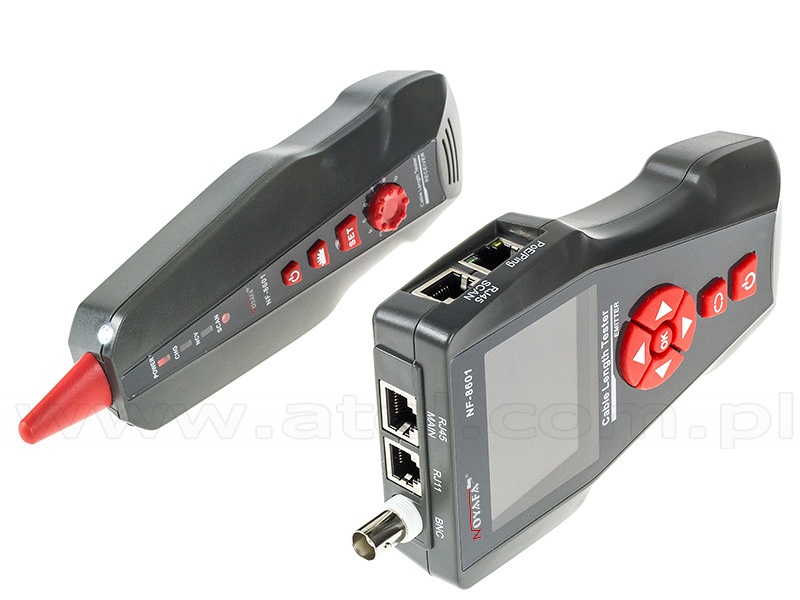

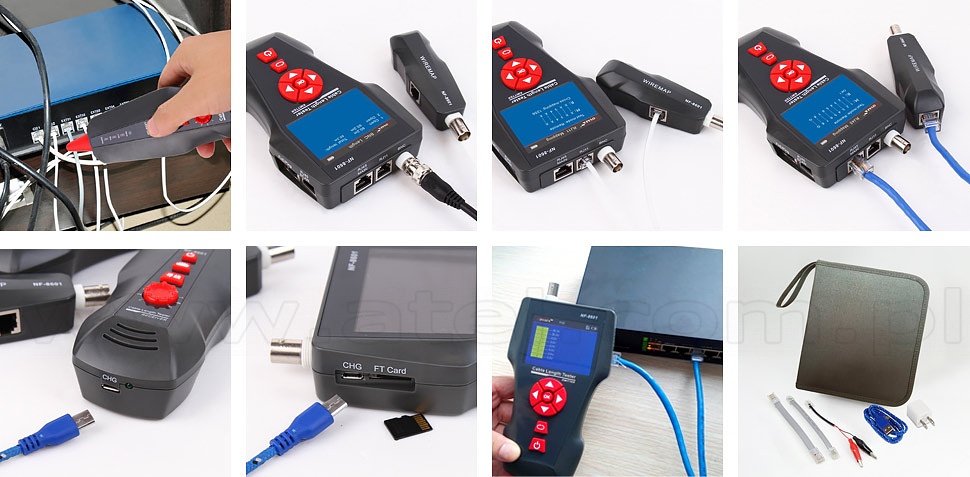

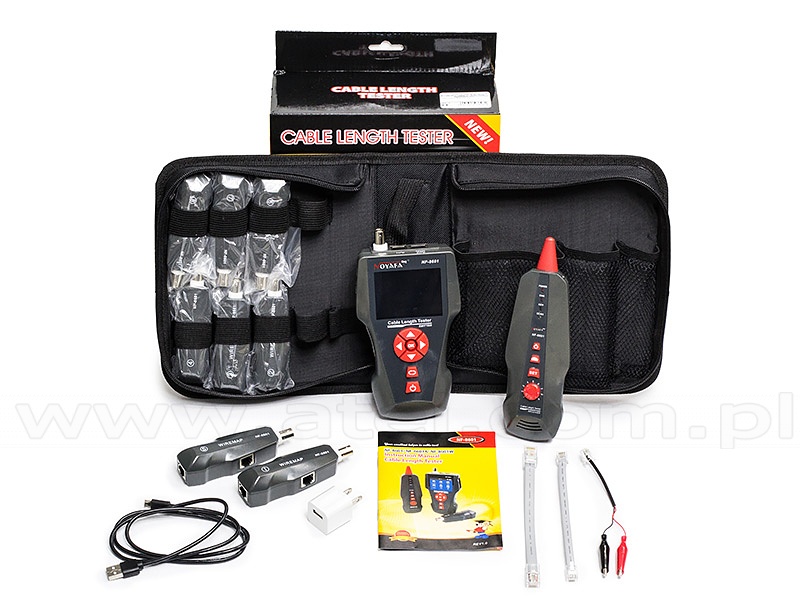

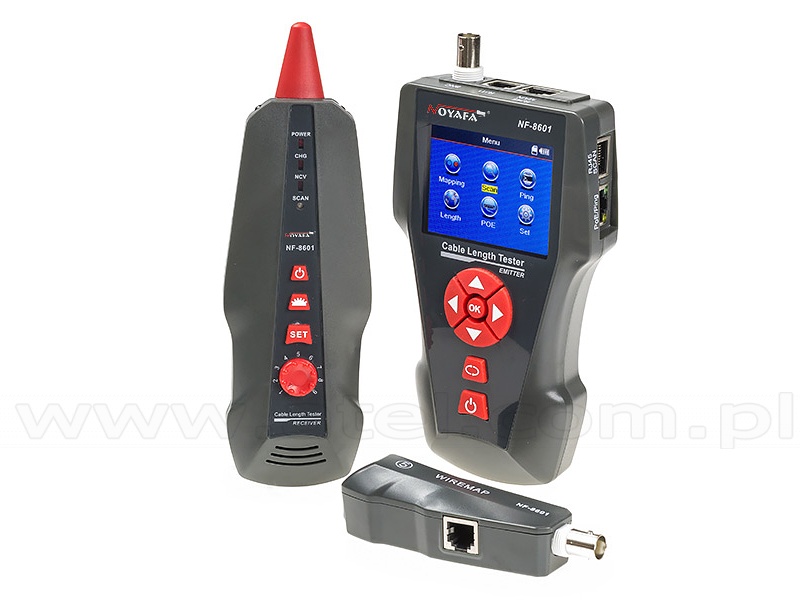

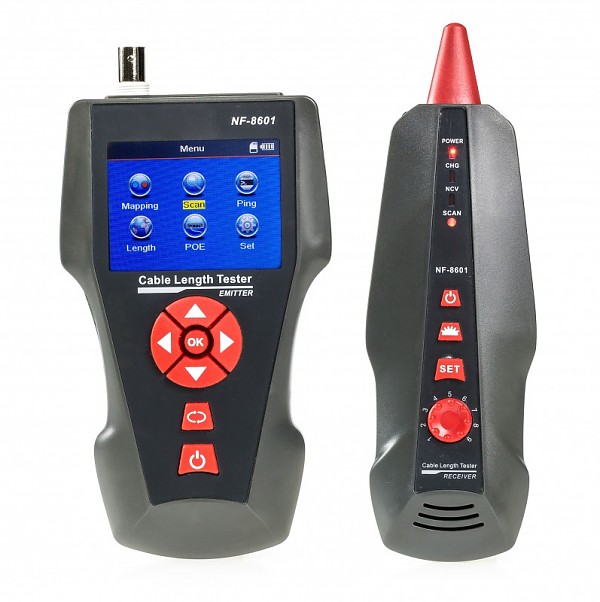

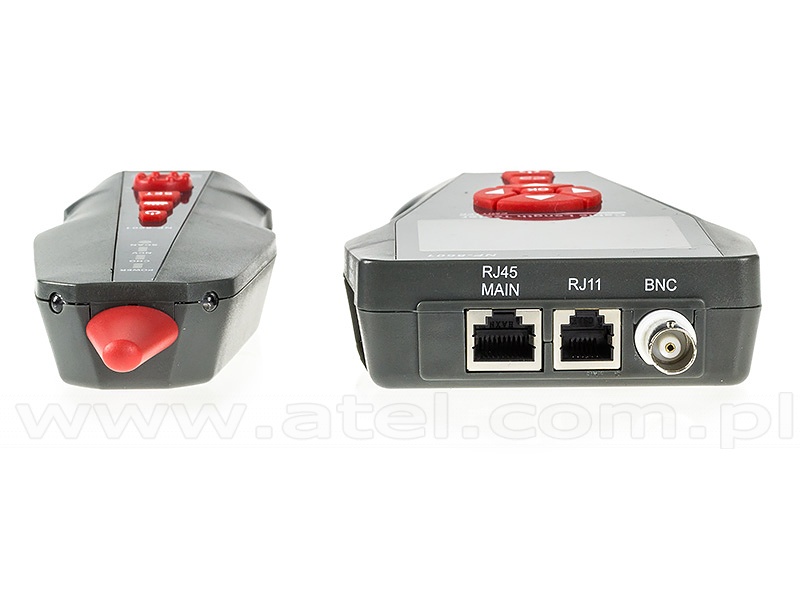

Cable tester RJ-45, w/LCD, wire tracker, ping testing (NOYAFA NF-8601W)

Advanced cable tester thet performs PING, PoE, wiremap and length tests. The other benefits are large colour LCD display and data export to micro SD card.
  • testing RJ-45 cable
  • checking open circuit, short circuit and reverse connection
  • measure cable length and determine the distance of open circuit
  • measure distance to failure
  • automatically time-delay shut-off
  • ping test
  • PoE measuremets
  • tone generator and wire tracker function
  • big screen to display results clear (320x240 pixels)
  • rechargable battery
  • dimension: 173x92x34 mm
Print to PDF
Technical Support
User Manual (7,71 MB)
Configuration/Applications

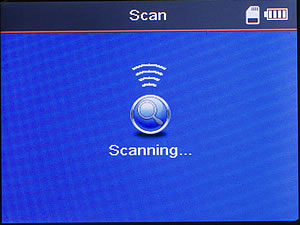

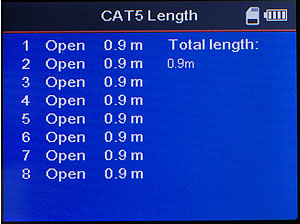

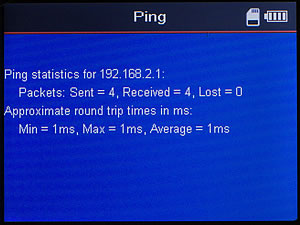

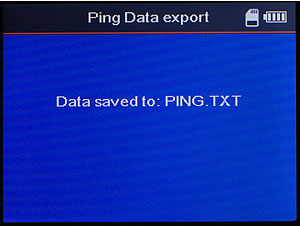

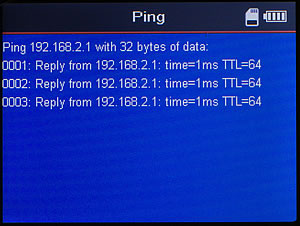

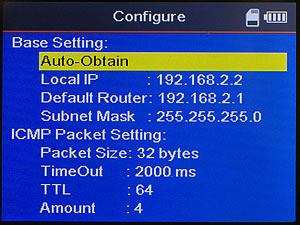

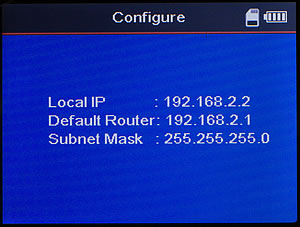

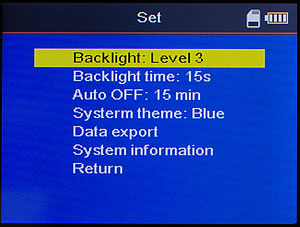

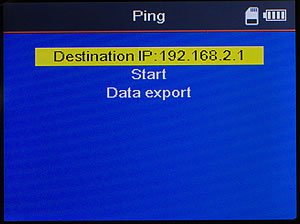

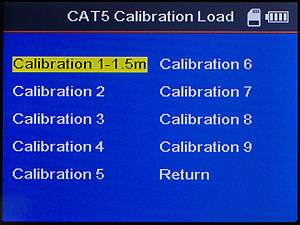

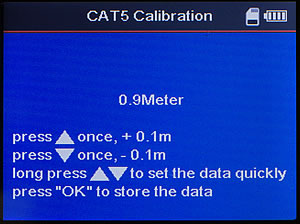

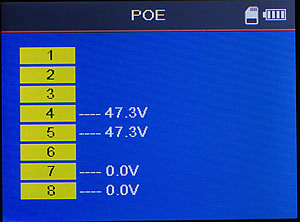

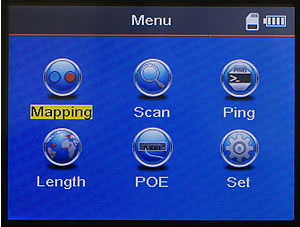

NF-8601W - Main menu NF-8601W - Mapping menu NF-8601W - CAT5 Mapping NF-8601W - Length menu NF-8601W - CAT5 Length NF-8601W - Length Calibration NF-8601W - Calibration Load menu Scan Ping - menu Ping settings Ping Ping Ping - Data export Ping - Configure Ping - menu POE test Main Settings
ADVANCED CABLE TESTERS
nf-8601w noyafa tester noyafa nf-8601w
TAGS: PoE
Net Price: 141,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
