![]() TP-LINK Products |
TP-LINK - Networking products |
TP-LINK is a largest Chinese network hardware manufacturer for SOHO market. Company was founded in 1996. Their market share in networking products is still growing. TP-LINK cooperates with over 600 distributors in China and rest of the world. There are over 100 experienced engineers working for TP-LINK in two factories with 21 production lines. Perfect technical support and management system compliant with ISO9001:2000 gives warranty of reliability and stability of their devices. Quality of products was confirmed with a lot of awards in many independent device tests. TP-LINK is also manufacturing OEM versions of hardware for other network device manufacturers. TP-LINK offers includes:
Manufacturer's website: http://www.tp-link.com |
Standards | IEEE 802.3/i/u/x |
---|---|
Copper ports | 5x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, plastic |
Dimensions | 3,3 × 1,8 × 0,9 in (83,6 × 45,7 × 22,8 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 1.65W |
Max Heat Dissipation | 5.627 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/x |
---|---|

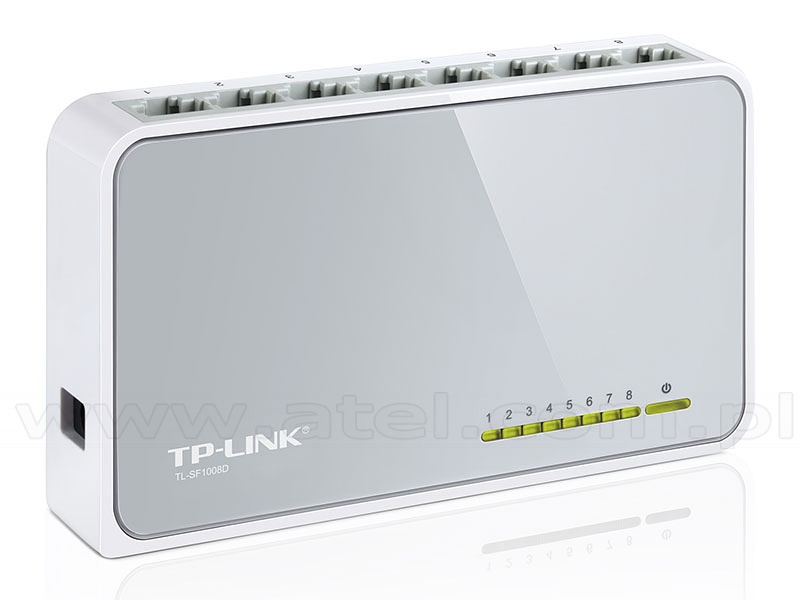

Copper ports | 8x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, plastic |
Dimensions | 4.9 × 1.9 × 0.9 in. (124.6 × 48.7 × 22.8 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 2.64W |
Max Heat Dissipation | 9.002 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Copper ports | 5x 10/100 Mbps RJ-45 |
---|---|
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 58W |
Switching Capacity | 1Gbps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
1.678W (max. no PD connected), 64.82W (max. with 58w PD connected) |
Max Heat Dissipation |
5.73BTU/h(no PD connected), 221.17BTU/h(with 58W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 5x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 1,0 |
Packet forward rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
desktop, plastic |
Dimensions | 140x85x30 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Certificates | CE |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Switching capacity [Gbps] | 1.6 |
Buffer memory | 750kB |
Housing / case type |
desktop, plastic |
Dimensions | 200x142x40 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0,8A, ~230V AC 50 Hz |
Certificates |
CE, FCC |
Warranty period | 2 years |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100 Mbps RJ-45 with 4 PoE ports |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Switching capacity [Gbps] | 1.6 |
Buffer memory | 750kB |
Housing / case type |
desktop, metal |
Dimensions | 171x98x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 48V DC |
Certificates |
CE, FCC |
Warranty period | 5 years |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|

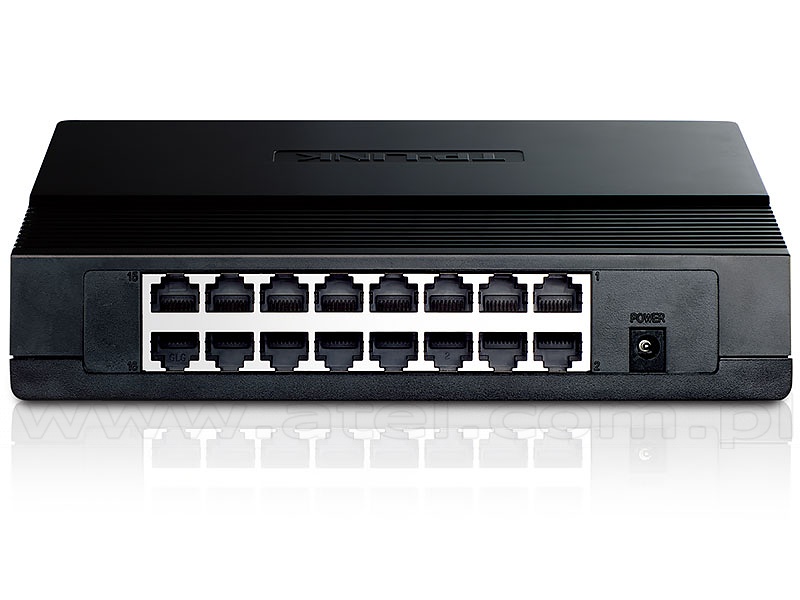

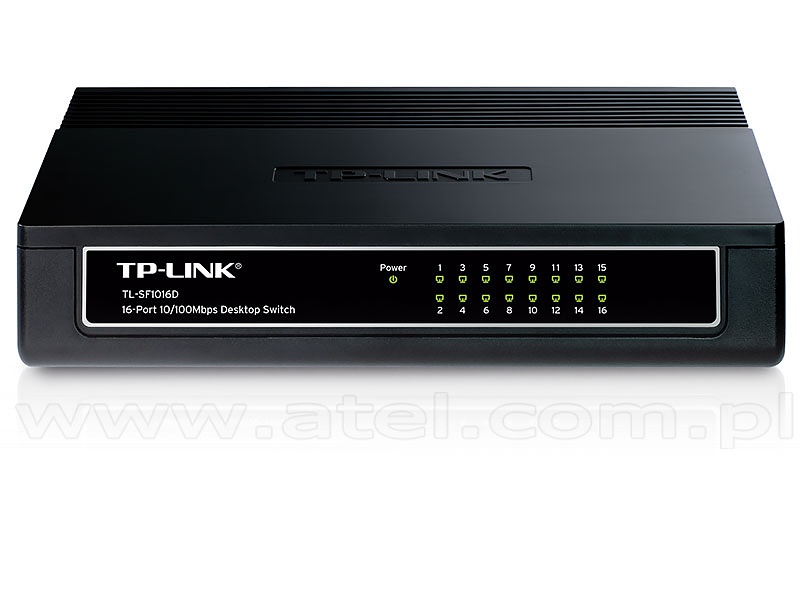

Copper ports | 16x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 3.2 |
Housing / case type |
desktop, plastic |
Dimensions | 285x116x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3x |
---|---|

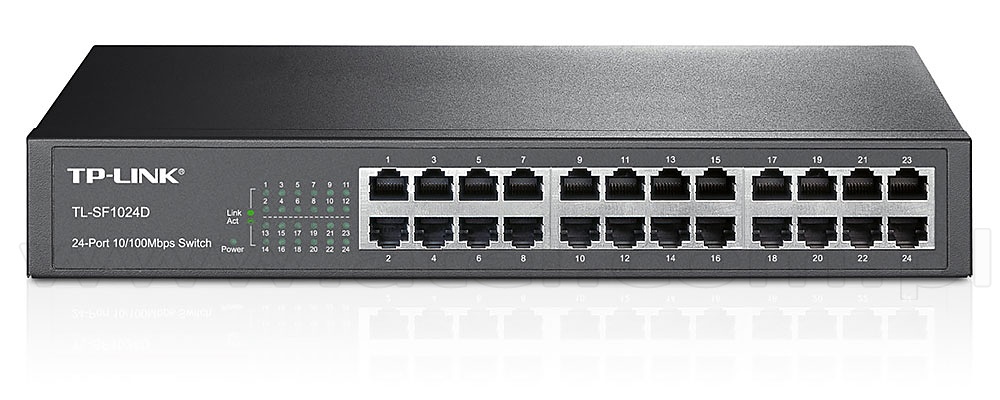

Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate | 4,8 Gbps |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm (handles for 19" rack included) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 4.8 |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, 802.3u, 802.3x |
---|---|
Copper ports | 24x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Mac Address Table | 8K |
Housing / case type | desktop |
Dimensions | 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm) |
Fan Quantity | Fanless |
Power Consumption | Maximum 3.68W (220V/50Hz) |
External Power Supply | External Power Adapter (Output 9VDC / 0.6A) |
Certificates |
FCC, CE, RoHs |
Package Contents |

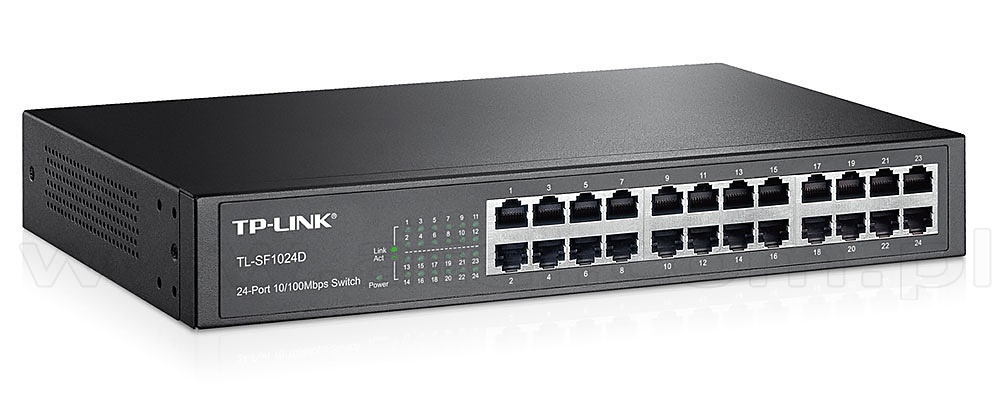

24-Port 10/100Mbps Desktop Switch TL-SF1024M, Power Adapter, Installation Guide |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 48x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 9.6 |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x260x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates | CE |
Warranty period | 5 years |
Manufacturer | TP-Link |

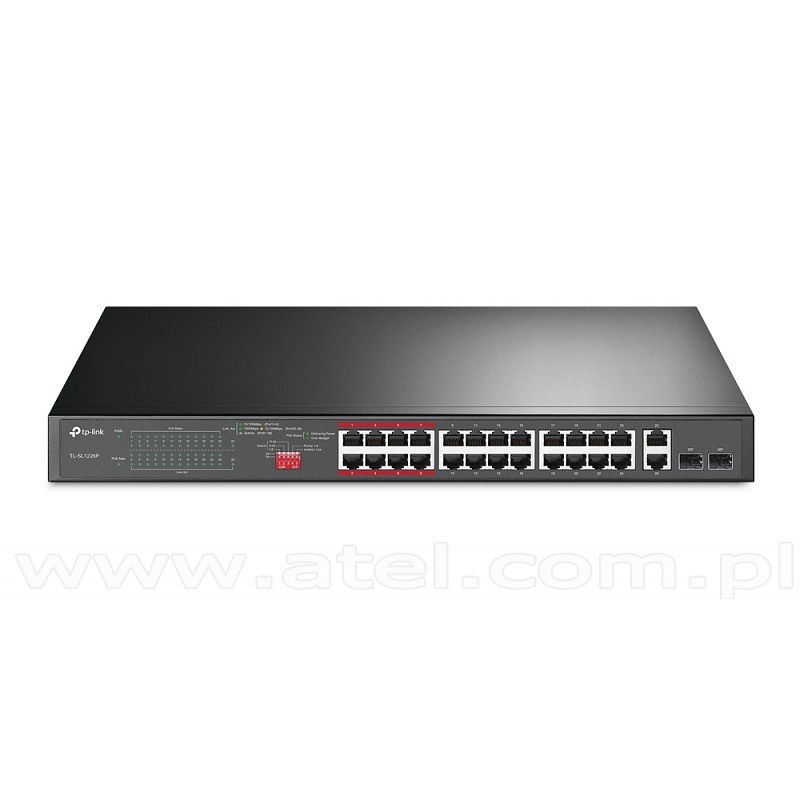

Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports |
24x 10/100/1000 Mbps RJ-45, 2x 10/100/1000 Mbps RJ-45 |
SFP slots | 2× Combo Gigabit SFP Slots |
Standard | 802.3af compliant |
PoE Ports | Port1- Port24 |
Power Supply | 250W |
Advanced Features |
Compatible With IEEE 802.3at/af Compliant PDs, Extend Mode (Up to 250m PoE power supply and data transmission), Priority Mode, Isolation Mode, PD Detection, Intelligent Power Supply, Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control |
Switching architecture / speed | Store and Forward |
Mac Address Table | 8 K |
Dimensions | 440 × 180 × 44 mm |
Fan Quantity | 2 Fans |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Power Consumption |
Maximum (PoE on)- 294W (220V/50Hz), Maximum (PoE off)- 18.32W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/x/ab |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, plastic |
Dimensions | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 3.7W |
Max Heat Dissipation | 12.617 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/i/u/x/ab, IEEE 802.1p |
---|---|

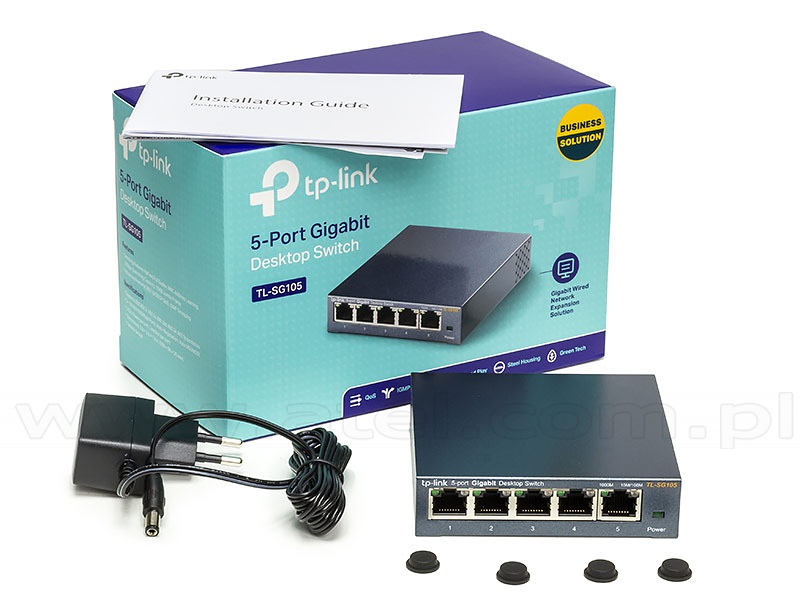

Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, metal |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 5V DC 0.6A, ~230V AC |
Max Power Consumption | 2.776W (220V/50Hz) |
Max Heat Dissipation | 9.466 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 10 |
Housing / case type |
desktop, plastic |
Dimensions | 200x140x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/u/ab/x, CSMA/CD |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
802.3X, QoS (IEEE802.1P), IGMP Snooping |
Housing / case type |
desktop, metal |
Dimensions | 99,8x98x25 mm (3,9 x 3,9 x 1,0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab/x/q/p |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
802.3X, QoS (IEEE802.1P), IGMP Snooping |
Housing / case type |
desktop, metal |
Dimensions | 100x98x25 mm (3,9 x 3,9 x 1,0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Package Contents |

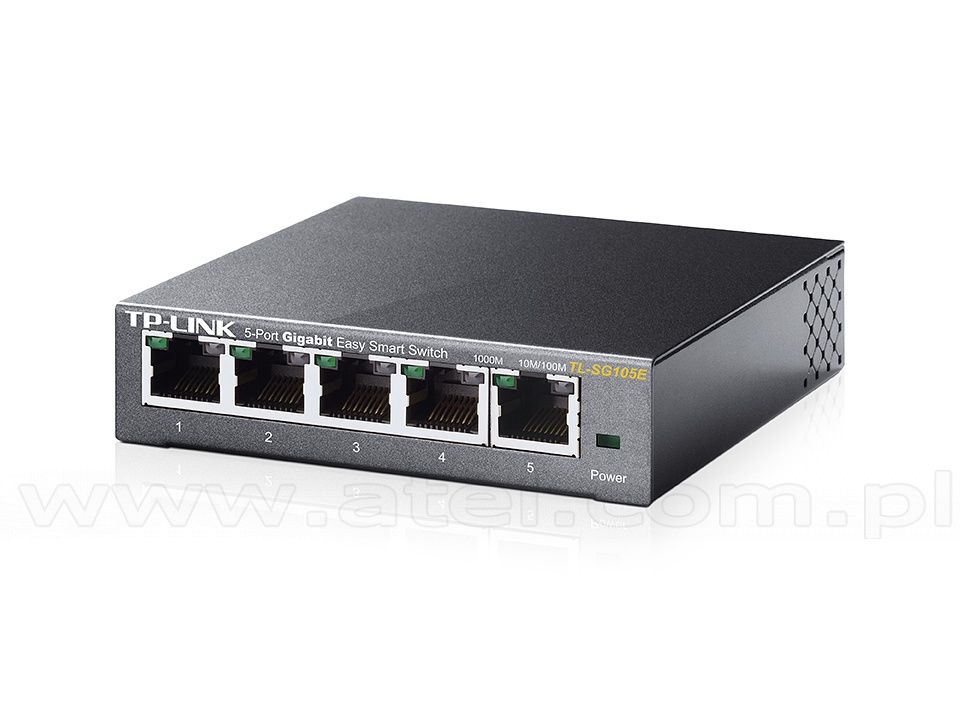

TL-SG105E, Power Cord, Installation Guide, Resource CD, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 5x 10/100/1000 Mbps RJ-45 |
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 56W |
Backbound Bandwidth | 10Gbps |
Mac Address Table | 2K |
Software features | |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store-And-Forward |
Dimensions | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
3.95W(220/50Hz. no PD connected), 64.44W(220/50Hz. with 56W PD connected) |
Max Heat Dissipation |
13.48BTU/h(no PD connected), 219.87BTU/h(with 56W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |

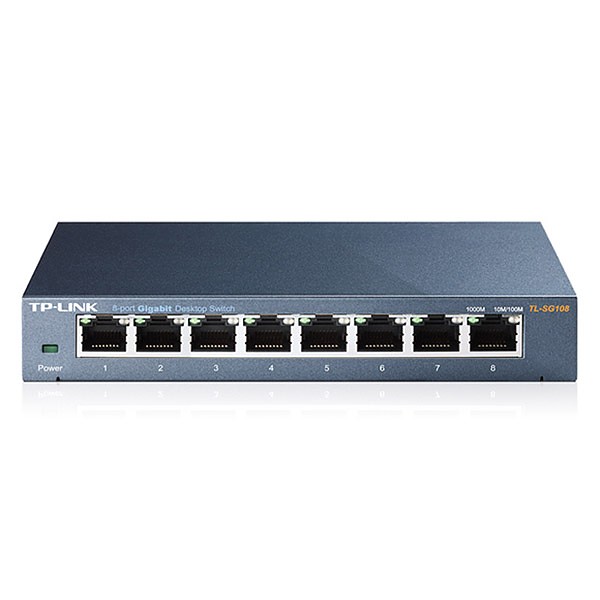

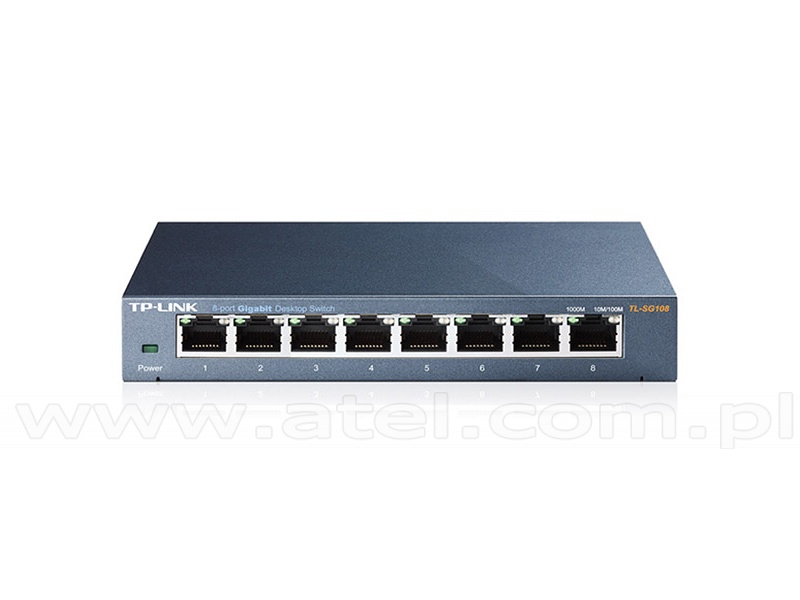

Standards |
IEEE 802.3/i/u/x/ab, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, metal |
Dimensions | 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0.6A, ~230V AC |
Max Power Consumption | 3.7W(220V/50Hz) |
Max Heat Dissipation | 12.617 Btu/hr |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/x/ab |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mp/s |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Housing / case type |
desktop, plastic |
Dimensions | 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm) |
Operating temperature | 0°C ÷ 40°C |
Storage Temperature | -40°C ÷ 70°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external 9V DC 0.6A, ~230V AC |
Max Power Consumption | 3.9W |
Max Heat Dissipation | 13.299 BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |

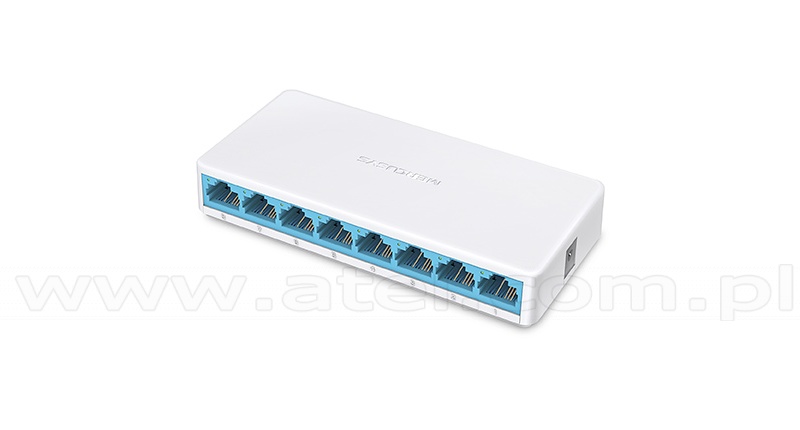

Standards | IEEE 802.3/u |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 250x158x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u/ab |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching capacity [Gbps] | 16 |
Housing / case type |
desktop, plastic |
Dimensions | 200x140x28 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | external 9V DC 1,2A ~230V AC |
Certificates |
CE, FCC |
Manufacturer | TP-Link |
Standards |
IEEE 802.3/802.3u/ 802.3ab/ 802.3x, CSMA/CD |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Housing / case type |
desktop, metal |
Dimensions | 158 x 101 x 25mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 53W |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 171x98x27 mm |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Power Consumption |
Maximum (PoE on)- 58.8W (220V/50Hz), Maximum (PoE off)- 5.8W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |

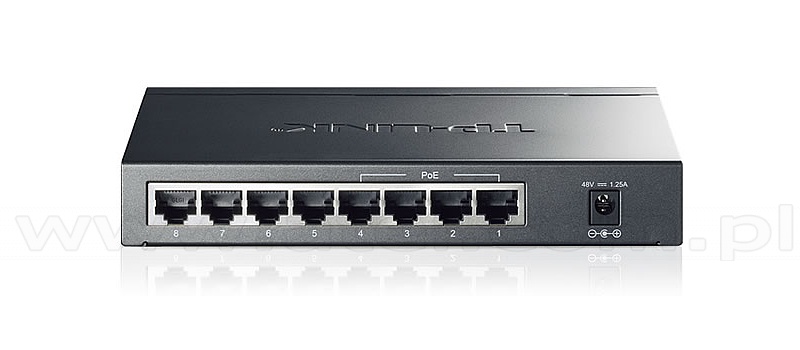

Standards |
EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Standard | 802.3at/af compliant |
PoE Ports | 8 Ports |
Power Supply | 126W |
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 294x180x44 mm (11,6*7,1*1,7 cala) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
9.5 watts (max. no PD connected), 140.1 watts (max. with 126W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |

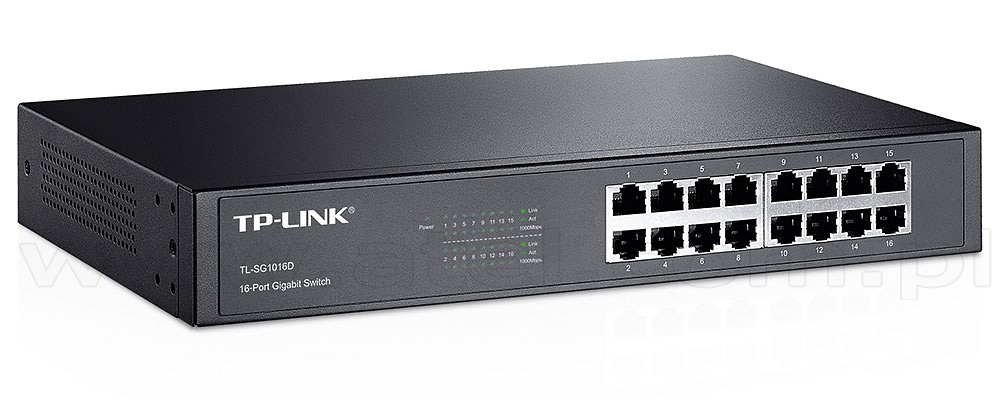

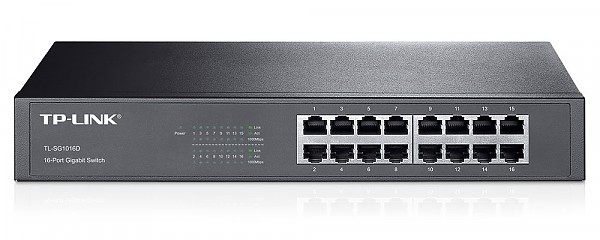

Standards | IEEE 802.3/u 802.3ab 802.3x |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm (handles for 19" rack included) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |

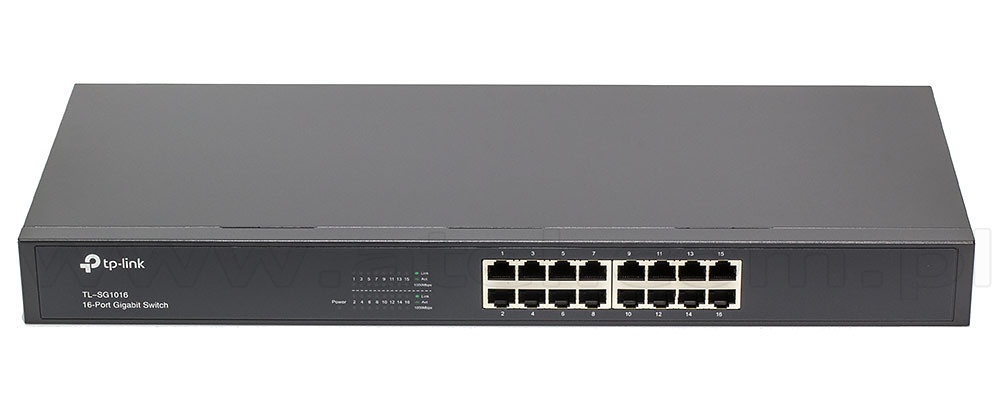

Standards | IEEE 802.3/u |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Performance: | |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
Software features: | |
Advanced Features |
Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping |
Transfer Method | Store and Forward |
Dimensions | 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 12VDC / 1.0A) |
Max Power Consumption | 10W(220V/50Hz) |
Max Heat Dissipation | 34.12BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p/ 802.1q |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Performance: | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.81Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Dimensions | 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter(Output 9VDC/0.6A) |
Max Power Consumption | 9.27W(220V/50Hz) |
Max Heat Dissipation | 31,36BTU/h |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u 802.3ab 802.3x |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
11.6", metal |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Housing / case type |
19", metal |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
---|---|
Copper ports |
8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
Free slots | 1x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3af compliant |
PoE Ports | 8 Ports |
Power Supply | 63W |
Performance | |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 4k |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Housing / case type |
19", metal |
Dimensions | 209 x 126 x 26 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100~240VAC, 50/60Hz, External Power Adapter(Output 48VDC/1.25A) |
Power Consumption |
Maximum (PoE on) 78.13W, Maximum (PoE off) 7.11W |
Fan Quantity | 0 |
Certificates |
CE, FCC, RoHS |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
MAC Address Table | 8K |
Packet Buffer Memory | 2Mb |
Packet Forwarding Rate | 11.9Mpps |
Jumbo Frame | 16KB |
Quality of Service |
Support Port Based/802.1p Based priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Housing / case type |
desktop, metal |
Dimensions | 158x101x25 mm (6.2x4.0x1.0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100-240VAC, 50/60Hz |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Standard | 802.3 af compliant |
PoE Ports | Port 1- Port 4 |
PoE Power Budget | 55W |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 16Gbps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5Mb |
Packet Forwarding Rate | 11.9Mpps |
Jumbo Frame | 16KB |
Quality of Service |
Support Port Based/802.1p Based priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
Housing / case type |
desktop, metal |
Dimensions | 158x101x25 mm (6.2x4.0x1.0 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | External Power Adapter(Output 48VDC / 1.25A) |
Power Consumption |
Maximum (PoE on) 65.2W (220V/50Hz), Maximum (PoE off) 5.2W (220V/50Hz) |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SG108PE, Power Adapter, Installation Guide, Resource CD, Rubber Feet |
System Requirements | MicrosoftŽ WindowsŽ for running Utility |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
Performance | |
Bandwidth/Backplane | 16Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 11.9Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Fan Quantity | Fanless |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/af/at/d/s/w/q/x/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
Free slots | 2x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3at/af compliant |
PoE Ports | 8 Ports |
Power Supply | 116W |
Performance | |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 14.9Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Housing / case type |
19", metal |
Dimensions | 294 x 180 x 44 mm (11,6 x 7,1 x 1,7 cala) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Power Consumption |
Maximum (PoE on) 136.6W (220V/50Hz), Maximum (PoE off) 20.6W (220V/50Hz) |
Fan Quantity | 1 |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
Free slots | 2x 1000 Mbps SFP |
PoE Ports (RJ45) | |
Standard | 802.3af compliant |
PoE Ports | 8 Ports |
Power Supply | 53W |
Performance | |
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 14.9Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Housing / case type |
19", metal |
Dimensions | 209 x 126 x 26 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
100~240VAC, 50/60Hz, External Power Adapter(Output 48VDC/1.25A) |
Power Consumption |
Maximum (PoE on) 64.9W, Maximum (PoE off) 9.9W |
Fan Quantity | 0 |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 32Gbps |
MAC Address Table | 8K |
Packet Buffer Memory | 512KB |
Packet Forwarding Rate | 23.8Mpps |
Jumbo Frame | 10240Bytes |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
Fan Quantity | 1 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 8, PoE Power Budget 110W, Power Supply 53W |
Performance: | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.81Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
14.72W (110V/60Hz with no PD connected), 131.42W (110V/60Hz with 110W PD connected) |
Max Heat Dissipation |
50.22 BTU/h (with no PD connected), 448.41 BTU/h (with 110W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |

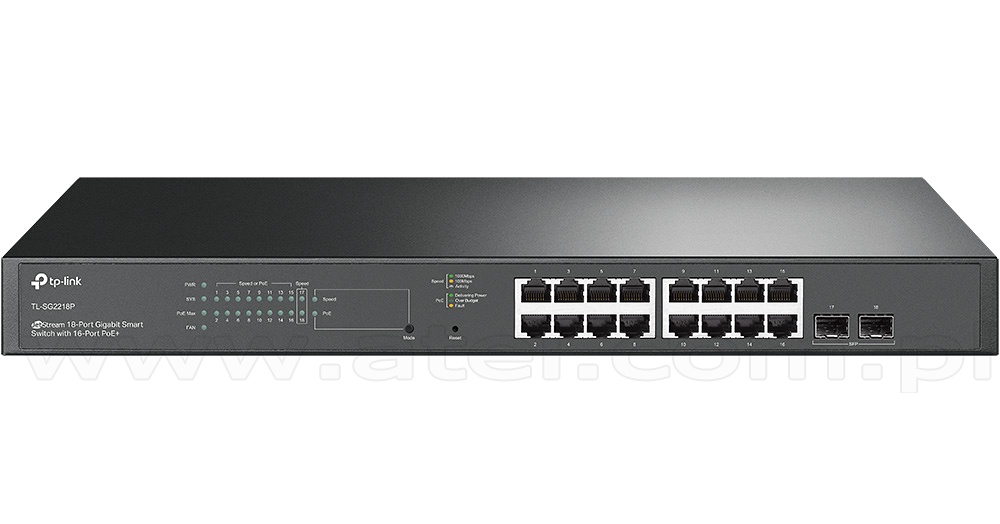

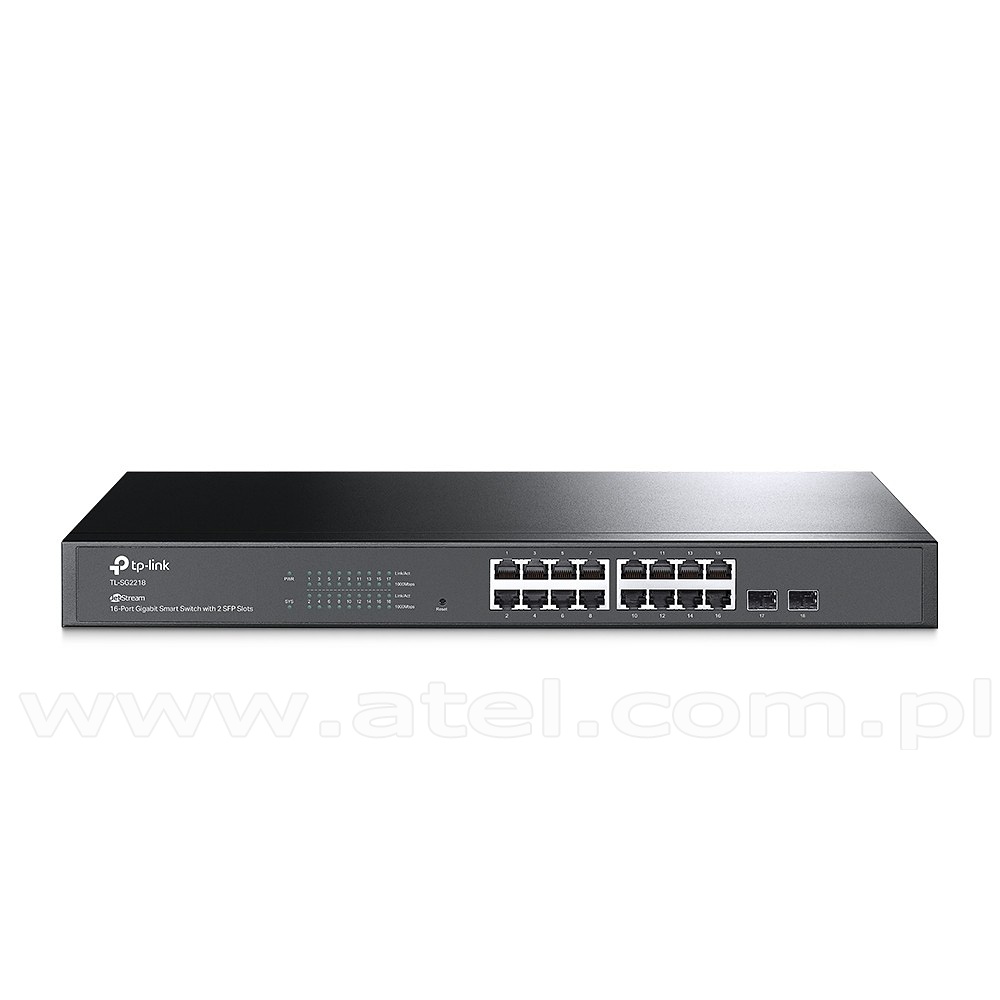

Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 16x 10/100/1000 Mbps RJ-45 |
SFP Ports | 2 Gigabit SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 192W |
Performance: | |
Switching Capacity | 36 Gb/s |
Packet Forwarding Rate | 23,8 Mb/s |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
18.73 W (220/50Hz. no PD connected), 217.22 W (220/50Hz. with 192W PD connected) |
Max Heat Dissipation |
63.89 BTU/h (no PD connected), 741.15 BTU/h (with 192W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports |
16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
SFP Ports | 2 Gigabit Combo SFP Ports |
Fan Quantity | 2 |
PoE Ports |
Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 192W |
Performance: | |
Backup Bandwidth | 7.2 Gbps |
MAC Address Table | 8K |
Software features: | |
Quality of Service |
Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
Management |
Web-based GUI, Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
Power Consumption |
18.73 W (220/50Hz. no PD connected), 217.22 W (220/50Hz. with 192W PD connected) |
Max Heat Dissipation |
63.89 BTU/h (no PD connected), 741.15 BTU/h (with 192W PD connected) |
Certificates |
CE, FCC, RoHS |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/x/d/s/w/q/p |
---|---|
Copper ports | 24x 10/100 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) and 4x 10/100/1000 Mbps RJ-45 |
Free slots | 2x 100/1000 Mbps SFP combo |
PoE+ Ports | |
(RJ45) Standard | 802.3at/af compliant |
PoE+ Ports | 24 Ports |
Power Supply | 180W |
Performance | |
Bandwidth/Backplane | 12.8Gbps |
MAC Address Table | 8k |
Packet Forwarding Rate | 9.5Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Housing / case type |
19", metal |
Dimensions | 440x220x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Fan Quantity | 2 |
Certificates |
CE, FCC, RoHS |
Package Contents |
TL-SL2428, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
System Requirements |
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control |
Flow-Control, Back-Pressure |
Switching Capacity | 48Gbps |
MAC Address Table | 8K |
Packet Buffer Memory | 512KB |
Packet Forwarding Rate | 35.7Mpps |
Jumbo Frame | 10240Bytes |
Forwarding rate |
14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 11.6x7.1x1.7 in. (294x180x44 mm) |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/i/u/ab/z/x/d/s/w/q/p |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
Free slots | 4x 100/1000 Mbps SFP |
PoE+ Ports | |
(RJ45) Standard | 802.3at/af compliant |
PoE+ Ports | 48 Ports |
Power Supply | 384W |
Performance | |
Bandwidth/Backplane | 104Gbps |
MAC Address Table | 16k |
Packet Forwarding Rate | 77.4Mpps |
Software features | |
Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features |
IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security |
Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management |
Web-based GUI and CLI management, SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), DHCP/BOOTP Client, DHCP Filtering, CPU Monitoring, Port Mirroring, Time Setting- SNTP, System Diagnose- VCT, SYSLOG & Public MIBS |
Firmware Upgrade | TFTP & Web |
Housing / case type |
19", metal |
Dimensions | 440x330x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Fan Quantity | 3 |
Certificates |
CE, FCC, RoHS |
Package Contents |
T1600G-52PS, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
System Requirements |
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
---|---|
Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Free slots | 2x 1000 Mbps SFP |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
Transmission security / quality |
QoS, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP |
Management |
WWW, console, telnet, ssh, SNMP |
Switching capacity [Gbps] | 20 |
MAC address memory | 8000 |
Housing / case type |
11.6", metal, 19" brackets included |
Dimensions | 294x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, 100~230VAC 50/60Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
PoE Ports (RJ45) | 24 |
Standard | 802.3at/af compliant |
Power Supply | 320W |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
Transmission security / quality |
QoS CoS/DSCP, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP, Voice VLAN |
Management |
WWW/HTTPS, console, telnet, ssh, SNMP, RMON, LLDP, LLDP-Med |
Switching capacity [Gbps] | 48 |
MAC address memory | 8000 |
Housing / case type |
19", metal |
Fans | 3 |
Dimensions | 440x330x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC |
Warranty period | 5 years |

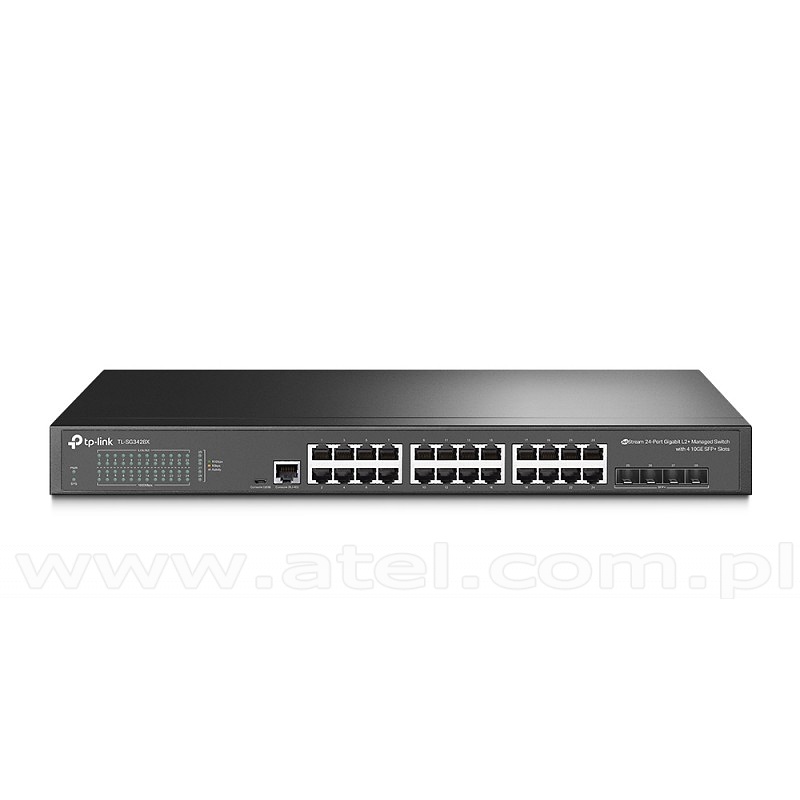

Manufacturer | TP-Link |
Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots | 4 fixed 10G SFP+ Slots |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
Transmission security / quality |
QoS CoS/DSCP, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP, Voice VLAN |
Management |
WWW/HTTPS, console, telnet, ssh, SNMP, RMON |
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables |
TXM431-SR, TXM431-LR, TXC432-CU1M, TXC432-CU3M |
Max Number of Stacking Ports Installable | 2 SFP+ |
No. of Units Per Stack | Up to 6 units |
Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
Switching Capacity | Up to 128Gbps for a standalone switch |
Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
MAC Address Table | 16K |
Packet Buffer Memory | 1.5 Mbits |
Jumbo Frame | 9KB |
Number of Static Routes | 32 IPv4 |
Number of IP Interfaces | 16 |
Housing / case type |
19", metal |
Fan Quantity | 0 |
Dimensions | 440x180x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Package Contents |
Switch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
---|---|
Copper ports | 48x 10/100/1000 Mbps RJ-45 |
Free slots | 4x 1000 Mbps SFP |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
Transmission security / quality |
QoS CoS/DSCP, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP, Voice VLAN |
Management |
WWW/HTTPS, console, telnet, ssh, SNMP, RMON |
Bandwidth/Backplane | 104Gbps |
Packet Forwarding Rate | 77.4Mpps |
MAC Address Table | 16k |
Jumbo Frame | 9216 Bytes |
Housing / case type |
19", metal |
Dimensions | 440x220x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Package Contents |
Switch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
---|---|
Copper ports | 24x 10/100/1000 Mbps RJ-45 |
Free slots |
4 combo gigabit SFP Slots, Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots), 1 Console Port |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
L3 Features |
Wire-speed IP forwarding, Static Routing, RIP v1, v2, OSPF v2, ECMP, PIM-SM/PIM-DM/IGMP, DHCP Server/Relay, ARP Proxy, VRRP |
Transmission security / quality |
QoS CoS/DSCP, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP, Voice VLAN |
Management |
WWW/HTTPS, console, telnet, ssh, SNMP, RMON, LLDP, LLDP-Med |
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables |
TXM431-SR, TXM431-LR, TXC432-CU1M, TXC432-CU3M |
Max Number of Stacking Ports Installable | 2 SFP+ |
No. of Units Per Stack | 8 |
Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
Switching capacity [Gbps] | Up to 128Gbps for a standalone switch |
Bandwidth/Backplane | Up to 320Gbps when 8 units in the stack |
MAC address memory | 32K |
Housing / case type |
19", metal |
Fans | 4 |
Dimensions | 440x330x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Warranty period | 2 years |
Manufacturer | TP-Link |
Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3an, 802.3ae, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p |
---|---|
Copper ports | 24x 100/1000/10G RJ-45 |
Free slots | 4 10G SFP+ Slots |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
VLAN support |
port-based, tag-based, MTU VLAN |
I/O throughput management |
Port Trunking, Bandwidth Control |
Transmission security / quality |
QoS CoS/DSCP, Port Mirroring, Broadcast Storm Control, Mac Address Filtering, Spanning Tree, IGMP, Voice VLAN |
Management |
WWW/HTTPS, console, telnet, ssh, SNMP, RMON |
Switching Capacity | Up to 320Gbps |
Packet Forwarding Rate | Up to 238.1Mpps for a standalone switch |
MAC Address Table | 16K |
Packet Buffer Memory | 2 Mbits |
Jumbo Frame | 9KB |
Number of Static Routes | 32 IPv4 |
Number of IP Interfaces | 16 |
Housing / case type |
19", metal |
Fan Quantity | Two Smart Fans |
Dimensions | 440x220x44 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
internal, ~230V AC 50Hz |
Certificates |
CE, FCC, RoHS |
Package Contents |
Switch, Power Cord, Quick Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
Warranty period | 5 years |
Manufacturer | TP-Link |
Port | 1x 1000 Mbps LC SM |
---|---|
TX wavelength | 1310 nm |
RX wavelength | 1550 nm |
Max. distance | 10 km |
Cable type | 9/125 um Single-mode |
Module type | SFP |
Warranty | 5 years |
Manufacturer | TP-Link |
Port | 1x 1000 Mbps LC SM |
---|---|
TX wavelength | 1550 nm |
RX wavelength | 1310 nm |
Max. distance | 10 km |
Cable type | 9/125 um Single-mode |
Module type | SFP |
Warranty | 5 years |
Manufacturer | TP-Link |
Port | 1x 1000 Mbps LC SM |
---|---|
TX wavelength | 1310 nm |
RX wavelength | 1550 nm |
Max. distance | 10 km |
Cable type | 9/125 um Single-mode |
Module type | SFP |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards and Protocols |
IEEE 802.3ae, CSMA/CD, TCP/IP |
---|---|
Wave Length | 850nm |
Power Supply | 3.3V |
Fiber Type | 50/125um or 62.5/125um Multi-mode |
Max. Cable Length | 300m or 33m |
Data Rate | 10Gbps |
Port Type | LC/UPC |
Transmission power |
-1.0dBm(Max), -7.3dBm(Min) |
Reception power |
-1.0dBm(Max), -9.9dBm(Min) |
Sensitivity | -11,1dBm |
Safety & Emission |
FCC, CE |
Operating Temperature | 0℃~70℃ (32℉~158℉) |
Storage Temperature | -40℃~80℃ (-40℉~176℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards and Protocols |
IEEE 802.3ae, CSMA/CD, TCP/IP |
---|---|
Wave Length | 1310nm |
Power Supply | 3.3V |
Fiber Type | 9/125um Single-mode |
Max. Cable Length | 10km |
Data Rate | 10Gbps |
Port Type | LC/UPC |
Transmission power |
0.5 dBm(Max), -8.2dBm(Min) |
Reception power |
0.5dBm(Max), -14.4dBm(Min) |
Sensitivity | -12.6dBm |
Safety & Emission |
FCC, CE |
Operating Temperature | 0℃~70℃ (32℉~158℉) |
Storage Temperature | -40℃~80℃ (-40℉~176℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Warranty | 5 years |
Manufacturer | TP-Link |
Environment | |
---|---|
Operating Temperature | 0℃~70℃ (32℉~158℉) |
Storage Temperature | -40℃~80℃ (-40℉~176℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Data Rate | 10Gbps |
Cable Length | 1m |
Environment | |
---|---|
Operating Temperature | 0℃~70℃ (32℉~158℉) |
Storage Temperature | -40℃~80℃ (-40℉~176℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Data Rate | 10Gbps |
Cable Length | 3m |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
Interface |
1 Fixed Ethernet WAN Port, 1 Fixed Ethernet LAN Port, 3 Changeable Ethernet WAN/LAN Ports |
Network Media |
10BASE-T UTP category 3, 4, 5 cable (maximum 328.1feet), EIA/TIA-568 100Ω STP (maximum 328.1feet), 100BASE-TX UTP category 5, 5e cable (maximum 328.1feet), EIA/TIA-568 100Ω STP (maximum 328.1feet) |
Flash | 4MB |
DRAM | 64MB |
LED |
PWR, SYS, WAN, LAN, WAN/LAN |
Button | Reset Button |
Dimensions (W X D X H) | 8.2*5.0*1.0in. (209*126*26mm) |
Power Supply |
Internal Universal Power Supply, AC100-240V~50/60Hz input |
PERFORMANCE: | |
Concurrent Session | 10000 |
BASIC FUNCTIONS: | |
DHCP |
DHCP Server/Client, DHCP Address Reservation |
MAC Clone | Modify WAN/LAN MAC Address |
Switch Setting |
Port Mirror, Rate Control, Port Configuration, Port VLAN |
WAN Connection Type |
Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
ADVANCED FUNCTIONS: | |
ACL | IP/MAC/URL/WEB Filtering |
Forwarding |
Virtual Server, Port Triggering, DMZ |
Load Balance |
Policy Routing, Link Backup |
Routing | Static Routing |
Security |
FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
Traffic Control |
Bandwidth Control, Session Limit |
MANAGEMENT: | |
Maintenance |
Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
Service |
PPPoE Server, E-Bulletin, Dynamic DNS, UPnP |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TL-R470T+, Power Cord, RJ-45 Ethernet Cable, Quick Installation Guide, Resource CD |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 5 years limited warranty. Advanced replacement service is available. |
Standards |
IEEE 802.3/u/x, IEEE 802.1X |
---|---|
Ports |
2x 10/100 Mbps RJ-45 (WAN), 3x 10/100 Mbps RJ-45 (LAN) |
Protocols |
TCP/IP, PPPoE, DHCP, ICMP |
Addressing |
static IP, DHCP |
VLAN support | port-based (LAN) |
I/O throughput management | Bandwidth Control |
LAN security |
firewall, DNS filtering, MAC address filtering, 802.1x authorization (WAN), attack protection |
Router features |
static routes, NAT, DMZ, virtual servers, load balancing |
Network features |
UPnP, DDNS, VPN pass-through, L2TP, PPTP |
Additional features | access control based on content or/and time of day |
Power |
internal, ~230V AC 50Hz |
Dimensions | 294x180x44 mm |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Certificates |
CE, FCC |
Warranty | 5 years |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Interface |
4 10/100Mbps RJ45 Ports, 1 RJ11 Port, 1 USB 2.0 Port |
Button |
1 Power On/Off Button, 1 WPS/Reset Button, 1 Wi-Fi On/Off Button |
External Power Supply | 12VDC/1A |
IEEE Standards | IEEE 802.3, 802.3u |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 7.7*5.1*1.4 in. (195×130×36mm) |
Antenna Type |
Omni directional, Detachable, Reverse SMA |
Antenna Gain | 2 * 5dBi |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
Frequency | 2.400-2.4835GHz |
EIRP | <20dBm (EIRP) |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
Quality of Service | Bandwidth Control |
Port Forwarding |
Virtual server, DMZ, ACL(Access Control List) |
VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs |
Advanced Features |
Ethernet WAN (EWAN), Parent Control, Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / URL Filtering |
USB Sharing |
Storage Sharing, FTP Server, Media Server, Print Server |
Management |
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, |
Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tool | |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TD-W9970, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Standards |
IEEE 802.11n (draft 2.0), IEEE 802.11b/g |
---|---|
Ports |
4x 10/100 Mbps RJ-45 (LAN), 1x RJ-11 |
ADSL Feauture |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) ITU-T G.994.1 (G.hs). ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis), Supports Annex A/L/M |
Frequency range | 2400 MHz ÷ 2483,5 MHz |
Modulation |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Operating modes | AP Router |
Max. speed | 300 Mbps |
Max. output power | 20 dBm |
Antenna |
Omni directional, Detachable, Reverse SMA |
WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
LAN security |
ACL, firewall, ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control |
Network features |
VPN pass-through, DDNS, UPnP |
Router features |
virtual servers, NAT, DMZ host, static routes |
WLAN features |
2x2 MIMO, CCA |
Auto MDI/MDIX | yes |
Addressing |
DHCP client, DHCP server |
Dimensions | 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm ) |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
5% ÷ 90%, non-condensing |
Certificates |
CE, FCC |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Interface |
4 10/100Mbps RJ45 Ports, 1 RJ11 Port |
Button |
1 Power On/Off Button, 1 WiFi On/Off Button, 1 WPS Button |
External Power Supply | 12VDC/1A |
IEEE Standards | IEEE 802.3, 802.3u |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 7.7×5.1×1.4in.(195×130×36mm) |
Antenna Type |
Omni directional, Detachable, Reverse SMA |
Antenna Gain | 2x3dBi |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11n, 802.11g, 802.11b |
Frequency | 2.400-2.4835GHz |
EIRP | <20dBm(EIRP) |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
Quality of Service | Bandwidth Control |
Port Forwarding |
Virtual server, DMZ, ACL(Access Control List) |
VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs, |
Advanced Features |
Parental Control, Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;, Dynamic Host Configuration Protocol (DHCP), DHCP reservation;, Network Address Translation (NAT); PVC/Ethernet Port Mapping, VLAN, 802.1P, Static Routing, RIP v1/v2 (optional);, DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Management |
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL, for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TD-W8960N, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Quick Installation Guide, Resource CD, Power Adapter |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP |
---|---|
System bus | PCI Express |
Port | 1x 10/100/1000 Mbps RJ-45 |
Drivers |
Obsługa systemów Windows XP 32/64bit, Vista 32/64bit, Windows7 32/64bit |
Warranty period | 24 months |
Manufacturer | TP-Link |
Standards | IEEE 802.3ab/z/i/u |
---|---|
Port #1 | 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) |
Port #1 max. distance | 100 m |
Port #1 cable type | UTP/STP cat. 5 |
Port #2 | 1000 Mbps SC SM |
TX wavelength | 1310 nm |
RX wavelength | 1310 nm |
Port #2 max. distance | 15 km |
Port #2 cable type | 8.3/125, 8.7/125, 9/125, 10/125 µm |
Housing / case type | desktop / slot module |
Dimensions | 94.5x73x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external, 9V/0.6A |
Max Power Consumption | 1.8W |
Certificates |
FCC Class B, CE, VCCI-B |
Warranty period | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Port #1 | 10/100 Mbps RJ-45 |
Port #1 max. distance | 100 m |
Port #1 cable type | UTP/STP cat. 5 |
Port #2 | 100 Mbps SC SM |
TX wavelength | 1310nm |
RX wavelength | 1310nm |
Port #2 max. distance | 20km |
Port #2 cable type | 8.3/125, 8.7/125, 9/125, 10/125 µm |
Max. throughput [Gbps] | 0.2 |
Housing | desktop |
Dimensions | 94,5x73x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external, 9VDC 600mA, ~230V AC 50Hz |
Max Power Consumption | 2.4W |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Port #1 | 10/100 Mbps RJ-45 |
Port #1 max. distance | 100 m |
Port #1 cable type | UTP/STP cat. 5 |
Port #2 | 100 Mbps SC SM |
TX wavelength | 1310 nm |
RX wavelength | 1550 nm |
Port #2 max. distance | 20 km |
Port #2 cable type | 8.3/125, 8.7/125, 9/125, 10/125 ľm |
Wave Division Multiplexing (WDM) | yes |
Max. throughput [Gbps] | 0.2 |
Housing / case type | desktop |
Dimensions | 94,5x73x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external, 9V/0.6A |
Max Power Consumption | 1.44W |
Warranty period | 5 lat |
Manufacturer | TP-Link |
Standards | IEEE 802.3/u |
---|---|
Port #1 | 10/100 Mbps RJ-45 |
Port #1 max. distance | 100 m |
Port #1 cable type | UTP/STP cat. 5 |
Port #2 | 100 Mbps SC SM |
TX wavelength | 1550 nm |
RX wavelength | 1310 nm |
Port #2 max. distance | 20 km |
Port #2 cable type | 8.3/125, 8.7/125, 9/125, 10/125 ľm |
Wave Division Multiplexing (WDM) | yes |
Max. throughput [Gbps] | 0.2 |
Housing | desktop |
Dimensions | 94,5x73x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power |
external, 9V/0.6A |
Max Power Consumption | 1.49W |
Warranty | 5 years |
Manufacturer | TP-Link |
Standards | IEEE 802.3/ab/z/i/u |
---|---|
Port #1 | 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) |
Port #1 max. distance | 100 m |
Port #1 cable type | UTP/STP cat. 5 |
Port #2 | SFP |
Link Fault Pass-thorugh (LFP) | no |
Housing / case type | desktop / slot module |
Dimensions | 94.5x73x27 mm |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 9V/0.6A |
Max Power Consumption | 1.7W |
Certificates |
FCC Class B, CE |
Warranty period | 5 years |
Manufacturer | TP-Link |
Capacity | 14 media converters |
---|---|
AC Power Supply |
Input 100-240V~50/60Hz 3.0A(Max), Output +9.5VDC 9.5A(Max), optional redundant power supply |
Operating Temperature | 0°C~40°C |
Storage Temperature | -40°C~70°C |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Weight | 8kg |
Dimensions | 482x358x86 mm |
Certificates | FCC Class A & CE Mark |
Warranty | 5 years |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Interface |
4 10/100/1000Mbps LAN Ports, 2 RJ-11 (VoIP/GSM) Ports, 1 GPON SC/UPC Port, 1 USB 2.0 Port |
Dimensions (W X D X H) | 217,7x155,5x37mm |
Antenna | 2 Detachable Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7,8,10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.3, 802.3u, 802.1Q, 802.1p |
Interface |
1x10/100/1000Mbps RJ45, 1 SC/APC Port |
Button |
1 Power On/Off Button, 1 RESET Button |
External Power Supply | 9VDC / 0.6A |
Dimensions (W X D X H) | 4.0x1.5x4.2 in.(102.7 x 37.9 x 106.9mm) |
Distance | 0~ 20Km |
Signal Rate |
Upstream 1.244Gbps, Downstream 2.488Gbps |
GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
Optical Module | Class C+ |
Receiver | APD-TIA |
Transmitter | DFB Laser |
Wavelength |
Upstream 1310nm, Downstream 1490nm |
SOFTWARE FEATURES: | |
Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
Security |
AES Encryption, Packet Filter based on VLAN |
Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
IGMP |
IGMP v2/v3, IGMP Snooping/Proxy |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TX-6610, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |
Service Port | 8*PON port (SFP Slot) |
---|---|
Management Port |
1*RJ45 Console port, 1*USB Type-C console port, 1*100/1000BASE-TX out-band management port |
PON Features |
Compatible with ITU-T G.984.x, G.988 standards, Standard OMCI management function, Support 1-128 splitting ratio for each PON port, Support AES 128 encryption for uplink and downlink data transmission. DBA algorithm, support 5 DBA types ONU management (remote configuration, upgrade, monitor), ONU authentication |
Port |
Port enable/disable, Speed and duplex mode configuration, 802.3x flow control configuration, Broadcast/Multicast/Unicast storm control, Port mirror |
MAC Address |
MAC address table 64K, Aging time configuration, Support MAC address limits, Support 10K Static MAC address, Support 256 black hole MAC address |
Spanning Tree | RSTP |
LACP |
Support 802.1ad link aggregation, Load balance based on S-MAC, D-MAC, S-IP, D-IP |
VLAN |
VLAN ID 1~4094, Support 802.1q VLAN, The ports support Access, Trunk and Hybrid mode, Support PVID configuration, Support QinQ, Support VLAN translation |
Multicast |
IGMP v1/v2 snooping, IGMP fast leave, IGMP snooping querier, Multicast VLAN |
QoS |
Support 802.1p QoS, 4 priority queues, Priority schedule mode- SP, WRR, Support basic ACL, advance ACL and link ACL, Basic ACL- source IP, Advance ACL- source IP, destination IP, source port, destination port, DSCP and IP message type, Link ACL- source MAC, destination MAC, VLAN ID, Ethernet type, Support 802.1p priority, VLAN ID, TOS, DSCP remark. |
Management & maintenance |
Support CLI management, Support dual image, Support EMS management based on SNMP, Console port, Management port, Inbound and outbound management, Operation Status monitor, 2 levels account management, Configuration backup and load, Firmware upgrade through FTP, Log management, Real-time statistic, OLT and ONT optical module diagnostics |
Redundancy Design |
Dual power supply Support, AC, DC, AC+DC power input |
Power Consumption | Max. 70W |
Weight | 4kg |
Max. splitting ratio | 1-128 |
Transmission Distance | 20km |
Data rate |
Downstream- 2.5Gbps, Upstream- 1.25Gbps |
Wavelength |
Tx 1490nm, Rx 1310nm |
Interface type | SC/UPC |
Fiber type | 9/125μm SMF (Single Mode Fiber) |
Tx power |
Class B+ 1.5dBm~5dBm, Class C+ 3dBm~7dBm |
Rx sensitivity |
Class B+ -28dBm, Class C+ -30dBm |
Saturation power |
Class B+ -8dBm, Class C+ -12dBm |
Housing / case type |
19", metal |
Fan Quantity | 4 Fans |
Dimensions | 440mm(L)*391mm(W)*44mm(H) |
Operating temperature | 0°C ÷ 50°C |
Storage temperature | -40°C ÷ 85°C |
Operating humidity |
5% ÷ 90%, non-condensing |
Power |
AC 90V~240V, 50/60Hz, DC -36V~-72V |
Manufacturer | TP-Link |
Flash memory | 1 MB |
---|---|
RAM memory | 2 MB |
Standards | IEEE 802.3/u |
Ports |
1x 10/100 Mbps RJ-45, 1x C36 (Centronics) |
Protocols |
TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB (over IP), RAW TCP |
Supported OS |
Windows 95/98/98SE/Me/NT 4.0/2000/XP/Vista, Mac OS 8.0 or higher, UNIX/Linux, NetWare 3.12 or higher (Bindery/NDS) |
Addressing |
fixed IP, DHCP client |
Management |
WWW, application, telnet, HP Web JetAdmin / HP JetAdmin |
Other features |
POST (Power On Self Test), E-mail Alert |
Power |
3,3V DC 2A, ~230V AC 50 Hz |
Dimensions | 73×65×30 mm |
Operating temperatures | 0°C ÷ 50°C |
Operating humidity |
0% ÷ 90%, non-condensing |
Certificates |
CE, FCC |
Warranty | 24 months |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Button | Reset |
Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
Adapter Output | 9.0V/0.6A |
Dimensions( H X W X D ) | 3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm) |
WIRELESS FEATURES: | |
Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 150Mbps |
Frequency | 2.4-2.4835GHz |
Wireless Encryption |
WEP, WPA/WPA2-PSK |
Security | 128 bit AES encryption with SSL/TLS |
CAMERA: | |
Image Sensor | 1/2.9“ |
Resolution | 1080p Full HD |
Lens | F/NO 2.4; Focal Length 4mm |
Viewing Range |
360° horizontal, 114° vertical |
Night Vision | 850 nm IR LED up to 30 ft |
ACTIVITY NOTIFICATIONS | |
Input Trigger | Motion detection |
Output Notification | Push notification |
AUDIO: | |
Audio Communication | 2-Way |
Audio Input | Built-in microphone |
Audio Output | Built-in speaker |
OTHERS: | |
Certification |
FCC, IC, CE, NCC |
Package Contents |
Tapo Pan/Tilt Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base |
System Requirements |
iOS 9+, Android 4.4+ |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Button | Reset |
Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
Adapter Output | 9.0V/0.6A |
Dimensions( H X W X D ) | 67,6 x 54,8 x 98,9 mm |
WIRELESS FEATURES: | |
Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 150Mbps |
Frequency | 2.4-2.4835GHz |
Wireless Encryption |
WEP, WPA/WPA2-PSK |
Security | 128 bit AES encryption with SSL/TLS |
CAMERA: | |
Image Sensor | 1/3.2“ |
Resolution | 1080p Full HD |
Lens | F/NO 2.0; Focal Length 3.3mm |
Night Vision | 850 nm IR LED up to 30 ft |
ACTIVITY NOTIFICATIONS | |
Input Trigger | Motion detection |
Output Notification | Push notification |
AUDIO: | |
Audio Communication | 2-Way |
Audio Input | Built-in microphone |
Audio Output | Built-in speaker |
OTHERS: | |
Certification |
FCC, IC, CE, NCC |
Package Contents |
Tapo Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, |
System Requirements |
iOS 9+, Android 4.4+ |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
---|---|
Frequency range | 2,4GHz |
Weight | 138g |
Lamp Base | E27 |
Typical Lumen Output | 800lm |
Input Power (Actual power draw in Watts) | 10W |
Color Temperature | 2700K |
Rated input Voltage | 120VAC 60Hz |
Beam Angle | 230 Degree typical |
Dimmable | Yes (via app and cloud only) |
Color Changing | Yes (via app and cloud only) |
Operating Temperature | -15°C~40°C (5℉~104℉) |
Operating Humidity | 10%~90% non-condensing |
Package Contents |
KL130, Installation Guide |
System Requirements |
Android 4.4 or higher, iOS 10 or higher |
Certificates |
CE, RoHS |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, Bluetooth 4.2 (for onboarding only) |
Dimensions ( H x D x W ) | 2.0* 2.8* 1.6 in (51*72.0*40 mm) |
Buttons |
Power button, Status LED |
WIRELESS FEATURES: | |
Frequency | 2.4-2.4835GHz |
OTHERS: | |
Certification |
CE, RoHS |
Package Contents |
Smart Plug Tapo P100, Quick Start Guide |
System Requirements |
Android 4.4 or higher, iOS 9.0 or higher |
Environment |
Operating Temperature 0°~35°, Operating Humidity 10%~90% non-condensing |
WORKING STATUS: | |
Maximum Load |
2300 W, 10 A |
Power Requirements | AC 220-240 V~50/60 Hz 10 A |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols | IEEE 802.11b/g/n |
Plug Type | EU |
Wireless Type |
2,4GHz, 1T1R |
Button |
Power button, Settings button |
Dimensions ( W x D x H ) | 3.9 x 2.6 x 2.5 in. ( 100.3 x 66.3 x 64 mm ) |
Weight | 131,8g |
Input voltage | 100 - 240VAC |
Output voltage | 100 - 240VAC |
Maximum Load | 16A |
Maximum Power | 3.68KW |
OTHERS: | |
Certification |
RoHS, EAC, CE |
Package Contents |
Smart Plug HS100, Quick Start Guide |
System Requirements |
Android 4.1 or higher, iOS 8 or higher |
Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( H x D x W ) | 100.3 x 66.3 x 77 mm |
Antenna Type | On-Board |
Buttons |
Power button, Settings button |
Weight | 131.8g |
WIRELESS FEATURES: | |
Frequency | 2.4-2.4835GHz |
OTHERS: | |
Certification |
CE, EAC, RoHS |
Package Contents |
Smart Plug HS110, Quick Start Guide |
System Requirements |
Android 4.1 or higher, iOS 8 or higher |
Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 5%~90% non-condensing |
WORKING STATUS: | |
Input voltage | 100 - 240VAC |
Output voltage | 100-240VAC |
Maximum Load | 16A |
Maximum Power | 3.68KW |
HARDWARE FEATURES: | |
---|---|
Output Interface | 1 10/100Mb/s RJ45 Ethernet Port |
Input Interface | 1 USB 2.0 Port |
Chipset | RTL8152B |
Dimensions ( W x D x H ) | 2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm) |
Compatibility |
Windows XP/Vista/7/8/8.1/10, Mac OS X 10.5/10.6/10.7/10.8/10.9/10.10, Linux |
Package Contents |
USB 2.0 to 100Mbps Ethernet Network Adapter, Quick Installation Guide |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Output Interface |
3 USB-A 3.0 Ports, 1 Gigabit Ethernet Port |
Input Interface | 1 USB-A 3.0 Connector |
Chipset | RTL8153 |
Dimensions ( W x D x H ) | 1.2 x 0.9 x 3.8 inch (31 x 23 x 96 mm) |
Compatibility |
Windows (XP/Vista/7/8/8.1/10), Mac OS X (10.5-10.11), Linux OS and Chrome OS |
Package Contents |
USB 3.0 3-Port Hub & Gigabit Ethernet Adapter UE330, User Guide |
HARDWARE FEATURES: | |
---|---|
Output Interface | 1 10/100/1000Mbps RJ45 Ethernet Port |
Input Interface | 1 USB 3.0 Port |
Chipset | RTL8153 |
Dimensions ( W x D x H ) | 2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm) |
Compatibility |
Windows XP/Vista/7/8/8.1, Mac OS X 10.5/10.6/10.7/10.8/10.9/10.10/, Linux based system |
Package Contents |
USB 3.0 to Gigabit Ethernet Network Adapter, Quick Installation Guide |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab |
Interface | 1 * Gigabit Ethernet Port |
Button | Pair/Reset |
LED Indicator |
PWR, PLC, ETH |
Dimensions ( W x D x H ) | 65*52*28,5 mm |
Power Consumption |
Maximum- 2.7W (220V/50Hz), Typical- 2.3W (220V/50Hz), Standby- 0.5W (220V/50Hz) |
Range | 984.3 feet(300 Meters) over electrical circuit |
WIRELESS FEATURES: | |
EIRP | <20dBm(EIRP) |
SOFTWARE FEATURES: | |
Modulation Technology | OFDM (PLC) |
Encryption | 128-bit AES |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
2 x TL-PA7017 2 x Ethernet cable (RJ45), Quick Installation Guide |
System Requirements |
Windows 8/7/Vista/XP/2000, Mac OS, Linux |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab |
Interface |
1 * Gigabit Ethernet Port, #08947 - Power Socket |
Plug Type | EU |
Button | Pair/Reset |
LED Indicator |
PWR, PLC, ETH |
Dimensions ( W x D x H ) | 58 * 42 * 95 mm |
Power Consumption |
Maximum- 2.7W (220V/50Hz), Typical- 2.3W (220V/50Hz), Standby- 0.5W (220V/50Hz) |
Range | 984.3 feet(300 Meters) over electrical circuit |
WIRELESS FEATURES: | |
EIRP | <20dBm(EIRP) |
SOFTWARE FEATURES: | |
Modulation Technology | OFDM (PLC) |
Encryption | 128-bit AES |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
2 x TL-PA7017P 2 x Ethernet cable (RJ45), Quick Installation Guide |
System Requirements |
Windows 8/7/Vista/XP/2000, Mac OS, Linux |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
HomePlug AV, IEEE802.3, IEEE802.3u |
Interface |
1* 10/100Mbps Ethernet Port, Power Socket |
Plug Type | EU |
Button | Pair Button |
LED Indicator |
PWR, PLC, ETH |
Dimensions ( W x D x H ) | 3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm) |
Power Consumption | < 2.2W |
Range | 300M in house |
SOFTWARE FEATURES: | |
Modulation Technology | OFDM |
Encryption | 128-bit AES Encryption |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
Powerline Ethernet Adapter x 2, Ethernet cable (RJ45) x 2, Resource CD, Quick Installation Guide |
System Requirements |
Windows 8/7/Vista/XP/2000, Mac OS, Linux |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
HomePlug AV, IEEE802.3, IEEE802.3u |
Interface | 1 * Ethernet 10/100Mb/s |
Plug Type | EU |
Button | Pair |
LED Indicator |
PWR, PLC, ETH |
Dimensions ( W x D x H ) | 5.2×2.8×1.7 in. (131×72×42 mm) |
Power Consumption | < 2.0 W |
Range | 984.3 feet(300 Meters) over electrical circuit |
WIRELESS FEATURES: | |
EIRP | <20dBm(EIRP) |
SOFTWARE FEATURES: | |
Modulation Technology | OFDM (PLC) |
Encryption | 128-bit AES |
OTHERS: | |
Certification |
CE, RoHS |
Package Contents |
2 x TL-PA4010, Ethernet cable (RJ45), Resource CD, Quick Installation Guide |
System Requirements |
Windows 8/7/Vista/XP/2000, Mac OS, Linux |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Flash memory | 1 MB |
---|---|
RAM memory | 2 MB |
Standards | IEEE 802.3/u |
Ports |
1x 10/100 Mbps RJ-45, 1x USB 2,0 |
Protocols |
TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB (over IP), RAW TCP |
Supported OS |
Windows 95/98/98SE/Me/NT 4.0/2000/XP/Vista, Mac OS 8.0 or higher, UNIX/Linux, NetWare 3.12 or higher (Bindery/NDS) |
Addressing |
fixed IP, DHCP client |
Management |
WWW, application, telnet, HP Web JetAdmin / HP JetAdmin |
Other features |
POST (Power On Self Test), E-mail Alert |
Power |
3,3V DC 2A, ~230V AC 50 Hz |
Dimensions | 73×65×30 mm |
Operating temperatures | 0°C ÷ 50°C |
Operating humidity |
0% ÷ 90%, non-condensing |
Certificates |
CE, FCC |
Warranty | 24 months |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Interface |
1 Micro USB port, 2 USB ports, 4-stage indicator for power level or charging status |
Button | 1 button to display power level |
Capacity | 20000mAh |
Input | DC 5V/2.1A |
Output | DC 5V/2.1A |
Dimensions ( W x D x H ) | 6.2 x 2.6 x 0.9 in. (157.8 x 65.4 x 24 mm) |
Weight | 376g |
Operating Temperature | 0℃~35℃ |
Storage Temperature | -20℃~45℃ |
Operating Humidity | ≤95% non-condensing |
Storage Humidity | ≤75% non-condensing |
Compatibility |
Smart devices running iOS, Android, Windows and most other USB-charged devices |
Package Contents |
TL-PB20000 Power Bank, Micro USB cable, Manual |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Interface |
1 Micro USB port, 2 USB ports, 4-stage indicator for power level or charging status |
Button | 1 button to display power level |
Capacity | 10000mAh |
Input | DC 5V/2.1A |
Output | DC 5V/2.1A |
Dimensions ( W x D x H ) | 6×2.5×0.5 in. (153.8×65.5×13.7 mm) |
Weight | 213g |
Operating Temperature | 0℃~35℃ |
Storage Temperature | -20℃~45℃ |
Operating Humidity | ≤95% non-condensing |
Storage Humidity | ≤75% non-condensing |
Compatibility |
Smart devices running iOS, Android, Windows and most other USB-charged devices |
Package Contents |
TL-PB10000 Power Bank, Micro USB cable, Manual |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Output Interface | 4 USB 3.0 Standard A |
Input Interface | USB 3. Typ-A |
Chipset | VIA VL812 Chipset with Latest Firmware |
Dimensions ( W x D x H ) | 2.8 x 2.8 x 0.7 in. (71 x 71 x 16.6 mm) |
Compatibility |
Windows, Mac OS X and Linux systems |
Package Contents |
USB 3.0 4-Port Hub UH400, Quick Installation Guide |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Output Interface | 7 USB 3.0 Standard A |
Input Interface | 1 USB 3.0 Micro B |
Chipset | VIA VL812 Chipset with Latest Firmware |
Dimensions ( W x D x H ) | 6.5 x 2.6 x 0.7 in. (165 x 65.5 x 17.5 mm) |
Compatibility |
Windows, Mac OS X and Linux systems |
Package Contents |
USB 3.0 7-Port Hub UH700, 12V & 2.5A Power Adapter, 1-Meter USB 3.0 Cable, Quick Installation Guide |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Output Interface |
7 USB 3.0 Standard A, 2 2.4A Charging Ports |
Input Interface | 1 USB 3.0 Micro B |
Chipset | VIA VL812 Chipset with Latest Firmware |
Dimensions ( W x D x H ) | 6.5 x 2.6 x 0.7 in. (165 x 65.5 x 17.5 mm) |
Compatibility |
Windows, Mac OS X and Linux systems |
Package Contents |
USB 3.0 7-Port Hub with 2 Charging Ports UH720, 12V & 4A Power Adapter, 1-Meter USB 3.0 Cable, Quick Installation Guide |
Warranty | 2 years |
Ports |
1* 10/100/1000Mbps RJ45 Shielded Data IN Port, 1* 10/100/1000Mbps RJ45 Shielded Passive PoE Port, 1* 48VDC POWER INPUT PORT |
---|---|
Dimensions | 81x52x24 mm |
LED Indicator | PWR |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Standards |
IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3af Power over Ethernet |
---|---|
Ports |
1x 10/100M Auto-Negotiation RJ45 LAN port (LAN IN), 1 power socket (DC IN), 1 10/100M Auto-Negotiation RJ45 PoE port (POWER+DATA OUT) |
Dimensions | 81x52x24 mm |
Power |
Input - External 48V DC power adapter, Output - Auto-determine the necessary power requirements (max. 15.4W) |
Operating temperature | 0°C ÷ 40°C |
Operating Humidity |
10% ÷ 90%, niekondensująca |
Warranty | 5 years |
Standards |
IEEE 802.3 10Base-T, 802.3u 100Base-TX |
---|---|
Ports |
1x 10/100M Auto-Negotiation RJ45 LAN port (LAN IN), 1 power socket (DC IN), 1 10/100M Auto-Negotiation RJ45 PoE port (POWER+DATA OUT) |
Dimensions | 81x52x24 mm |
Power |
Input - External 48V DC power adapter, Output - Auto-determine the necessary power requirements (12/9/5VDC max. 15.4W) |
Operating temperature | 0°C ÷ 40°C |
Operating Humidity |
10% ÷ 90%, non-condensating |
Standards |
IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3af Power over Ethernet |
---|---|
Ports |
1x 10/100M Auto-Negotiation RJ45 PoE port (POWER+DATA IN), 1x 10/100M Auto-Negotiation RJ45 LAN port (LAN OUT), 1x power socket (DC OUT) |
Dimensions | 81x52x24 mm |
Power |
Adjustable output 5VDC/2.3A or 12VDC/1A, supplies up to 11.5W at 5VDC or 12W at 12VDC Power Consumption |
Operating temperature | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, niekondensująca |
Warranty period | 5 years |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Bluetooth Range | 20 meters (66 feet) |
Bluetooth Version | 4.1 |
Power Supply | 5V 1A USB Power |
Dimensions ( W x D x H ) | 66.5 x 60.5 x 18.5 mm ( 2.6 x 2.4 x 0.7 in.) |
Package Contents |
TP-Link HA100, Power Adapter, 3.5mm-to-3.5mm AUX cable, 3.5mm-to-RCA cable, NFC Tag, Quick Installation Guide |
Warranty | 2 years |
HARDWARE FEATURES | |
---|---|
Compatibility |
Windows, macOS, Chrome OS, Linux OS and Andriod 6.0 |
Output Interface | 3.0 USB-A Port |
Input Interface | 3.0 USB-C Connector |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Output Interface |
Total Max. DC5V/8A, each port max., DC5V/2.4A |
Input Interface | AC100-240V |
Wymiary (S x G x W) | 96.4x96.4X28.6mm (3.8x3.8x1.1 in.) |
Dimensions ( W x D x H ) | 3.8x3.8x1.1 in. (96.4x96.4X28.6mm) |
Package Contents |
TP-Link UP540, Power Supply Cable |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Processor | 1.8 GHz 64 bit Quad-Core CPU |
Memory |
1 GB RAM, 512 MB Flash |
Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
Interface |
8 10/100/1000Mbps LAN Ports, 1 2.5G/1G/100Mbps WAN Port, 1 USB-A 3.0 Port, 1 USB-C 3.0 Port |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
Power Supply | 12V/5A |
Dimensions (W X D X H) | 11.3 × 11.3 × 7.2 in. (288 × 288 × 184mm) |
Antenna | 8× High-Performance External Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5 GHz@ 4804 Mbps (802.11ax), 5 GHz@ 4804 Mbps (802.11ax), 2.4 GHz@ 1148 Mbps (802.11ax) |
Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | Advanced Gaming Qos powered by TrendMicro |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Manufacturer | TP-Link |
Standards | IEEE 802.11ac/n/g/b/a |
---|---|
Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
Frequency range | 2.4GHz and 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
EAP Controller Software | Yes |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
Telnet | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Antenna |
2,4GHz- 2 * 3dBi, 5GHz- 2 * 4dBi |
Weatherproof Enclosure | IP65 |
Dimensions |
215.7*45*37.7mm (without antenna & mounting kit) , 403.8*90.7*55.2mm (with antenna & mounting kit) |
Power | PoE or External 12VDC / 1.5A Power Supply |
Power Consumption | 10.15 W |
Mounting | Pole/Wall Mounting (Kits included) |
