#06384

FLUKE 2042 - Cable locator

Fluke 2042 is ideal for tracing cables in walls/underground. With this device you can easily locate fuses and breakers on circuits or find interruptions and short-circuits in cables, for example in floor heating systems. It is also helpful in tracing metallic pipes.

Kit includes transmitter, reciever, test lead, soft carrying case, hard case, batteries, user manual.
Transmitter
Voltage measurement range 12/50/120/230/400 V
Frequency range 0..60 Hz
Output signal 125Hz
Voltage up to 400V AC/DC
Power 6 x 1,5V battery
Dimmensions 190 x 85 x 50 mm
Reciever
Tracing depth cable location 2.5m wall/underground cables
Main voltage detection 0.4m
LCD backlight yes
Power 1 x 9V battery
Dimmensions 250 x 65 x 45 mm
FLUKE
Fluke 2042
* For special orders only
Net Price: 768,00 EUR  Unit: pcs  VAT: 23%

#03071

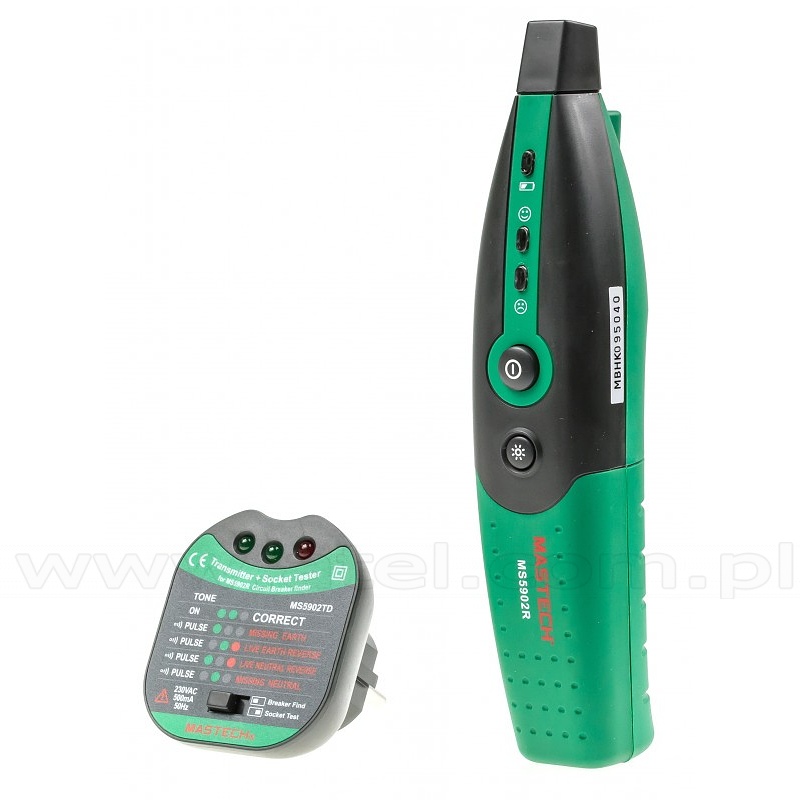

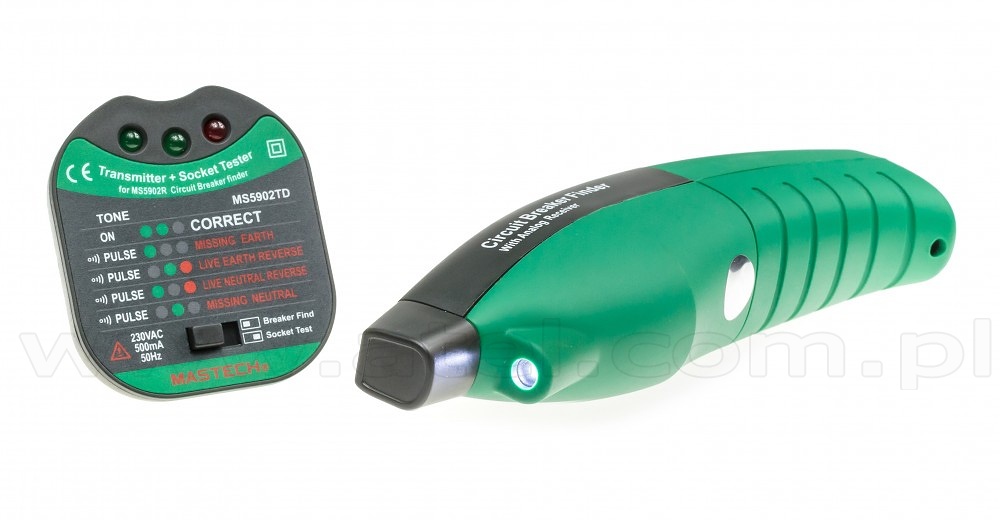

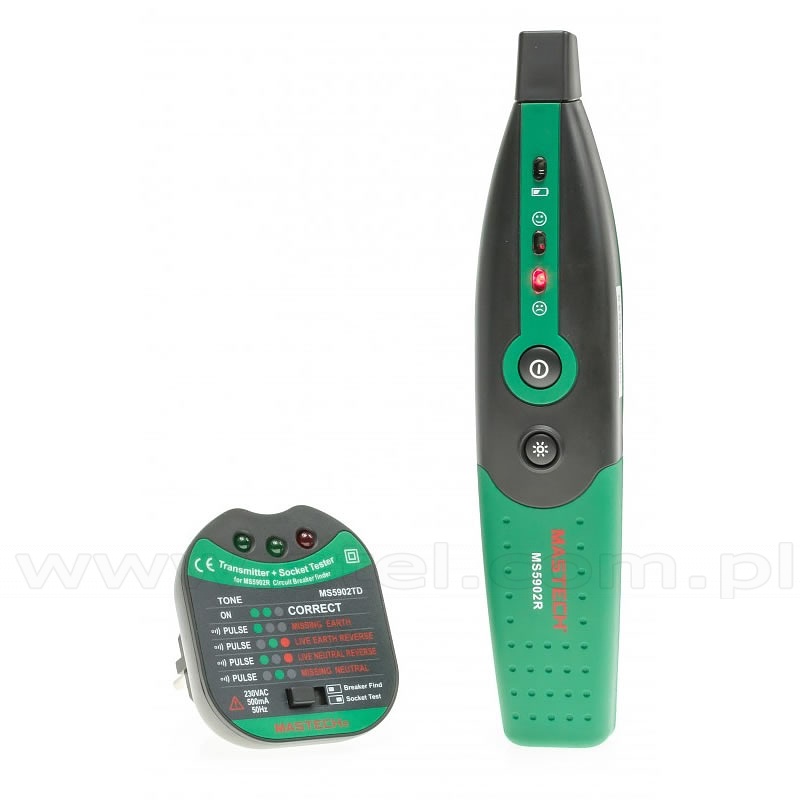

Mastech MS5902 - Circuit breaker finder and socket tester

The task of Circuit Breaker Finder/Socket Tester (MS5902) is to find correct breaker or fuse and test socket. You will have annoyance no more for locating the correct circuit breaker supplying power to an AC outlet or lighting fixture
MASTECH
Mastech MS5902 - Circuit breaker finder and socket tester
Net Price: 21,90 EUR  Unit: pcs  VAT: 23%

#04070

Mastech MS6818 - Cable locator

MS6818 is ideal for tracing cables in walls/underground. With this device you can easily locate fuses and breakers on circuits or find interruptions and short-circuits in cables, for example in floor heating systems. It is also helpful in tracing metallic pipes.

Kit includes transmitter and reciever.
Transmitter
Power 6 x 1,5V battery
Dimmensions 190 x 89 x 42,5 mm
Reciever
LCD backlight yes
Power 1 x 9V battery
Dimmensions 241,5 x 78 x 38,5 mm
Manufacturer Mastech
MASTECH
Mastech MS6818
Net Price: 124,00 EUR  Unit: pcs  VAT: 23%

#07443

Noyafa NF-816 - Cable locator

NF-816 is ideal for tracing cables in walls/underground. With this device you can easily find interruptions and short-circuits in cables, for example in floor heating systems. It is also helpful in tracing metallic pipes.

Kit includes transmitter and reciever.
Transmitter
Power 1x6F22 9V
Maximum range 1000m
Dimmensions 49x135x33 mm
Voltage protection 60V AC / 42V DC
Reciever
Power 1 x 9V battery
Torch function yes
Ear jack 3.5mm
Maximum measuring depth 0.8m
Dimmensions 43x168x27 mm
NOYAFA
Noyafa NF-816 Cable locator
Net Price: 49,00 EUR  Unit: pcs  VAT: 23%

#03065

Pipe locator PL33C

Device for locating the path of hidden pipeline (e.g. in wall / floor). Also helpful when there is a need to find the blockage of pipe.
Transmitter
Power 1x 9V battery
Dimmensions 380 x 300 x 45 mm
Transmission cable length 20m
Reciever
Power 1 x 9V battery
Dimmensions 410 x 85 x 50 mm
Pipe locator PL33C
Net Price: 78,10 76,70 EUR   Unit: pcs  VAT: 23%

#03066

Pipe locator PL33F

Device for locating the path of hidden pipeline (e.g. in wall / floor). Also helpful when there is a need to find the blockage of pipe.
Transmitter
Power 3.7V 1800mAh Li-Ion battery
Dimmensions 380 x 300 x 45 mm
Transmission cable length 20m
Reciever
Power 1 x 9V battery
Dimmensions 410 x 85 x 50 mm
Pipe locator PL33F
Net Price: 87,60 86,20 EUR   Unit: pcs  VAT: 23%
