Measuring Instruments
Saturday, 24 September
Search for product:
 FLUKE
#06805

FLUKE 355 - Digital Multimeter with pincers, True RMS

Digital Clamp Multimeter with pincers for resistance, AC/DC voltage and current measurement. Enables precise measurement of high currents- up to 2000A.
Range selection automatic
AC voltage 4600 V ± 1%
DC voltage 41000 V ± 1%
AC current 401400 A ± 1,5%
DC current 402000 A ± 1,5%
Resistance 400 Ω 400 kΩ ± 1,5%
Frequency 5Hz1kHz
True RMS yes
Sound signal yes
Data hold yes
Highlighted LCD yes
Battery indicator yes
Protection yes
Max. clamp set 58 mm
Dimensions 300 x 98 x 52 mm
Power 6x AA battery
Weight 814g
Manufacturer Fluke
FLUKE
FLUKE 355
* For special orders only
Net Price: 749,00 EUR  Unit: pcs  VAT: 23%

#06146

FLUKE 771 - Milliamp Process clamp meter

Enables measuring for programmable controllers and I/O analog control systems. Measures input signals from relays in the range of 4-20 mA without disconnecting the loop. Working altitude up to 2000m, working temperature -10 50 C.
DC current 4-20 mA ± 0,2%,
10-50 mA ± 1%
Data hold yes
Highlighted LCD yes
Protection IP 40
Dimensions 212 x 59 x 38 mm
Power 2x AA battery,
avarage battery life 20h
Weight 260g
Manufacturer Fluke
FLUKE
FLUKE 771
* For special orders only
Net Price: 695,00 EUR  Unit: pcs  VAT: 23%

#06142

FLUKE 902 - Digital Multimeter with pincers, True RMS

Digital Clamp Multimeter with pincers for AC/DC voltage and current measurement. DC current measurement is possible after connecting test wires. Additionally, it enables the measurement of resistance, temperature, capacitance and frequency. It has an acoustic indicator of circuit continuity,the "HOLD" function (reading memory) and highlighted LCD display.
Range selection automatic
AC voltage 600 V ± 1%
DC voltage 600 V ± 1%
AC current 600 A ± 1%
DC current 200 µA ± 1%
Resistance up to 600 Ω ± 1.5%,
up to 6000 Ω ± 1.5%
Frequency 5400 Hz ± 0.5%
Temperature -10 - 400C ± 1%
Capacitance 1 - 1000 µF ± 1.9%
Crest factor 2.4 @ 500 A,
2.0 @ 600 A
True RMS yes
Sound signal yes
Data hold yes
Highlighted LCD yes
Battery indicator yes
Protection yes
Max. clamp set 30 mm
Dimensions 38 x 79 x 41 mm
Power 2x AA battery
Weight 312g
Manufacturer Fluke
FLUKE
FLUKE 902
* For special orders only
Net Price: 314,00 EUR  Unit: pcs  VAT: 23%

 MASTECH
#02902

Mastech M-266 - Digital Multimeter with pincers 3 1/2 digits for heavy AC current

Digital clamp meter for measuring:

  • alternating voltage (AC) maximum 750V
  • alternating current (AC) maximum 1000A
  • resistance up to 20kΩ
  • circuit continuity control (with sound signaling)
Max.LCD display 1999
Range selection manual
DC voltage 1000 V
AC voltage 750 V
AC current 1000 A
Resistance up to 20 kΩ
Accuracy 0.5%
Sound signal yes
Battery indicator yes
Protection yes
Max. clamp set 50 mm
Power 9V 6F22 battery
Manufacturer Mastech
MASTECH
Mastech M-266 - Digital Clamp Meter with pincers 3 1/2 digits for heavy AC current
Net Price: 8,86 EUR  Unit: pcs  VAT: 23%

#03096

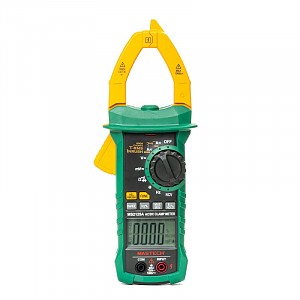

Mastech MS2125A - Digital clamp multimeter True RMS

Proffesional digital clamp meter for measuring AC/DC current, voltage, resistance, frequency and capacity. Measures True RMS and has a non-contact NCV voltage detector and flashlight.
Equipped with an acoustic indicator of circuit continuity.
Max. LCD display 5999
Range selection automatic
DC voltage 60m/600m/6/60/600 V ± 0,5%,
1000 V ± 0.8%
AC voltage 60m/600m/6/60/600 V ± 0,6%,
750 V ± 0,9%
DC current 60/600/1000 A ± 2,0%
AC current 60/600/1000 A ± 2,0%
Resistance 600/6k/60k/600k Ω ± 0,8%,
6M/60M Ω ± 2,0%
Capacitance 10n/100n/1000n/10u/100u/1000u/10m/100m F ± 3,0%
Frequency range 10 Hz 10 MHz ± 1.5%
Duty cycle 0,1% 99,9%
Diode test yes
Continuity test yes
Data hold yes
Dimensions 238x92x50 mm
Power 9V 6F22 battery
Weight 386g
Manufacturer Mastech
MASTECH
Mastech  MS2125A - Digital clamp multimeter True RMS
Net Price: 58,20 EUR  Unit: pcs  VAT: 23%

#04090

Mastech MS2140C - Digital clamp multimeter with infrared thermometer

Reliable digital clamp multimeter for measuring AC and DC currents. The device has an additional built-in non-contact temperature meter - a pyrometer, for additional thermal control of the tested elements.
Multimeter
Max. LCD display 5999
Range selection automatic
Insulation class CAT II 1000V
DC voltage 600m/6/60/600/1000 V ± 0,5%
AC voltage 600m/6/60/600/1000 V ± 0,8%
DC current 600/1000 A ± 2,5%
AC current 600/1000 A ± 1,8%
Resistance 600/6k/60k/600k ± 0,8%,
6M/60M Ω ± 1,2%
Frequency range 60/600/6k/60k/600k/6M/60M Hz ± 0,3%
Capacitance 60n/600n/6µ/60µ/600µ/6m/60m F ± 4%
Temperature -40500C ± 1,0%
Continuity test yes
Sampling time 300ms
Diode test yes
Max. diameter for conductor Ø40 mm
Power 3x 1,5V AAA battery
Manufacturer Mastech
Infrared thermometer
Temperature -20350 C ± 2,5%
Field of view 61
Emmisivity 0,95
Sampling time 300ms
Power 2xLR44
MASTECH
Mastech MS2140C - Digital clamp multimeter with infrared thermometer
Net Price: 65,50 EUR  Unit: pcs  VAT: 23%

 V&A
#04017

V&A VA312 - Digital clamp multimeter

AC current clamp multimeter with high max current range - up to 1000A. Additionally measures AC/DC voltage, resistance, frequency and capacity.
Max. LCD display 5999
Insulation class CAT III 600V
Range selection automatic,
manual
DC voltage 6/60/600 V ± 0,8%,
1000 V ± 1,0%
AC voltage 6/60/600/700 V ± 1,2%
AC current 600 A ± 2,5%,
1000 A ± 3,0%
Resistance 600/6k/60k/600k/6 MΩ ± 1,0%,
60 MΩ ± 5,0%
Capacitance 600n/6µ/60µ/600µ/1000 µF ± 4,0%
Frequency 40 Hz 100 kHz ± 0,1%
ADP measurement 600 mV ± 3,0%
Continuity test yes
Diode test yes
Data hold yes
MAX/MIN function yes
Back light yes
Auto power off yes
Max. diameter for conductor Ø42 mm
Power 3x 1,5V AAA battery
Manufacturer V&A
V&A
V&A VA312 - Digital Clamp Meter
Net Price: 20,00 EUR  Unit: pcs  VAT: 23%
