#09161
Standard NTP-LINKTD-W9960

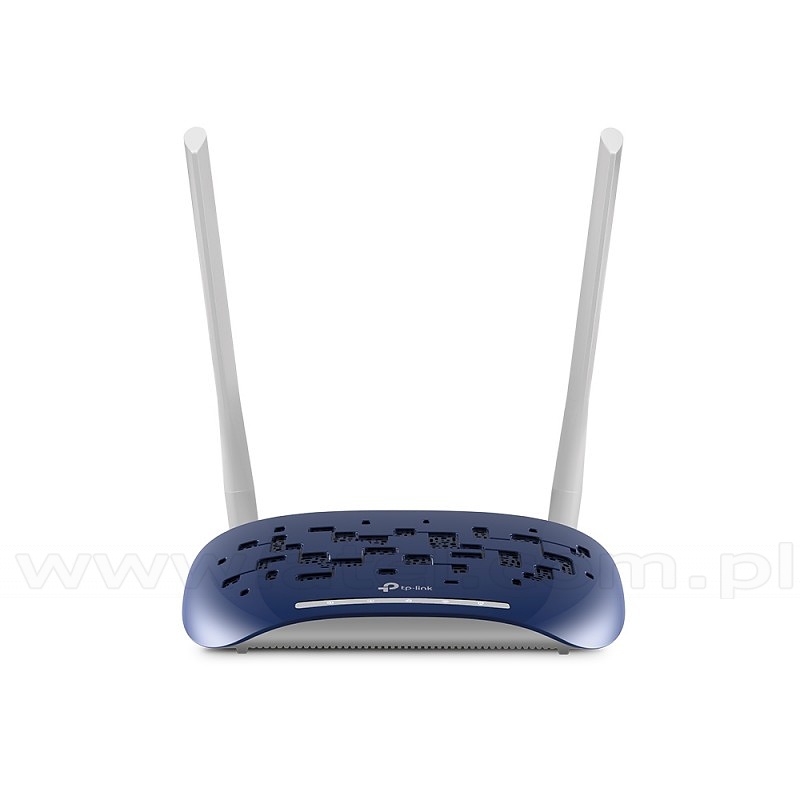

300Mbps Wireless N VDSL/ADSL Modem Router, (TP-Link TD-W9960)

  • Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
  • Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
  • Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
  • Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
HARDWARE FEATURES:
Interface 3 10/100Mbps RJ45 Ports,
1 10/100Mbps RJ45 LAN/WAN Port,
1 RJ11 Port
Button 1 Power On/Off Button,
1 WPS,
1 Reset Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 181.6 x 129.7 x 36.2mm
Antenna Type Omni directional,
Detachable,
Reverse SMA
Antenna Gain 2 * 5dBi
WIRELESS FEATURES:
Wireless Standards IEEE 802.11b,
802.11g,
802.11n
Frequency 2.400-2.4835GHz
EIRP <20dBm (EIRP)
Wireless Security Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES:
Quality of Service Bandwidth Control
Port Forwarding Virtual server,
DMZ,
ACL(Access Control List)
VPN Pass-Through PPTP,
L2TP,
IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs
Advanced Features Ethernet WAN (EWAN),
Parent Control,
Traffic Shaping(ATM QoS) UBR,
CBR,
VBR-rt,
VBR-nrt; Dynamic Host Configuration Protocol (DHCP),
DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping,
Static Routing,
RIP v1/v2 (optional); DNS Relay,
DDNS,
IGMP snooping V1/2 IGMP Multicast,
UPnP
Security NAT Firewall,
SPI Firewall,
MAC / IP / Packet / URL Filtering
USB Sharing Storage Sharing,
FTP Server,
Media Server,
Print Server
Management Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tool
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents TD-W9970,
External Splitter,
RJ-11 Telephone Cable,
RJ-45 Ethernet Cable,
Quick Installation Guide,
Power Adapter
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/8.1/10,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing

Net Price: 33,80 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
