#09011
Standard NTP-LINKCPE605

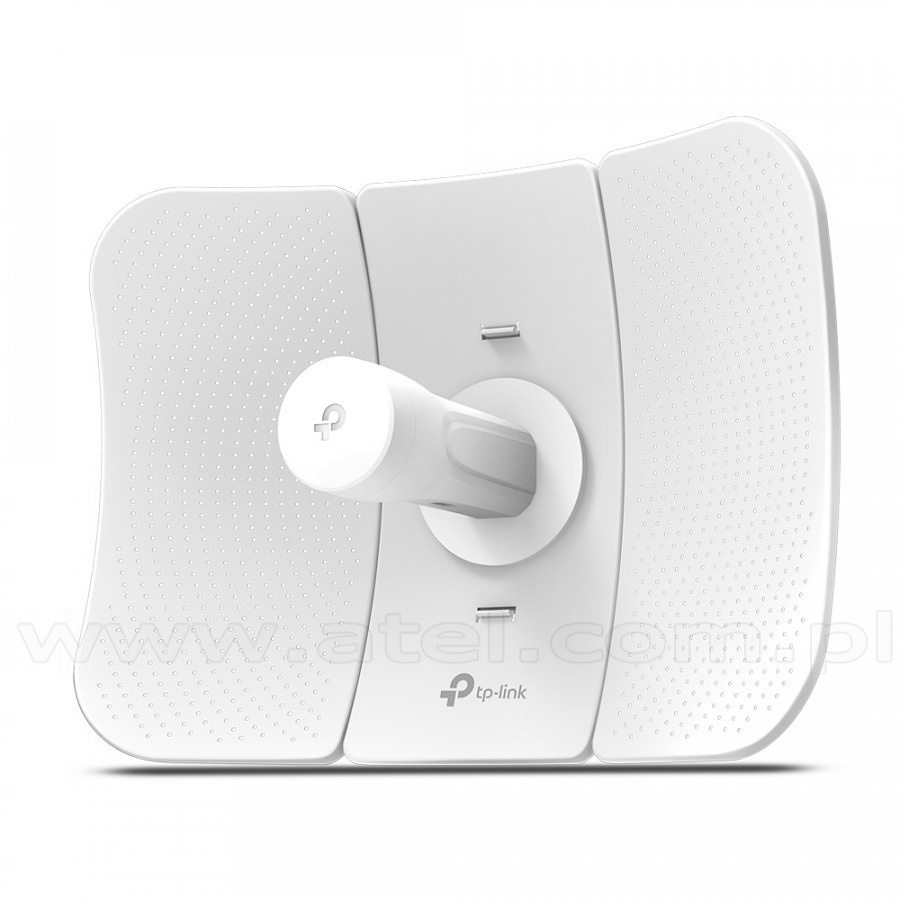

150Mbps Wireless access point, 5GHz, PoE (TP-Link CPE605)

  • Up to 150Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation
Processor Qualcomm 560MHz CPU,
MIPS 74Kc
Memory 64MB DDR2 RAM,
8MB Flash
Standards IEEE 802.11a,
IEEE 802.11n
Ports 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in),
1 Reset Button
Antenna Gain 23dBi
Antenna Beamwidth 7°(Azimuth),
10°(Elevation)
Wireless Configurations Pharos MAXtream TDMA Technology,
802.11a/n Modes,
Selectable Channel Width 5/10/20/40MHz,
Automatic Channel Selection,
Transmission Power Control,
Dynamic Frequency Selection (DFS),
WDS Enable/Disable,
SSID Broadcast Enable/Disable,
Multi-SSID with VLAN Tagging (AP mode only),
Distance/ACK Timeout Setting,
Wireless MAC Address Filter,
Long Range PtP
Security WPA/WPA2,
WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
Wireless Advanced Beacon Interval/RTS Threshold/Fragmentation,
Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application,
HTTP/HTTPS Web-based management,
System Log,
SNMP Agent(v2c),
Ping Watch Dog,
Dynamic DDNS,
SSH Server
System Tools Wireless Signal Quality Indicators - Signal Strength/Noise/Transmit CCQ/CPU/Memory,
Monitors - Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP,
Spectrum Analyzer,
Speed Test,
Ping,
Traceroute
Signal Rate Up to 150Mbps (40MHz, Dynamic),
Up to 72.2Mbps (20MHz, Dynamic),
Up to 36.1Mbps (10MHz, Dynamic),
Up to 18.05Mbps (5MHz, Dynamic)
Dimensions 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins),
Voltage range- 16-27VDC
Protection 15KV ESD Protection,
6000V Lightning Protection
Enclosure Outdoor PC stabilized plastic,
Weatherproof IP65 water and dust proof design
Package Contents Outdoor Wireless CPE,
24V 0.25A Passive PoE Adapter,
Pole Mounting Kits,
AC Power Cord,
Installation Guide
Operating temperatures -40°C ÷ 70°C
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~95% non-condensing
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ lub Windows 10,
Windows 8,
Windows 7,
MAC OS,
NetWare,
UNIX lub Linux. We recommend you to use one of following Web browsers for an improved user experience Google Chrome,
Safari,
and Firefox. IE browsers are not recommended.
Certificates CE,
FCC,
RoHS,
IPX5
Warranty 5 years
Manufacturer Tp-Link
