#09073
Standard NTP-LINKTL-WR850N

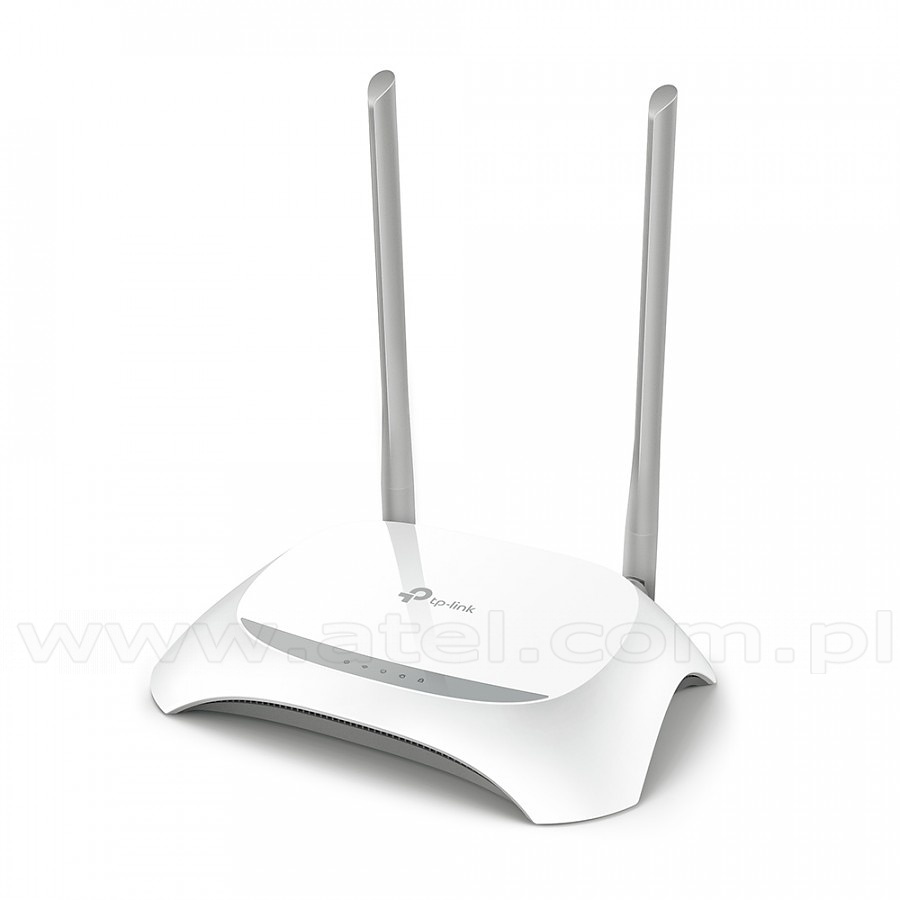

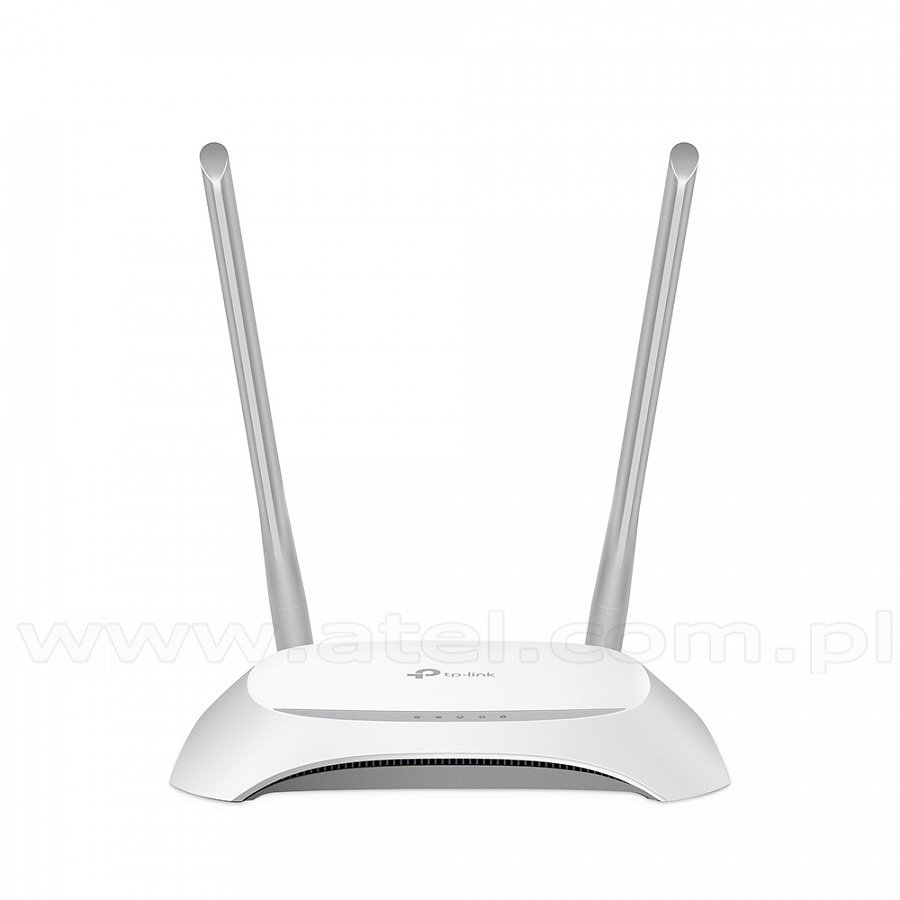

Wireless N router (TP-Link TL-WR850N)

  • 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
  • Supports Agile ConfigEnable ISPs to customize default configurations by themselves
  • Parental Controls manage when and how connected devices can access the internet
  • IPTV supports IGMP Proxy/Snooping to optimize IPTV streaming
  • Compatible with IPv6 (Internet Protocol version 6)
  • Guest Network provides separate access for guests while securing the home network
Standards IEEE 802.11n (draft 2.0),
IEEE 802.11b/g,
Ports 4x 10/100 Mbps RJ-45 (LAN),
1x 10/100 Mbps RJ-45 (WAN)
Frequency range 2400 MHz 2483,5 MHz
Modulation DBPSK,
DQPSK,
CCK,
OFDM,
16-QAM,
64-QAM
Operating modes AP Router
Max. speed 300 Mbps
Max. output power 20 dBm
Antenna 2 Omni-Directional Antennas
Wireless Functions Enable/Disable Wireless Radio,
WDS Bridge,
WMM,
Wireless Statistics
WLAN security 64/128-bit WEP,
WPA / WPA2, WPA-PSK / WPA2-PSK
WAN Type Dynamic IP,
Static IP,
PPPoE,
PPTP,
L2TP
Management Access Control,
Local Management,
Remote Management
DHCP Server,
DHCP Client List
Port Forwarding Virtual Server,
UPnP,
DMZ
Dynamic DNS DynDns,
NO-IP
Access Control Parental Controls,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols IPv4,
IPv6
Guest Network 1 2.4 GHz Guest Network
Dimensions 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm)
Operating temperatures 0C 40C
Operating humidity 10% 90%,
non-condensing
Power 5 V DC / 0,6 A
Certificates CE,
RoHS
Manufacturer TP-Link
