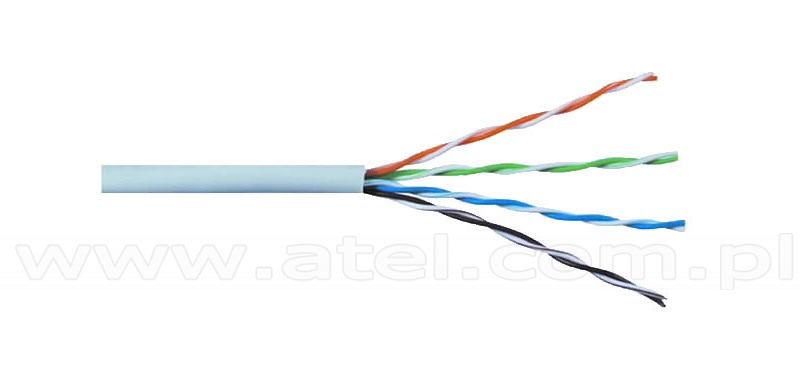

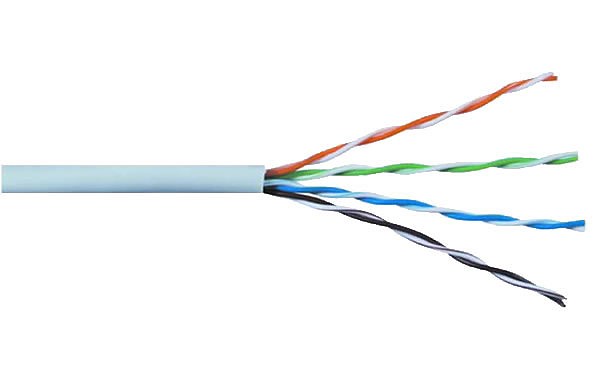

Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.495 ± 0.005mm, with HDPE 0.88mm coating |
Coating | PCV 0.51mm |
Diameter | 4.9 ± 0.2mm |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + cable length marker every 1m |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.495 ± 0.005mm, with HDPE 0.88mm coating |
Coating | LSOH 0.51mm |
Diameter | 4.9 ± 0.2mm |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.495 ± 0.005mm, with coating LDPE 0.88mm |
Coating | LDPE min. 0.51mm |
Diameter | 4.9 ± 0.2mm |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG 0.54mm, with coating HDPE 0.99mm |
Coating | PCV 0.51mm |
Diameter | 5.9 ± 0.2mm |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG 0.54mm, with coating HDPE 0.99mm |
Coating | LSOH 0.51mm |
Diameter | 5.9 ± 0.2mm |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 24AWG, 7x0.192mm, with coating HDPE 0.98mm |
Coating | LSOH min. 0.51mm |
Diameter | 5.8 ± 0.2mm |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 24AWG, 7x0,192mm, with coating HDPE 0,98mm |
Coating | PCV min. 0,51mm |
Diameter | 5,8 ± 0,2mm |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 4.5 ± 0.2mm |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | PCV min. 0.46mm |
Diameter | 4.5 ± 0.2mm |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.512 ± 0.005mm, with coating HDPE 0.88mm |
Coating | LSOH 0,51mm |
Diameter | 5.1 ± 0.2mm |
Shield | Al/PET (50/15µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.512 ± 0.005mm, with coating HDPE 0.88mm |
Coating | PCV 0.51mm |
Diameter | 5.1 ± 0.2mm |
Shield | Al/PET (50/15µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m wooden spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.512 ± 0.005mm, with coating HDPE 0.88mm |
Coating | LSOH 0,51mm |
Diameter | 5.1 ± 0.2mm |
Shield | Al/PET (50/15µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 24AWG 0.512 ± 0.005mm, with coating HDPE 0.88mm |
Coating | LSOH 0,51mm |
Diameter | 5.1 ± 0.2mm |
Shield | Al/PET (50/15µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG 0.551 ± 0.005mm, with coating HDPE 0.88mm |
Coating | LSOH 0.51mm |
Diameter | 7.3 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m wooden spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | PCV min. 0.46mm |
Diameter | 5.0 ± 0.2mm |
Shield | Al/PET (25/25µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH min. 0.46mm |
Diameter | 5.0 ± 0.2mm |
Shield | Al/PET (25/25µm) |
Standards: | |
Category | cat. 5e; class D |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m cardboard box |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0,152mm, with coating HDPE 0,83mm |
Coating | PCV min. 0,46mm |
Diameter | 5,7 ± 0,2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.152mm, with coating HDPE 0.83mm |
Coating | LSOH 0.46mm |
Diameter | 5.7 ± 0.2mm |
Shield | Al/PET (65/26µm) |
Standards: | |
Category | cat. 6; class E |
Standards |
IEC61156-5, EN50288-3-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable F/UTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG, 0.57mm, with coating PE 1.335mm |
Coating | LSOH min. 0.51mm |
Diameter | 7.1 ± 0.2mm |
Shield | Al/PET (50/12µm) |
Standards: | |
Category | cat. 6a; class E |
Standards |
IEC61156-5, EN50288-4-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable U/FTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
stranded copper wire 26AWG, 7x0.148mm, with coating HDPE 1.03mm |
Coating | PCV min. 0.46mm |
Diameter | 6.3 ± 0.2mm |
Shield | Al/PET (25/25µm) |
Braid | Copper Clad with Steel 4x16x0.1mm |
Standards: | |
Category | cat. 6a; class E |
Standards |
IEC61156-6, EN50288-4-2, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable S/FTP + index of length |
Standard package | 305m wooden spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG, 0.57mm, with coating PE 1.335mm |
Coating | LSOH min. 0.51mm |
Diameter | 7.3 ± 0.2mm |
Shield | Al/PET (50/12µm) |
Braid | Tin Plated Copper 4x16x0.1mm |
Standards: | |
Category | cat. 6a; class E |
Standards |
IEC61156-5, EN50288-4-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable S/FTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Structure: | |
---|---|
Conductor |
solid copper wire 23AWG, 0.57mm, with coating PE 1.335mm |
Coating | LSOH min. 0.51mm |
Diameter | 7.3 ± 0.2mm |
Shield | Al/PET (50/12µm) |
Braid | Tin Plated Copper 4x16x0.1mm |
Standards: | |
Category | cat.7; class F |
Standards |
IEC61156-5, EN50288-4-1, ANSI/TIA568C.2 |
Marking and packaging: | |
Cable marking | Wave Cable S/FTP + index of length |
Standard package | 305m plastic spool |
Manufacturer | Wave Cables |
Internal wire | 7x0.16 copper/stranded wire |
---|---|
Insulation |
1.6 mm, PE |
Shield | 96x0.1 copper |
External coating | 2.90mm/PVC/black |
Impedance | 50Ω |
capacitance | 100 ± 2 pF/m |
attenuation |
50 MHz - 18.0 dB/100m, 200 MHz - 37.2 dB/100m, 400 MHz - 53.2 dB/100m, 600 MHz - 64.3 dB/100m, 800 MHz - 79.2 dB/100m |
Internal wire | 19x0.18 copper/stranded wire |
---|---|
Insulation |
3.0 mm, PE |
Shield | 112x0.1 copper |
External coating | 5.0mm/PVC/black |
Impedance | 50Ω |
capacitance | 100 ± 2 pF/m |
attenuation |
50 MHz - 10.9 dB/100m, 200 MHz - 23.0 dB/100m, 400 MHz - 33.8 dB/100m, 600 MHz - 42.5 dB/100m, 800 MHz - 47.8 dB/100m, 1000 MHz - 51.9 dB/100m |
center conductor | 1.02 mm / copper wire (Cu) |
---|---|
dielectric | 4.7 mm |
screen | Al-PES foil |
braid | 64x0.12 Al |
outer shell | 6.8mm/PVC |
impedance | 75Ω |
capacitance | 52 ± 2 pF/m |
return loss |
1-1000 MHz - >23dB, 1000-3000 MHz - >20dB |
screening attenuation | 1-1000MHz - >90dB |
attenuation |
5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz - 23.8 dB/100m, 1750 MHz - 28.0 dB/100m, 2150 MHz - 31.4 dB/100m, 3000 MHz - 38.0 dB/100m |
center conductor | 1.02 mm / copper wire (Cu) |
---|---|
dielectric | 4.7 mm |
screen | Al-PES foil |
braid | 64x0.12 Al |
outer shell | 6.8mm/PVC |
impedance | 75Ω |
capacitance | 52 ± 2 pF/m |
return loss |
1-1000 MHz - >23dB, 1000-3000 MHz - >20dB |
screening attenuation | 1-1000MHz - >90dB |
attenuation |
5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz - 23.8 dB/100m, 1750 MHz - 28.0 dB/100m, 2150 MHz - 31.4 dB/100m, 3000 MHz - 38.0 dB/100m |
Internal wire | 7x0.45 / cooper (Cu) |
---|---|
Insulation | 3.60mm |
Shield |
Double Al foil, 96x0.12Cu |
External coating | 5.4mm/PE |
Attenuation 20°C [dB/100m] | |
5 MHz | 1,8 |
50 MHz | 6,8 |
200 MHz | 12,5 |
400 MHz | 17,8 |
800 MHz | 26 |
1000 MHz | 29,6 |
1350 MHz | 34,7 |
1750 MHz | 40 |
2150 MHz | 44,5 |
3000 MHz | 53,2 |
Return loss [dB] | |
5-30 MHz | >22 |
30-470 MHz | >20 |
470-1000 MHz | >18 |
1000-2150 MHz | >18 |
Internal wire | 7x0.45 / cooper (Cu) |
---|---|
Insulation | 3.60mm |
Shield |
Double Al foil, 96x0.12Cu |
External coating | 5.4mm/PE |
Attenuation 20°C [dB/100m] | |
5 MHz | 1,8 |
50 MHz | 6,8 |
200 MHz | 12,5 |
400 MHz | 17,8 |
800 MHz | 26 |
1000 MHz | 29,6 |
1350 MHz | 34,7 |
1750 MHz | 40 |
2150 MHz | 44,5 |
3000 MHz | 53,2 |
Return loss [dB] | |
5-30 MHz | >22 |
30-470 MHz | >20 |
470-1000 MHz | >18 |
1000-2150 MHz | >18 |
