Coaxial cables H155, RG174, RG213, RG58, RG59, RG6 UTP and FTP Twisted Pair Ethernet cables, solid copper, 7, 6a, 6 and 5e category Atel Electronics is a exclusive distributor of Wave Cables products |
- Audio-Video Accessories
-
- » COAXIAL CABLES 50Ω UP TO 3GHz#07290
H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (LSOH), 100 m
High performance outdoor coaxial cable for WLAN communication (2,4 GHz).Internal wire 7x0.45 / cooper (Cu) Insulation 3.60mm Shield Double Al foil,
96x0.12CuExternal coating 5.4mm/LSOH Attenuation 20°C [dB/100m] 5 MHz 1,8 50 MHz 6,8 200 MHz 12,5 400 MHz 17,8 800 MHz 26 1000 MHz 29,6 1350 MHz 34,7 1750 MHz 40 2150 MHz 44,5 3000 MHz 53,2 Return loss [dB] 5-30 MHz >22 30-470 MHz >20 470-1000 MHz >18 1000-2150 MHz >18 Can use connector for H155

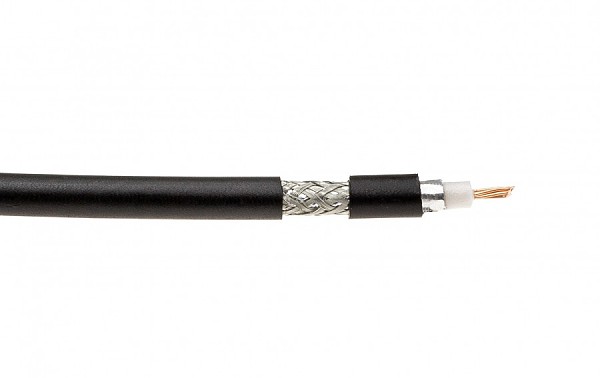

#07211H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 100 m
High performance outdoor coaxial cable for WLAN communication (2,4 GHz).Internal wire 7x0.45 / cooper (Cu) Insulation 3.60mm Shield Double Al foil,
96x0.12CuExternal coating 5.4mm/PE Attenuation 20°C [dB/100m] 5 MHz 1,8 50 MHz 6,8 200 MHz 12,5 400 MHz 17,8 800 MHz 26 1000 MHz 29,6 1350 MHz 34,7 1750 MHz 40 2150 MHz 44,5 3000 MHz 53,2 Return loss [dB] 5-30 MHz >22 30-470 MHz >20 470-1000 MHz >18 1000-2150 MHz >18 Can use connector for H155
#07253H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 500 m
50Ω, 5,4mm (H155) High performance outdoor coaxial cable for WLAN communication (2,4 GHz).Internal wire 7x0.45 / cooper (Cu) Insulation 3.60mm Shield Double Al foil,
96x0.12CuExternal coating 5.4mm/PE Attenuation 20°C [dB/100m] 5 MHz 1,8 50 MHz 6,8 200 MHz 12,5 400 MHz 17,8 800 MHz 26 1000 MHz 29,6 1350 MHz 34,7 1750 MHz 40 2150 MHz 44,5 3000 MHz 53,2 Return loss [dB] 5-30 MHz >22 30-470 MHz >20 470-1000 MHz >18 1000-2150 MHz >18 Can use connector for H155
-
