#06911
Industrial Power SuppliesMEAN WELLHDR-30-24

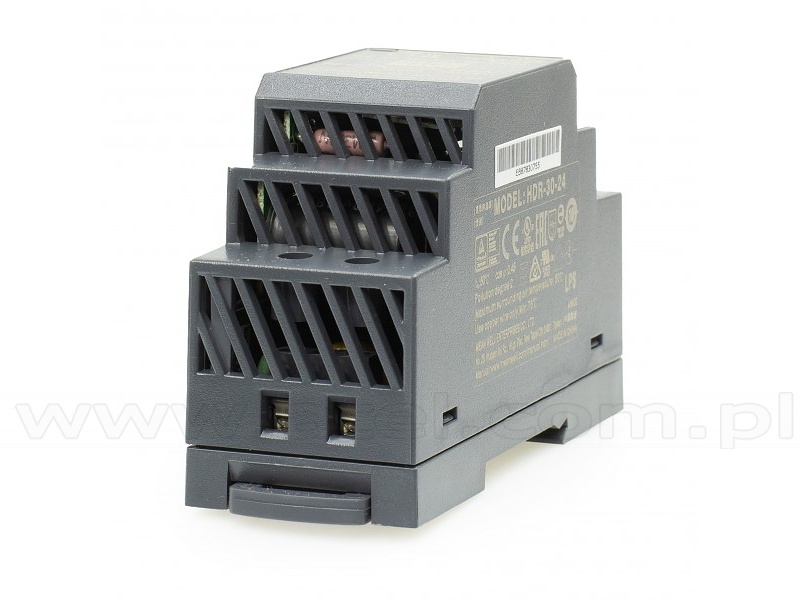

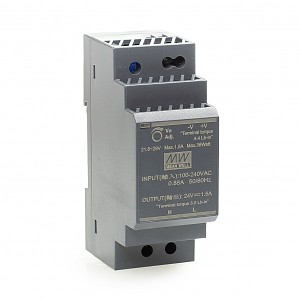

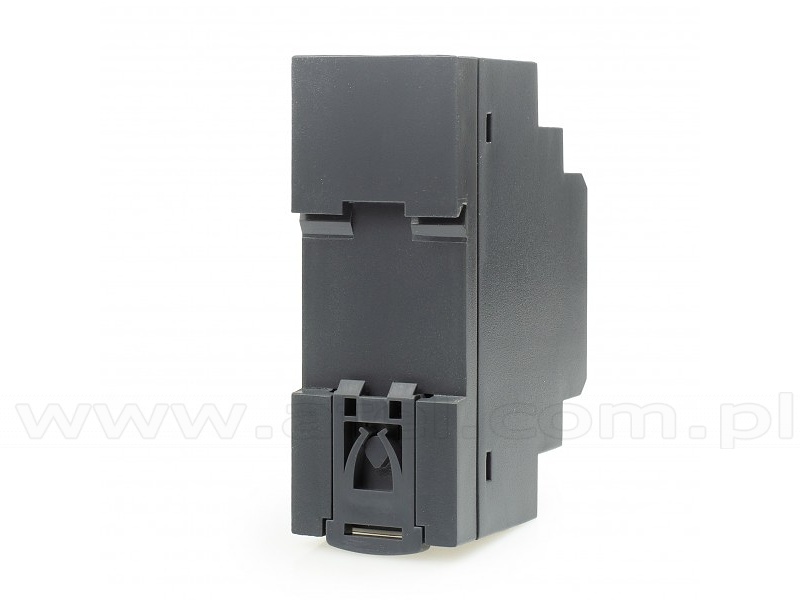

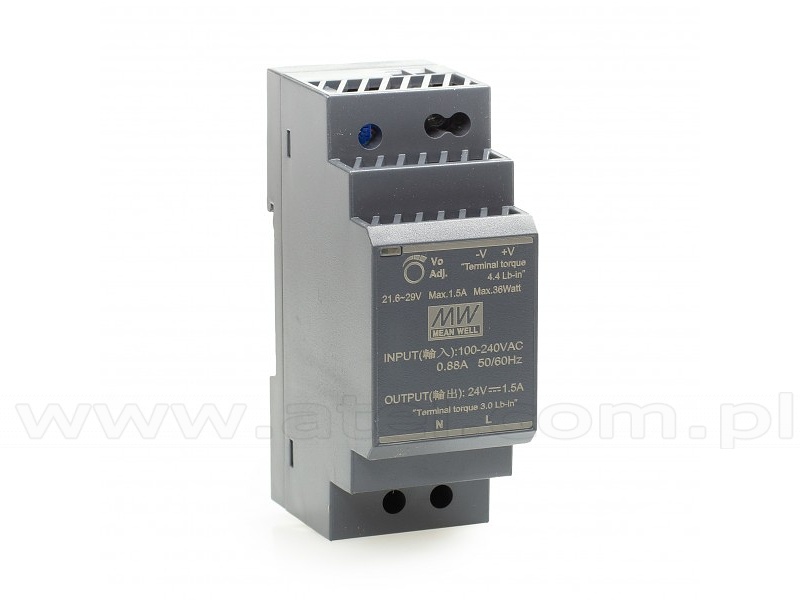

Power supply 30W 24VDC, DIN TS35 (Mean Well HDR-30-24)

Output
DC Voltage 24V
Rated current 1.5A
Current Range 0÷1.5A
Rated Power 30W
Ripple & noise (max.) 150mVp-p
Voltage adjustment range 21.6÷29.0V
Voltage tolerance ±1.0%
Line regulation ±1.0%
Load regulation ±1.0%
Input
Voltage range 85÷264VAC,
120÷370VDC
Efficiency (typ.) 89%
Protection
Overload 105%÷160% rated output power,
protection type - constant current limiting - recovers automatically
Overvoltage 115%÷150%,
protection type - shut down & re-power on to recover
Environment
Working temperature -30°C ÷ 70°C
Vibration (component) 10÷500Hz,
2G 10min./1cycle,
60min. each along X Y Z axes
Safety & EMC
Safety standards UL62368-1,
UL508,
TUV EN61558-2-16,
IEC62368-1,
EAC Tp TC 040,
BSMI CNS14336-1 approved
Withstand voltage I/P-O/P 4kVAC
EMC Standards EN55032 class B,
EN61000-3-2,33,
EN61000-6-2,
EN61000-4-2,3,4,5,6,8,11,
EN61204-3
Others
MTBF min. 441500h MIL-HDBK-217F (25°C)
Dimension (W x H x D) 35mm x 90mm x 5.5mm

Net Price: 14,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
