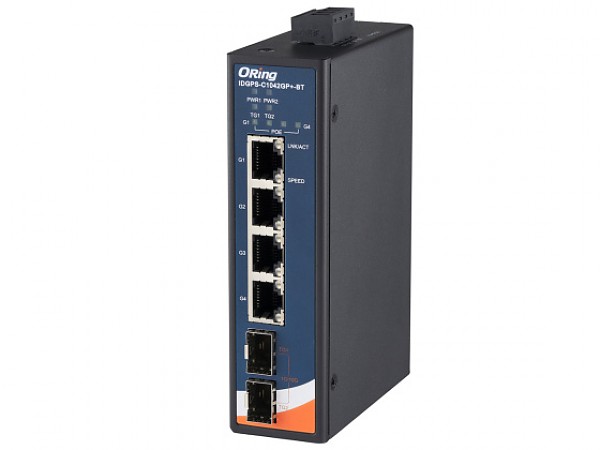

Unmanaged switch, 4x 100/1G/2.5G RJ-45 PoE + 2x1000/10G SFP+ (ORing IDGPS-C1042GP+-BT)
The IDGPS-C1042GP+-BT is an unmanaged Ethernet switch with 4 x 10/100/1000/2500Base-T(X) IEEE 802.3bt PSE ports and 2 x 1G/10GBase-X, SFP socket, offering high-speed and reliable connectivity and total power budget of 240Watts with maximum 90Watts per port. With our high power 802.3bt solution, you can easily connect and power high-power devices such as IP cameras, wireless APs, and VoIP phones without the need for separate power sources or complicated setups. Enjoy streamlined installation and reduced clutter, maximize the network's flexibility and scalability. The four 2.5 Gigabit ports are available for connecting high-speed devices. Additionally, the two 10G Ethernet ports can be utilized for uplink transmission, establishing a high-bandwidth transmission. With an extensive operating temperature range spanning from -40°C to 75°C, they effortlessly adapt to various operational environments. Renowned for their robustness, they stand as a dependable choice for Ethernet and powered device applications.
| Physical Ports | |
|---|---|
| 10/100/1000/2500 Base-T(X) Ports with P.S.E. in RJ45 Auto MDI/MDIX | 4 (total power budget of 240Watts with maximum 90Watts per port) |
| 1000/10GBase-X, SFP+ ports | 2 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000Base-X, IEEE 802.3bz for 2.5GBaseT, IEEE 802.3ae for 10G SFP+, IEEE 802.3x for Flow control, IEEE 802.3af/at/bt PoE specification |
| MAC Table | 8192 MAC addresses |
| Processing | Store-and-Forward |
| Switching latency | 10 µs |
| Switching bandwidth | 60 Gbps |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 4-pin terminal block |
| Power consumption (typical) | 10W |
| Overload current protection | present |
| Physical Characteristic | |
| Enclosure | IP-40 |
| Dimension (W x D x H) | 35 x 88 x 130 mm |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -40÷75°C (-14÷163°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN 62368-1 (LVD) |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 213,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
