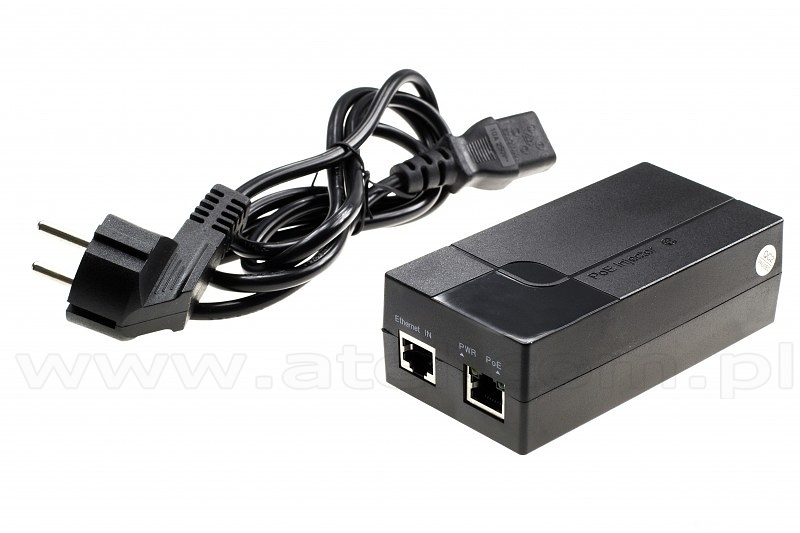

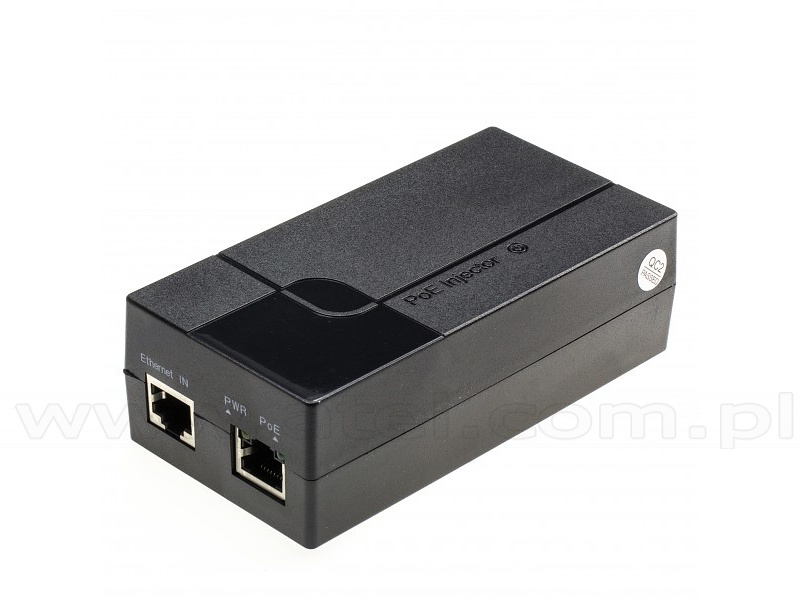

PoE injector 52V 0,3A

This power supply is intended for powering LAN devices compliant with the IEEE 802.3af standard, adapted to be supplied with the voltage of 37÷57V DC supplied to the device via a four-pair twisted pair. Power is supplied using pairs: 4/5 (+) and 7/8 (-) which are also used for data transmission in accordance with the Ethernet standard. The power supply cannot be used in Gigabit Ethernet networks! The power supply is equipped with overvoltage and overload protection.
Supply voltage 90 ÷ 264V AC 50Hz
Current consumption 0,2A@230VAC max.
Supply power 15,4W max.
Efficiency 87%
Output voltage 52V DC
Output current 0,3A
Ripple voltage 150mV p-p max.
Overload protection OLP 150-200% of power supply,
automatic recovery
Optical signalization PWR – presence of DC voltage,
PoE – presence of DC voltage at PoE output
Operation conditions temperature -10°C ÷ 40°C,
relative humidity 20%...90%,
without condensation
Dimensions (LxWxH) 119 x 61 x 38 [mm]
Net/gross weight 0,33kg / 0,38kg
Protection class EN 60950-1.2007 II (second)
Length of detachable AC cable 1,2m
Storage temperature -20ºC...+60ºC
Warranty 2 years

TAGS: PoE
Net Price: 21,80 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
