#04677
Industrial Power SuppliesORING NETWORKINGRPM-130-AC-EU

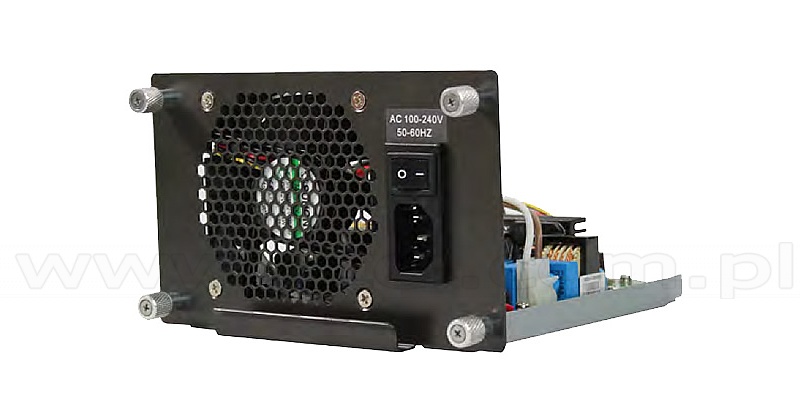

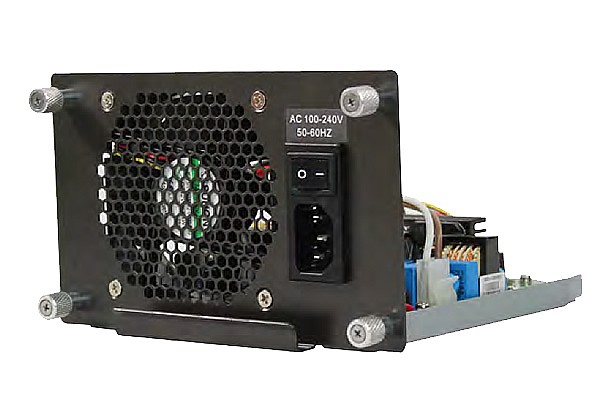

RMC-1000 Chassis Power Supply 130W (ORing RPM-130-AC)

RMC-1000 Chassis (#08437) Power Supply
Power
PowerSingle output with maximum 130Watts (cooling fan included)
Input Requirements
Ethernet Standards 100 ~ 240VAC
100 ~ 240VAC 47 ~ 63 Hz
Steady Current 3.3 Arms max
Inrush Current (cold start 25C) 80A max
Leakage Current (DC-DC exclude) 3.5mA max.
Output Requirements
Specified O/P Voltage 12VDC
Current Max. 10.8A
Ripple & Noise 120mV
Line Regulation +1% ~ -1%
Load Regulation +1% ~ -1%
Protection Requirements
Over-Voltage Protection +14.5V / -2.5V
Over-Temperature Protection 130C (typical)
Over-Current Protection 10.8 ~ 21.6A
No Load Operation Present
Short Circuit Protection Present
Environmental
Storage Temperature -4085C
Operating Temperature -1070C
Operating Humidity 0%95% Non-condensing
Regulatory approvals
EMI CISPR 22 class A,
EN55022 class A,
FCC parts 15 class A
EMS IEC61000-4-2 (ESD),
IEC61000-4-3 (RS),
IEC61000-4-4 (EFT),
IEC61000-4-5 (Surge),
IEC61000-4-6 (CS),
IEC61000-4-8,
IEC61000-4-11,
IEC-61000-3-2 class A & class D
Safety UL60950-1,
EN60950-1,
CUL - CAN/CSA C22.2 No.60950-1,
HI-POT (L, N to DC output) - 42VDC,
1 minute,
limit - 8mA,
HI-POT (L, N to FG) - 21VDC,
1 minute,
Ilimit - 8mA,
I.R. - 50MΩ (min. at room temperature) / 500VDC
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25C ) 352648
Warranty
Warranty period 5 years

« previous product  |  next product »     »show on list«
* For special orders only
Net Price: 150,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
