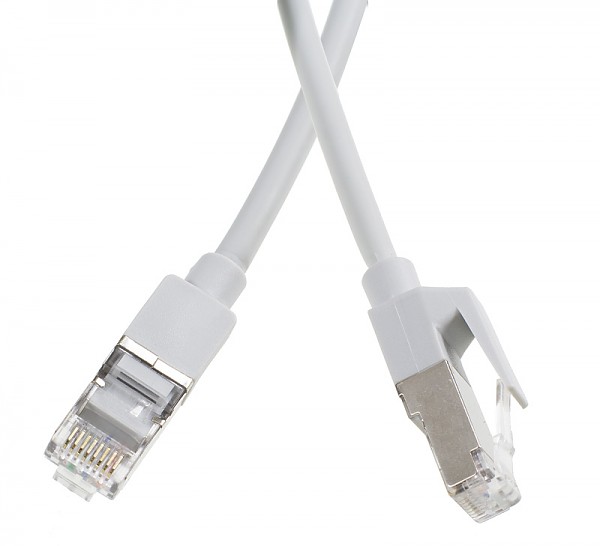

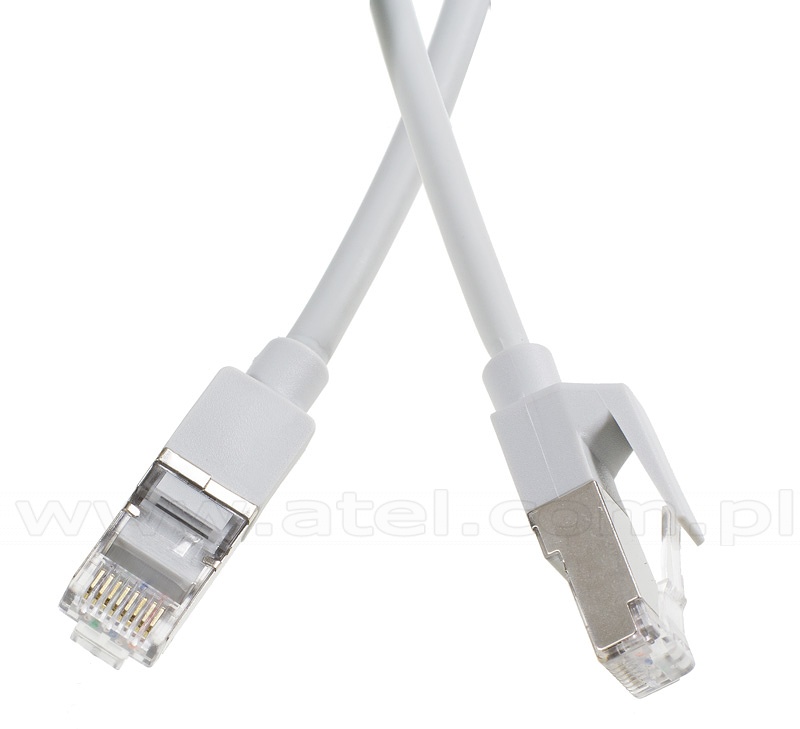

              | Cable | |
|---|---|
| Shielding type / cat | S/FTP cat 8 |
| Cable construction | 4x2x7/0.15Cu + foil AL + oplot + LSOH |
| Core diameter / AWG | 30 |
| Outer diameter | 5 mm, LSOH |
| Connector | |
| RJ45 plug / molded | 8p8c  shielded, gold plated pins |
| Impedance 100 Mhz | 100 +/- 5 Ohm |
| Frequency | 2000 MHz |
| Working temperature | 0°C - 60°C |
| RoHS 2011/65/EU | EN IEC 63000 |
| Standards | EN 50173-1, ISO/IEC 11801, IEC60332-1, IEC-60603-7-5, TIA/EIA 568B |
|
Net Price: 1,82 EUR  Unit: pcs |
| Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
