VUTLAN provides IP monitoring and power management solutions for enterprises and small businesses.
Monitoring Systems and IP Power Distribution ranges are designed for large data centres, server rooms, web hosting facilities, 19 inch telecommunication racks etc.

Environmental monitoring in the server rooms, on the telecommunication nodes, in data centers et cetera is of great importance to many if not to all companies.

What are the indoor temperature and humidity, what happens to the air conditioning or fans, whether the line voltage has a huge impact on the reliability of the equipment and the service life of servers, switches, and routers.

If you have the only rack with a couple of ups and two three servers, you need to install a small monitoring unit with 5-6 sensors, enter your notifications and logic and may be to connect an inexpensive USB cam.

Built-in web server and video server allows you to view logs and events at your facility, the logic when properly installed will allow the monitoring system to accept most decisions, for example, to shut down servers at high temperature or at failure of air conditioning or fans, or in case of fire, etc. and to warn user with any notification or SMS (if GSM modem is installed).

If you have a set of facilities and requires a scalable, easy-to-install solution for monitoring a distributed network, then you must either apply extension units and sensors that allow to gather information from wide area, or when there are absolutely great distances between nodes and objects, it is possible to use SNMP applications that allow to collect information from multiple remote sites and can be stored in any database, if necessary, to use this information by appropriate authorities.

It is also important to use monitoring systems with easy scalability and a wide range of sensors,with longlife-warranty period at a reasonable prices.

All this ensures the equipment from VUTLAN, the most modern manufacturer of IP monitoring systems!

VUTLAN Cert

Manufacturer's website: http://www.vutlan.com

server room monitoring

Vutlan Schema

Vutlan Interfejs 1Vutlan Interfejs 2

Vutlan Interfejs 3


VutlanAchieve instant awareness of IT infrastructure problems, so downtime doesn’t adversely affect your business.
Nagios together with VUTLAN plugin offers complete monitoring and alerting for servers, switches, applications, and services.

You can:

  • Monitor your entire IT infrastructure
  • Spot problems before they occur
  • Know immediately when problems arise
  • Share availability data with stakeholders
  • Detect security breaches
  • Plan and budget for IT upgrades
  • Reduce downtime and business losses

You can download and install VUTLAN plugin directly into Nagios or download a disk image
that includes VirtualBox, CentOS 6.5, Nagios 3.5.1 and VUTLAN plugin preinstalled
into Nagios.


  • Computer Network Accessories
      • » MAIN UNITS
          #08216

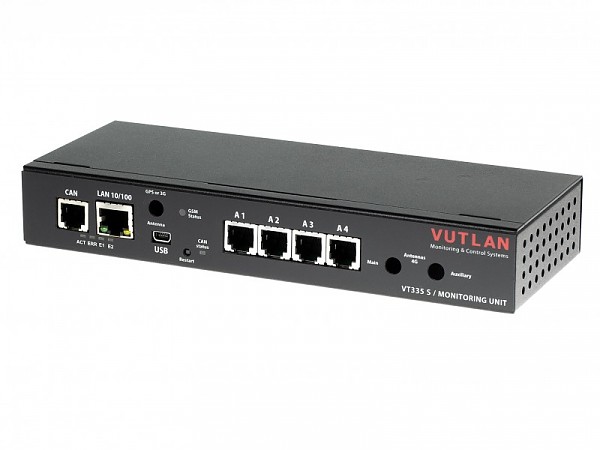

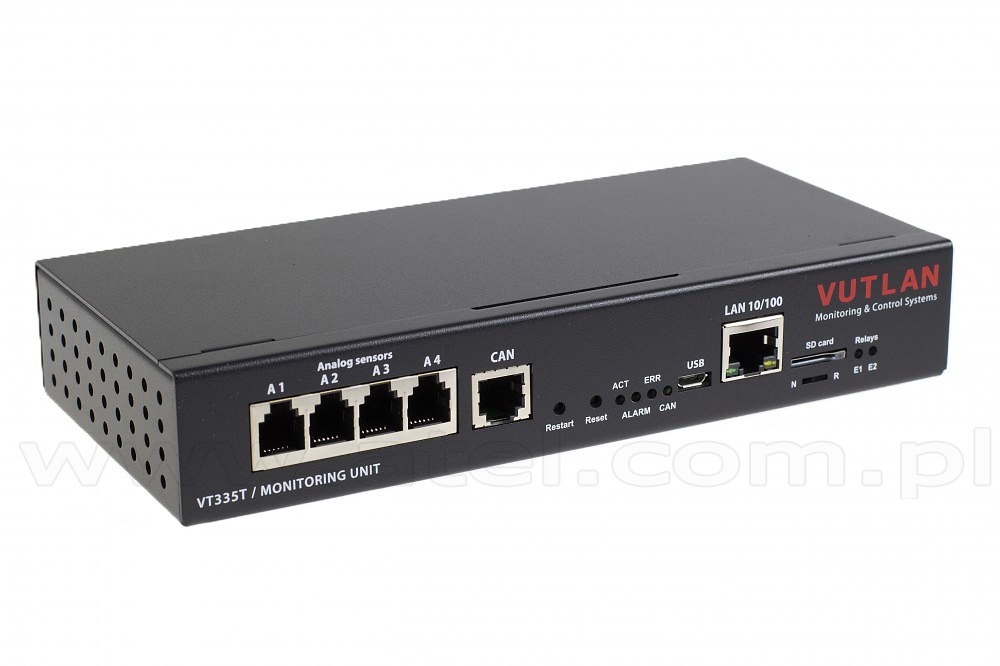

          MINI Monitoring unit; 4x analog; 1 x CAN (Vutlan VT335 S)

          The unit is used for temperature, humidity, voltage, leakage, smoke, airflow, doors control in small facilities. Can connect up to 30 sensors and 4 dry contacts, two 12V alarm beacons, GSM modem, USB-сam and 1-Wire sensors or readers.
          There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, Wachdog.
          VT335 S can be equipped with #08275 GSM module.
          REMOTE CONTROL
          IP monitoring Web,
          SNMP
          Sensors control Administrative 3-level control of sensors using login
          INTERFACE & PROTOCOL SUPPORT
          Interface Access via any Internet browser.
          LAN Ethernet 10/100Mbit
          Network protocols Built-in HTTP server,
          SNMP agent,
          SMTP agent,
          manageable logic. Uses FTP link for updating current software version.
          Processor ARM926-300 MHz
          OS Linux 2.6.38
          RAM 64Mb
          ROM 512 Mbit NAND Flash
          Software Built-in software for events processing.
          Alert type FTP,
          syslog,
          SMTP or SNMP
          Pings Built-in function for ping
          LEDs power,
          network,
          alarms;
          Clock Built-in clock with time synchronization
          Watchdog Built-in watchdog timer
          POWER
          Power input 12V.
          Power consumption 6W
          Power reservation 12V,
          built-in voltage monitor
          INLETS/OUTLETS
          Ethernet 100Mbit
          Mini USB AB USB 2.0 HS
          Analog port 4x 6p4c for connection of any analog sensor.
          CAN port 1x6p6c (max 8 CAN sensors)
          Dry contacts 2x
          12V outlets 2x
          FEATURES
          Installation Desktop or 19" (with #082222 19" holder / bracket for VT335 S monitoring unit - ordered separately)
          Dimensions (LxHxW)206 x 33.1 x 79.4 mm
          Net weight 1,2 kg
          Accessories:

          #08222 19" holder / bracket for VT335 S monitoring unit
          MINI Monitoring unit; 4x analog; 1 x CAN (Vutlan VT335 S)
          Net Price: 226,00 EUR

          #08265

          MINI Monitoring unit; 8+16 (Vutlan VT800)

          It is possible to connect up to 16 CAN sensors or/and additional extension units, GSM modem, 8 analog sensors and 16 dry contacts.
          GSM modem VT920 (#08241) is ordered separately. Dry contacts unit VT16 (#08235) is ordered separately.
          REMOTE CONTROL
          IP monitoring Web,
          SNMP,
          manual SMS (GSM modem art. SC920 is ordered separately!)
          Sensors control Administrative 3-level control of sensors using login
          INTERFACE & PROTOCOL SUPPORT
          Interface Access via any Internet browser.
          LAN Ethernet 10/100Mbit
          Network protocols Built-in HTTP server,
          SNMP agent,
          SMTP agent,
          manageable logic. Uses FTP link for updating current software version.
          Processor IMX257 Freescale
          OS Linux 2.6
          RAM 64Mb
          ROM 128Mb FLASH
          Software Built-in software for events processing.
          Alert type FTP,
          syslog,
          SMTP or SNMP,
          SMS (GSM modem is ordered separately)
          Pings Built-in function for ping
          LEDs 4 green ACT,
          CN1,
          CN2,
          ERR;
          Clock Built-in clock with time synchronization
          Watchdog Built-in watchdog timer
          POWER
          Power input 12V.
          Power consumption 6W-18W
          Max. consumption 18W
          Power reservation 12V,
          built-in voltage monitor
          INLETS/OUTLETS
          Ethernet 100Mbit
          USB port USB 2.0
          Mini USB AB USB 2.0 HS
          Analog port 6P4C for connection of any analog sensor.
          CAN BUS 2 x 6P6C for connection of up to 16 CAN sensors on each BUS. Fuse protection on each line.
          Dry Contacts optional - VT16 Extension Board #08235 is ordered separately
          EXTERNAL MEMORY
          SD card 4Gb Flash
          FEATURES
          Installation Desktop,
          19"
          Dimensions (LxHxW)215 x 44x 75 mm
          Net weight 1,7 kg
          #08241 Modem GSM SC920
          #08235 Contacts modul SC16

          IP cameras:
          #08528 3GPP Surveillance Camera, H.264 Megapixel (TL-SC3230)
          MINI Monitoring unit; 8+16 (Vutlan VT800)
          Net Price: 238,00 EUR

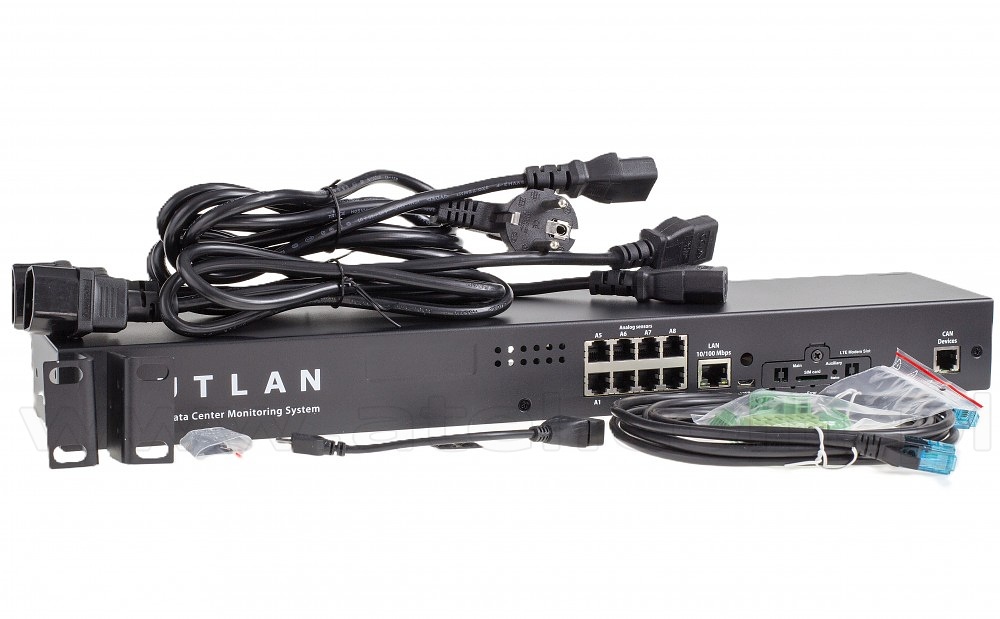

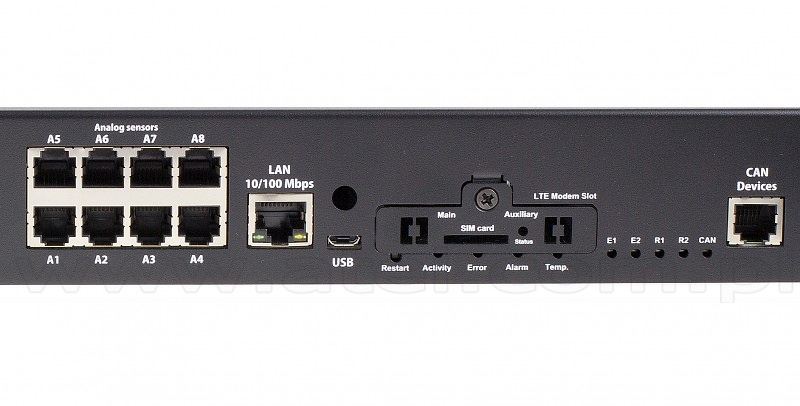

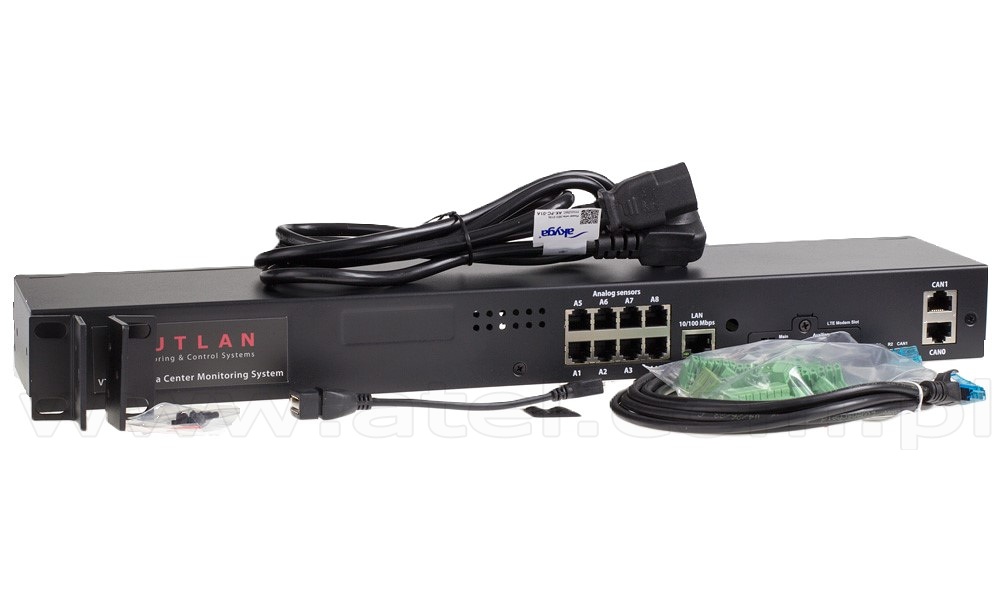

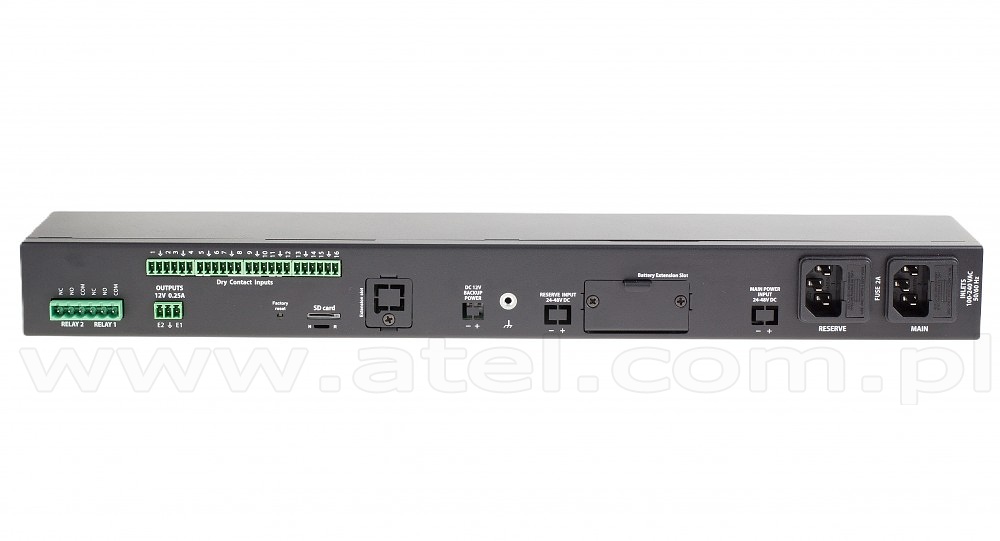

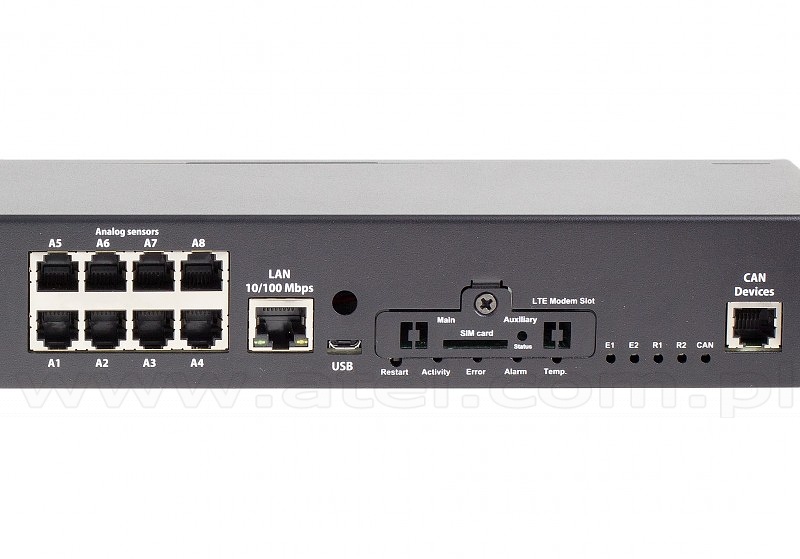

          #08373

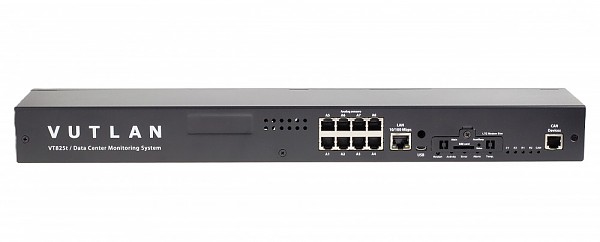

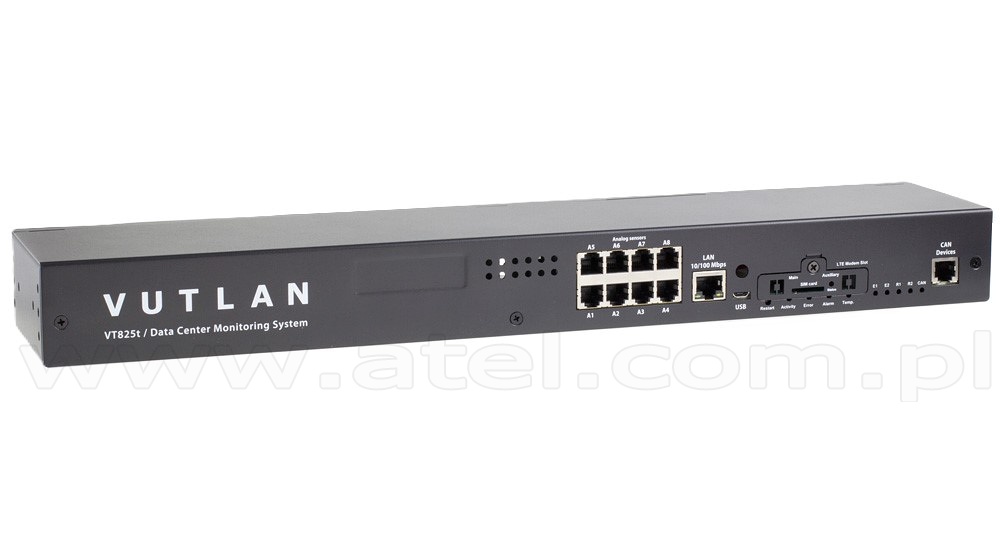

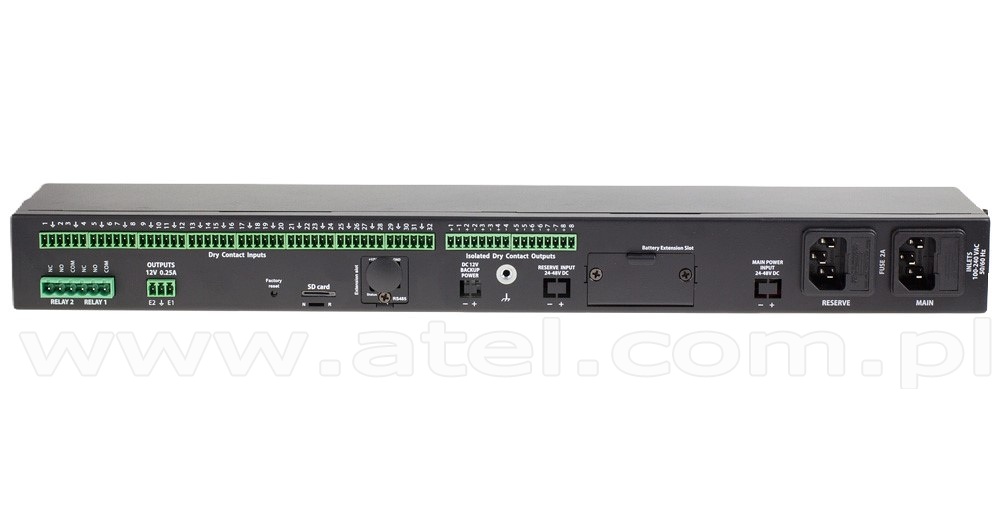

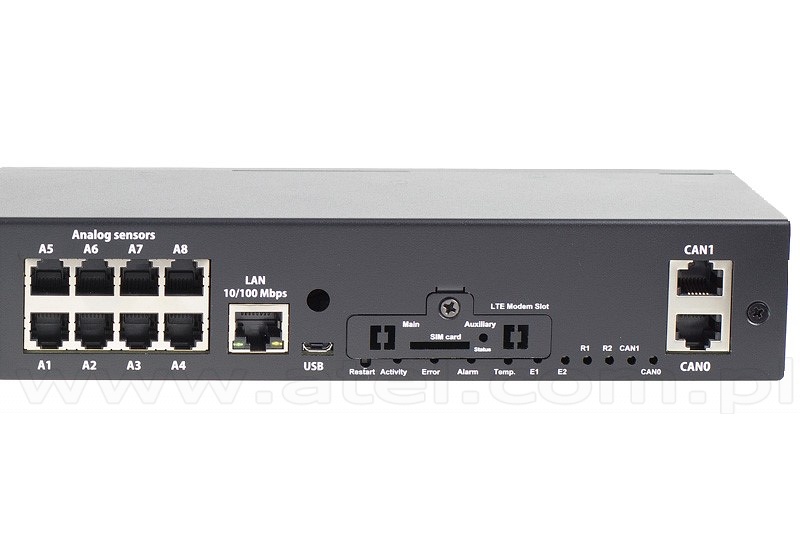

          Monitoring unit 19" 1U; 8x analog; 1x CAN; 4x dry contact inputs (Vutlan VT825)

          The unit is used in data centers, remote & industrial facilities, offices. Can connect up to 30 sensors, 12 dry contacts, two 12V alarm beacons, GSM modem, USB-сam, SD card, 1-Wire board for reader or board with 8 dry contacts, two relais 10A 230V and power backup input.
          There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, Wachdog.
          REMOTE CONTROL
          IP monitoring Web,
          SNMP,
          manual SMS (GSM modem art. VT700 is ordered separately!)
          Sensors control Administrative 3-level control of sensors using login
          INTERFACE & PROTOCOL SUPPORT
          Interface Access via any Internet browser.
          LAN Ethernet 10/100Mbit
          Network protocols Built-in HTTP server,
          SNMP agent,
          SMTP agent,
          manageable logic. Uses FTP link for updating current software version.
          OS Linux 3.10
          RAM 64MB
          ROM 512MB NAND Flash
          Software Built-in software for events processing.
          Alert type FTP,
          syslog,
          SMTP or SNMP,
          SMS (GSM modem is ordered separately)
          Pings Built-in function for ping
          LEDs CAN,
          Power,
          Relays and Error
          Clock Built-in clock with time synchronization
          Watchdog Built-in watchdog timer
          POWER

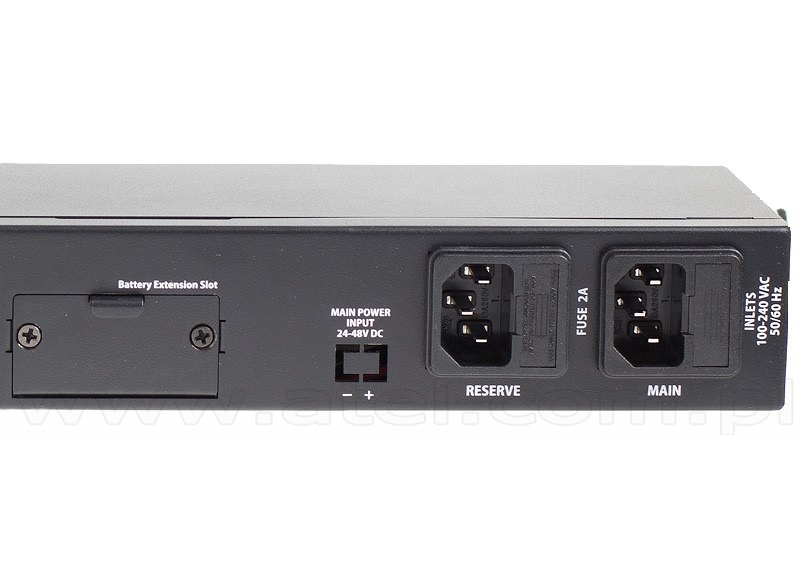

          Power req 90-240V,
          IEC C14,
          Fuse 2A
          Power consumption 12W
          Power reservation 12V,
          built-in voltage monitor,
          power reservation battery 9-12V connection possible (VT18 Extension Board is ordered separately)
          INLETS/OUTLETS
          Ethernet 100Mbit
          Mini USB AB USB 2.0 HS
          Analog port 8x6P4C for connection of any analog sensor.
          CAN BUS 1 x 6P6C for connection of up to 8 CAN sensors on each BUS. Fuse protection on each line.
          Relay outputs optional - VT18 Extension Board is ordered separately
          Alarm relay 2 x 12V alarm port for VT103 Alarm Beacon (#08264)
          Dry contact inputs 4
          EXTERNAL MEMORY
          SD card 4/8/16/32 GB Flash
          FEATURES
          Installation 19"
          Dimensions (WxHxD) 440mm 44.45mm 79.4mm
          Net weight 1,2 kg

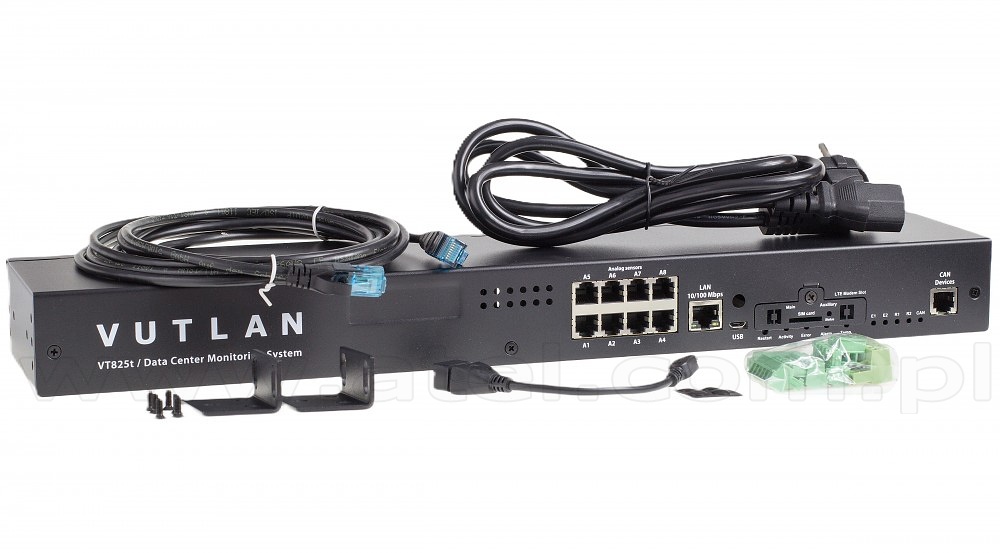

          Supply includes Monitoring unit,
          power cable 240V,
          RJ45 cord,
          manual,
          warranty,
          4 self-adhesive rubber legs,
          two plugs TBW-5-6P,
          19" mounting angles.
          #08275 Modem GSM VT700
          #08277 1-wire module VT10
          #08430 Extension Board VT18
          #08264 Alarm beacon VT103
          Monitoring unit 19" 1U; 8x analog; 1x CAN; 4x dry contact inputs (Vutlan VT825)
          Net Price: 304,00 EUR

          #08372

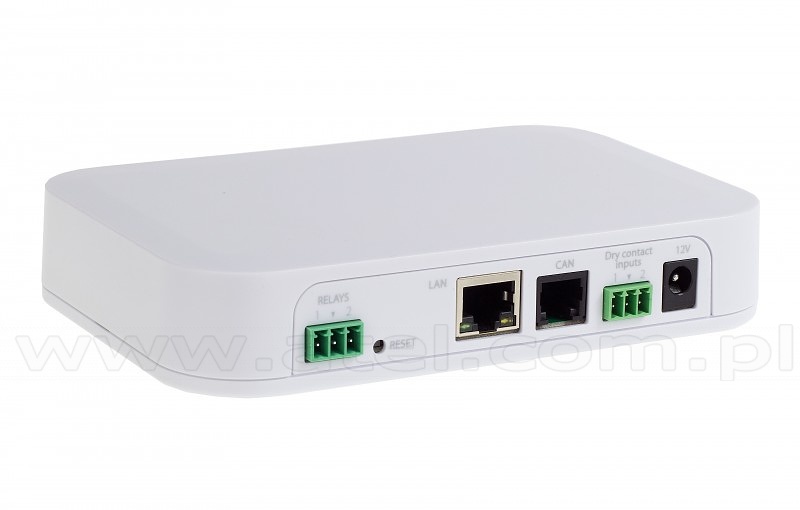

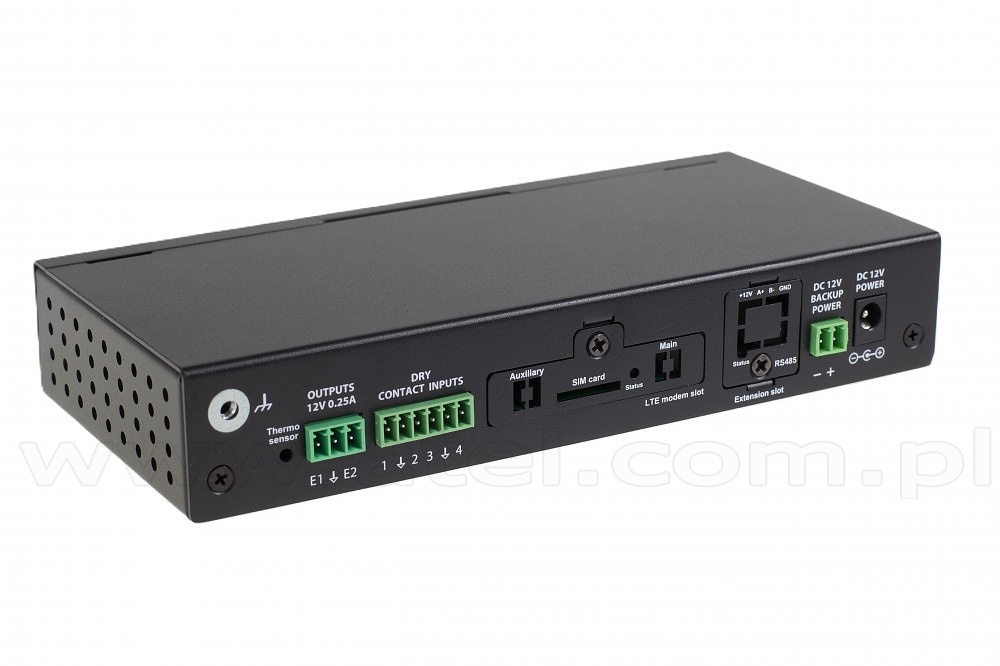

          Monitoring unit; 8x analog; 1x CAN; 4x dry contact inputs (Vutlan VT805)

          The unit is used for environmental control in small facilities. Can connect up to 30 sensors, 12 dry contacts, two 12V alarm beacons, GSM modem, USB-сam, SD card, 1-Wire board.
          There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, Wachdog.
          REMOTE CONTROL
          IP monitoring Web,
          SNMP,
          manual SMS (GSM modem art. VT700 is ordered separately!)
          Sensors control Administrative 3-level control of sensors using login
          INTERFACE & PROTOCOL SUPPORT
          Interface Access via any Internet browser.
          LAN Ethernet 10/100Mbit
          Network protocols Built-in HTTP server,
          SNMP agent,
          SMTP agent,
          manageable logic. Uses FTP link for updating current software version.
          OS Linux 3.10
          RAM 64MB
          ROM 512MB NAND Flash
          Software Built-in software for events processing.
          Alert type FTP,
          syslog,
          SMTP or SNMP,
          SMS (GSM modem #08275 is ordered separately)
          Pings Built-in function for ping
          LEDs CAN,
          Power,
          Relays and Error
          Clock Built-in clock with time synchronization
          Watchdog Built-in watchdog timer
          POWER
          Power req DC12V,
          1A
          Power consumption 10W
          INLETS/OUTLETS
          Ethernet 100Mbit
          Mini USB AB USB 2.0 HS
          Analog port 8x6P4C for connection of any analog sensor.
          CAN BUS 1 x 6P6C for connection of up to 8 CAN sensors on each BUS. Fuse protection on each line.
          Alarm relay 2 x 12V alarm port for VT103 Alarm Beacon (#08264)
          Dry contact inputs 4
          EXTERNAL MEMORY
          SD card 4/8/16/32 GB Flash
          FEATURES
          Installation desktop,
          wall,
          19" (19" holder #08369 is ordered separately)
          Dimensions (WxHxD) 188mm x 44.45mm x 80 mm
          Net weight 1,2 kg

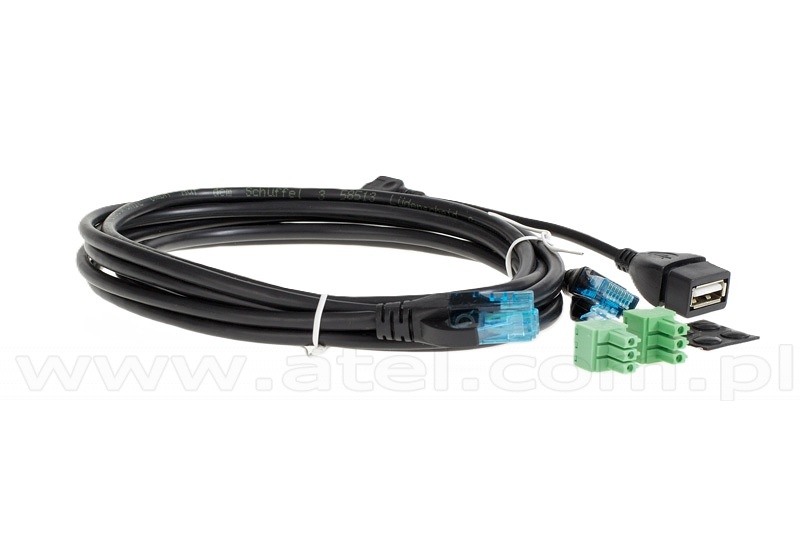

          Supply includes Monitoring unit,
          12 V adapter,
          RJ45 cord,
          manual,
          warranty,
          4 self-adhesive rubber legs,
          terminal plug 6 pins,
          3.5 mm - 1 pcs,
          3.81 mm - 1 pcs,
          19" rack mounting brackets
          #08275 Modem GSM VT700
          #08277 1-wire module VT10
          #08264 Alarm beacon VT103
          Monitoring unit; 8x analog; 1x CAN; 4x dry contact inputs (Vutlan VT805)
          Net Price: 269,00 EUR

          #08377

          Power distribution unit 2x analog, 1xCAN, 4x 230V (Vutlan VT604)

          Device is used for load management and allows to switch on/off or reboot up to 4 outlets.
          It is possible to connect up to 2 analog sensors, 2 dry contacts and GSM modem.
          GSM modem VT700 (#08275) is ordered separately.
          REMOTE CONTROL
          IP monitoring Web,
          SNMP,
          manual SMS (GSM modem art. VT700 #08275 is ordered separately!)
          Sensors control Administrative 3-level control of sensors using login
          INTERFACE & PROTOCOL SUPPORT
          Interface Access via any Internet browser.
          LAN Ethernet 10/100Mbit
          Network protocols Built-in HTTP server,
          SNMP agent,
          SMTP agent,
          manageable logic. Uses FTP link for updating current software version.
          OS Linux 2.6.38
          Processor ARM926-300 MHz / 64 MB
          Software Built-in software for events processing.
          Alert type FTP,
          syslog,
          SMTP or SNMP,
          SMS (GSM modem art. VT700 #08275 is ordered separately!)
          Pings Built-in function for ping
          LEDs STATUS,
          E1,
          E2,
          ERR,
          4x OUTLET
          Clock Built-in clock with time synchronization
          Watchdog Built-in watchdog timer
          POWER
          Power input IEC C14 240V x 10A. Fuse protection.
          Power output 4x C13 240V
          Power consumption 10W
          INLETS/OUTLETS
          Ethernet 100Mbit
          Mini USB AB USB 2.0 HS
          Analog port 2x 6P4C for connection of any analog sensor.
          CAN BUS 1 x 6P6C for connection of up to 8 CAN sensors on each BUS.
          Relay outputs 4 latching relais 230V
          Built-in sensors Temperature sensor (1%),
          Power supply voltage sensor (1%)
          FEATURES
          Installation 19"
          Dimensions (LxHxW) 440 x 44.45 (1U) x 79 mm
          Operating characteristics Humidity - Min. 5% - Max. 95% (Non-Condensing),
          Temperature - Min. -10 C - Max.80 C
          Net weight 1,5 kg
          Supply includes Cable EU Schuko C13 0.5mm2 230V 10A,
          Self-adhesive rubber foot 4 pcs,
          Warranty card,
          Short description and connection guide,
          Patch cable RJ-45 1m,
          Terminal plug 3 pins 3.5mm 1pcs,
          Terminal plug 2 pins 3.81mm 1pc,
          19" mounting brackets 2pcs,
          Screws 6pcs M3 8mm
          #08275 Modem GSM VT700
          Power distribution unit 2x analog, 1xCAN, 4x 230V (Vutlan VT604)
          Net Price: 305,00 EUR

      • » ANALOG SENSORS
          #08244

          AC voltage monitor (Vutlan VT520)

          Sensor is needed for measurement of standard power supply 220-230V or any other capacity in the power supply system, for example in an outlet, on an extension cord or in a rack-mountable socket strip.
          Connection Plug 220V is put into the outlet necessary for measurement of 220V. Cable's USB connector must be connected to the USB output,
          connector RJ-11 must be connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically.
          Supply includes Sensor and USB RJ-11 patch cable (1.8 m).
          Technical specifications
          Voltage measured 90-250V
          Max. distance m 100m
          Net weight 125g
          Dimensions (LHW) 636640mm
          AC voltage monitor (Vutlan VT520)
          Net Price: 30,70 EUR

          #08245

          Access sensor (Vutlan VT530)

          At installation on doors, windows, etc., sensor controls status of door, window: opened, closed.
          Installation Using patch-cable RJ-12 sensor is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. One of devices in the kit,
          for example,
          magnet,
          is mounted on a door; the second device is mounted on a jamb of a door. At opening a door contact is disconnected,
          and system of monitoring receives notification on opening. The first sensor is connected using patch-cable RJ-12 to an analog input of the system unit,
          the consequent sensor is connected via patch-cable RJ-12 to an output of the first sensor and so on.
          Supply includes Contact sensor,
          magnet,
          4-wired patch cable RJ-12 (2m),
          two screws 4.816mm,
          2 screws M5 and 2 nuts,
          bracket,
          double sided sticker.
          Max. distance 150m
          Net weight 106g
          Dimensions (LHW) Two compact devices with dimensions 601818mm
          Access sensor (Vutlan VT530)
          Net Price: 21,40 EUR

          #08239

          Humidity sensor 5% (Vutlan VT510)

          Sensor is needed for measurement of relative humidity 5-95% indoors with relative accuracy 3%.
          Technical specifications
          Measured humidity range 5-95% RH
          Accuracy 3%RH
          Operation temperature range -40 .. +100C
          Features
          Installation On the bottom there is a ledge with Ø4.5mm and height 1mm and a mounting hole in 50mm from it for fastening the sensor using 4.816 mm screw.
          Connection Humidity sensor contains RJ-12 jack and is connected to an analog input of any system unit. Determination of type of sensor and connection occur automatically.
          Supply includes Sensor,
          4-wired patch cable RJ11 (2m),
          4.816mm screw,
          double sided sticker.
          Net weight 60g
          Dimensions 601818mm
          Max distance 50m
          Humidity sensor 5% (Vutlan VT510)
          Net Price: 26,00 EUR

          #08248

          Leakage sensor (Vutlan VT590)

          When water is in contact with the metal cores, the sensor indicates the emergence of moisture. If sensor is constantly responding to high water levels, replace the sensor with a level sensor.
          Attention! Metal cores are detectors of water, mount strictly downwards as close as its possible to a floor.
          Technical specifications
          Temperature range -10… +80C
          Response time 1 sec
          Recovery time 1 sec
          Max. distance 100 m
          Installation On the bottom there is a ledge with Ø 4.5 mm and height 1 mm; and a mounting hole in 50 mm from it for fastening sensor by screw 4.816mm. There are two metal cores on the side of device.
          Connection Connector RJ12 is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically.
          Supply includes Sensor,
          4-wired cable RJ-12 (2m)
          Net weight 125g
          Dimensions (LHW) 601818mm
          Leakage sensor (Vutlan VT590)
          Net Price: 23,60 EUR

          #08247

          Motion detector (Vutlan VT570)

          Sensor is used for of movement detection via infra-red.
          Technical specifications
          PIR detection angle 110
          Max. detection distance 12 m
          Features
          Installation On the bottom there is a mounting slot for fastening sensor by plastic bracket.
          Connection Motion sensor contains RJ-11 jack and is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. To adjust sensitivity read manual. To change cable connection,
          open the cover and read manual.
          Dimensions (LxHxW) 1055740mm
          Net weight 133g
          Supply includes Sensor,
          cable RJ11 2m,
          4.816mm screw,
          2-pin terminal strip type TBW-5-2p,
          double sided sticker.
          Motion detector (Vutlan VT570)
          Net Price: 31,40 EUR

          #08243

          Outdoor temperature sensor (Vutlan VT501)

          Sensor needed for measurement of temperature outside of premises, can be applied indoors.
          Technical specifications
          Operating temperature -50...+105C
          Accuracy 3C
          Max. distance 100m
          Features
          Installation An all-weather 2-pair UTP cable of 15m emerges from the cylinder. After installation of cylinder outside of a building,
          the cable must be placed to reach the system unit.
          Connection After installation RJ-11 connector is connected to an analog input of any system unit. Determination of type of sensor and connection occur automatically.
          Supply includes 4-wired cable RJ11 (15m) with sensor head
          Net weight 340g
          Dimensions (LHW) Device represents cylinder of Ø1228mm with 15m cable
          Outdoor temperature sensor (Vutlan VT501)
          Net Price: 33,10 EUR

          #08246

          Smoke sensor (Vutlan VT560)

          At installation indoors, in a rack and etc., the sensor monitors occurrence of smoke. Automatic restoration of power after the actuation.
          Technical specifications
          Sensitivity 0,05 - 0,2 db/m
          Features
          Installation On the bottom there are mounting holes for fastening smoke sensor to the surface by 4.820mm screws or/and bracket and M4 screws.
          Connection Detector's jack RJ-12 is connected to an analog input of any system unit using patch-cable RJ-12. Determination of the sensor's type and connection occur automatically. The monitoring system allows to connect several smoke detectors into a linear circuit. For this purpose each detector has two jacks RJ-12 input and output. The first is connected to an analog input of the system unit using a patch-cable RJ-12,
          the consequent is connected via patch-cable RJ-12 to an output of the first detector and so on. as one sensor with one address.
          Supply includes Detector,
          4-wired cable RJ11 (2m),
          2 screws and 2 nuts M4,
          2 screws 4.820mm,
          bracket,
          double sided sticker.
          Net weight 290g
          Dimensions (LHW) Ø10045
          Max distance 150m
          Smoke sensor (Vutlan VT560)
          Net Price: 30,70 EUR

          #08242

          Temperature sensor (Vutlan VT500)

          Sensor is needed for measurement of temperature indoors.
          Operating temperature: -50... +105C
          Technical specifications
          Operating temperature -50... +105C
          Accuracy 1C
          Features
          Installation On the bottom there is a ledge with Ø4.5mm and height 1mm and a mounting hole in 50mm from it for fastening the sensor using 4.816 mm screw.
          Connection Temperature sensor contains RJ-12 jack and is connected to an analog input of a system unit. Determination of type of sensor and connection occur automatically.
          Supply includes Sensor,
          4-wired patch cable RJ11 (2m),
          4.816mm screw,
          double sided sticker.
          Net weight 50g
          Dimensions (LHW) 601818mm
          Max distance 100m
          Temperature sensor (Vutlan VT500)
          Net Price: 15,50 EUR

          #08391

          Vibration detector (Vutlan VT541)

          Sensor lets you remotely monitor any vibration in any location from internet.
          Vibration detector (Vutlan VT541)
          Net Price: 26,00 EUR

          #08249

          Water detection cable sensor (Vutlan VT591)

          When water is in contact with detection cable sensor indicates the emergence of moisture.
          If sensor is constantly responding to high water levels, replace the sensor with a level sensor (#08248).
          Length: 1-50m can be ordered. Article #08133
          Response time: 7–12 sec
          Connection On the bottom there is a ledge with Ø 4.5 mm and height 1 mm; and a mounting hole in 50 mm from it for fastening sensor by screw 4.816mm. 2-pin terminal strip type TBW-5-2p with mounted water detection cable is plugged into sensor’s connector.
          Installation Connector RJ11 is connected to an analog input of any system unit. Determination of sensor’s type and connection occur automatically. The other end of the sensor connects 2-wire water detection cable with the plug.
          Supply includes sensor,
          cable,
          terminal strip type TBW-5-2p,
          screw 4.816mm,
          double sided sticker
          Technical specifications
          Net weight 60g
          Dimensions (LHW) 601818mm
          Water detection cable sensor (Vutlan VT591)
          Net Price: 22,60 EUR

          #08236

          Wind velocity meter (Vutlan VT550)

          At installation on Air conditioners, fans, etc., sensor controls airflow 0 - 3 m/s.
          Max. distance 50m
          Net weight 106g
          Dimensions 601818mm
          Power Consumption 60mW
          Supply includes Sensor converter,
          airflow sensor,
          mounting bracket,
          2m RJ11/RJ12 cable,
          screws,
          nuts,
          bolts and a sticker.
          Wind velocity meter (Vutlan VT550)
          Net Price: 65,50 EUR

      • » CAN SENSORS
          #08295

          Humidity and temperature sensor (Vutlanl VT490)

          At installation indoors, inside the rack etc., sensor monitors temperature and humidity inside the building.
          Technical specifications
          Measured temperature range -10… +85C
          Accuracy 1C
          Measured humidity range 0 - 95%
          Accuracy %RH 3%
          Maximum distance from the appliance 225m
          Features
          Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit.
          Net weight 160g
          Dimensions 68 47 x 26 mm
          Humidity and temperature sensor (Vutlanl VT490)
          Net Price: 61,70 EUR

          #08238

          PIR, vibration and temperature sensor (Vutlan VT470)

          Sensor is needed for control of movement over an infra-red range and measurement of temperature and vibration indoors.
          Technical specifications
          Viewed angle 110
          Max. distance 12 m
          Measured range of temperature -20... +60C
          Accuracy 1C
          Operating temperature -10 80C
          Max.distance 225m
          Features
          Installation On the bottom there is a mounting slot for fastening sensor by plastic bracket.
          Connection CAN sensor contains RJ-12 jack and is connected to CAN input of any system unit,
          or CAN output of another CAN sensor. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 sensors into a linear circuit.
          Supply includes Sensor,
          built in 3-wired shielded patch cable RJ12 (2m),
          screws,
          plastic bracket,
          manual.
          Net weight 133g
          Dimensions (LHW) 1055740mm
          PIR, vibration and temperature sensor (Vutlan VT470)
          Net Price: 85,50 EUR

          #08237

          Smoke, humidity and temperature sensor (Vutlan VT460)

          At installation indoors, inside the rack etc., sensor monitors occurrence of smoke, temperature and humidity inside the building.
          Automatic restoration of power after the actuation.
          Technical specifications
          Smoke sensitivity 0,05 - 0,2 db/m
          Response time 10 sec
          Measured temperature range -10 85C
          Accuracy 1C
          Measured humidity range 0 - 95%
          Accuracy %RH 3%
          Maximum distance from the appliance 225m
          Features
          Installation On the bottom there are mounting holes for fastening smoke sensor to the surface using screws 4.820mm or/and bracket and M4 screws.
          Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit.
          Supply includes Sensor,
          3-wired shielded patch cable RJ12 (2m),
          bracket,
          2 screws and 2 nuts M4,
          2 screws 4.820mm,
          double sided sticker.
          Net weight 310g
          Dimensions (LHW) Ø10045mm
          Smoke, humidity and temperature sensor (Vutlan VT460)
          Net Price: 76,00 EUR

      • » ADDITIONAL ACCESORIES
          #08277

          1-wire module (Vutlan VT10)

          Board is mounted and connected inside of VT325, VT335, VT805, VT825 monitoring units. Allows to communicate with 1-Wire readers or sensors.
          Technical specifications
          Inputs 1-Wire (iTouch reader)
          Network Interface 1-Wire
          Status Indicators 1-Wire status LED
          Max. distance 100 m
          Package includes 2 screws M3x5,
          Cable BH2-16M to BH2-16M
          Dimensions Depth 44mm,
          Width 23mm,
          Height 15mm
          Weight 50 g
          1-wire module (Vutlan VT10)
          Net Price: 35,70 EUR

          #08117

          AC current transducer (Vutlan HAT-100Q1)

          100A transducer is used for measurement of AC current. The system interface allows you to assign transducer and to introduce the function data conversion. VT407 / HAT transceiver can be used together with HAT-100Q1 to convert data into format of IP monitoring system.
          Connection:
          Power input -12V / +12V
          Outputs 4 pin terminal
          Power Consumption 1 Watt
          Operating temperature -10C 80C
          Operating humidity 5% 95%,
          non-condensing
          Net weight 150g
          Dimensions (LHW) 68 47 x 26 mm / 60 61 16 mm
          #08116 HAT sensor transducer 0-5V DC (Vutlan VT407)
          AC current transducer (Vutlan HAT-100Q1)
          Net Price: 42,60 EUR

          #08933

          Airfolw sensor (LCF013 Vutlan)

          At installation on fans, ventilators, etc., sensor controls airflow: switched on / off.
          Technical specifications
          Operating temperature -10...+80C
          Net weight 60g
          Dimensions (LHW) 34 17.5 7.5 mm
          Airfolw sensor (LCF013 Vutlan)
          Net Price: 23,80 EUR

          #08264

          Alarm beacon (Vutlan VT103)

          Can be used with VT8101 monitoring master units. Needed for light and sound alarms.
          Technical specifications
          Rated voltage 12V
          Sound pressure 108 dB
          Tone frequency 3.8 kHz
          Flash frequency 150 / min
          Net weight 140g
          Dimensions (LHW) 70 x 36 x 56 mm
          Alarm beacon (Vutlan VT103)
          Net Price: 14,50 EUR

          #08390

          Converter 4-20mA (Vutlan VT420)

          Converter of current loop 4-20mA is used for measurement of constant current on 4-20mA outputs of sensors and converting data into format of IP monitoring system. The system interface allows you to assign the sensor and to introduce the function data conversion.

          Galvanic isolation of 3 kV between I/O is used in a receiver.
          Converter 4-20mA (Vutlan VT420)
          Net Price: 36,40 EUR

          #08235

          Dry contacts module (Vutlan VT16)

          Device mounted and connected inside of any master unit can be used together with any contacts, for example with door or window contacts, circuit breakers etc.
          Allows addressed correlation of dry contacts responses and permits, adequate measures to be taken established by the system logic.
          Dedicated to SC8100, VT8101, VT8110, VT800.
          Technical specifications
          Dry contacts 16
          Connector 10 pin
          Features
          Installation On the PCB there are 3 mounting holes for fastening to the surface using screws 3 mm inside of any master unit.
          Connection Jack IDC2-10 is connected to IDC2-10 input of master unit. Determination of PCB's type and connection occur automatically. Monitoring system allows connection of up to 16 dry contacts.
          Supply includes PCB,
          10-wired IDC2 cable (10cm),
          3 screws M3.
          Net weight 80g
          Dimensions (LHW) 70x1025mm
          Dry contacts module (Vutlan VT16)
          Net Price: 28,10 EUR

          #08430

          Dry contacts module (Vutlan VT18)

          Board is mounted and connected inside of "VT825 / Monitoring unit". Adds 8 dry contacts (IN), 2 loads (latching relays with LEDs indicators) & 12V DC power backup terminal. Dedicated to VT825.
          Technical specifications
          Inputs 8 dry contacts (12P,
          3,5mm,
          type IN)
          Power input 12V DC,
          1A (2P,
          3,81mm,
          backup power)
          Relays 2x 230V / 10A
          Mounting Embedded inside moinitoring unit enclosure
          Status Indicators Relays status LEDs
          Package includes 4 screws M3*8,
          Cable BH2-16M to BH2-16M,
          Terminal plug 6 pins,
          3.5 mm - 2 pcs,
          Terminal plug 6 pins,
          5.08 mm - 1 pc,
          Terminal plug 2 pins,
          3.81 mm - 1 pc,
          Terminal plug 3 pins,
          3.81 mm - 1 pcs,
          Terminal plug 6 pins,
          3.5 mm - 1 pcs
          Dimensions Depth 82,6 x Width 96 x Height 26 mm
          Dry contacts module (Vutlan VT18)
          Net Price: 66,70 EUR

          #08916

          Dry contacts unit (Vutlan VT440)

          Allows to increase the number of dry contacts connected to any Vutlan monitoring unit. Adds 32 dry contacts (or 64 with VT32 module). Can be connected to any CAN port.
          Number of dry contacts 32 - 64
          Number of CAN ports 2
          Mounting The unit includes two 19" mounting angles for mounting inside the rack. Alternatively,
          there are 2 mounting holes on the bottom of the case for fastening on the wall. Fasten the unit,
          connect CAN inputs to the input of the previous CAN unit or of the monitoring unit. The red LED lights up. Match the bus terminators of the CAN units. Switch terminator TR in ON position on the monitoring unit and on the last CAN unit,
          TR on intermediate CAN units are in Off (1,2) position. Maximum 8 CAN units,
          sensors and/or devices can be on one CAN bus.
          Inventory Unit,
          3-pair shielded patch cable RJ-12 2 m length,
          screw 3.5 x 16 mm,
          fastener 2-sided,
          rubber feet,
          19" mounting angles.
          Net weight 0.5 kg
          Dimensions (LHW) 2154040mm
          Dry contacts unit (Vutlan VT440)
          Net Price: 102,00 EUR

          #08275

          GSM embedded unit (Vutlan VT700)

          Needed when LAN is absent or for reservation of a connection channel of master unit with Internet; for sending SMS and voice messages.
          INTERFACE
          GSM Quad-Band 850/ 900/ 1800/ 1900 MHz
          LEDs Red / Green Led
          Chip SIM800C
          CONNECTORS
          SMA / Ipex Outdoor GSM antenna with SMA jack can be used. Modem is with U. Fl connector on PCB.
          FEATURES
          Dimensions (LxHxW) 60 x 50 x 15 mm
          Net weight 50 g
          Installation There are 3 mounting M3 holes on a board.
          Supply includes GSM modem,
          GSM quadband antenna with plug,
          SMS-Ipex cable.
          GSM embedded unit (Vutlan VT700)
          Net Price: 66,70 EUR

          #08116

          HAT sensor transducer 0-5V DC (Vutlan VT407)

          Transducer is used together with HAT-100Q1 current transducer and transferring data into a monitoring system. The system interface allows you to assign the current meter and to introduce the function data conversion.
          Power input 12V DC,
          1A
          Input RJ-12 / RJ-11
          Power Consumption 100mW
          Operating temperature -10C 80C
          Operating humidity 5% 95%,
          non-condensing
          Net weight 150g
          Dimensions (LHW) 68 47 x 26 mm
          Max distance 50m
          #08117 AC current transducer Vutlan HAT-100Q1
          HAT sensor transducer 0-5V DC  (Vutlan VT407)
          Net Price: 41,40 EUR

          #08368

          Omni-directional GSM antenna 7 dBi (Vutlan VT6604)

          Omnidirectional gain 7 dBi
          Frequency range 890-960 / 1710-1890 / 1920-2170 MHz
          Impedance 50 Ω
          Connector SMA(M)
          Cable RG174
          Cable lenght 3m
          Temprature Min. -10 C - Max.80 C
          Size ∅50 x 520 mm
          Manufacturer Vutlan
          Omni-directional GSM antenna 7 dBi (Vutlan VT6604)
          Net Price: 13,10 EUR

          #08917

          Rack control unit (Vutlan VT430)

          The module has all possibilities for rack control, PIR sensor for rack door control, 2 contacts for side walls and back door control, temperature and humidity sensors. Connects on CAN port and allows further CAN chain connection.
          Sensors and contacts appears in the system automatically.
          Max. distance from the monitoring unit is 300 meters.
          Technical specifications
          Measured humidity range 10-95% RH
          Accuracy 5% RH
          PIR sensor disrance 30mm
          Number of dry contacts 2
          Number of CAN ports 2
          Maximum distance from the appliance 300m
          Features
          Installation There are 4 mounting holes on the bottom of the case for fastening. Fasten the unit,
          connect CAN inputs to the input of the previous CAN unit or of the monitoring unit.
          Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-12 patch cable. Determination of sensor's type and connection occur automatically.
          Supply includes Unit,
          shielded patch cable RJ-12, 2 screws and 2 nuts M6,
          sticker,
          dry contacts connector..
          Net weight 0.2 kg
          Dimensions (LHW) 892736mm
          Rack control unit (Vutlan VT430)
          Net Price: 101,00 EUR

          #08297

          RFID Card (Vutlan VT108)

          Unique proximity cards for VT107 card readers. Dedicated for SC81xx and VT8xxx monitoring units.
          Technical specifications
          Rated voltage 12V
          Memory 64bit
          Frequency 125 kHz
          Standard EM4100
          Net weight 7g
          Dimensions (LHW) 86 x 59 x 1 mm
          RFID Card (Vutlan VT108)
          Net Price: 4,76 EUR

          #08269

          RFID Card reader (Vutlan VT107)

          Proximity card reader for contactless reading data from RFID cards (Unique standard). Dedicated for VT335, VT805 and VT825 monitoring units (#08277 VT10 1-wire module required).
          Technical specifications
          Rated voltage 12V
          Current 30 - 55 mA
          Frequency 125 kHz
          Range response 15 cm
          Net weight 100g
          Dimensions (LHW) 82 x 82 x 22 mm
          #08297 RFID Card (Vutlan VT108)
          RFID Card reader (Vutlan VT107)
          Net Price: 50,50 EUR

          #08288

          Sensor unit (Vutlan VT408)

          Module allows to increase the number of sensors connected to the Vutlan master module.
          Number of analog ports 8
          Number of CAN ports 2
          Maximum bus length 300 meters
          Maximum analog sensor cable length 50-150 meters,
          depends on the sensor type
          Net weight 0.6 kg
          Dimensions (LHW) 1106840 mm
          Sensor unit (Vutlan VT408)
          Net Price: 105,00 EUR

          #08250

          Thermosensor (Vutlan VT-TS)

          Additional thermosensor for air flow sensors VT450
          Thermosensor (Vutlan VT-TS)
          Net Price: 12,30 EUR

          #08204

          USB100 / USB dome camera

          USB UVC/MJPEG digital camera with high resolution and with IR Leds.
          HARDWARE FEATURES:
          Interface USB format(Complies with USB 2.0
          CAMERA:
          Image Sensor 1/4" Color CMOS H62
          Resolution 1.0 Megapixel (640 x 480)
          Minimum Illumination 0.01 Lux @ F1.2
          VIDEO/IMAGE:
          Video Compression MJPEG
          Frame Rate & Resolutions Max. 20 fps at 640x480 (VGA),
          Max. 20 fps at 320x240 (QVGA)
          Video Streaming Controllable Frame Rate
          OTHERS:
          Cable lenght 2,6m
          Operating Temperature 0C∼ 40C (Humidity 0% RH∼ 80% RH)
          Weight 550g

          #08385

          VT102a / 19" holder (for VT335)

          Holder / bracket for VT335 monitoring unit #08371. 1U rack mount, 19".
          VT102a / 19" holder (for VT335)
          Net Price: 21,00 EUR

          #08369

          VT111 / 19" holder (for VT805)

          Holder / bracket for VT805 monitoring unit #08372. 1U rack mount, 19".
          VT111 / 19" holder (for VT805)
          Net Price: 14,50 EUR

          #08222

          VT122 / 19" holder (for VT335 S)

          Holder / bracket for VT335 S monitoring unit #08216. 1U rack mount, 19".
          VT122 / 19" holder (for VT335 S)
          Net Price: 22,60 EUR

          #08133

          Water detection cable (Vutlan WDC)

          Dedicated to Water detection sensor (#08249). Length: 1-100m can be ordered
          Response time: 7–12 sec Two conductors of nickel-plated copper 70.12 mm in the double fiberglass insulation.
          Manufacturer: Vutlan
          Water detection cable (Vutlan WDC)
          Net Price: 3,14 EUR



top
