HANLONG

HANLONG Products
HANLONG
HANLONG

Hanlog Industrial was established in 1978. It is a well known manufacturer of handheld tools, used widely in many firlds of technic. Since 1997 the company is working with ISO9002 quidelines and in 2003 brought a quality management system comliant with ISO9001:2000.

Hanlong offer inclues:

  • crimpers
  • strippers
  • cutters
  • fiber optic tools
  • tool sets

Atel Electronics is a distributor of Hanlong products

Manufacturer's website: http://www.hanlong.com.tw

  • Installation Tools
    • Crimping tools, coaxial
      • » CRIMPING TOOLS
          #04259

          Coaxial ratchet crimping tool (Hanlong HT-336G)

          Made of tempered carbon steel, oxided.
          Crimping diameter 1.09 mm,
          1.72 mm,
          2.54 mm,
          3.48 mm,
          5.41 mm,
          6.48 mm
          Cable types RG58,
          RG59,
          RG62,
          RG174
          Manufacturer's markings HT-336G,
          HT-5133G
          Matching inputs:
          #04268 HT-336G/D,
          #04269 HT-336J/D,
          #04267 HT-236E/D,
          #04270 HT-236E1/D.
          #04385 HT-2C,
          #04384 HT-3D,
          #04383 HT-3I,
          #04386 HT-5S1,
          #04387 HT-5S2
          Coaxial ratchet crimping tool (Hanlong HT-336G)
          Net Price: 18,30 EUR
          product card»
          #04252

          Coaxial ratchet crimping tool (Hanlong HT-336I)

          Inbuilt arms returning block mechanism and crimping depth.
          Crimping diameter 1.70 mm,
          2.36 mm,
          5.36 mm,
          6.46 mm,
          8.00 mm
          Cable types RG6,
          RG58,
          RG59,
          H155,
          H-RF5,
          RF-5,
          RF-240.
          Manufacturer's markings HT-336I,
          HT-5133I
          Matching inputs:
          #04268 HT-336G/D,
          #04269 HT-336J/D,
          #04267 HT-236E/D,
          #04270 HT-236E1/D.
          #04385 HT-2C,
          #04384 HT-3D,
          #04383 HT-3I,
          #04386 HT-5S1,
          #04387 HT-5S2
          Coaxial ratchet crimping tool (Hanlong HT-336I)
          Net Price: 18,30 EUR
          product card»
          #04293

          Coaxial ratchet crimping tool (Hanlong HT-336K)

          Made of carbon steel. Inbuilt arms returning block mechanism and crimping depth.
          Crimping diameter 2.54 mm,
          3.25 mm,
          10.9 mm
          Connector types LC
          Cable types RG8,
          RG11,
          RG174,
          RG213,
          H1000,
          CNT400,
          FIBER OPTIC
          Manufacturer's markings HT-336K,
          HT-5133K
          Matching inputs:
          #04268 HT-336G/D,
          #04269 HT-336J/D,
          #04267 HT-236E/D,
          #04270 HT-236E1/D.
          #04385 HT-2C,
          #04384 HT-3D,
          #04383 HT-3I,
          #04386 HT-5S1,
          #04387 HT-5S2
          Coaxial ratchet crimping tool (Hanlong HT-336K)
          Net Price: 18,30 EUR
          product card»
          #04299

          Coaxial ratchet crimping tool (Hanlong HT-5133D2)

          Inbuilt arms returning block mechanism and crimping depth.
          Crimping diameter 1.73 mm,
          5.41 mm,
          6.50 mm,
          10.90 mm
          Cable types RG58,
          RG59,
          RG11,
          RG8,
          RG213,
          H155,
          H1000,
          CNT400.
          Manufacturer's markings HT-336D2,
          HT-5133D2
          Matching inputs:
          #04268 HT-336G/D,
          #04269 HT-336J/D,
          #04267 HT-236E/D,
          #04270 HT-236E1/D.
          #04385 HT-2C,
          #04384 HT-3D,
          #04383 HT-3I,
          #04386 HT-5S1,
          #04387 HT-5S2
          Coaxial ratchet crimping tool (Hanlong HT-5133D2)
          Net Price: 21,30 EUR
          product card»
          #04392

          Ratchet crimping tool, frame only (Hanlong HT-336FM)

          The arms of the crimper are equipped with inputs which allows for completion of a tool suitable for a given type of connectors and cables. Inbuilt arms returning block mechanism and crimping depth regulator.
          Purpose connectors depending on the chosen input
          Packaging Blister pack
          Manufacturer Hanlong
          Matching inputs:
          All Hanlong inputs are compatible with the tool.
          #04268 HT-336G/D,
          #04269 HT-336J/D,
          #04267 HT-236E/D,
          #04270 HT-236E1/D.
          #04385 HT-2C,
          #04384 HT-3D,
          #04383 HT-3I,
          #04386 HT-5S1,
          #04387 HT-5S2,
          #04393 HT-3F1,
          #04394 HT-3F2,
          #04395 HT-3F4.
          Ratchet crimping tool, frame only (Hanlong HT-336FM)
          Net Price: 14,20 EUR
          product card»
      • » F CONNECTOR CRIMPING TOOLS
          #06946

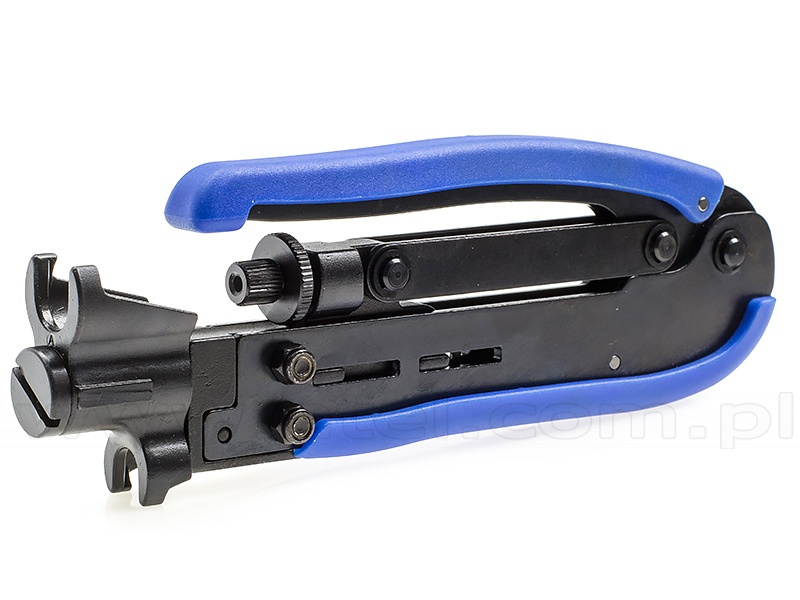

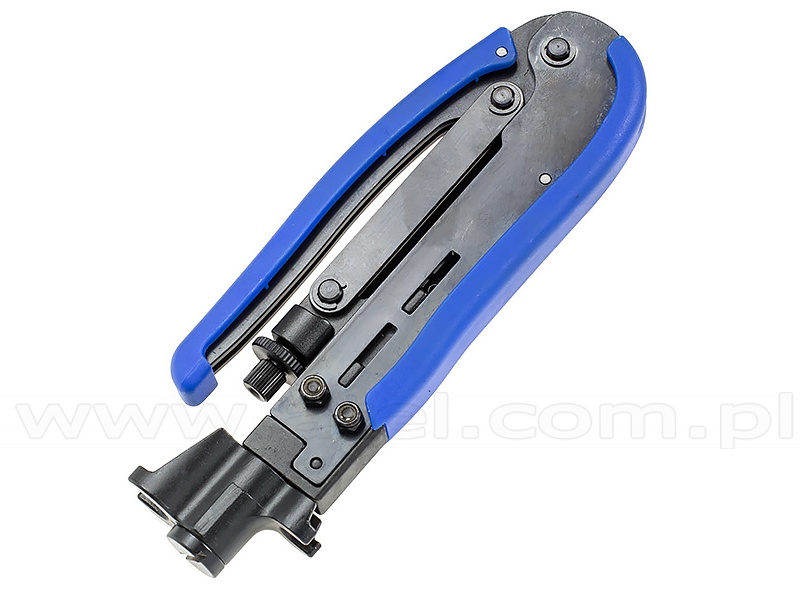

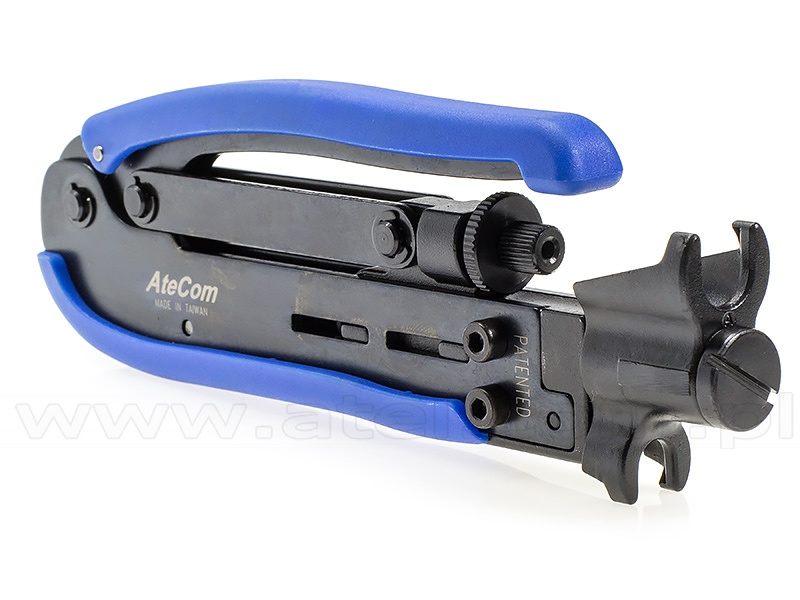

          Compression crimping tool for F type compression connectors (Hanlong HT-H548A1)

          For crimping F type compression connectors on coaxial cables. Thanks to the rotating head, the connectors can be crimped on RG59, RG6 and RG11 cables. In addition, the crimper has the ability to adjust the length of the connector.
          Purpose F type compression connectors
          Cable types RG59/RG6
          Connector length for RG59/RG6 15,5 ÷ 22,6 mm
          Connector length for RG11 30,5 ÷ 37,3 mm
          Packaging Blister pack
          Producer Hanlong
          Compression crimping tool for F type compression connectors (Hanlong HT-H548A1)
          Net Price: 27,40 EUR
          product card»
          #03217

          Conic F connector crimping tool (Hanlong HT-507)

          Enables quick and precise crimping od conic type connectors on RG6 cables. Does not require adjustment.
          Purpose F type connectors
          Cable types RG6
          Packaging Blister
          Producer Hanlong
          Conic F connector crimping tool (Hanlong HT-507)
          Net Price: 41,40 EUR
          product card»
      • » HT106 SERIES
