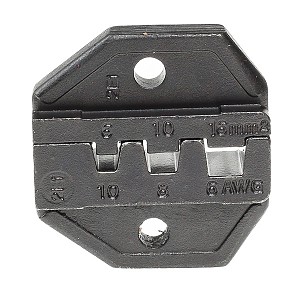

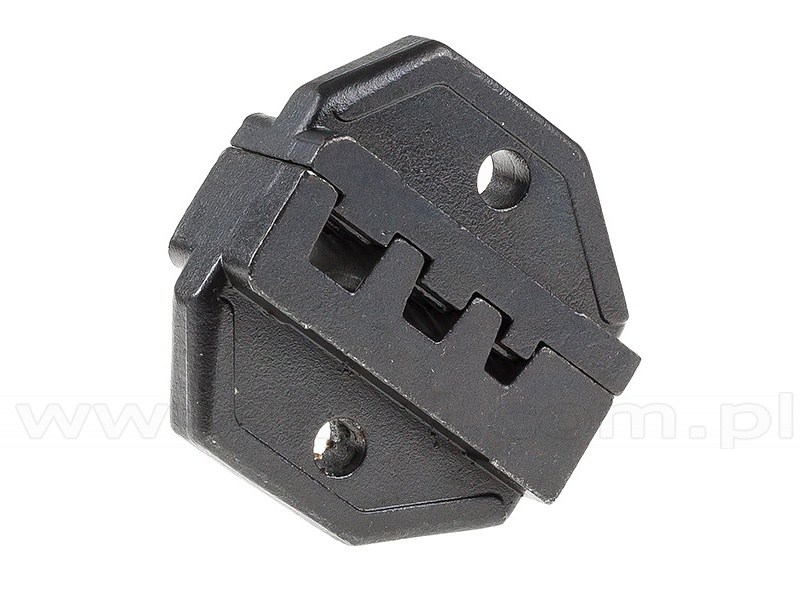

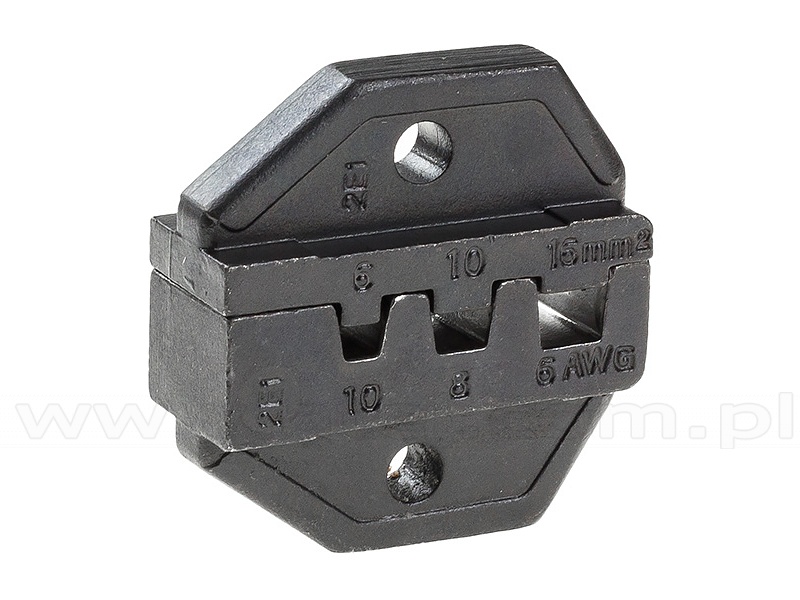

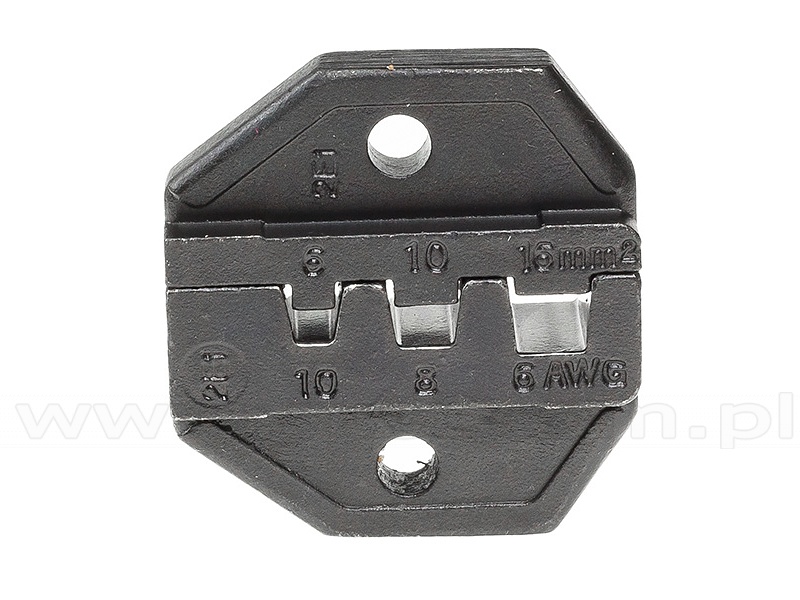

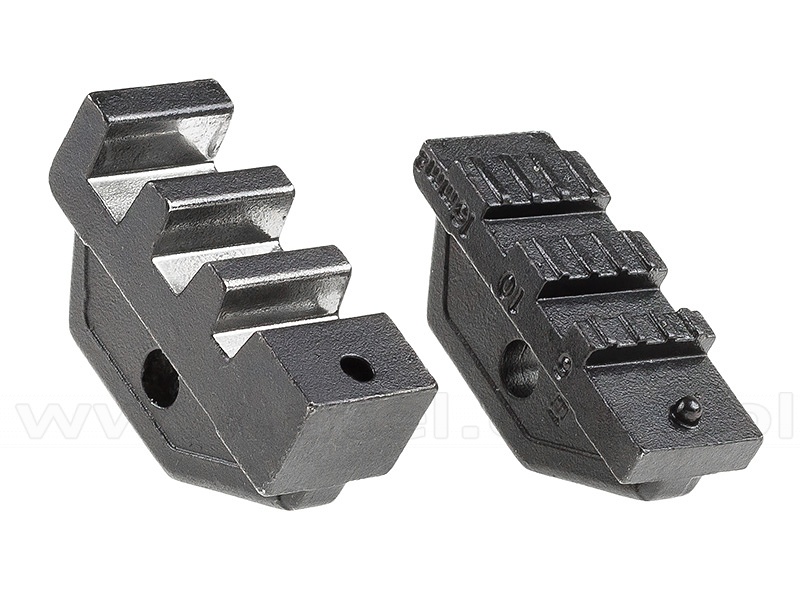

Replacement die (Hanlong HT-2E1)
The replacable die element widens the functionality of a crimper, enabling crimping non-insulated automotive connectors and other crimp terminals.
| Purpose | insulated connectors, non-insulated connectors |
|---|---|
| Cable types | 6mm2 (AWG 10), 10mm2 (AWG 8), 16mm2 (AWG 6) |
| Arms | #04392 Ratchet crimping tool, frame only (Hanlong HT-336FM) |
| Producer | Hanlong |
Insert fits following crimping tools:
#04255 HT-336C,
#04256 HT-236E,
#04259 HT-336G,
#04260 HT-336J,
#04261 HT-236E1,
#04262 HT-236U,
#04293 HT-336K.
The complete tool: #04251 Terminal ratchet crimping tool (Hanlong HT-236C)
#04255 HT-336C,
#04256 HT-236E,
#04259 HT-336G,
#04260 HT-336J,
#04261 HT-236E1,
#04262 HT-236U,
#04293 HT-336K.
The complete tool: #04251 Terminal ratchet crimping tool (Hanlong HT-236C)
Net Price: 5,72 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
