#05990
VoIPGRANDSTREAMUCM6204

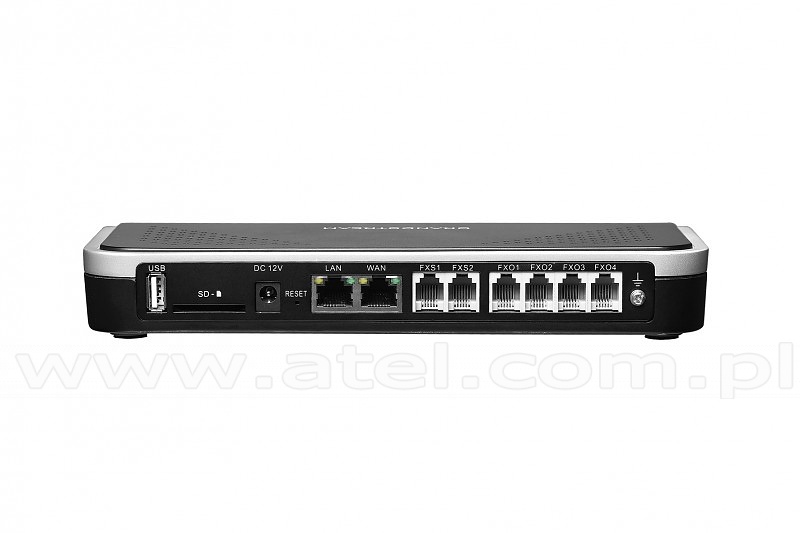

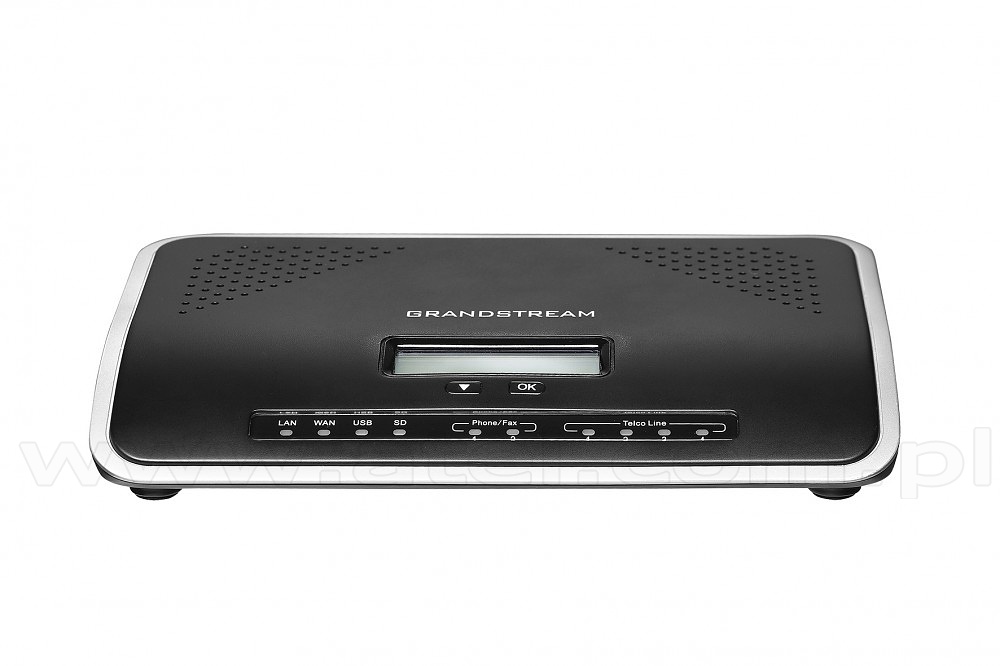

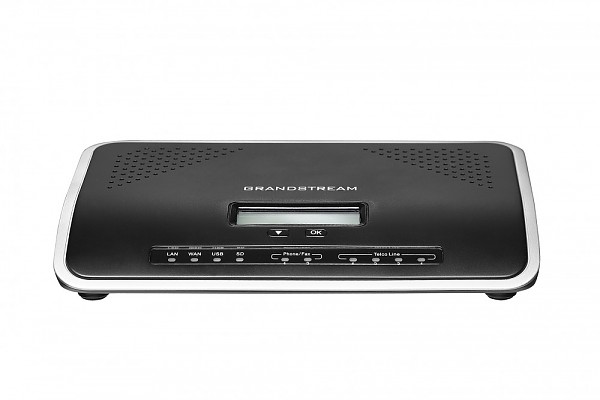

VoIP IP PBX, 4xFXO, 2xFXS (Grandstream UCM6204)

Designed to provide a centralized solution for the communication needs of businesses, the UCM6200 series IP PBX
appliance combines enterprise-grade voice, video, data, and mobility features in an easy-to-manage solution. This
IP PBX series allows businesses to unify multiple communication technologies, such as voice, video calling, video
conferencing, video surveillance, data tools, mobility options and facility access management onto one common
network that can be managed and/or accessed remotely. The secure and reliable UCM6200 series delivers enterprisegrade features without any licensing fees, costs-per-feature or recurring fees.
Analog Telephone FXS Ports 2 ports (both with lifeline capability in case of power outage)
PSTN Line FXO Ports 4 ports
Network Interfaces Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009)
NAT Router Yes (supports router mode and switch mode)
Peripheral Ports USB,
SD
LED Indicators Power/Ready,
Network,
PSTN Line,
USB,
SD
LCD Display 128x32 graphic LCD with DOWN & OK button
Voice-over-Packet Capabilities LEC with NLP Packetized Voice Protocol Unit,
128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer,
Modem detection & auto-switch to G.711
Voice and Fax Codecs G.711 A-law/U-law,
G.722,
G.723.1 5.3K/6.3K,
G.726,
G.729A/B,
iLBC,
GSM,
AAL2-G.726-32,
ADPCM; T.38
Video Codecs H.264,
H.263,
H263+
QoS Layer 3 QoS,
Layer 2 QoS
DTMF Methods In Audio,
RFC2833,
and SIP INFO
Provisioning Protocol & Plug-and-Play TFTP/HTTP/HTTPS,
auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS),
eventlist between local and remote trunk
Network Protocols TCP/UDP/IP,
RTP/RTCP,
ICMP,
ARP,
DNS,
DDNS,
DHCP,
NTP,
TFTP,
SSH,
HTTP/HTTPS,
PPPoE,
SIP (RFC3261),
STUN,
SRTP,
TLS,
LDAP
Disconnect Methods Call Progress Tone,
Polarity Reversal,
Hook Flash Timing,
Loop Current Disconnect,
Busy Tone
Media Encryption SRTP,
TLS,
HTTPS,
SSH
Caller ID Bellcore/Telcordia,
ETSI-FSK,
ETSI-DTMF,
SIN 227 – BT
Polarity Reversal/Wink Yes,
with enable/disable option upon call establishment and termination
Call Center Multiple configurable call queues,
automatic call distribution (ACD) based on agent skills/availability/busy level,
in-queue announcement
Customizable Auto Attendant Up to 5 layers of IVR (Interactive Voice Response)
Maximum Call Capacity -Registered SIP devices- supports up to 500 registered SIP devices/users,
-Concurrent SIP calls- Up to 75 (UCM6204),
or 66% performance if calls are SRTP encrypted
Conference Bridges Up to 3,
password-protected conference bridges allowing up to 25 simultaneous PSTN or IP participants
Call Features Call park,
call forward,
call transfer,
DND,
ring/hunt group,
paging/intercom etc.
Mounting Wall mount & Desktop
Power Output 12VDC,
1.5A; Input 100 ~ 240VAC,
50 ~ 60Hz
Weight Unit weight 0.51kg,
Package weight 0.94kg
Environmental Operating 32 ~ 104ºF / 0 ~ 40ºC,
10 ~ 90% (non-condensing); Storage 14 ~ 140ºF / -10 ~ 60ºC
Dimensions 226mm L x 155mm W x 34.5mm H
Certificates FCC Part 15 (CFR 47) Class B,
Part 68,
CE EN55022 Class B,
EN55024,
EN61000-3-2,
EN61000-3-3,
EN60950-1,
TBR21,
RoHS,
A-TICK AS/NZS CISPR 22 Class B,
AS/NZS CISPR 24,
AS/NZS 60950,
AS/ACIF S002,
ITU-T K.21 (Basic Level),
UL 60950 (power adapter)
Manufacturer Grandstream

« previous product  |  next product »     » show on list«» VoIP «
TAGS: PoE plus
* For special orders only
Net Price: 445,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
