#05584
Rack 10", 19" cases, cabinets#05584

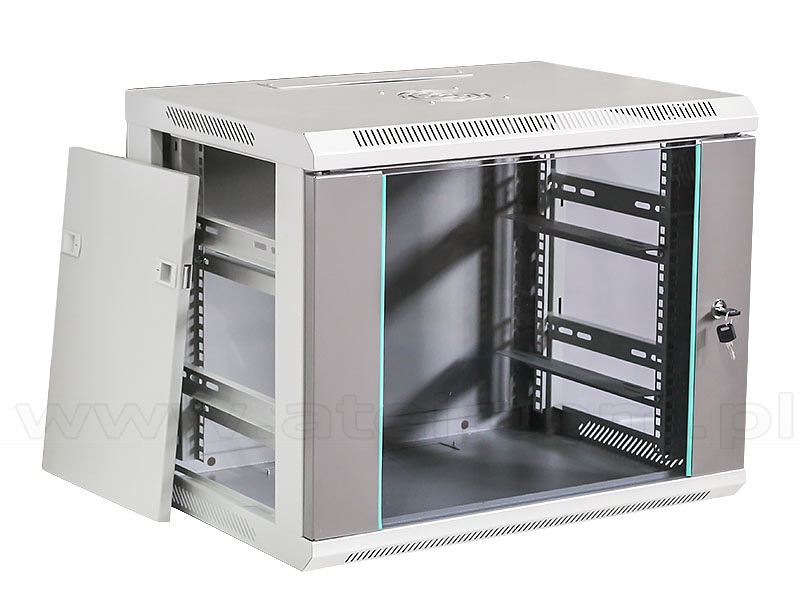

Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 440 mm

Wall-mounted rack cabin with a 9U working height and a depth of 370mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.
Dimensions 9U 19",
480x600x440 mm,
(H x W x D),
370mm working depth,
(distance from bars to rear panel)
Type wall-mounted,
welded body,
removable sides
Door 4mm toughened glass
Cable entry top + bottom,
50 x 260mm
Mounting profiles 1 pair (front)
Fan openings yes
Colour RAL 7035 (grey)
Protection degree IP 20
Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs

WALL-MOUNTED 19" CABINETS
9u rack cabinet
Net Price: 86,80 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
