WAVE INDUSTRIAL
Industrial-grade SFP transceivers for most demanding applications. Machine-to-Machine (M2M) Communications devices. Atel Electronics is a exclusive distributor of Wave Industrial products |
New items
- Communication for industry
-
- » GIGABIT ETHERNET MEDIA CONVERTERS#07673
Industrial Media converter 1x 100/1000TX (RJ-45) + 1x 1000FX (SFP) (Wave Industrial WO-IC-M1GF1GT)
Physical Ports 100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 1 1000Base-FX SFP ports 1 Technology Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3z for 1000Base-XLED Indicators power,
RJ45,
SFP slotPower Dual DC inputs. 9÷48VDC on 4-pin terminal block Power consumption (typical) 3.3W Physical Characteristic Enclosure IP-40 Dimension (W x H x D) 33mm x 115mm x 85mm Weight 330g Environmental Storage Temperature -40÷85°C Operating Temperature -40÷85°C Operating Humidity 5%÷95% Non-condensing Regulatory approvals EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty Warranty period 5 years
-
- » SFP MULTIMODE MODULES#06732
Module, SFP 1x 1000 Mbps LC MM, 550 m, Tx:850 nm (WO-SML-1285-550M-I)
Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C Module type SFP

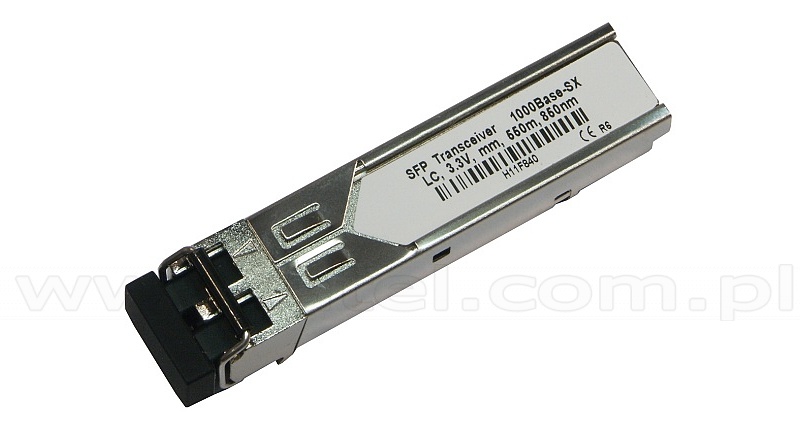

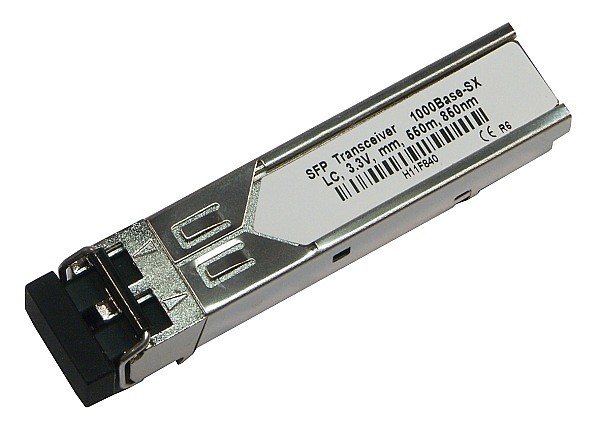

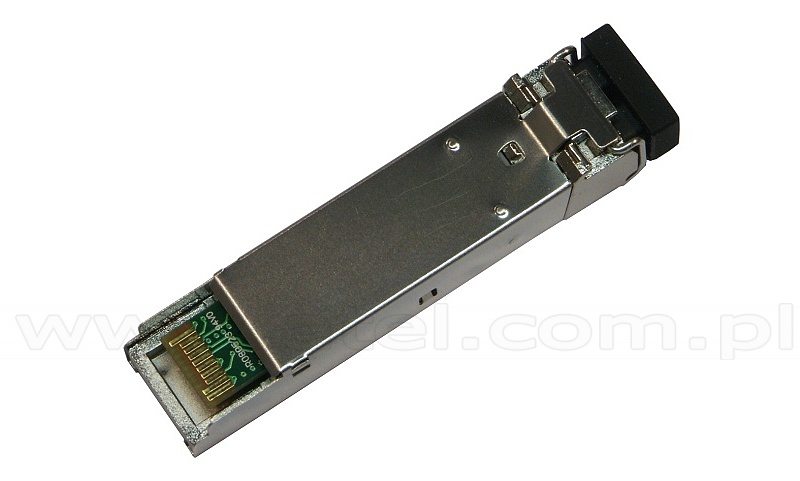

#06752Module, SFP 1x 1000 Mbps LC MM, 550 m, Tx:850 nm, w/DDMI diagnostics (WO-SML-1285-550M-DI)
Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP
#05949Module, SFP 1x 100 Mbps LC MM, 2 km, TX: 1310 nm (WO-SML-0113-002K-I)
Port 1x 155 Mbps ATM LC MM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 2 km Cable type 50/125, 62.5/125, 100/140 µm Operating temaperature -40°C ÷ 85°C Module type SFP Warranty period 1 year Supports SDH/STM-1,
SONET/OC-3,
Fast Ethernet

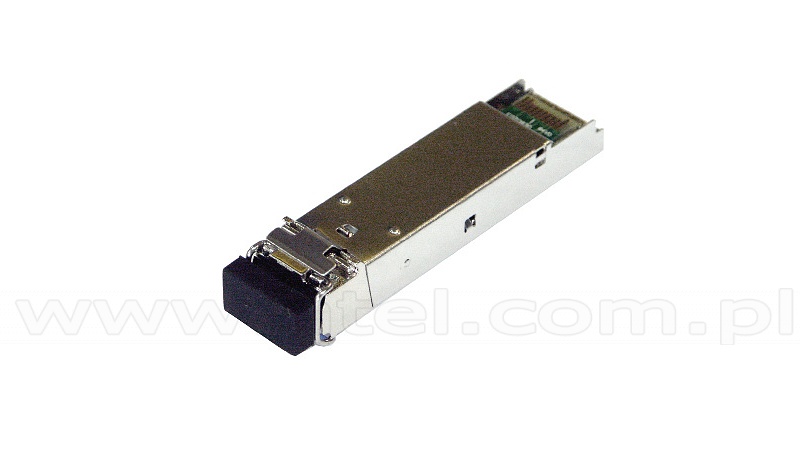

- » SFP SINGLEMODE MODULES#06733
Module, SFP 1x 1000 Mbps LC SM, 20 km (WO-SSL-1213-020K-I)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C Module type SFP
#06753Module, SFP 1x 1000 Mbps LC SM, 20 km, w/DDMI diagnostics (WO-SSL-1213-020K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP
#08175Module, SFP 1x 100 Mbps LC SM, 40 km, Tx:1310 nm, w/DDMI diagnostics (WO-SSL-0113-040K-DI)
Port 1x 100 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 40 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year

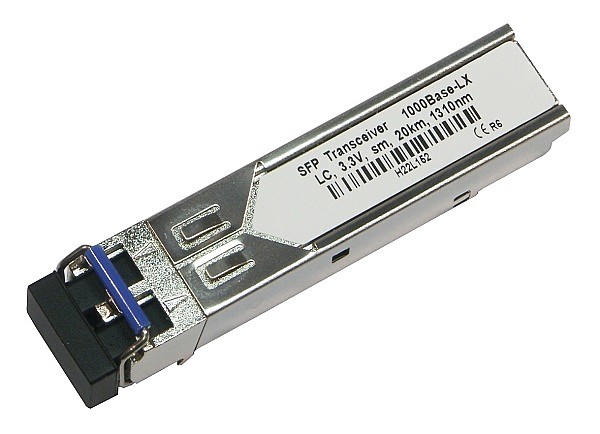

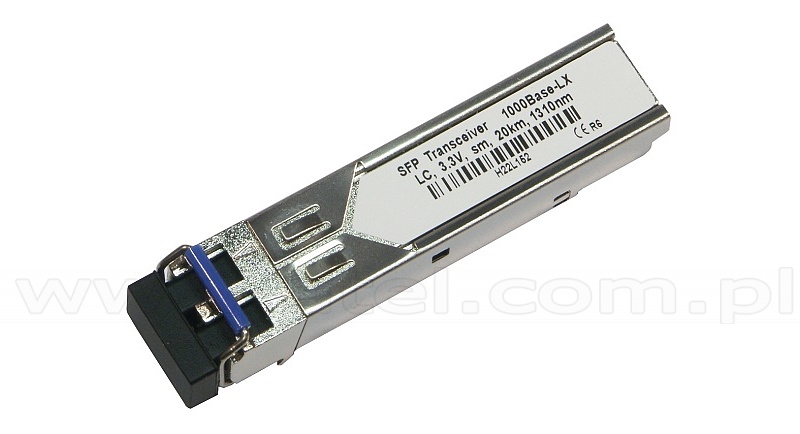

#06754Module, SFP 1x 1000 Mbps LC SM, 40 km, w/DDMI diagnostics (WO-SSL-1213-040K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 40 km Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year

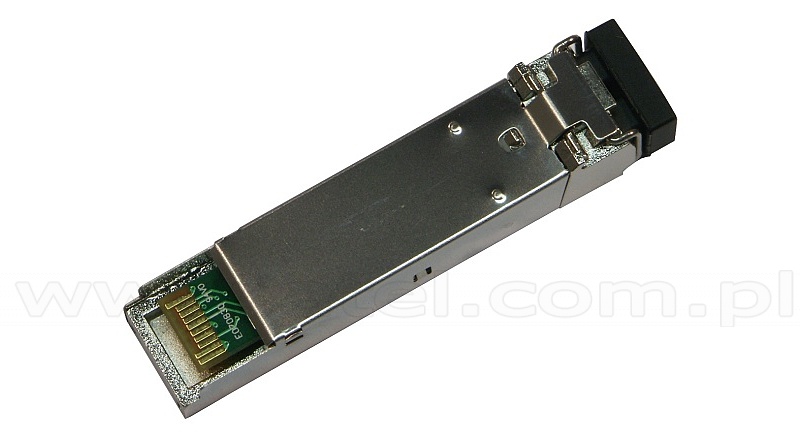

#06755Module, SFP 1x 1000 Mbps LC SM, 80 km, w/DDMI diagnostics (WO-SSL-1215-080K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1550 nm RX wavelength 1550 nm Max. distance 80 km Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
- » SFP WDM MODULES#06737
Module, SFP 1x 1000 Mbps SC LM, 20 km, WDM TX:1550 nm (WO-SWS-1215-020K-I)
Port 1x 1000 Mbps SC SM TX wavelength 1550 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C Module type SFP Warranty period 1 year
-
