WAVE OPTICS
Fiber Optic Active and Passive Components:
|
- Optical Fibre Subassemblies
-
- » HYBRID ADAPTORS MULTIMODE#08746
Hybrid adaptor MM FC/UPC - ST/UPC duplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08744Hybrid adaptor MM FC/UPC - ST/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08732Hybrid adaptor MM LC/UPC - FC/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08730Hybrid adaptor MM LC/UPC - SC/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08734Hybrid adaptor MM LC/UPC - ST/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08738Hybrid adaptor MM SC/UPC - FC/UPC duplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08736Hybrid adaptor MM SC/UPC - FC/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#08742Hybrid adaptor MM SC/UPC - ST/UPC duplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times

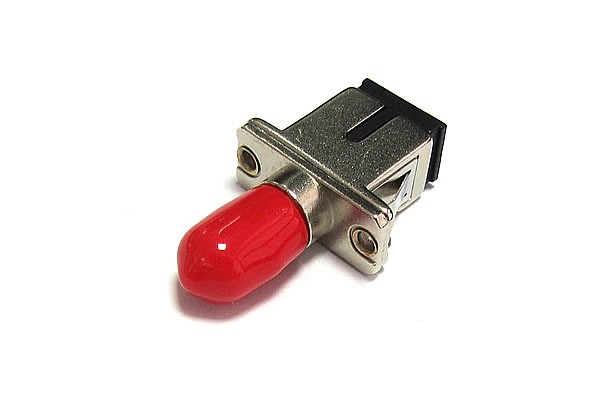

#08740Hybrid adaptor MM SC/UPC - ST/UPC simplex
Insertion Loss ≤0.30dB Durability ≤0.2 dB typical change,
1000matingsOperating Temperature -40 ÷ 80°C Humidity Cycling 75°C,
95% / 336hrVibration 10~55Hz (2hr) Impact 1.5m drop,
8 Times
#04104Adaptor for VFL
Adaptor for visual fault locators, allows to connect patchcords and pigtails with LC connectors (1,25mm ferrule)
-
