New Items in Atel Electronics

NEW ITEMS


  • Computer Network Accessories
    • Switches
      • » FAST ETHERNET / UNMANAGED SWITCHES
          #09482

          Unmanaged switch, 5x 10/100 RJ-45, PoE+, desktop (TP-Link LS105LP)

          • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
          • 41 W total PoE budget
          • Up to 250m data and power transmitting range under Extend Mode
          • Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Simply plug and play for instant connectivity with no configuration required.
          • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Desktop / Wall-mounting
          Copper ports 5x 10/100 Mbps RJ-45
          Standard 802.3af compliant
          PoE Ports Port1- Port4
          Power Supply 41W
          Switching Capacity 1Gbps
          Packet Forwarding Rate 0.744 Mpps
          Mac Address Table 2K
          Jumbo Frame 2 KB
          Software features
          Advanced Features Compatible With IEEE 802.3af Compliant PDs,
          Priority Function,
          Mac Address Auto-Learning And Auto-Aging,
          IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
          Transfer Method Store-And-Forward
          Dimensions 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter(Output 53.5 V DC / 0.81 A)
          Power Consumption 2.40 W (220 V/50 Hz no PD connected),
          46.45 W (220 V/50 Hz with 41 W PD connected)
          Max Heat Dissipation 8.15 BTU/h (220 V/50 Hz no PD connected),
          157.93 BTU/h (220 V/50 Hz with 41 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 5x 10/100 RJ-45, PoE+, desktop (TP-Link LS105LP)
          Net Price: 17,80 EUR
          product card»
          #09481

          Unmanaged switch, 6x 10/100 RJ-45, PoE+, desktop (TP-Link LS106LP)

          • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
          • 41 W total PoE budget
          • Up to 250m data and power transmitting range under Extend Mode
          • Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Simply plug and play for instant connectivity with no configuration required.
          • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Desktop / Wall-mounting
          Copper ports 6x 10/100 Mbps RJ-45
          Standard 802.3af/at compliant
          PoE+ Ports Port1- Port4
          Power Supply 41W
          Switching Capacity 1.2Gbps
          Packet Forwarding Rate 0.8928 Mpps
          Mac Address Table 2K
          Software features
          Advanced Features Compatible With IEEE 802.3af/at Compliant PDs,
          Extend Mode Button (Ports 1–4),
          Mac Address Auto-Learning and Auto-Aging,
          IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
          Transfer Method Store-And-Forward
          Dimensions 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter(Output 53.5 V DC / 1.31 A)
          Power Consumption 2.53 W (220 V/50 Hz no PD connected),
          47.76 W (220 V/50 Hz with 41 W PD connected)
          Max Heat Dissipation 8.61 BTU/h (220 V/50 Hz no PD connected),
          162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 6x 10/100 RJ-45, PoE+, desktop (TP-Link LS106LP)
          Net Price: 21,90 EUR
          product card»
          #09480

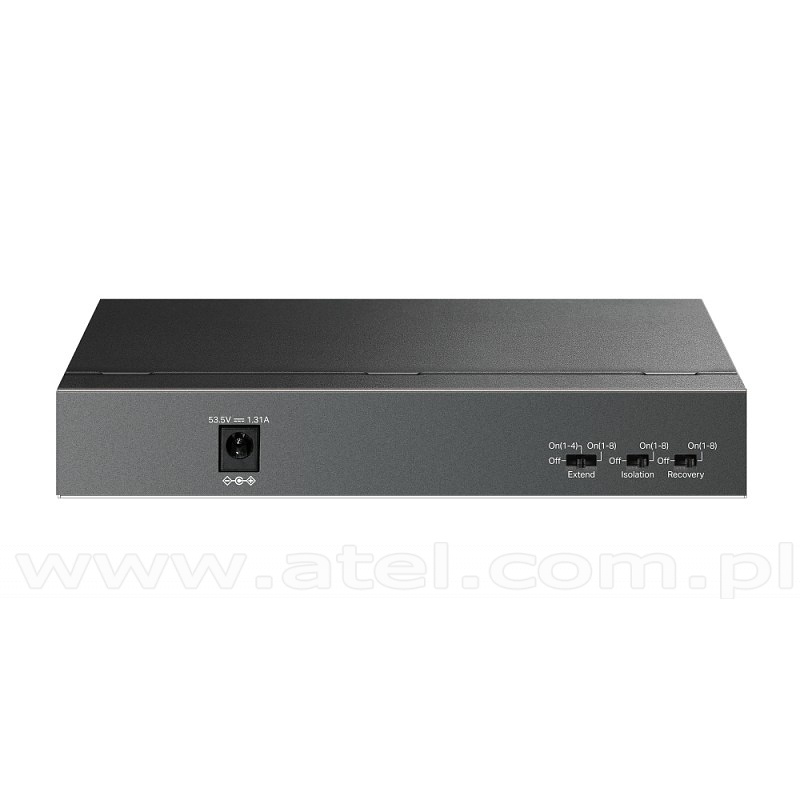

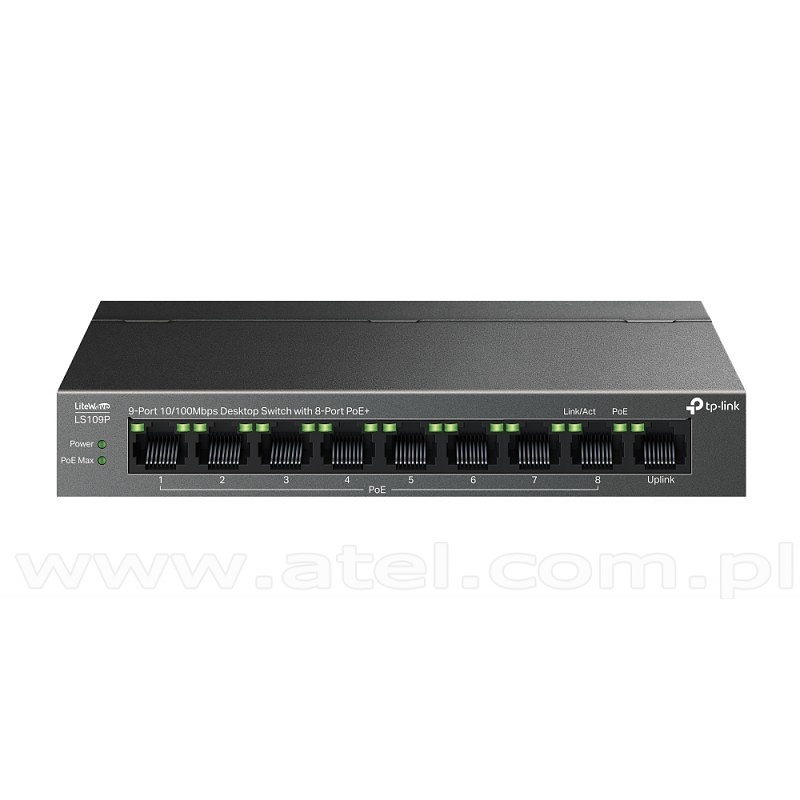

          Unmanaged switch, 9x 10/100 RJ-45, PoE+, desktop (TP-Link LS109P)

          • 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
          • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
          • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
          • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          Copper ports 9x 10/100 Mbps RJ-45
          Standard 802.3af/at compliant
          PoE+ Ports Port1- Port8
          Power Supply 63W
          Switching Capacity 1.8Gbps
          Packet Forwarding Rate 1.3392 Mpps
          Mac Address Table 2K
          Software features
          Advanced Features Compatible With IEEE 802.3af/at Compliant PDs,
          Extend Mode Button (Ports 1–4 and Ports 1–8,
          Up to 250 m PoE power supply and data transmission),
          Priority Mode Button (Ports 1–2),
          Isolation Mode Button (Ports 1–8),
          Mac Address Auto-Learning and Auto-Aging,
          IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
          Transfer Method Store-And-Forward
          Dimensions 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter(Output 53.5 V DC / 1.31 A)
          Power Consumption 3,6W (max. no PD connected),
          77,08W (max. with 65W PD connected)
          Max Heat Dissipation 12,28BTU/h(no PD connected),
          249BTU/h(with 65W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 9x 10/100 RJ-45, PoE+, desktop (TP-Link LS109P)
          Net Price: 27,00 EUR
          product card»
      • » GIGABIT ETHERNET / UNMANAGED SWITCHES

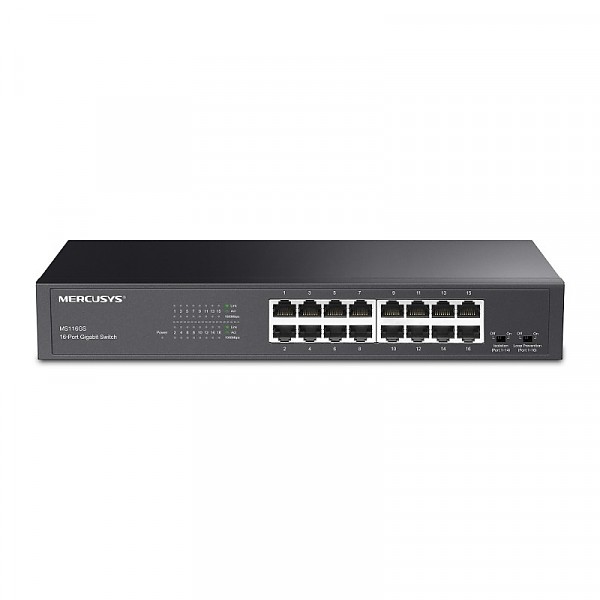

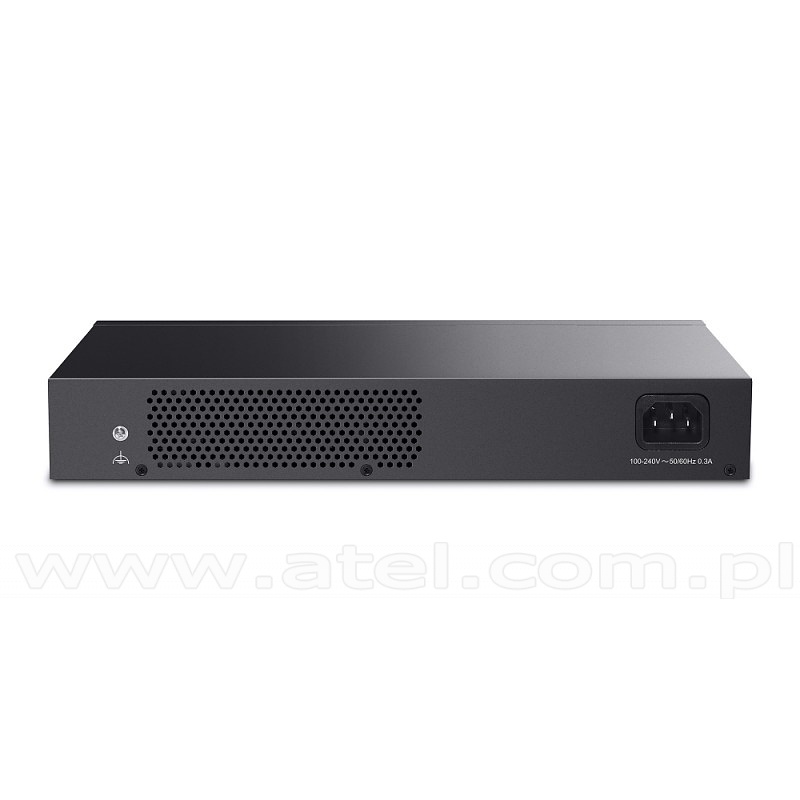

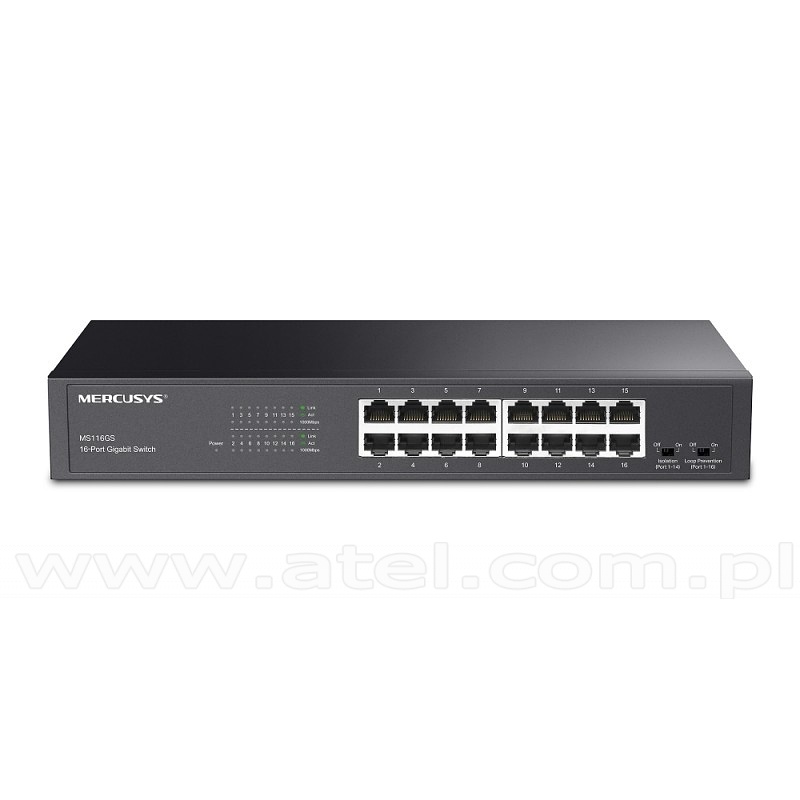

          #09582

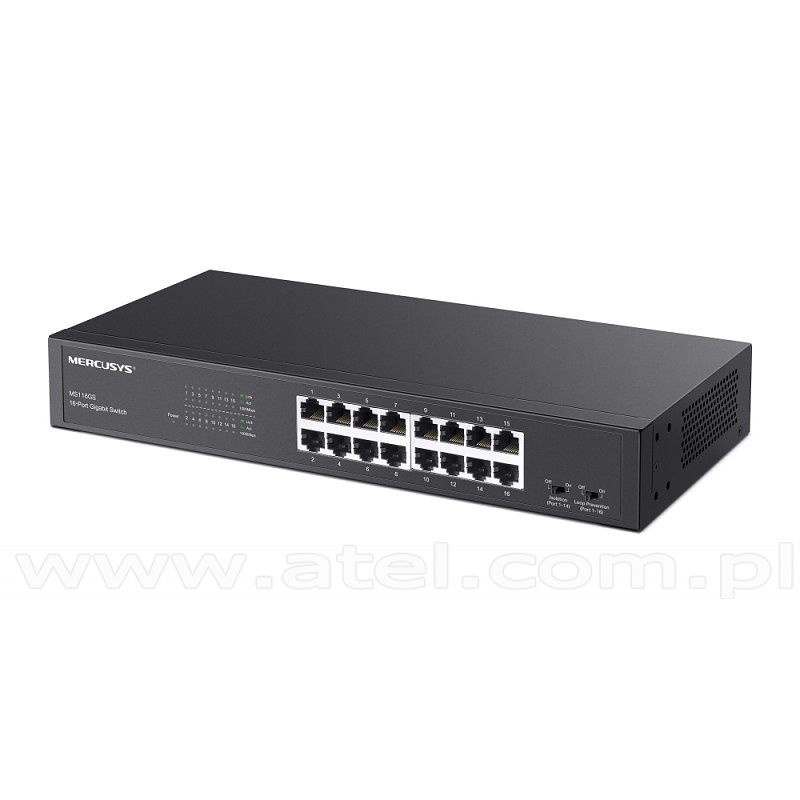

          Unmanaged switch, 16x 10/100/1000 RJ-45, 11,6", 19" Rack-mounting Bracket (TP-Link Mercusys MS116GS)

          • Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
          • Plug and Play: Simple to use and saves time and effort
          • Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
          • Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
          • Durable Metal Casing: Allows for efficient heat dissipation and long network life
          Standards IEEE 802.3i/u/ab/x/p
          Copper ports 16x 10/100/1000 Mbps RJ-45
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Switching Capacity 32 Gbps
          Mac Address Table 8K
          Dimensions 11.6*5.5*1.7 in (294*140*44mm)
          Power 100-240VAC,
          50/60Hz
          TP-LINK
          Unmanaged switch, 16x 10/100/1000 RJ-45, 11,6", 19" Rack-mounting Bracket (TP-Link Mercusys MS116GS)
          Net Price: 40,80 EUR
          product card»

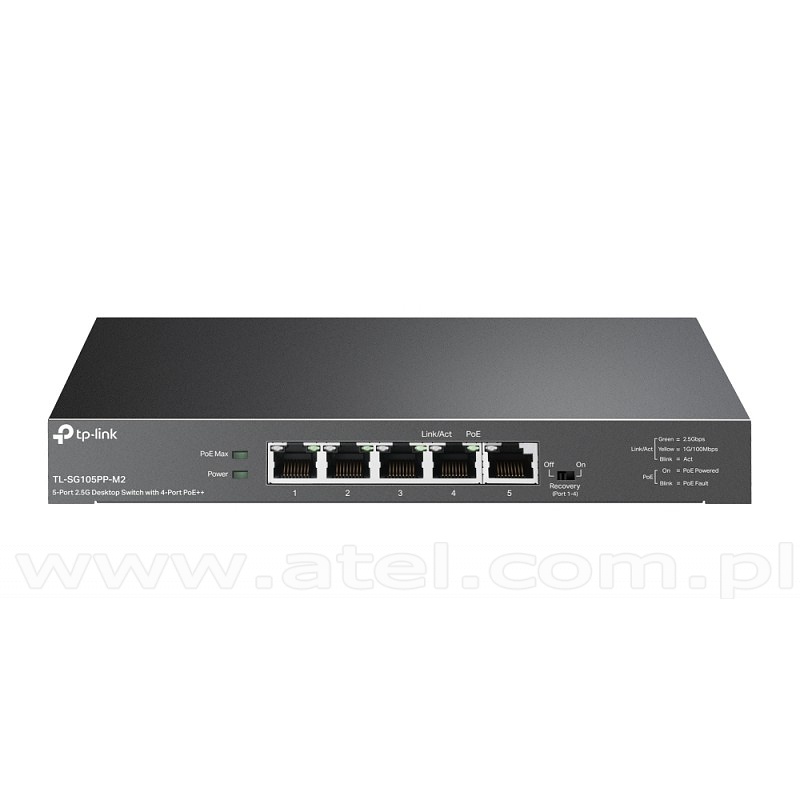

          #09475

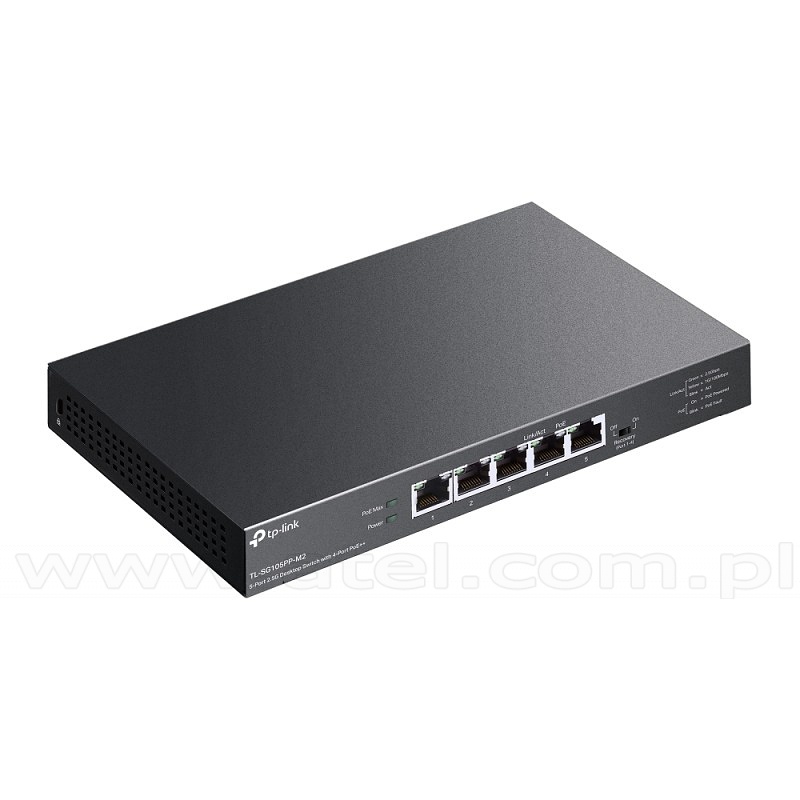

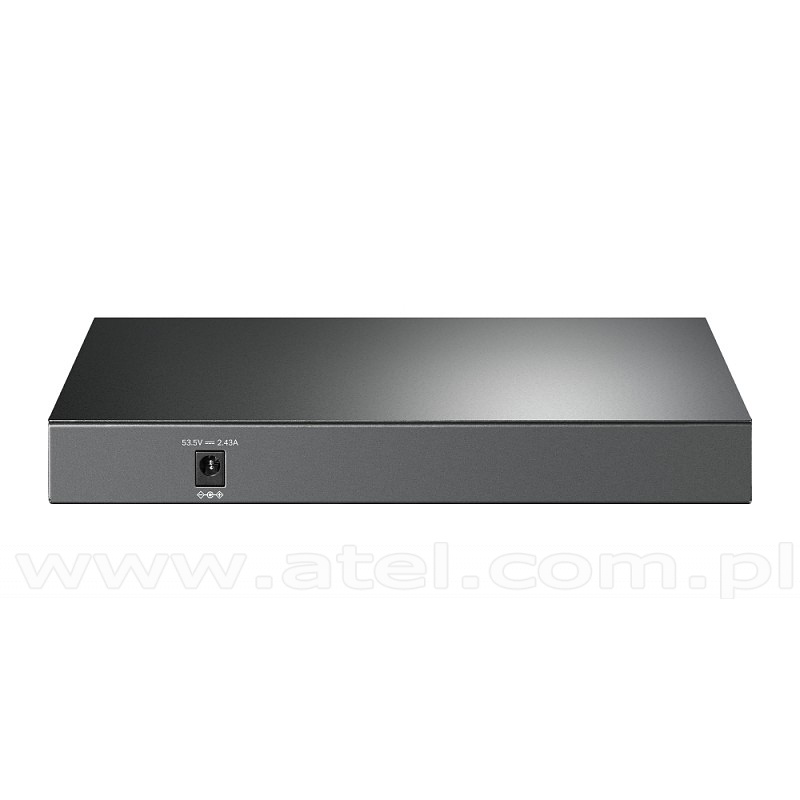

          Unmanaged switch, 5x 2,5Gb/s RJ-45, PoE++, desktop (TP-Link TL-SG105PP-M2)

          • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
          • With four PoE++ ports, transfers data and power on one single cable
          • Works with IEEE 802.3af/at/bt type3 compliant PDs
          • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
          • Supports PoE Power up to 60 W for each PoE++ port
          • Supports PoE Power up to 123 W for all PoE ports
          • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
          • Plug and Play, no configuration and installation required
          Copper ports 5x 100Mbps/1Gbps/2.5Gbp Ports,
          Auto-Negotiation,
          Auto-MDI/MDIX
          Standard IEEE 802.3, 802.3u,
          802.3ab,
          802.3x,
          802.1p,
          802.3bz
          PoE Ports (RJ45) Standard 802.3 af/at/bt type3 compliant,
          PoE++ Ports Ports 1–4,
          Power Supply 123 W
          Switching Capacity 25Gbps
          Packet Forwarding Rate 18,6 Mpps
          Mac Address Table 16K
          Jumbo Frame 10 KB
          Packet Buffer Memory 1.5 Mb
          Software features
          Advanced Features 802.3X Flow Control,
          802.1p/DSCP QoS,
          Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
          Transfer Method Store-And-Forward
          Dimensions 8.2×4.9×1.0 in (209×126×26 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter (Output 53.5 VDC / 2.43 A)
          Power Consumption 7.57 W (220/50 Hz. no PD connected),
          143.37 W (220/50 Hz. with 123 W PD connected)
          Max Heat Dissipation 25.81BTU/h (220 V/50 Hz with no PD connected),
          488.89 BTU/h (220 V/50 Hz with 123W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 5x 2,5Gb/s RJ-45, PoE++, desktop (TP-Link TL-SG105PP-M2)
          Net Price: 103,00 EUR
          product card»
          #09479

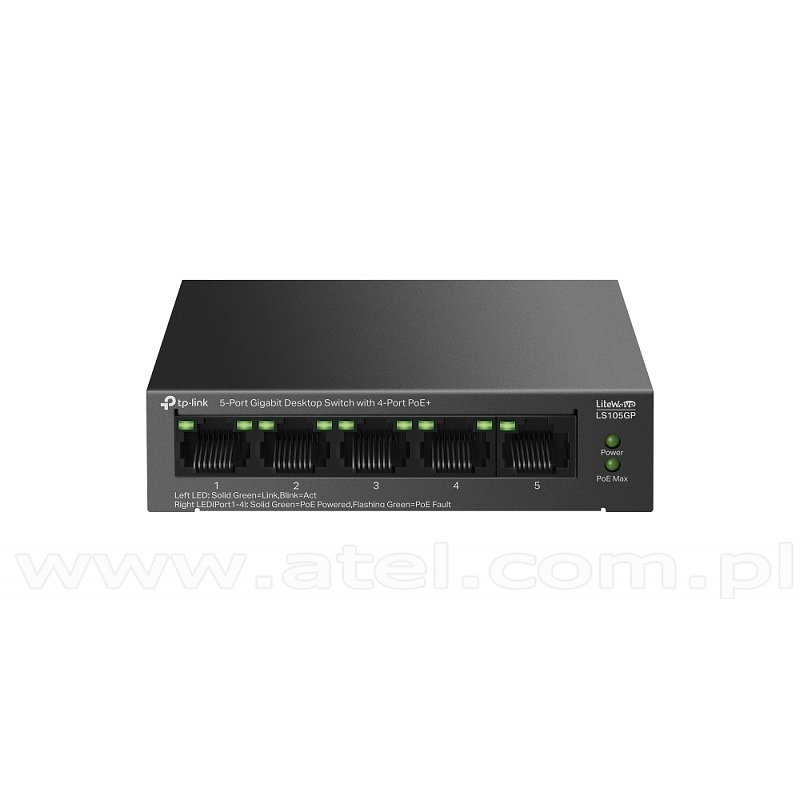

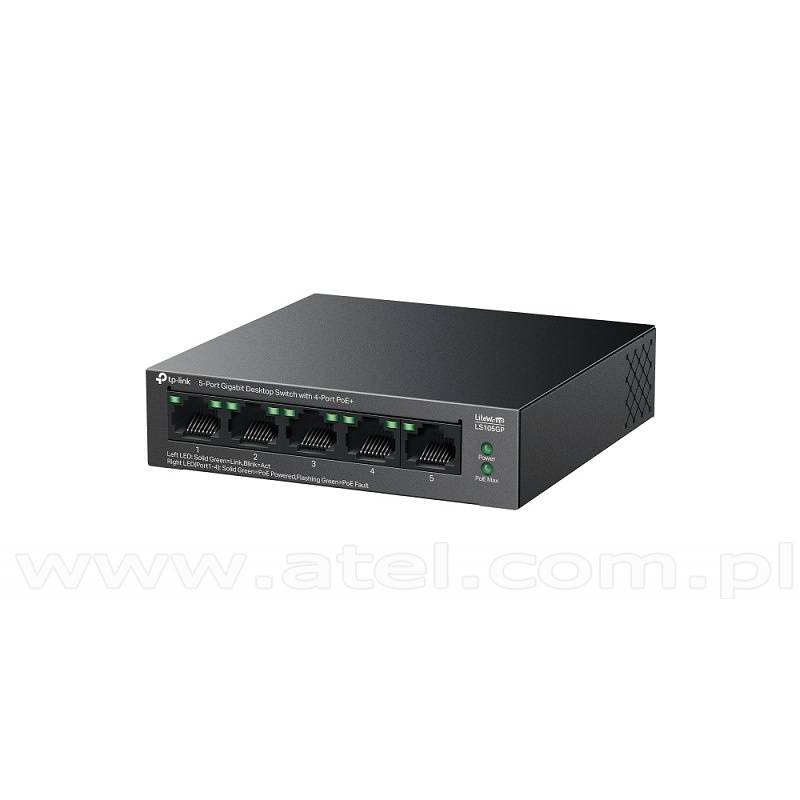

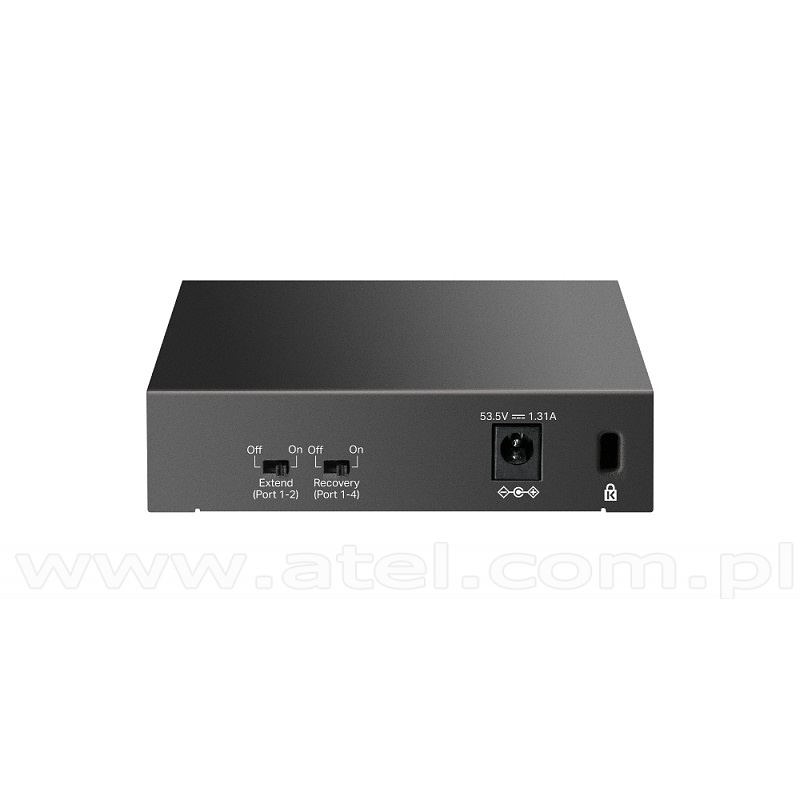

          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS105GP)

          • Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
          • 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
          • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
          • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          Standards IEEE 802.3/i/u/x/ab,
          IEEE 802.1p,
          IEEE 802.3af/at
          Copper ports 5x 10/100/1000 Mbps RJ-45 (Ports 1–4 supports 802.3af/at PoE+)
          PoE Ports Ports 1–4,
          up to 30 W PoE output per port
          Power Supply 65 W
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Packet flow control Flow-Control,
          Back-Pressure
          Switching Capacity 10 Gbps
          Packet Forwarding Rate 7.4 Mpps
          MAC Address Table 2K
          Packet Buffer Memory 1.5 Mb
          Jumbo Frame 16 KB
          Housing / case type desktop,
          metal
          Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
          Operating temperature 0°C ÷ 40°C
          Storage Temperature -40°C ÷ 70°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power External Power Adapter (Output 53.5 VDC / 1.31 A)
          Max Power Consumption 4 W (220/50 Hz. no PD connected),
          74.46 W (220/50 Hz. with 65 W PD connected)
          Max Heat Dissipation 13.6 BTU/h (no PD connected),
          253.16 BTU/h (with 65 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS105GP)
          Net Price: 27,80 EUR
          product card»

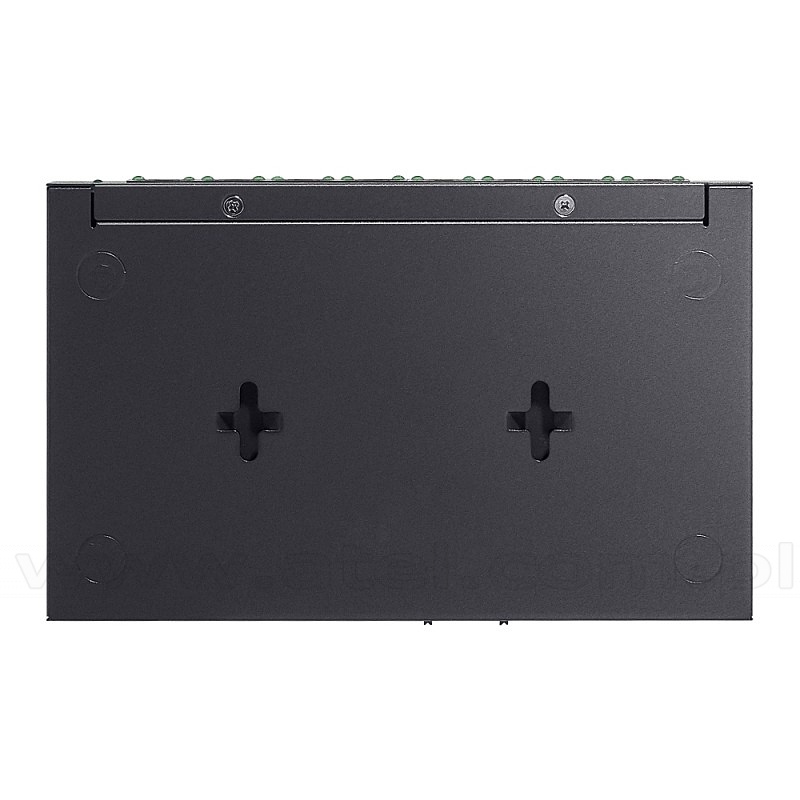

          #09478

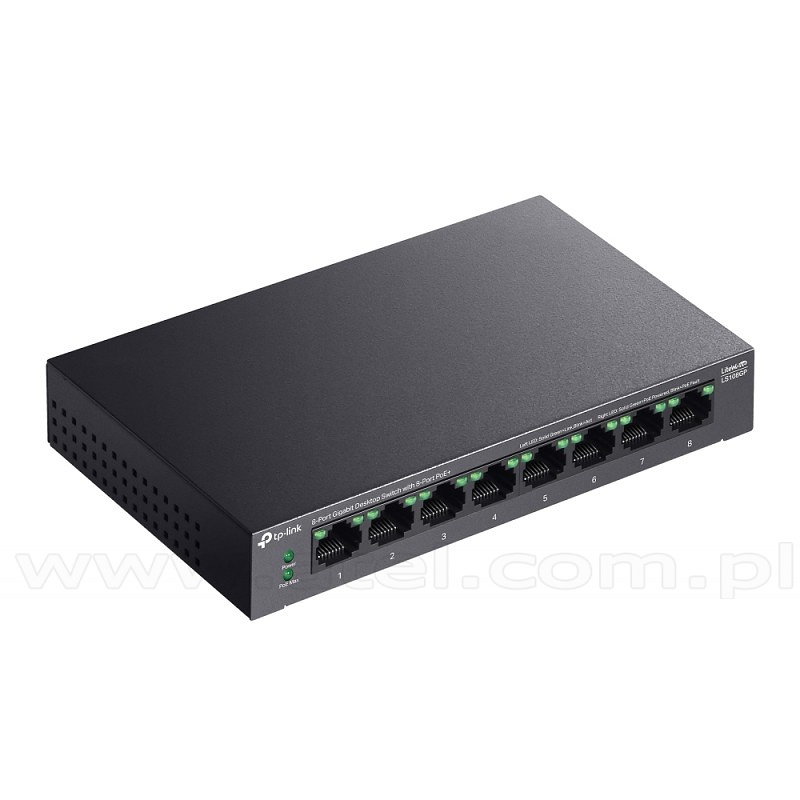

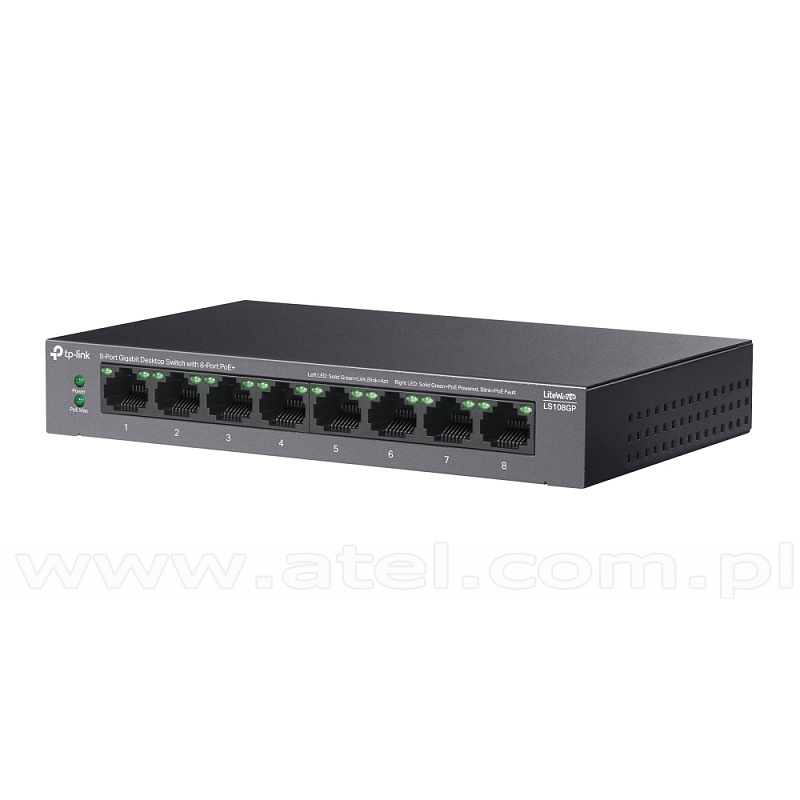

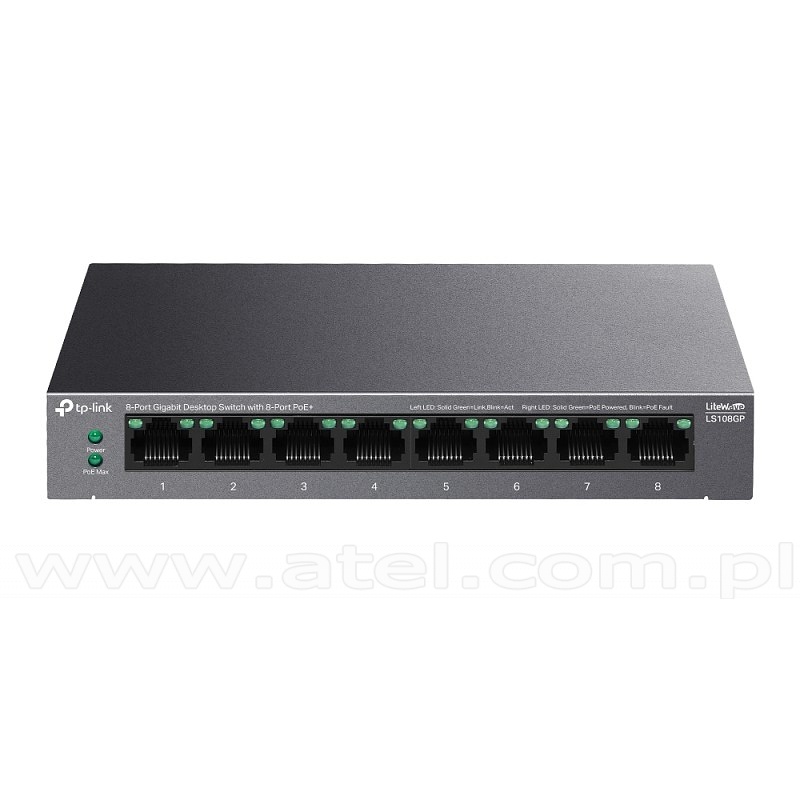

          Unmanaged switch, 8x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS108GP)

          • Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
          • 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
          • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
          • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          Standards IEEE 802.3/i/u/x/ab,
          IEEE 802.1p,
          IEEE 802.3at/af
          Copper ports 8x 10/100/1000 Mbps RJ-45 (Ports 1–8 supports 802.3af/at PoE+)
          PoE Budget 62 W
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Packet flow control Flow-Control,
          Back-Pressure
          Switching Capacity 16 Gbps
          Packet Forwarding Rate 11.9 Mpps
          MAC Address Table 2K
          Packet Buffer Memory 1.5 Mb
          Jumbo Frame 16 KB
          Housing / case type desktop,
          metal
          Dimensions 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
          Operating temperature 0°C ÷ 40°C
          Storage Temperature -40°C ÷ 70°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power External Power Adapter (Output 53.5 VDC / 1.31 A)
          Max Power Consumption 5.53 W (220 V/50 Hz. no PD connected),
          71.61 W (220 V/50 Hz. with 62 W PD connected)
          Max Heat Dissipation 18.81 BTU/h (220 V/50 Hz. no PD connected),
          243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 8x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS108GP)
          Net Price: 45,30 EUR
          product card»
          #09476

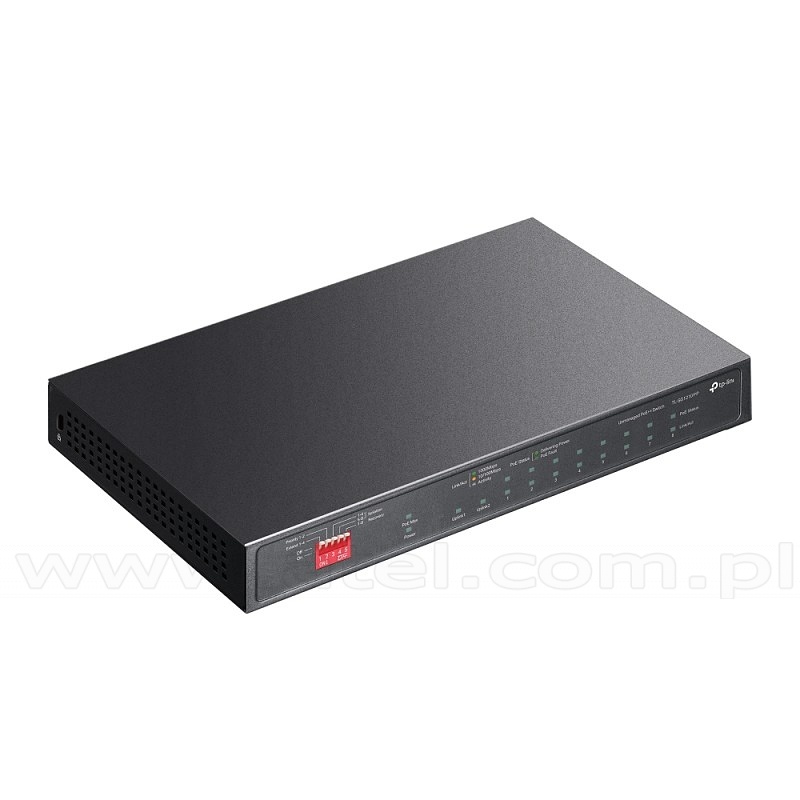

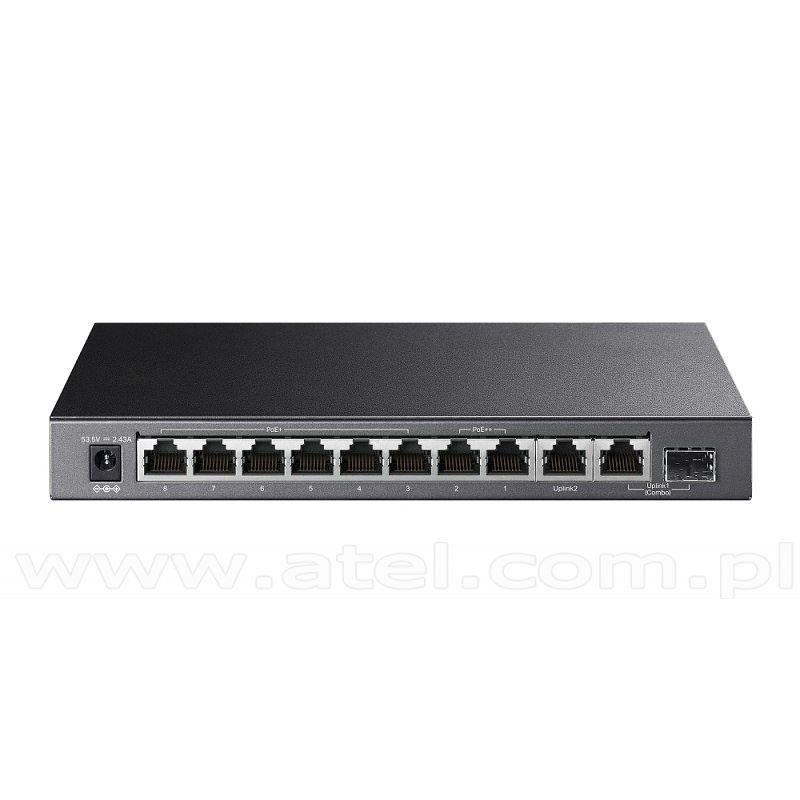

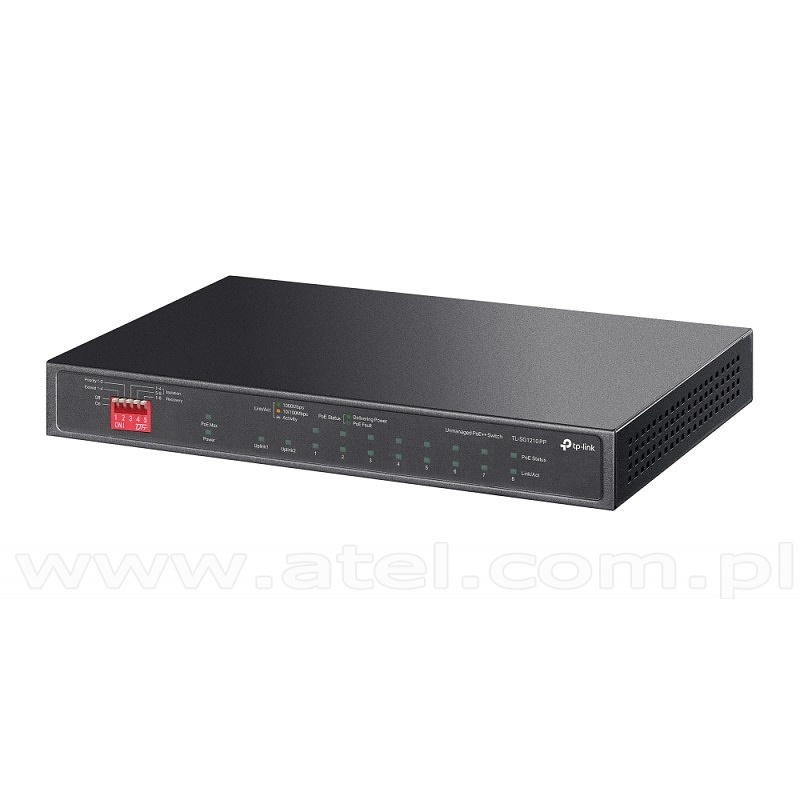

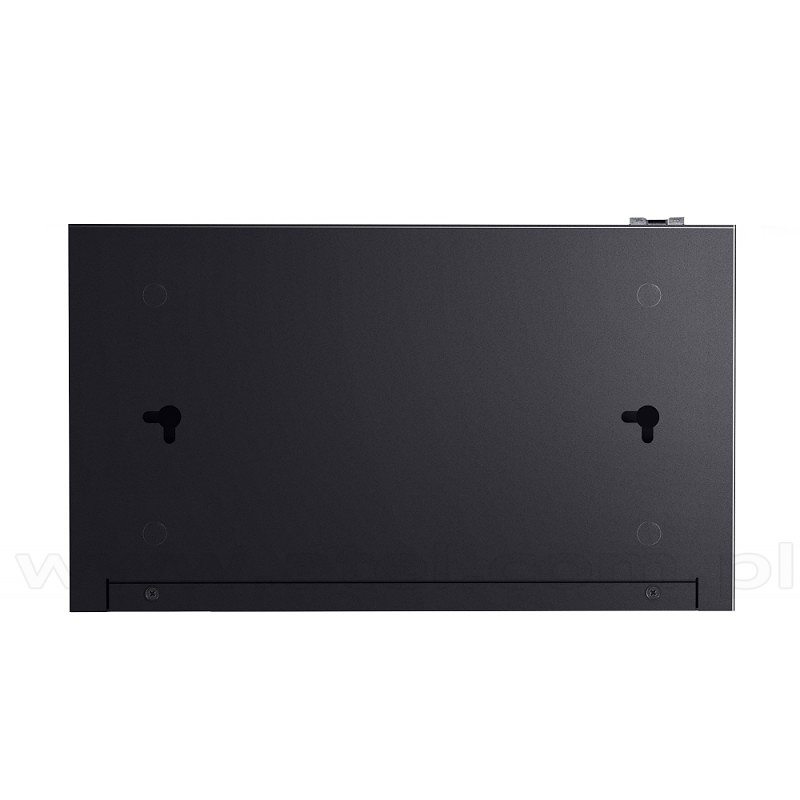

          Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE++, desktop (TP-Link TL-SG1210PP)

          • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
          • With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
          • Works with IEEE 802.3af/at/bt compliant PDs
          • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
          • Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
          • Supports PoE Power up to 123 W for all PoE ports*
          • Plug and Play, no configuration and installation required
          • Up to 250m data and power transmitting range under Extend Mode
          • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
          • Isolation Mode allows one-click client traffic separation for higher security and performance
          • Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
          Standards IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p
          Copper ports 9x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX),
          1x Combo SFP/RJ45 1000 Mb/s
          PoE Ports (RJ45) Port 1-2 compliance with 802.3af/at/bt,
          Ports 3-8 compliance with 802.3af/at,
          Power Supply 123 W
          Performance
          Bandwidth/Backplane 20Gbps
          MAC Address Table 4k
          Software features
          Advanced Features Compatible With IEEE 802.3af/at/bt Compliant PDs,
          Mac Address Auto-Learning And Auto-Aging,
          IEEE 802.3x Flow Control,
          802.1p/DSCP QoS,
          IGMP Snooping,
          Extend Mode Button (Ports 1–4,
          Up to 250 m PoE power supply and data transmission),
          PoE Auto Recovery (Ports 1-8),
          Isolation Mode (Ports 1-4/5-8),
          Priority Mode (Ports 1-2)
          Transmission Method Store-And-Forward
          Housing / case type 19",
          metal
          Dimensions 209 x 126 x 26 mm
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power External Power Adapter (Output 53.5 VDC / 2.43 A)
          Power Consumption 8.7 W (220/50 Hz. no PD connected),
          144.1 W (220/50 Hz. with 123 W PD connected)
          Max Heat Dissipation 29.67 BTU/h (220/50 Hz. no PD connected),
          491.38 BTU/h (220/50 Hz. with 123 W PD connected)
          Fan Quantity 0
          Operating Temperature 0–40 ℃ (32–104 ℉)
          Storage Temperature -40–70 ℃ (-40–158 ℉)
          Operating Humidity 10–90% RH non-condensing
          Storage Humidity 5–90% RH non-condensing
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE++, desktop (TP-Link TL-SG1210PP)
          Net Price: 101,00 EUR
          product card»
          #09477

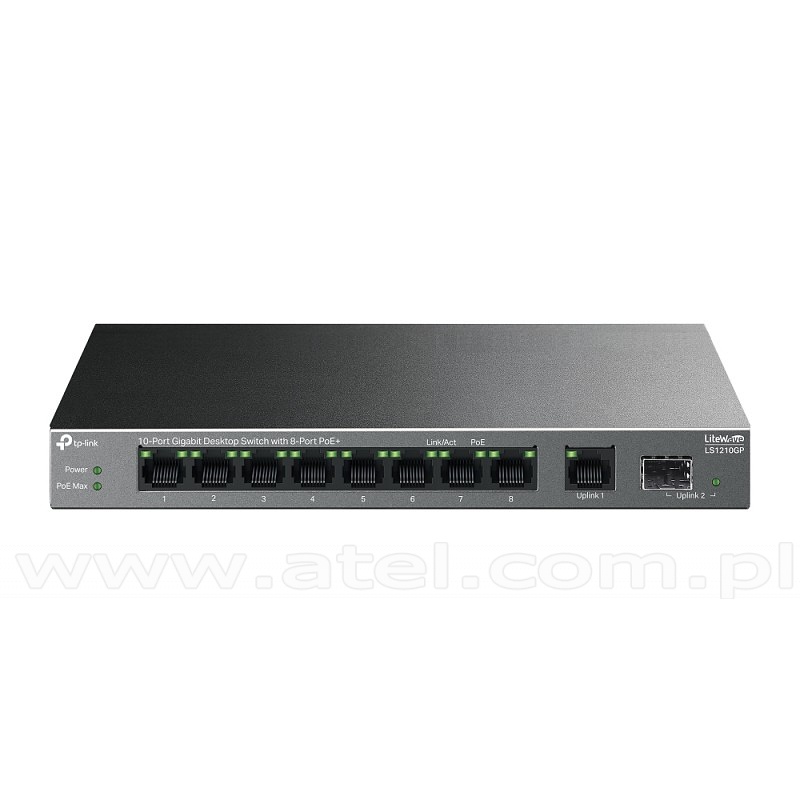

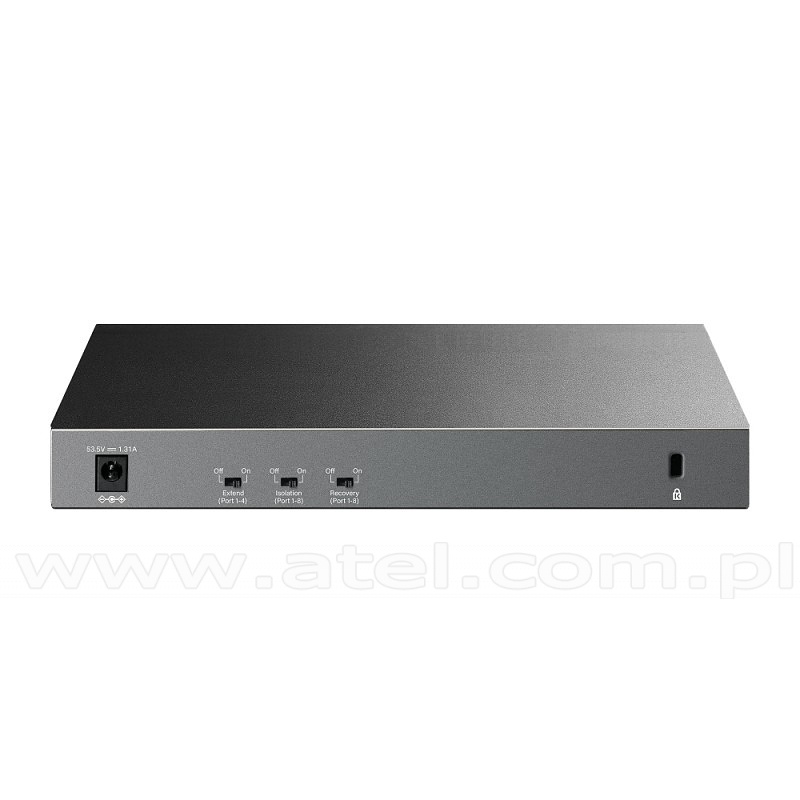

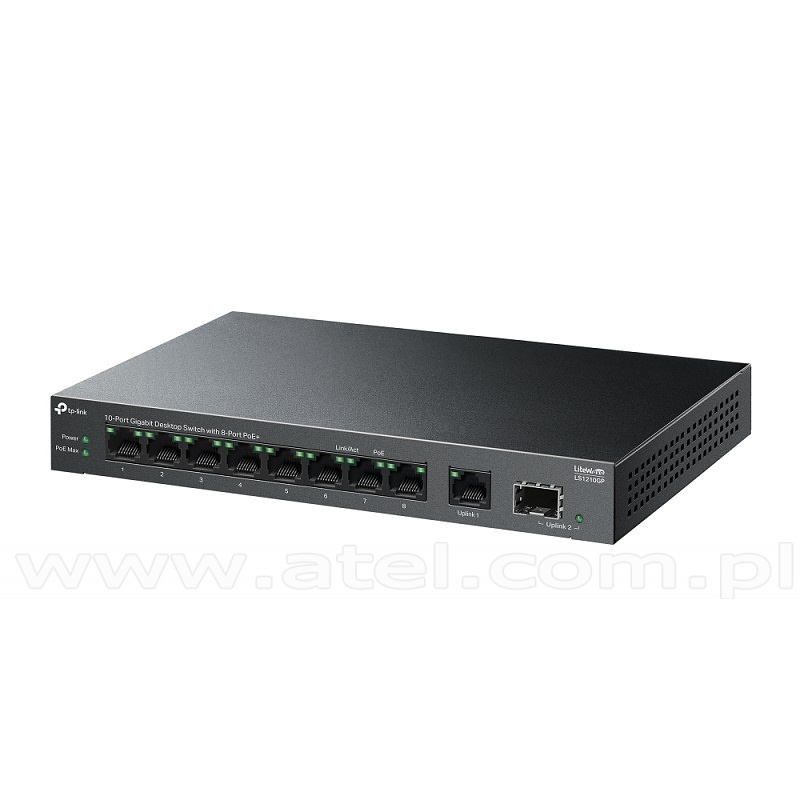

          Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link LS1210GP)

          • Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
          • 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
          • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
          • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
          • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          Standards IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p
          Copper ports 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+,
          1x 10/100/1000 Mbps RJ-45
          Free slots 1x 1000 Mbps SFP
          PoE Ports (RJ45)
          Standard 802.3af/at compliant
          PoE Ports 8 Ports
          Power Supply 61W
          Performance
          Bandwidth/Backplane 20Gbps
          MAC Address Table 4k
          Software features
          Advanced Features Compatible With IEEE 802.3af/at Compliant PDs,
          EEE802.3x Flow Control,
          802.1p/DSCP QoS,
          IGMP Snooping
          Transmission Method Store-And-Forward
          Housing / case type 19",
          metal
          Dimensions 209 x 126 x 26 mm
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 100~240VAC,
          50/60Hz,
          External Power Adapter(Output 53,5V DC / 1,31A)
          Power Consumption 7.3 W (220/50Hz. no PD connected),
          76.96 W (220/50Hz. with 61 W PD connected)
          Max Heat Dissipation 24.82 BTU/h (no PD connected),
          261.66 BTU/h (with 61 W PD connected)
          Fan Quantity 0
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          TP-LINK
          Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link LS1210GP)
          Net Price: 67,10 EUR
          product card»
      • » GIGABIT ETHERNET / INTELLIGENT (SMART SWITCHES)
          #09566

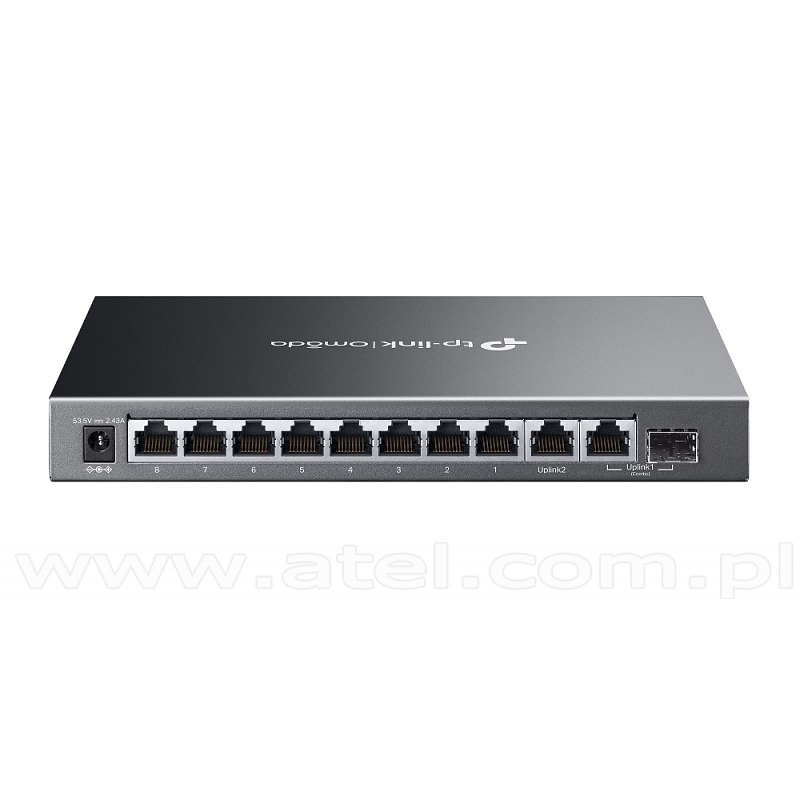

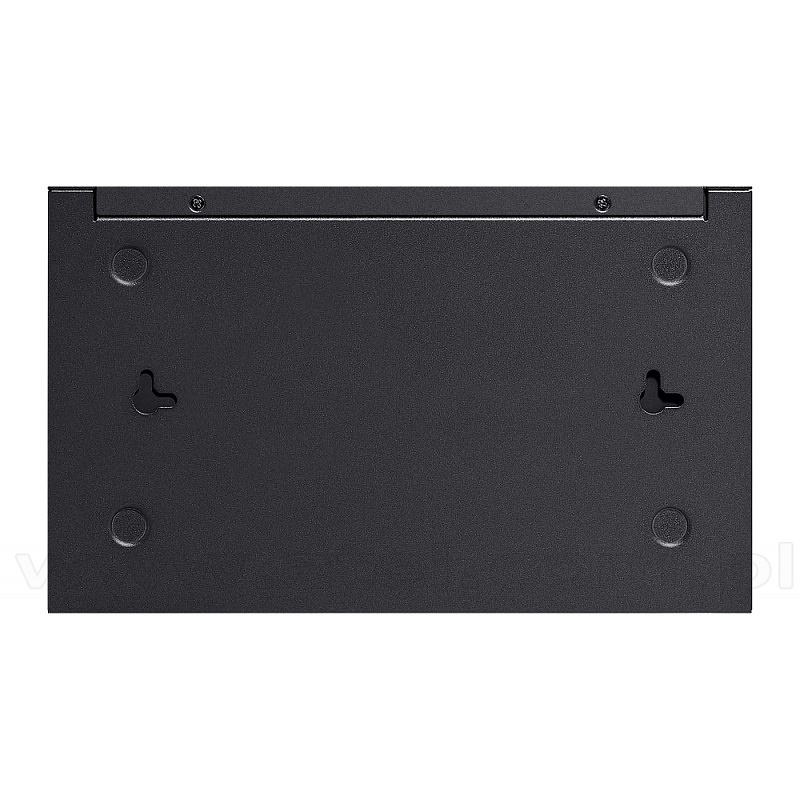

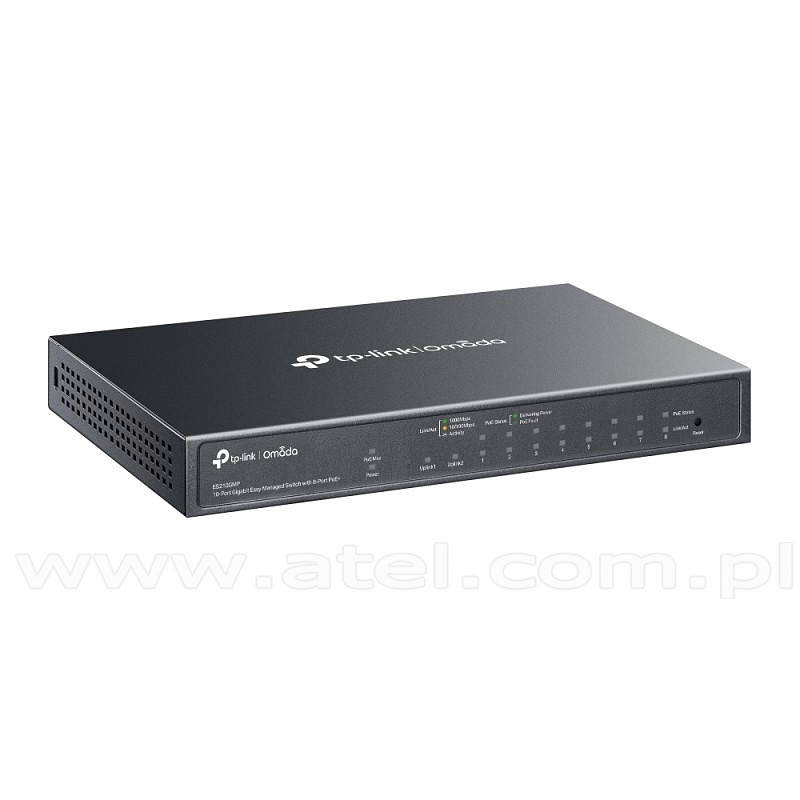

          Managed switch, 10x 10/100/1000 RJ-45, PoE+, desktop (TP-Link ES210GMP)

          • 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
          • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
          • 123W Power Budget, with up to 30W for each PoE port
          • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
          • Centralized Cloud Management via the web or the Omada app
          • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
          • Automatic Loop Prevention, VLAN, and IGMP Snooping
          • Fanless design for silent operation
          • Durable metal casing and desktop/wall mounting design
          Standards IEEE 802.3i,
          IEEE 802.3u,
          IEEE 802.3ab,
          IEEE 802.3af,
          IEEE 802.3x,
          IEEE 802.1q,
          IEEE 802.1p,
          IEEE 802.3at
          Fan Quantity 0
          Copper ports 9x 10/100/1000 Mbps RJ-45, 1× Gigabit SFP/RJ45 Combo port
          PoE+ Ports Port1- Port8
          Power Supply 123W
          Switching Capacity 20Gbps
          Packet Forwarding Rate 14,88 Mpps
          Mac Address Table 8K
          Jumbo Frame 15 KB
          Packet Buffer Memory 4 Mb
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Quality of Service Support Port-Based/802.1p/DSCP priority,
          Support 4 priority queues,
          Rate Limit,
          Storm Control
          L2 Features IGMP Snooping V1/V2/V3,
          Static Link Aggregation,
          Port Mirroring,
          Cable Diagnostics,
          Loop Prevention,
          PoE Auto Recovery,
          Extend Mode
          VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs),
          MTU/Port/Tag VLAN
          Management
          Omada App Yes. Requires the use of Omada Hardware Controller,
          Omada Cloud-Based Controller,
          or Omada Software Controller.
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller,
          Omada Software Controller
          Cloud Access Yes. Requires the use of Omada Hardware Controller,
          Omada Cloud-Based Controller,
          or Omada Software Controller.
          Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
          Management Features Web-based GUI,
          DHCP Client,
          Cable Diagnostics,
          Automatic Device Discovery,
          Batch Configuration,
          Batch Firmware Upgrading,
          Unified Configuration
          Housing / case type desktop,
          metal
          Dimensions 8.2×4.9×1.0 in (209×126×26 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power DC Power Adapter (Output 53.5 VDC/ 2.43 A)
          Certificates CE,
          FCC,
          RoHS
          Package Contents ES210GMP,
          Power Adapter,
          Installation Guide,
          Resource CD,
          Rubber Feet
          System Requirements Microsoft® Windows® for running Utility
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 10x 10/100/1000 RJ-45, PoE+, desktop (TP-Link ES210GMP)
          Net Price: 88,50 EUR
          product card»

top

Page 1 of 22
