Items tagged as

PoE plus:
  • Computer Network Accessories
    • Switches
      • » FAST ETHERNET / UNMANAGED SWITCHES
          #09132

          Unmanaged switch, 9x 10/100 RJ-45, PoE+, desktop (TP-Link TL-SF1009P)

          • 9× 10/100 Mbps RJ45 ports
          • 8× PoE+ ports transfer data and power on individual cables
          • Works with IEEE 802.3af/at compliant PDs
          • Supports PoE Power up to 30 W for each PoE port
          • Supports PoE Power up to 65 W for 8 PoE ports
          • Up to 250 m data and power transmitting range under Extend Mode
          • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
          • Isolation Mode allows one-click client traffic separation for higher security and performance
          • Plug and play with no configuration required
          Copper ports 9x 10/100 Mbps RJ-45
          Standard 802.3af/at compliant
          PoE+ Ports Port1- Port8
          Power Supply 65W
          Switching Capacity 1.8Gbps
          Packet Forwarding Rate 1.3392 Mpps
          Mac Address Table 2K
          Software features
          Advanced Features Compatible With IEEE 802.3af/at Compliant PDs,
          Extend Mode Button (Ports 1–4 and Ports 1–8,
          Up to 250 m PoE power supply and data transmission),
          Priority Mode Button (Ports 1–2),
          Isolation Mode Button (Ports 1–8),
          Mac Address Auto-Learning and Auto-Aging,
          IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
          Transfer Method Store-And-Forward
          Dimensions 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter(Output 53.5 V DC / 1.31 A)
          Power Consumption 3,6W (max. no PD connected),
          77,08W (max. with 65W PD connected)
          Max Heat Dissipation 12,28BTU/h(no PD connected),
          262,84BTU/h(with 65W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Unmanaged switch, 9x 10/100 RJ-45, PoE+, desktop (TP-Link TL-SF1009P)
          Net Price: 29,80 EUR
          product card»
          #09533

          Unmanaged switch, 10x 10/100 RJ-45, PoE+, desktop (TP-Link Mercusys MS110P)

          • 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
          • Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
          • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
          • 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
          • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
          • Isolation Mode: One click to divide traffic for specific ports for stability and security
          • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
          • Durable Metal Casing: Allows for efficient heat dissipation and long network life
          • Plug and Play: Simple to use and saves time and effort
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
          Standards IEEE 802.3/x
          Copper ports 10x 10/100 Mbps RJ-45
          PoE Ports RJ45,
          Standard Compliant with 802.3 af/at Powered Devices,
          PoE Ports Port 1- Port 8
          PoE Power Budget 65 W
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Data Rates 10/100Mbps at half duplex,
          20/200Mbps at full duplex
          Mac Address Table 2K
          Jumbo Frame 2KB
          Dimensions 171 * 98 * 27 mm
          Operating temperature 0°C ÷ 40°C
          Storage Temperature -40°C ÷ 70°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          External Power Supply External Power Adapter (Output 53.5V/1.31A)
          Max Power Consumption 2.96W（220 V / 50 Hz,
          no PD connected,
          77.52W（220 V / 50 Hz,
          with 65W PD connected）
          Unmanaged switch, 10x 10/100 RJ-45, PoE+, desktop (TP-Link Mercusys MS110P)
          Net Price: 22,80 EUR
          product card»
          #09034

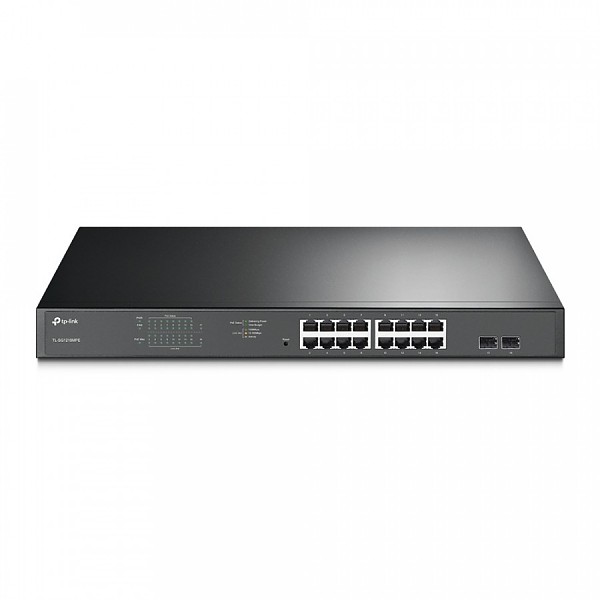

          Unmanaged switch, 16x 10/100 RJ-45, 2x 10/100/1000 RJ-45, 2x SFP, PoE+ (TP-Link TL-SL1218MP)

          • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
          • Up to 250m data and power transmission under extend mode specially designed for surveillance system
          • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
          • High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
          • Easy to use, with no configuration and installation needed
          Standards IEEE 802.3,
          IEEE 802.3u,
          IEEE 802.3ab,
          IEEE 802.3x,
          IEEE 802.3af,
          IEEE 802.3at,
          IEEE 802.1q,
          IEEE 802.1p
          Copper ports 16x 10/100 Mbps RJ-45 PoE+,
          2x 10/100/1000Mbps RJ45 Ports
          SFP Ports 2 Gigabit Combo SFP Ports
          Fan Quantity 2
          PoE Ports Standard 802.3 at compliant,
          PoE Ports Port 1- Port 16,
          PoE Power Budget 192W
          Performance:
          Backup Bandwidth 7.2 Gbps
          MAC Address Table 8K
          Software features:
          Advanced Features Compatible With IEEE 802.3at/af Compliant PDs,
          Extend Mode (Up to 250m PoE power supply and data transmission),
          Priority Mode,
          Isolation Mode,
          Mac Address Auto-Learning And Auto-Aging,
          IEEE802.3x Flow Control
          Transmission Method Store-And-Forward
          Transmission Method Store-And-Forward
          Dimensions 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power 100-240VAC,
          50/60Hz
          Power Consumption 18.73 W (220/50Hz. no PD connected),
          217.22 W (220/50Hz. with 192W PD connected)
          Max Heat Dissipation 63.89 BTU/h (no PD connected),
          741.15 BTU/h (with 192W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Unmanaged switch, 16x 10/100 RJ-45, 2x 10/100/1000 RJ-45, 2x SFP, PoE+ (TP-Link TL-SL1218MP)
          Net Price: 118,00 EUR
          product card»
          #09152

          Unmanaged switch, 16x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 1x SFP, PoE+ (TP-Link TL-SL1218P)

          • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
          • High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
          • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
          • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
          • Isolation Mode allows one-click client traffic separation for higher security and performance.
          • Easy to use, with no configuration and installation needed.
          Standards IEEE 802.3,
          IEEE 802.3u,
          IEEE 802.3ab,
          IEEE 802.3x,
          IEEE 802.3af,
          IEEE 802.3at,
          IEEE 802.1q,
          IEEE 802.1p
          Copper ports 16x 10/100 Mbps RJ-45 PoE+,
          2x 10/100/1000Mbps RJ45 Ports
          SFP Ports 1 Gigabit Combo SFP Ports
          Fan Quantity 2
          PoE Ports Standard 802.3 at compliant,
          PoE Ports Port 1- Port 16,
          PoE Power Budget 150W
          Performance:
          Backup Bandwidth 7.2 Gbps
          MAC Address Table 8K
          Software features:
          Advanced Features Compatible With IEEE 802.3at/af Compliant PDs,
          Extend Mode (Up to 250m PoE power supply and data transmission),
          Priority Mode,
          Isolation Mode,
          Mac Address Auto-Learning And Auto-Aging,
          IEEE802.3x Flow Control
          Transmission Method Store-And-Forward
          Dimensions 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power 100-240VAC,
          50/60Hz
          Power Consumption 12,71 W (220/50Hz. no PD connected),
          172,8 W (220/50Hz. with 150W PD connected)
          Max Heat Dissipation 43,34 BTU/h (no PD connected),
          589,25 BTU/h (with 150W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Unmanaged switch, 16x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 1x SFP, PoE+ (TP-Link TL-SL1218P)
          Net Price: 107,00 EUR
          product card»
      • » FAST ETHERNET / INTELLIGENT (SMART SWITCHES)
          #09153

          Smart switch, 24x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 2x SFP, PoE+, 19" (TP-Link TL-SL2428P)

          • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W.
          • Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections.
          • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
          • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
          • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
          Standards IEEE 802.3i,
          IEEE 802.3u,
          IEEE 802.3ab,
          IEEE802.3z,
          IEEE 802.3ad,
          IEEE 802.3x,
          IEEE 802.3az,
          IEEE 802.1d,
          IEEE 802.1s,
          IEEE 802.1w,
          IEEE 802.1q,
          IEEE 802.1x,
          IEEE 802.1p,
          IEEE 802.3af,
          IEEE 802.3at
          Copper ports 24x 10/100 Mbps RJ-45 PoE+,
          2x 10/100/1000Mbps RJ45 Ports
          SFP Ports 2 Gigabit Combo SFP Ports
          Fan Quantity 2
          PoE Ports Standard 802.3 at compliant,
          PoE Ports Port 1- Port 24,
          PoE Power Budget 250W
          Performance:
          Switching Capacity 12.8 Gbps
          Packet Forwarding Rate 9.5 Mpps
          MAC Address Table 8K
          Jumbo Frame 9216 Bytes
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Transmission Method Store-And-Forward
          Dimensions 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power 100-240VAC,
          50/60Hz
          Power Consumption 18,8 W W (220/50Hz. no PD connected),
          286,7 W (220/50Hz. with 250W PD connected)
          Max Heat Dissipation 64,1 BTU/h (no PD connected),
          977,6 BTU/h (with 250W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Smart switch, 24x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 2x SFP, PoE+, 19" (TP-Link TL-SL2428P)
          Net Price: 193,00 EUR
          product card»
      • » GIGABIT ETHERNET / UNMANAGED SWITCHES
          #09475

          Unmanaged switch, 5x 2,5Gb/s RJ-45, PoE++, desktop (TP-Link TL-SG105PP-M2)

          • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
          • With four PoE++ ports, transfers data and power on one single cable
          • Works with IEEE 802.3af/at/bt type3 compliant PDs
          • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
          • Supports PoE Power up to 60 W for each PoE++ port
          • Supports PoE Power up to 123 W for all PoE ports
          • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
          • Plug and Play, no configuration and installation required
          Copper ports 5x 100Mbps/1Gbps/2.5Gbp Ports,
          Auto-Negotiation,
          Auto-MDI/MDIX
          Standard IEEE 802.3, 802.3u,
          802.3ab,
          802.3x,
          802.1p,
          802.3bz
          PoE Ports (RJ45) Standard 802.3 af/at/bt type3 compliant,
          PoE++ Ports Ports 1–4,
          Power Supply 123 W
          Switching Capacity 25Gbps
          Packet Forwarding Rate 18,6 Mpps
          Mac Address Table 16K
          Jumbo Frame 10 KB
          Packet Buffer Memory 1.5 Mb
          Software features
          Advanced Features 802.3X Flow Control,
          802.1p/DSCP QoS,
          Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
          Transfer Method Store-And-Forward
          Dimensions 8.2×4.9×1.0 in (209×126×26 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter (Output 53.5 VDC / 2.43 A)
          Power Consumption 7.57 W (220/50 Hz. no PD connected),
          143.37 W (220/50 Hz. with 123 W PD connected)
          Max Heat Dissipation 25.81BTU/h (220 V/50 Hz with no PD connected),
          488.89 BTU/h (220 V/50 Hz with 123W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Unmanaged switch, 5x 2,5Gb/s RJ-45, PoE++, desktop (TP-Link TL-SG105PP-M2)
          Net Price: 96,20 EUR
          product card»
          #09323

          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE++IN (TP-Link TL-SF1005P-PD)

          • Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
          • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
          • Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
          • Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
          • Plug and Play: No configuration and installation required.
          • Power Supply: The product only supports PoE power supply, not AC or DC power supply.
          Standards IEEE 802.3i,
          IEEE 802.3u,
          IEEE 802.3ab ,
          IEEE 802.3af,
          IEEE 802.3at,
          IEEE 802.3bt,
          IEEE 802.3x,
          IEEE 802.1p
          Copper ports 5x 10/100/1000 Mbps RJ-45
          PoE In Ports 5 compliance with 802.3af/at/bt Type3/bt Type4
          PoE Out Ports 1-4 compliance with 802.3af/at
          PoE Power Budget 66 W when powered by 802.3bt Type 4 (90 W),
          47 W when powered by 802.3bt Type 3 (60 W),
          21 W when powered by 802.3at (30 W),
          9 W when powered by 802.3af (15.4 W)
          Backbound Bandwidth 10Gbps
          Mac Address Table 2K
          Software features
          Advanced Features Extend Mode Button (Ports 1–2,
          Up to 250 m PoE power supply and data transmission),
          PoE Auto Recovery (Ports 1-4),
          Mac Address Auto-Learning and Auto-Aging,
          IEEE 802.3x Flow Control,
          802.1p/DSCP QoS,
          IGMP Snooping
          Transfer Method Store-And-Forward
          Dimensions 6,2 × 4,0 × 1,0 in. (158 × 101 × 25 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power Only Powered by PoE Device
          Power Consumption 2.68 W (90W PoE In,
          with no PD connected),
          68.59 W (90W PoE In,
          with 66 W PD connected)
          Max Heat Dissipation 9.112 BTU/h (90W PoE In,
          with no PD connected),
          233.206 BTU/h (90W PoE In,
          with 66 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE++IN (TP-Link TL-SF1005P-PD)
          Net Price: 25,70 EUR
          product card»
          #09479

          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS105GP)

          • Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
          • 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
          • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
          • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
          • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
          • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
          • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
          Standards IEEE 802.3/i/u/x/ab,
          IEEE 802.1p,
          IEEE 802.3af/at
          Copper ports 5x 10/100/1000 Mbps RJ-45 (Ports 1–4 supports 802.3af/at PoE+)
          PoE Ports Ports 1–4,
          up to 30 W PoE output per port
          Power Supply 65 W
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Packet flow control Flow-Control,
          Back-Pressure
          Switching Capacity 10 Gbps
          Packet Forwarding Rate 7.4 Mpps
          MAC Address Table 2K
          Packet Buffer Memory 1.5 Mb
          Jumbo Frame 16 KB
          Housing / case type desktop,
          metal
          Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
          Operating temperature 0°C ÷ 40°C
          Storage Temperature -40°C ÷ 70°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power External Power Adapter (Output 53.5 VDC / 1.31 A)
          Max Power Consumption 4 W (220/50 Hz. no PD connected),
          74.46 W (220/50 Hz. with 65 W PD connected)
          Max Heat Dissipation 13.6 BTU/h (no PD connected),
          253.16 BTU/h (with 65 W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link LS105GP)
          Net Price: 19,20 EUR
          product card»
          #09532

          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link Mercusys MS105GP)

          • Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
          • Two Cables in One: With 4 PoE+ ports, transfers data and power on one single cable
          • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
          • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode
          • Isolation Mode: One click to divide traffic for specific ports for stability and security
          • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
          • Durable Metal Casing: Allows for efficient heat dissipation and long network life
          • Plug and Play: Simple to use and saves time and effort
          Standards IEEE 802.3/x
          Copper ports 5x 10/100/1000 Mbps RJ-45
          PoE Ports RJ45,
          Standard Compliant with 802.3 af/at Powered Devices,
          PoE Ports Port 1- Port 4
          PoE Power Budget 65 W
          Auto MDI/MDI-X yes
          Auto-negotiation (Nway) yes
          Switching architecture / speed Store and Forward
          Data Rates 10/100/1000Mbps at half duplex,
          20/200/2000Mbps at full duplex
          Mac Address Table 2K
          Jumbo Frame 9KB
          Dimensions 99,8 * 98 * 25 mm
          Operating temperature 0°C ÷ 40°C
          Storage Temperature -40°C ÷ 70°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          External Power Supply External Power Adapter (Output 53.5V/1.31A)
          Max Power Consumption 3.13W（220 V / 50 Hz,
          no PD connected,
          75.15W（220 V / 50 Hz,
          with 65W PD connected）
          Max Heat Dissipation 10.64 BTH/h （no PD connected),
          255.51 BTH/h（with 65W PD connected）
          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link Mercusys MS105GP)
          Net Price: 20,10 EUR
          product card»

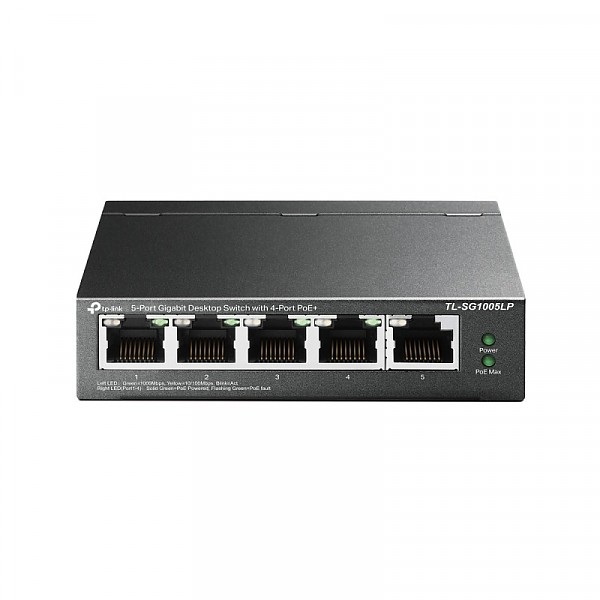

          #09133

          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link TL-SG1005LP)

          • 5× 10/100/1000 Mbps RJ45 ports
          • With four PoE+ ports, transfers data and power on one single cable
          • Works with IEEE 802.3af/at compliant PDs
          • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
          • Supports PoE Power up to 30 W for each PoE port
          • Supports PoE Power up to 40 W for all PoE ports
          • Plug and play, no configuration and installation required
          Copper ports 5x 10/100/1000 Mbps RJ-45
          Standard 802.3af/at compliant
          PoE+ Ports Port1- Port4
          Power Supply 40W
          Switching Capacity 1Gbps
          Packet Forwarding Rate 7.44 Mpps
          Mac Address Table 2K
          Jumbo Frame 16 KB
          Software features
          Advanced Features Compatible With IEEE 802.3af Compliant PDs,
          Priority Function,
          Mac Address Auto-Learning And Auto-Aging,
          IEEE 802.3x Flow Control,
          802.1p/DSCP QoS,
          IGMP Snooping
          Transfer Method Store-And-Forward
          Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
          Operating Temperature 0℃~40℃ (32℉~104℉)
          Storage Temperature -40℃~70℃ (-40℉~158℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Power External Power Adapter(Output 53.5 V DC / 0.81 A)
          Power Consumption 4.12W (max. no PD connected),
          47.5W (max. with 40W PD connected)
          Max Heat Dissipation 14.05BTU/h(no PD connected),
          161.98BTU/h(with 40W PD connected)
          Certificates CE,
          FCC,
          RoHS
          Warranty 5 years
          Manufacturer TP-Link
          Unmanaged switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link TL-SG1005LP)
          Net Price: 22,50 EUR
          product card»


top

Page 2 of 11
$ €
