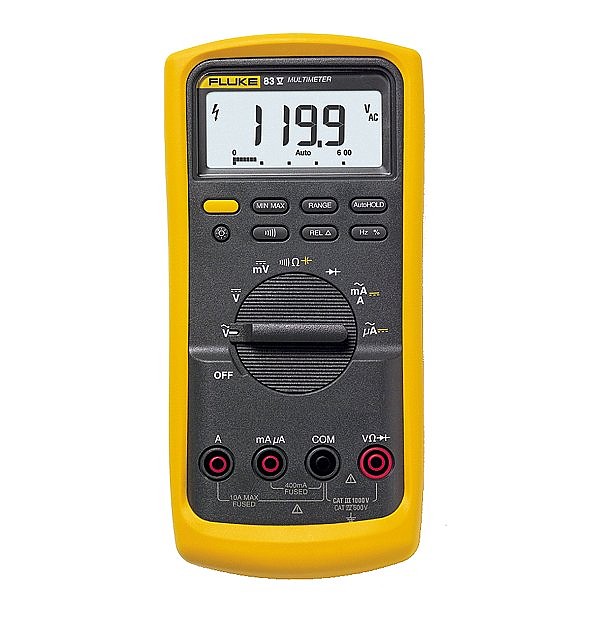

FLUKE 83V - Digital Multimeter, True RMS, automatic range selection
FLUKE 83V enables precise measurement of voltages and frequencies in equipment prone to electrical noise. Additionally, it is equipped with signaling of incorrect connection of wires and the possibility of relative measurements.
The set comes with a multimeter, test leads, a holster, a 9V battery, two alligator clips and a user manual.LCD display 6000 Range selection automatic/manual DC voltage 1000 V ± 0,1% AC voltage 1000 V ± 0,5% DC current 10A ± 0,4% AC current 10A ± 1,2% Resistance 20 MΩ ± 0,4% Conductance 60 nS ± 1,0% Capacitance 10 mF ± 1,0% Frequency 200kHz ± 0,005% Continuity test yes Diode test yes Auto power off yes Data hold yes Back light yes Battery indicator yes Dimensions 200 x 95 x 48 mm Power 9V battery (6F22) Guarantee Unlimited Manufacturer Fluke

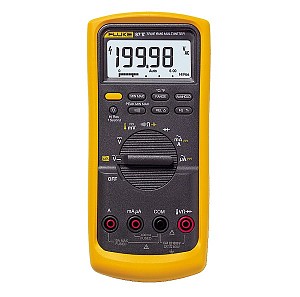

#06160FLUKE 87V - Digital Multimeter, True RMS, automatic range selection
FLUKE 87V enables precise measurement of voltages and frequencies in equipment prone to electrical noise. Additionally, it is equipped with signaling of incorrect connection of wires and the possibility of relative measurements.
The set comes with a multimeter, test leads, a holster, a 9V battery (installed), two alligator clips, a 80BK temperature probe and a user manual.LCD display 19,999 Range selection automatic/manual DC voltage 1000 V ± 0,1% AC voltage 1000 V ± 0,5% DC current 10A ± 0,4% AC current 10A ± 1,2% Resistance 20 MΩ ± 0,4% Conductance 60 nS ± 1,0% Capacitance 10 mF ± 1,0% Frequency 200kHz ± 0,005% Temperature -200 ÷ 1090 °C ± 1,0% Continuity test yes Relative measurement yes Diode test yes Auto power off yes Data hold yes True RMS yes Back light yes Battery indicator yes Dimensions 200 x 95 x 48 mm Power 9V battery (6F22) Guarantee Unlimited Manufacturer Fluke
-
- » FLUKE#06805
FLUKE 355 - Digital Multimeter with pincers, True RMS
Digital Clamp Multimeter with pincers for resistance, AC/DC voltage and current measurement. Enables precise measurement of high currents- up to 2000A.Range selection automatic AC voltage 4÷600 V ± 1% DC voltage 4÷1000 V ± 1% AC current 40÷1400 A ± 1,5% DC current 40÷2000 A ± 1,5% Resistance 400 Ω ÷ 400 kΩ ± 1,5% Frequency 5Hz÷1kHz True RMS yes Sound signal yes Data hold yes Highlighted LCD yes Battery indicator yes Protection yes Max. clamp set 58 mm Dimensions 300 x 98 x 52 mm Power 6x AA battery Weight 814g Manufacturer Fluke
#06142FLUKE 902 - Digital Multimeter with pincers, True RMS
Digital Clamp Multimeter with pincers for AC/DC voltage and current measurement. DC current measurement is possible after connecting test wires. Additionally, it enables the measurement of resistance, temperature, capacitance and frequency. It has an acoustic indicator of circuit continuity,the "HOLD" function (reading memory) and highlighted LCD display.Range selection automatic AC voltage 600 V ± 1% DC voltage 600 V ± 1% AC current 600 A ± 1% DC current 200 µA ± 1% Resistance up to 600 Ω ± 1.5%,
up to 6000 Ω ± 1.5%Frequency 5÷400 Hz ± 0.5% Temperature -10° - 400°C ± 1% Capacitance 1 - 1000 µF ± 1.9% Crest factor 2.4 @ 500 A,
2.0 @ 600 ATrue RMS yes Sound signal yes Data hold yes Highlighted LCD yes Battery indicator yes Protection yes Max. clamp set 30 mm Dimensions 38 x 79 x 41 mm Power 2x AA battery Weight 312g Manufacturer Fluke
- » MASTECH#04090
Mastech MS2140C - Digital clamp multimeter with infrared thermometer
Reliable digital clamp multimeter for measuring AC and DC currents. The device has an additional built-in non-contact temperature meter - a pyrometer, for additional thermal control of the tested elements.Multimeter Max. LCD display 5999 Range selection automatic Insulation class CAT II 1000V DC voltage 600m/6/60/600/1000 V ± 0,5% AC voltage 600m/6/60/600/1000 V ± 0,8% DC current 600/1000 A ± 2,5% AC current 600/1000 A ± 1,8% Resistance 600/6k/60k/600k ± 0,8%,
6M/60M Ω ± 1,2%Frequency range 60/600/6k/60k/600k/6M/60M Hz ± 0,3% Capacitance 60n/600n/6µ/60µ/600µ/6m/60m F ± 4% Temperature -40÷500°C ± 1,0% Continuity test yes Sampling time 300ms Diode test yes Max. diameter for conductor Ø40 mm Power 3x 1,5V AAA battery Manufacturer Mastech Infrared thermometer Temperature -20÷350 °C ± 2,5% Field of view 6÷1 Emmisivity 0,95 Sampling time 300ms Power 2xLR44
-
- Fluke 289 True RMS multimeter #06219,
- FlukeView Forms software,
- PC connection cable,
- TL71 Silicone Test Leads,
- AC72 Alligator Clips,
- Fluke 80BK Integrated Temperature Probe,
- ToolPak Meter hanging accessory for hanging the meter,
- Fluke C280 Soft Case,
- 4 batteries (installed)
#06386FLUKE 289/FVF - Digital Multimeter with software
The kit includes:
-
#06344
FLUKE 789 - ProcessMeter
The FLUKE 789 ProcessMeter has all the functions of a professional multimeter and a loop calibrator. Thanks to the inbuilt loop supply, no additional voltage source is needed when checking relays. The device is made of very durable materials.Multimeter Range selection automatic/manual DC voltage 1000 V ± 0,1% AC voltage 1000 V ± 0,5% DC current 30mA ± 0,05% AC current 30mA ± 0,05% Resistance 40 MΩ ± 0,2% Frequency 200kHz ± 0,005% Continuity test yes Relative measurement yes Diode test yes True RMS yes Calibrator Current source 0-20 mA and 4-24 mA ±0,05% of range Loop supply 24V Step auto / manual Other PC Interface yes (infrared) Dimensions 203 x 100 x 50 mm Power 4 x 1,5V AA battery Weight 0,6kg Guarantee 3 lata Manufacturer Fluke
-
