#06344
CalibratorsFLUKEFLUKE 789

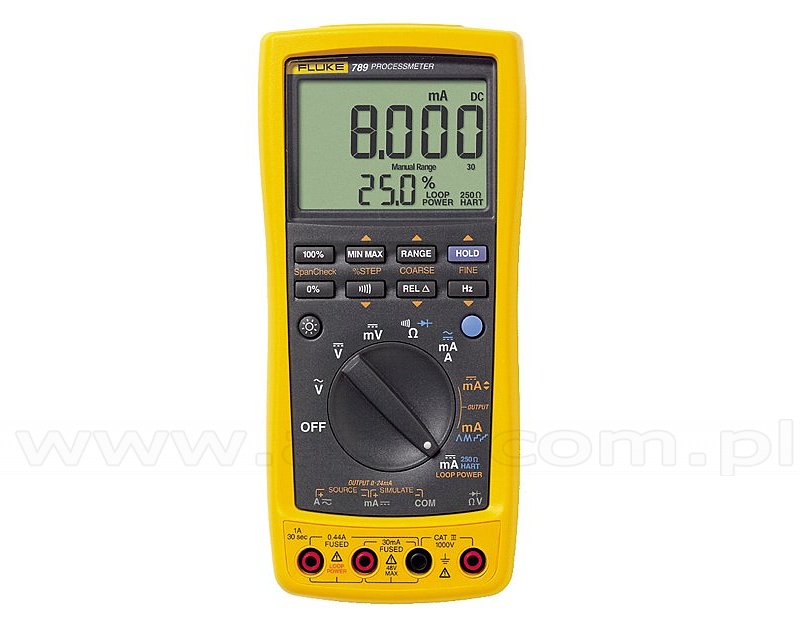

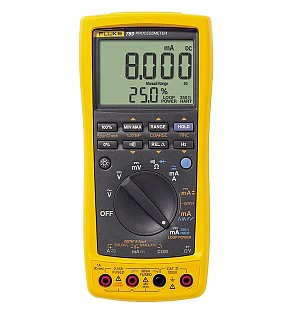

FLUKE 789 - ProcessMeter

The FLUKE 789 ProcessMeter has all the functions of a professional multimeter and a loop calibrator. Thanks to the inbuilt loop supply, no additional voltage source is needed when checking relays. The device is made of very durable materials.
Multimeter
Range selection automatic/manual
DC voltage 1000 V ± 0,1%
AC voltage 1000 V ± 0,5%
DC current 30mA ± 0,05%
AC current 30mA ± 0,05%
Resistance 40 MΩ ± 0,2%
Frequency 200kHz ± 0,005%
Continuity test yes
Relative measurement yes
Diode test yes
True RMS yes
Calibrator
Current source 0-20 mA and 4-24 mA ±0,05% of range
Loop supply 24V
Step auto / manual
Other
PC Interface yes (infrared)
Dimensions 203 x 100 x 50 mm
Power 4 x 1,5V AA battery
Weight 0,6kg
Guarantee 3 lata
Manufacturer Fluke

User Manual (847 KB)
« previous product  |  next product »     »show on list«
TAGS: True RMS
* For special orders only
Net Price: 1 480,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
