 UNMANAGED MEDIA CONVERTERS, SINGLE AND MULTI MODE
#07606

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, MM 1310nm, 2km (Wave Optics, WO-KB-MDS-002K)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC MM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 2km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, MM 1310nm, 2km
Net Price: 22,40 20,00 EUR   Unit: pcs  VAT: 23%

#07605

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, MM 850nm, 550m (Wave Optics, WO-KB-MDS-550)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC MM
TX wavelength 850nm
RX wavelength 850nm
Port #2 max. distance 550m
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, MM 850nm, 550m
Net Price: 22,40 20,00 EUR   Unit: pcs  VAT: 23%

#06424

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310 nm, 15 km (TP-Link MC210CS)

Standards IEEE 802.3ab/z/i/u
Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX)
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1310 nm
Port #2 max. distance 15 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.8W
Certificates FCC Class B,
CE,
VCCI-B
Warranty period 5 years
Manufacturer TP-Link
TP-LINK
Gigabit media converter 1000M RJ-45/SC, SM 1310nm, 15km (TP-Link MC210CS)
Net Price: 25,40 EUR  Unit: pcs  VAT: 23%

#07607

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 10km (Wave Optics, WO-KB-SDS-010K)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 10km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, SM 1310nm, 10km
Net Price: 23,30 22,40 EUR   Unit: pcs  VAT: 23%

#07608

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 20km (Wave Optics, WO-KB-SDS-020K)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, SM 1310nm, 20km
Net Price: 23,30 22,40 EUR   Unit: pcs  VAT: 23%

#07609

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km (Wave Optics, WO-KB-SDS-040K)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1550nm
Port #2 max. distance 40km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, SM 1550nm, 40km
Net Price: 32,90 27,60 EUR   Unit: pcs  VAT: 23%

#07610

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 60km (Wave Optics, WO-KB-SDS-060K)

Standards IEEE 802.3ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1550nm
Port #2 max. distance 60km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Housing / case type desktop
Operating temperature 0C 45C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
WAVE OPTICS
Gigabit media converter 10/100/1000M RJ-45/SC, SM 1550nm, 60km
Net Price: 54,30 44,80 EUR   Unit: pcs  VAT: 23%

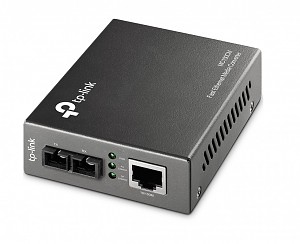

#06063

Media converter 10/100 Mbps RJ-45/SC, MM 1310nm, 2km (TP-Link MC100CM)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC MM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 2km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Max. throughput [Gbps] 0.2
Housing desktop / rack 19"
Dimensions 94x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power external,
9V DC 0,6A,
~230V AC 50Hz
Max Power Consumption 2.4W
Warranty 5 years
Manufactuer TP-Link
TP-LINK
Media converter 10/100M RJ-45/SC, MM 1310nm, 2km (TP-Link MC100CM)
Net Price: 20,60 EUR  Unit: pcs  VAT: 23%

#07600

Media converter 10/100 Mbps RJ-45/SC, MM 1310nm, 2km (Wave Optics, WO-KA-MDS-002K)

Standards IEEE 802.3,
IEEE 802.3/u,
IEEE 802.3/x,
IEEE 802.3/ab
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC MM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 2km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Link Fault Pass-thorugh (LFP) yes
Far-End Fault (FEF) yes
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/SC, MM 1310nm, 2km
Net Price: 15,70 EUR  Unit: pcs  VAT: 23%

#06307

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20km (TP-Link MC110CS-20)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Max. throughput [Gbps] 0.2
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power external,
9VDC 600mA,
~230V AC 50Hz
Max Power Consumption 2.4W
Warranty 5 years
Manufacturer TP-Link
TP-LINK
Media converter 10/100M RJ-45/SC, SM 1310nm, 20km (TP-Link MC110CS-20)
Net Price: 20,60 EUR  Unit: pcs  VAT: 23%

#07601

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20km (Wave Optics, WO-KA-SDS-020K)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 20km
Net Price: 15,20 EUR  Unit: pcs  VAT: 23%

#07602

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 40km (Wave Optics, WO-KA-SDS-040K)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 40km
Net Price: 21,00 EUR  Unit: pcs  VAT: 23%

#07603

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 60km (Wave Optics, WO-KA-SDS-060K)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 60km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 60km
* For special orders only
Net Price: 27,10 EUR  Unit: pcs  VAT: 23%

#07604

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 80km (Wave Optics, WO-KA-SDS-080K)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1550nm
Port #2 max. distance 80km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1550nm, 80km
* For special orders only
Net Price: 53,80 51,00 EUR   Unit: pcs  VAT: 23%

#07599

Media converter 10/100 Mbps RJ-45/ST, MM 1310nm, 2km (Wave Optics, WO-KA-MDT-002K)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps ST MM
TX wavelength 1310nm
RX wavelength 1310nm
Port #2 max. distance 2km
Port #2 cable type 50/125, 62.5/125, 100/140 µm
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100M RJ-45/ST, MM 1310nm, 2km
Net Price: 16,40 EUR  Unit: pcs  VAT: 23%

#07625

Media converter 100 Mbps MM/SM, 1310nm, 2/20km (Wave Optics, WO-KA-MSDS-0220K)

Standards IEEE 802.3/u
Port #1 100 Mbps SC MM
Port #1 max. distance 2 km
Port #1 cable type 50/125
Port #1 TX wavelength 1310nm
Port #1 RX wavelength 1310nm
Port #2 100 Mbps SC SM
Port #2 TX wavelength 1310nm
Port #2 RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 9/125
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 100M MM/SM, 1310nm, 2/20km
Net Price: 27,10 25,70 EUR   Unit: pcs  VAT: 23%

#08298

Media converter 1000 Mbps MM/SM, 1310nm, 2/20km (Wave Optics, WO-KB-MSDS-0220K)

Standards IEEE 802.3/u
Port #1 1000 Mbps SC MM
Port #1 max. distance 2 km
Port #1 cable type 50/125
Port #1 TX wavelength 1310nm
Port #1 RX wavelength 1310nm
Port #2 1000 Mbps SC SM
Port #2 TX wavelength 1310nm
Port #2 RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 9/125
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 1000M MM/SM, 1310nm, 2/20km
Net Price: 42,40 EUR  Unit: pcs  VAT: 23%

#07653

Media converter 2x10/100 Mbps RJ-45/SC, MM 1310nm, 2km (Wave Optics, WO-KA2-MDS-002K)

Standards IEEE 802.3/u
Port #1,#2 10/100 Mbps RJ-45
Port #1,#2 max. distance 100 m
Port #1,#2 cable type UTP/STP cat. 5
Port #3 100 Mbps SC MM
TX wavelength 1310nm
RX wavelength 1310nm
Port #3 max. distance 2km
Port #3 cable type 50/125, 62.5/125, 100/140 µm
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 2x10/100M RJ-45/SC, MM 1310nm, 2km
Net Price: 18,60 EUR  Unit: pcs  VAT: 23%

#07654

Media converter 2x10/100 Mbps RJ-45/SC, SM 1310nm, 20km (Wave Optics, WO-KA2-SDS-020K)

Standards IEEE 802.3/u
Port #1,#2 10/100 Mbps RJ-45
Port #1,#2 max. distance 100m
Port #1,#2 cable type UTP/STP cat. 5
Port #3 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1310nm
Port #3 max. distance 20km
Port #3 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Max. throughput [Gbps] 0.2
Housing desktop
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 2x10/100M RJ-45/SC, SM 1310nm, 20km
Net Price: 18,60 EUR  Unit: pcs  VAT: 23%

 WDM UNMANAGED MEDIA CONVERTERS
#06306

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 m
Wave Division Multiplexing (WDM) yes
Max. throughput [Gbps] 0.2
Housing / case type desktop
Dimensions 94,5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.44W
Warranty period 5 lat
Manufacturer TP-Link
TP-LINK
Media converter 10/100M RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)
Net Price: 20,60 EUR  Unit: pcs  VAT: 23%

#07617

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KA-SWS-020K-A)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 20km, WDM
Net Price: 16,20 15,20 EUR   Unit: pcs  VAT: 23%

#06305

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)

Standards IEEE 802.3/u
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 20 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 m
Wave Division Multiplexing (WDM) yes
Max. throughput [Gbps] 0.2
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.49W
Warranty 5 years
Manufacturer TP-Link
TP-LINK
Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)
Net Price: 20,60 EUR  Unit: pcs  VAT: 23%

#07618

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KA-SWS-020K-B)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1550nm, 20km, WDM
Net Price: 16,20 15,20 EUR   Unit: pcs  VAT: 23%

#07619

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-A)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100M RJ-45/SC, SM 1310nm, 40km, WDM
Net Price: 22,40 21,00 EUR   Unit: pcs  VAT: 23%

#07620

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-B)

Standards IEEE 802.3/u/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 100 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Link Fault Pass-thorugh (LFP) yes
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KA-SWS-040K-B)
Net Price: 22,40 21,00 EUR   Unit: pcs  VAT: 23%

#07611

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-A)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 10km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-A)
Net Price: 26,70 23,30 EUR   Unit: pcs  VAT: 23%

#07612

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 10km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 10km, WDM (Wave Optics, WO-KB-SWS-010K-B)
Net Price: 32,60 29,00 EUR   Unit: pcs  VAT: 23%

#07613

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-A)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-A)
Net Price: 27,10 23,30 EUR   Unit: pcs  VAT: 23%

#07615

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-A)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310nm
RX wavelength 1550nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1310nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-A)
Net Price: 37,60 29,50 EUR   Unit: pcs  VAT: 23%

#07614

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 150nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)
Net Price: 33,10 29,00 EUR   Unit: pcs  VAT: 23%

#07616

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)
Net Price: 42,40 34,30 EUR   Unit: pcs  VAT: 23%

 SFP MEDIA CONVERTERS
#07621

Media converter 10/100 Mbps RJ-45/SFP slot 100 Mbps (Wave Optics, WO-KF-SFP)

Standards IEEE 802.3/ab/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
SFP media converter, 10/100Mb RJ-45/SFP slot 100 Mbps (Wave Optics, WO-KF-SFP)
Net Price: 15,20 EUR  Unit: pcs  VAT: 23%

#07628

Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (Wave Optics, WO-KGA-SFP)

Standards IEEE 802.3/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
Power 5V DC 2A
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
SFP media converter, 10/100/1000Mb RJ-45/SFP slot 1Gb (Wave Optics, WO-KGA-SFP)
Net Price: 16,40 15,50 EUR   Unit: pcs  VAT: 23%

#06425

Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (TP-Link MC220L)

Standards IEEE 802.3/ab/z/i/u
Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX)
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power 9V/0.6A
Max Power Consumption 1.7W
Certificates FCC Class B,
CE
Warranty period 5 years
Manufacturer TP-Link
TP-LINK
SFP media converter, 1Gb RJ-45/SFP slot 1Gb (TP-Link MC220L)
Net Price: 13,90 EUR  Unit: pcs  VAT: 23%

#07627

Gigabit media converter 1000 Mbps RJ-45/SFP slot 1000 Mbps (Wave Optics, WO-KG-SFP)

Standards IEEE 802.3/ab/z
Port #1 1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing
Power 5V DC 2A
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
SFP media converter, 1Gb RJ-45/SFP slot 1Gb (Wave Optics, WO-KG-SFP)
Net Price: 25,70 23,60 EUR   Unit: pcs  VAT: 23%

#07643

10G media converter RJ-45/SFP+ slot (Wave Optics, WO-K10G-SFP+)

Standards 1000Base-T,
2.5GBase-T,
5Gbase-T,
10Gbase-T
1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
Port #1 10G/5G/2.5G/1Gbps RJ-45
Port #1 100 m (1000Mbps), 50m (2.5G), 50m (5G), 50m (10G)
Port #1 cable type UTP/STP
Port #2 SFP+
Housing / case type desktop / slot module
Operating temperature 0C 55C
Operating humidity 5% 80%,
non-condensing
Power 12V DC
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
10G media converter RJ-45/SFP+ slot (Wave Optics, WO-K10G-SFP+)
Net Price: 129,00 117,00 EUR   Unit: pcs  VAT: 23%

 CONVERTER HOUSING AND RACKS
#07623

14 slots rack-mount chassis for unmanaged media converters (Wave Optics, WO-KR-14)

Capacity 14 media converters
AC Power Supply Input 100-240V~50/60Hz 3.0A(Max),
Output +9.5VDC 9.5A(Max)
Operating Temperature 0C~40C
Storage Temperature -40C~70C
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Weight 6kg
Dimensions 482x358x86 mm
Certificates FCC Class A & CE Mark
Manufacturer Wave Optics
WAVE OPTICS
Media converter rack, 14 slots rack-mount chassis (Wave Optics WO-KR-14)
Net Price: 107,00 EUR  Unit: pcs  VAT: 23%

#06985

Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)

Capacity 14 media converters
AC Power Supply Input 100-240V~50/60Hz 3.0A(Max),
Output +9.5VDC 9.5A(Max),
optional redundant power supply
Operating Temperature 0C~40C
Storage Temperature -40C~70C
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Weight 8kg
Dimensions 482x358x86 mm
Certificates FCC Class A & CE Mark
Warranty 5 years
Can be mount in 19" rack, Hot-Swappable - easy & quick replacement of converter and power supply
TP-LINK
TL-MC1400 - Media converter rack chassis, 14-port (TP-LINK TL-MC1400)
Net Price: 160,00 EUR  Unit: pcs  VAT: 23%

#08171

Redundant AC power supply for converter rack chassis (TP-Link TL-MCRP100)

Working with:
#06985 Rack chassis for media converter, 14-port. (TP-LINK TL-MC1400)
TP-LINK
Redundant AC power supply for converter rack chassis (TP-Link TL-MCRP100)
* For special orders only
Net Price: 56,20 EUR  Unit: pcs  VAT: 23%
