Optical Fibre Subassemblies
Monday, 6 December
Search for product:
 PLC SPLITTERS
#08772

PLC splitter SM 1x2 0.9mm, G657A fiber

Channel Number 12
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤4.0 dB
Uniformity ≤0.4 dB
PDL ≤0.2 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type Input - tight tube,
Output - loose tube
Input Length ≥1.5 m
Output Length ≥1.5 m
Fiber Mark Input - white,
Output - blue/orange
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x2 0.9mm, G657A fiber
Net Price: 4,65 EUR  Unit: pcs  VAT: 23%

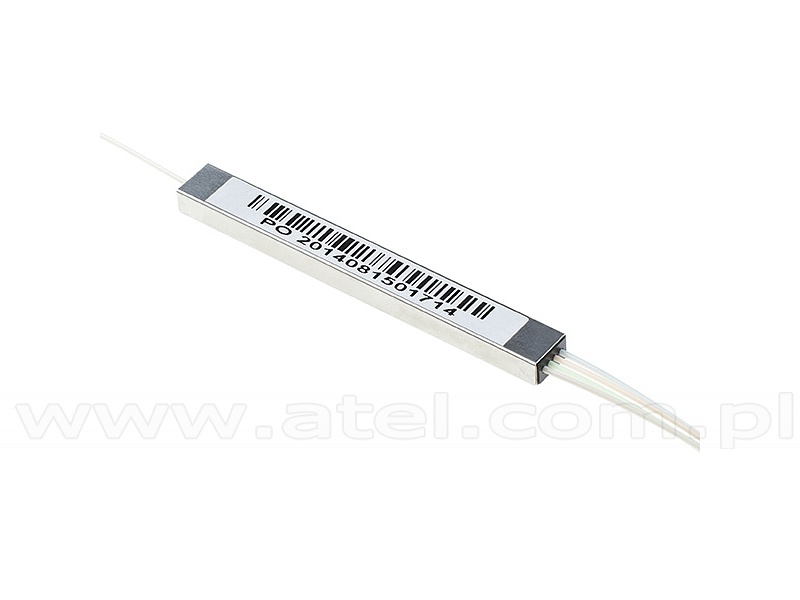

#08773

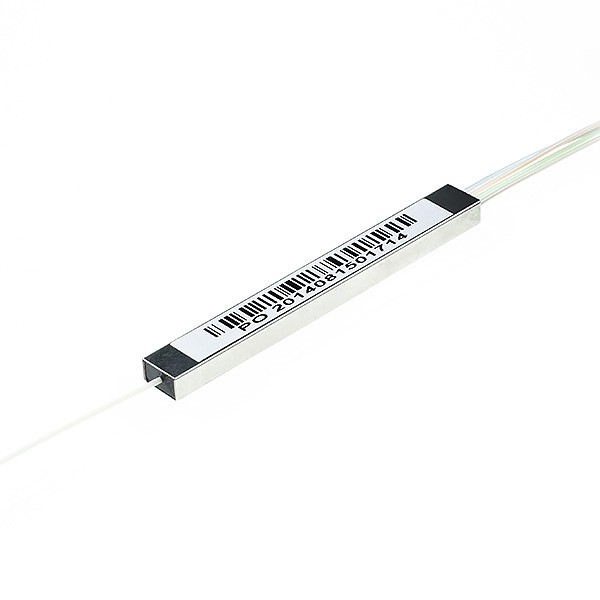

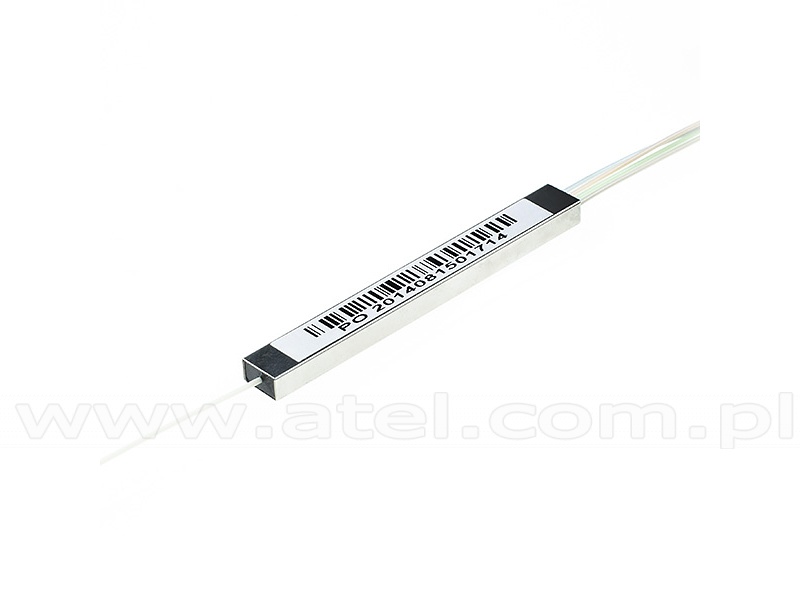

PLC splitter SM 1x4 0.9mm, G657A fiber

Channel Number 14
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤7.4 dB
Uniformity ≤0.6 dB
PDL (1310/1550nm) ≤0.2 dB
Return Loss (1310/1550nm) ≥50 dB
Directivity ≥55 dB
Fiber Type SMF-28e
Pigtail Type Input - 0.9mm tight tube,
Output - 0.9mm loose tube
Input Length ≥1.5 m
Output Length ≥1.5 m
Fiber Mark Input - white,
Output - Grey,
White,
Red,
Black
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x4 0.9mm, G657A fiber
Net Price: 4,65 EUR  Unit: pcs  VAT: 23%

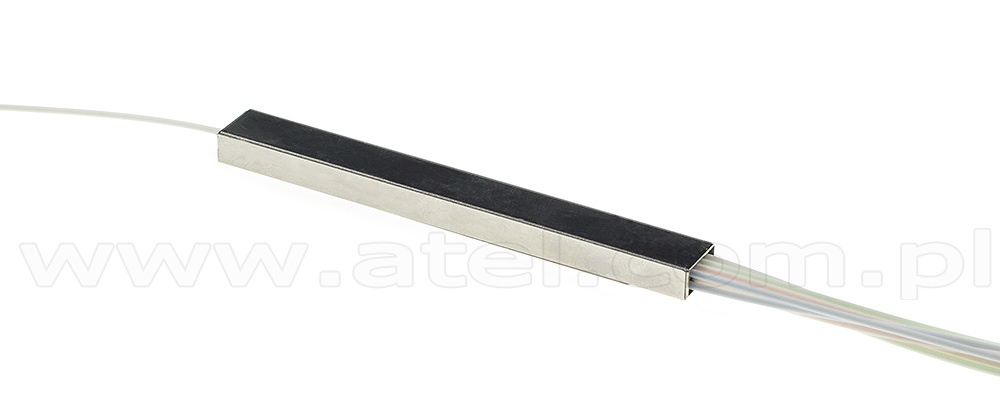

#08774

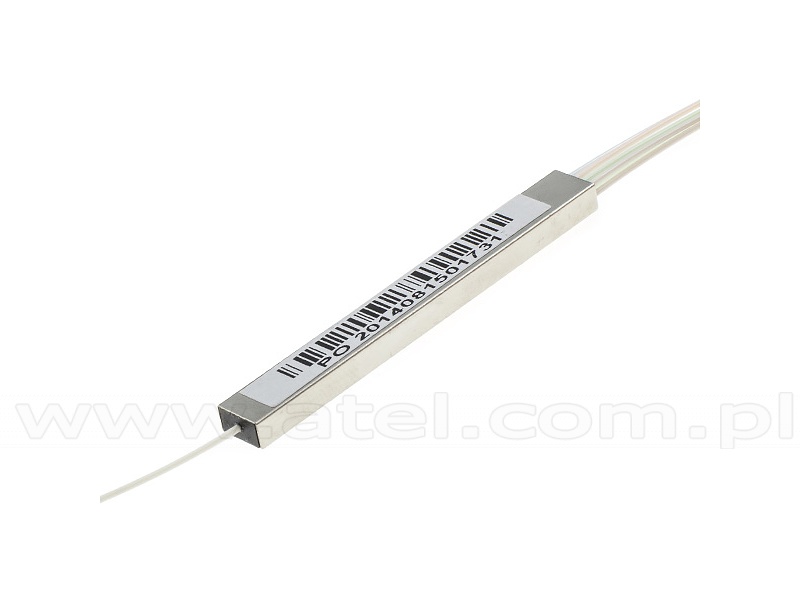

PLC splitter SM 1x8 0.9mm, G657A fiber

Channel Number 18
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤10.7 dB
Uniformity ≤0.8 dB
PDL ≤0.3 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type 2.0mm loose tube
Length ≥1.5 m
Fiber Mark Input - Yellow,
Output - Yellow
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x8 0.9mm, G657A fiber
Net Price: 5,26 EUR  Unit: pcs  VAT: 23%

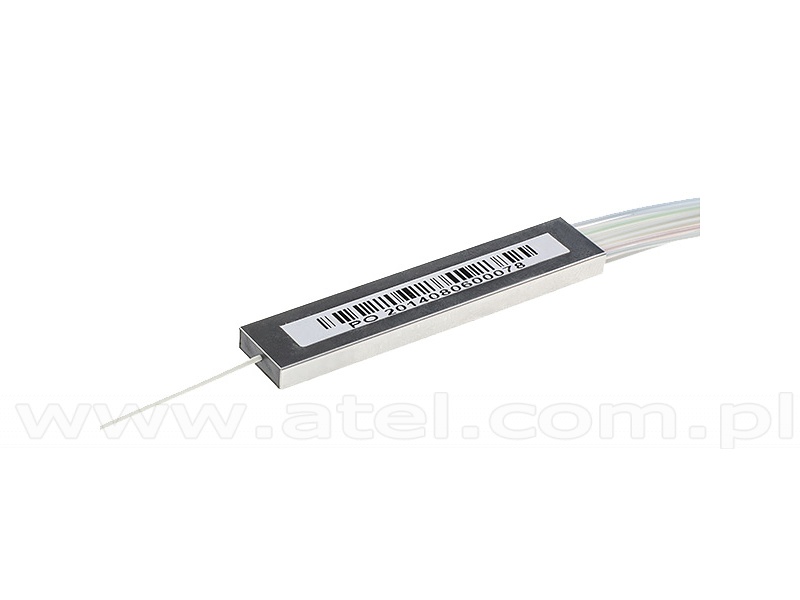

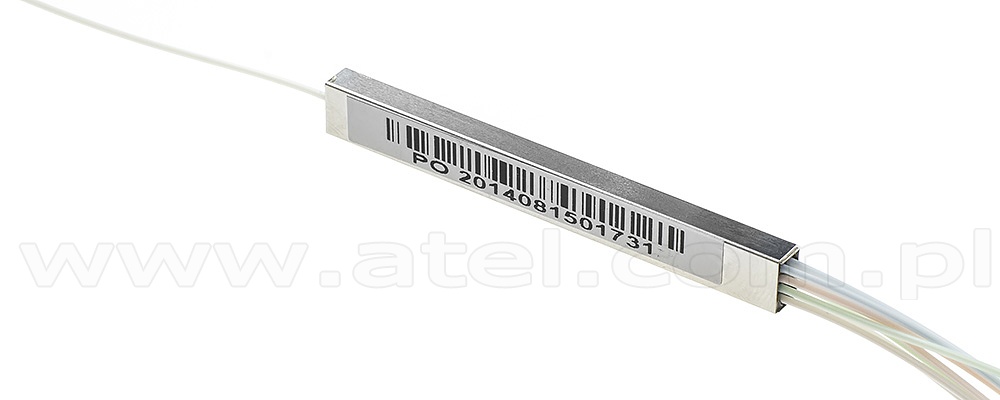

#08775

PLC splitter SM 1x16 0.9mm, G657A fiber

Channel Number 116
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤13.6 dB
Uniformity ≤1.2 dB
PDL ≤0.3 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type 2.0mm loose tube
Length ≥1.2 m
Fiber Mark Input - Yellow,
Output - Yellow
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x16 0.9mm, G657A fiber
Net Price: 8,50 EUR  Unit: pcs  VAT: 23%

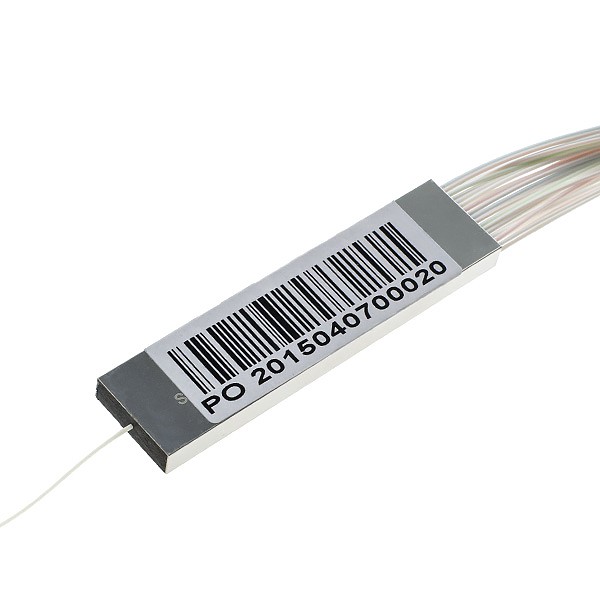

#08776

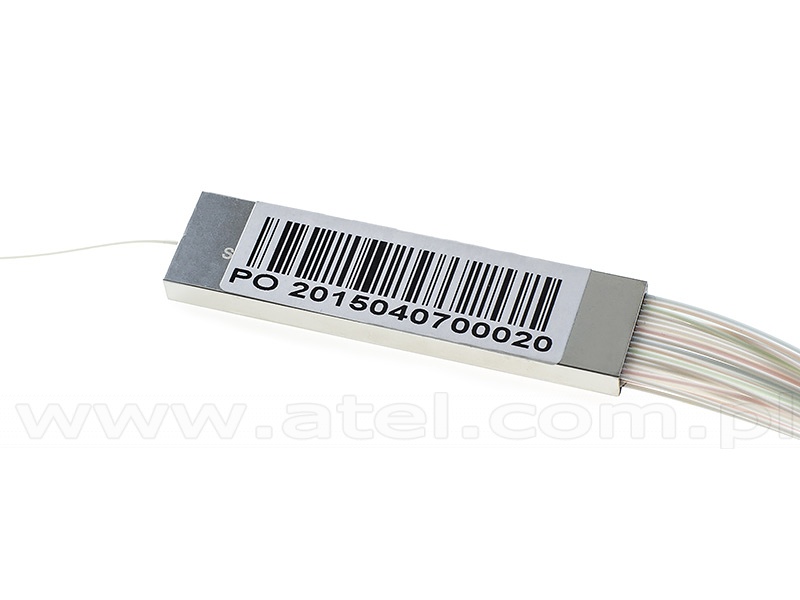

PLC splitter SM 1x32 0.9mm, G657A fiber

Channel Number 132
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤17.3 dB
Uniformity ≤1.7 dB
PDL ≤0.3 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type 2.0mm loose tube
Length ≥1.5 m
Fiber Mark Input - Yellow,
Output - Yellow
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x32 0.9mm, G657A fiber
Net Price: 17,40 EUR  Unit: pcs  VAT: 23%

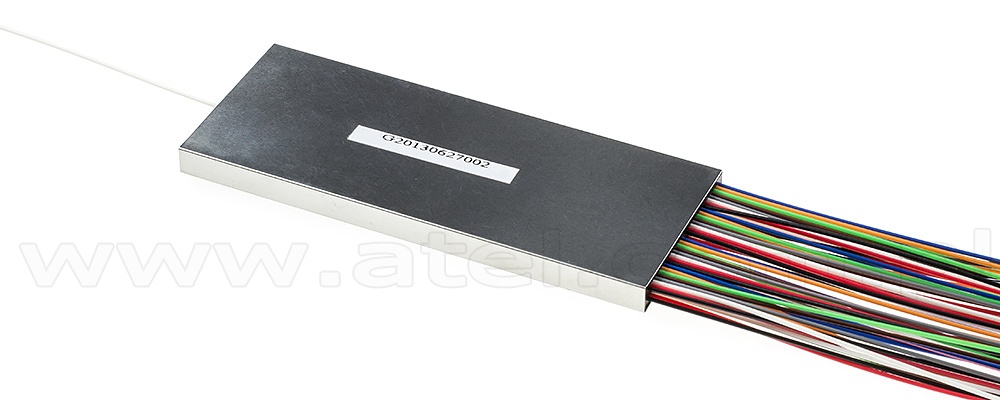

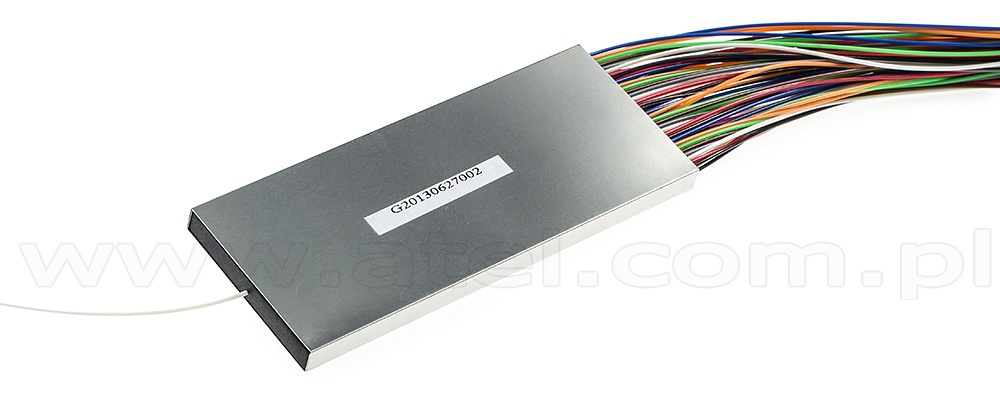

#08777

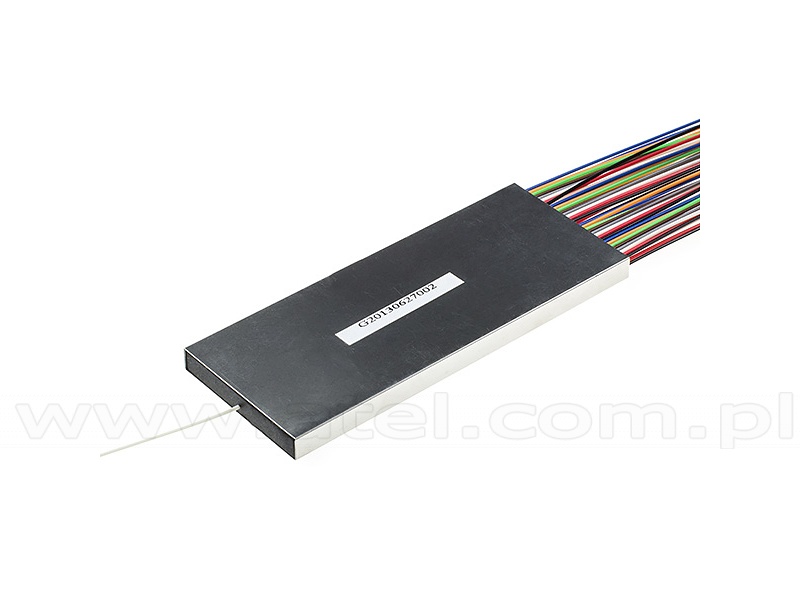

PLC splitter SM 1x64 0.9mm, G657A fiber

Channel Number 116
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤21.3 dB
Uniformity ≤2.5 dB
PDL ≤0.5 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type 2.0mm loose tube
Length ≥1.5 m
Fiber Mark Yellow
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x64 0.9mm, G657A fiber
Net Price: 46,50 EUR  Unit: pcs  VAT: 23%

#08778

PLC splitter SM 1x128 0.9mm, G657A fiber

Channel Number 1128
Operation Wavelength 1260 ~ 1650 nm
Insertion Loss ≤23.6 dB
Uniformity ≤2.0 dB
PDL ≤0.4 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Type 2.0mm loose tube
Length ≥1.5 m
Fiber Mark Yellow
Operation Temperature -40 85 ℃
Storage Temperature -40 85 ℃
WAVE OPTICS
PLC splitter SM 1x128 0.9mm, G657A fiber
Net Price: 105,00 EUR  Unit: pcs  VAT: 23%

 FIBEROPTIC COUPLERS
WAVE OPTICS
Coupler 1x2, 1%/99% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 2%/98% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 5%/95% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 10%/90% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 20%/80% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 30%/70% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 40%/60% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

WAVE OPTICS
Coupler 1x2, 50%/50% 1310+1550 nm
Net Price: 3,44 EUR  Unit: pcs  VAT: 23%

 FIBEROPTIC ATTENUATORS UPC
#08593

Attenuator 0dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 0dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08592

Attenuator 0dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 0dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08810

Attenuator 1dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Fiber Optic Attenuator 1dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08811

Attenuator 1dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 1dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08812

Attenuator 1dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 1dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08813

Attenuator 1dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 1dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08766

Attenuator 2dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  2dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08748

Attenuator 2dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 2dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08754

Attenuator 2dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 2dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08760

Attenuator 2dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 2dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08767

Attenuator 3dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  3dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08749

Attenuator 3dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200—1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 3dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08755

Attenuator 3dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 3dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08761

Attenuator 3dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 3dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08762

Attenuator 5dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  5dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08768

Attenuator 5dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  5dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08750

Attenuator 5dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 5dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08756

Attenuator 5dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 5dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08763

Attenuator 8dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  8dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08769

Attenuator 8dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator  8dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08751

Attenuator 8dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 8dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08757

Attenuator 8dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 8dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08752

Attenuator 10dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 10dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08758

Attenuator 10dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 10dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08764

Attenuator 10dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 10dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08770

Attenuator 10dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 10dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08753

Attenuator 15dB LC/UPC(F) - LC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-1.0
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB LC/UPC(F) - LC/UPC(F) singlemode
Net Price: 1,25 EUR  Unit: pcs  VAT: 23%

#08759

Attenuator 15dB LC/UPC(F) - LC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-1.0
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB LC/UPC(F) - LC/UPC(M) singlemode
Net Price: 3,04 EUR  Unit: pcs  VAT: 23%

#08765

Attenuator 15dB SC/UPC(F) - SC/UPC(F) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-1.0
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB SC/UPC(F) - SC/UPC(F) singlemode
Net Price: 1,34 EUR  Unit: pcs  VAT: 23%

#08771

Attenuator 15dB SC/UPC(F) - SC/UPC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (UPC)
Attenuation Accuracy +/-1.0
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB SC/UPC(F) - SC/UPC(M) singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

 FIBEROPTIC ATTENUATORS APC
#08591

Attenuator 0dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 0dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08814

Attenuator 1dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 1dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08821

Attenuator 1dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 1dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08815

Attenuator 2dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 2dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08822

Attenuator 2dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 2dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08816

Attenuator 3dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 3dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08823

Attenuator 3dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 3dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08817

Attenuator 5dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 5dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08824

Attenuator 5dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 5dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08818

Attenuator 8dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 8dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08825

Attenuator 8dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 8dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08826

Attenuator 10dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 10dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%

#08819

Attenuator 10dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Fiber Optic Attenuator 10dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08820

Attenuator 15dB LC/APC(F) - LC/APC(M) singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB LC/APC(F) - LC/APC(M) singlemode
Net Price: 3,24 EUR  Unit: pcs  VAT: 23%

#08827

Attenuator 15dB SC/APC(F) - SC/APC(M), singlemode

Operating Wavelength 1200-1600nm or 1310nm,
1550nm
Return Loss ≤55 dB (APC)
Attenuation Accuracy +/-0.5
Polarization Dependent Loss ≤0.2dB
Maximum Optical Input Power 200mW
Operating Temperature -40 80C
WAVE OPTICS
Attenuator 15dB SC/APC(F) - SC/APC(M), singlemode
Net Price: 3,85 EUR  Unit: pcs  VAT: 23%
