#05375
SELL OUT
Wireless active devices 2.4GHzAT8-4

Wireless Access Point (AT8-4)

Standard IEEE 802.11a/b/g
Chipset Atheros AR5112 i AR2312
Frequency band 2400 MHz ÷ 2483,5 MHz,
5150 MHz ÷ 5350 MHz,
5470 MHz ÷ 5725 MHz
Max. speed 108 Mbps
Radio modes 11b/g,
11g,
11a,
SuperA
Max. TX power 20 dBm
Operational modes Bridge,
Access Point,
Client Infrastructure,
Client Ad-hoc
Modulation 802.11a - OFDM,
802.11b - DSSS,
802.11g - OFDM
Antenna detachable,
SMA-RP
WDS 8x
Access Control SSID,
MAC Address Control,
max. clients
WLAN Security WEP 64/128/152-bit,
WPA-PSK,
WPA-TKiP/AES,
RADIUS
Addressing fixed IP,
DHCP client
Management WWW,
telnet,
UPnP
Log system log,
Syslog
Dimensions 124,3x154,4x41,0 mm
Operational temperature 0°C ÷ 40°C
Operational humidity 10% ÷ 90%,
non-condensing
Certificates CE,
FCC,
TELEC
Manufacturer Wistron
Unit can function as AP Client, but to get such functionality you have to upgrade firmware to EA version. Ethernet Adapter can be reverted to AP state by upgrading firmware to AP version.

Note!!!
Firmware exchange from AP to EA version and back should be done after disabling device's firmware signature. It can be done from telnet by using command "z_debug signature disable".
Please be advised to upgrade firmware ONLY when connected directly to LAN port of the device. Standard IP address after switching to EA is 192.168.1.2.

User Manual (494 KB)
Software&Drivers
2005-08-19  Firmware for AP/Bridge mode v.1.03.e16  (1,94 MB)
2005-08-19  Firmware for AP client mode v.1.02.e19  (2,08 MB)
Configuration/Applications

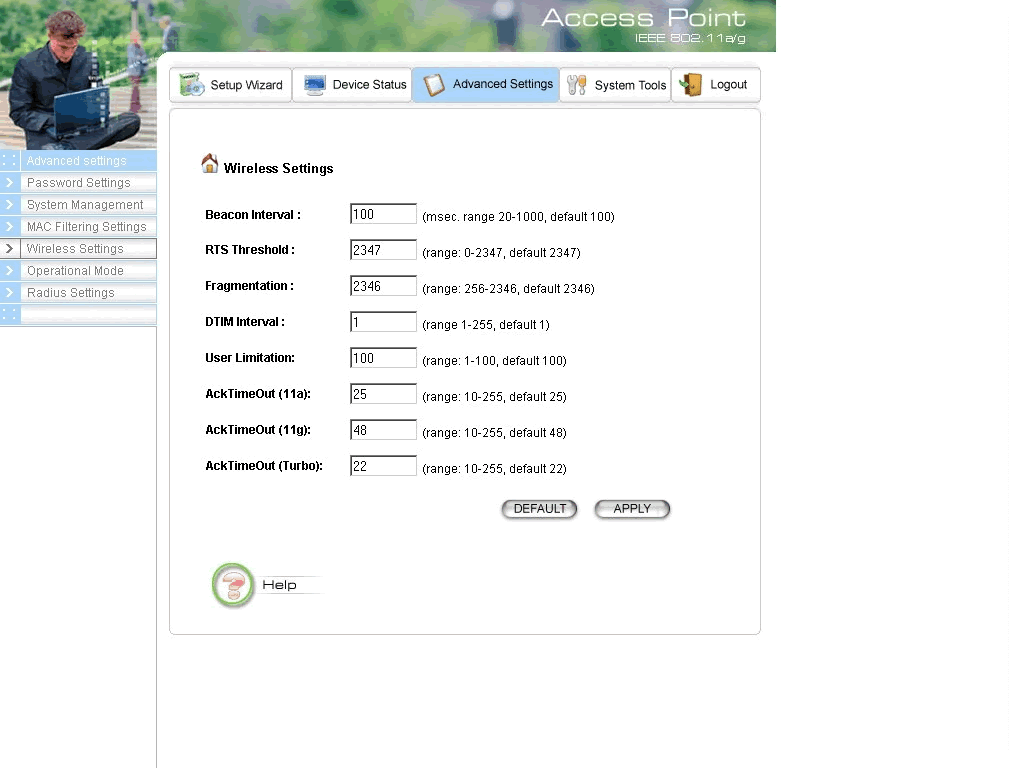

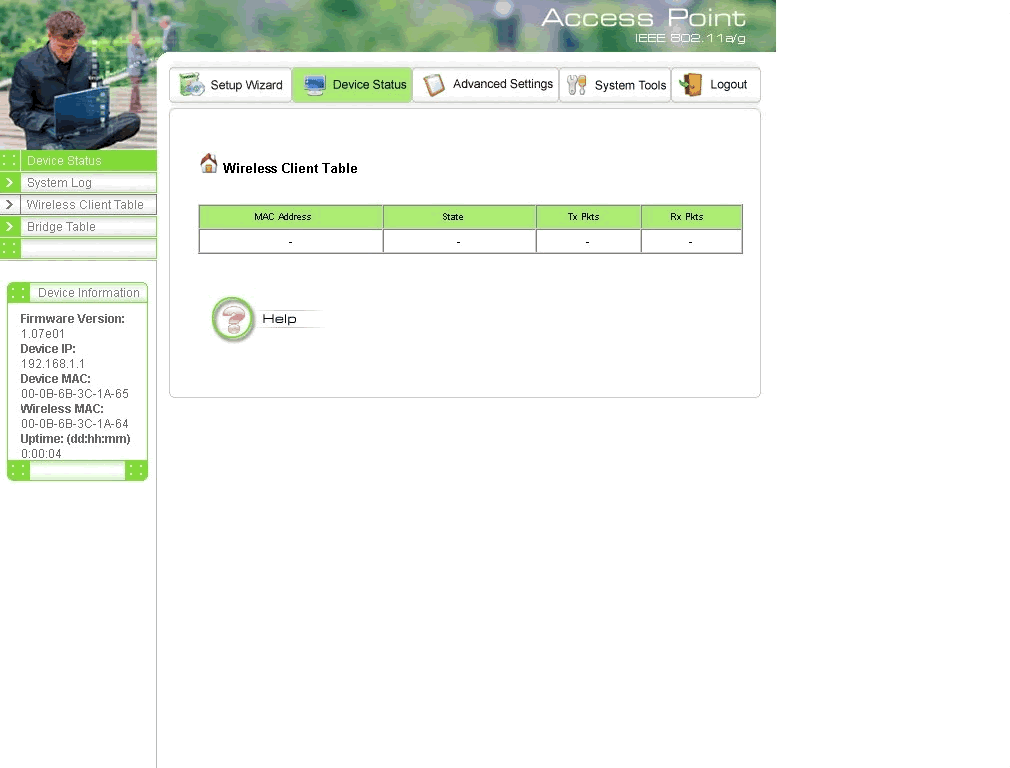

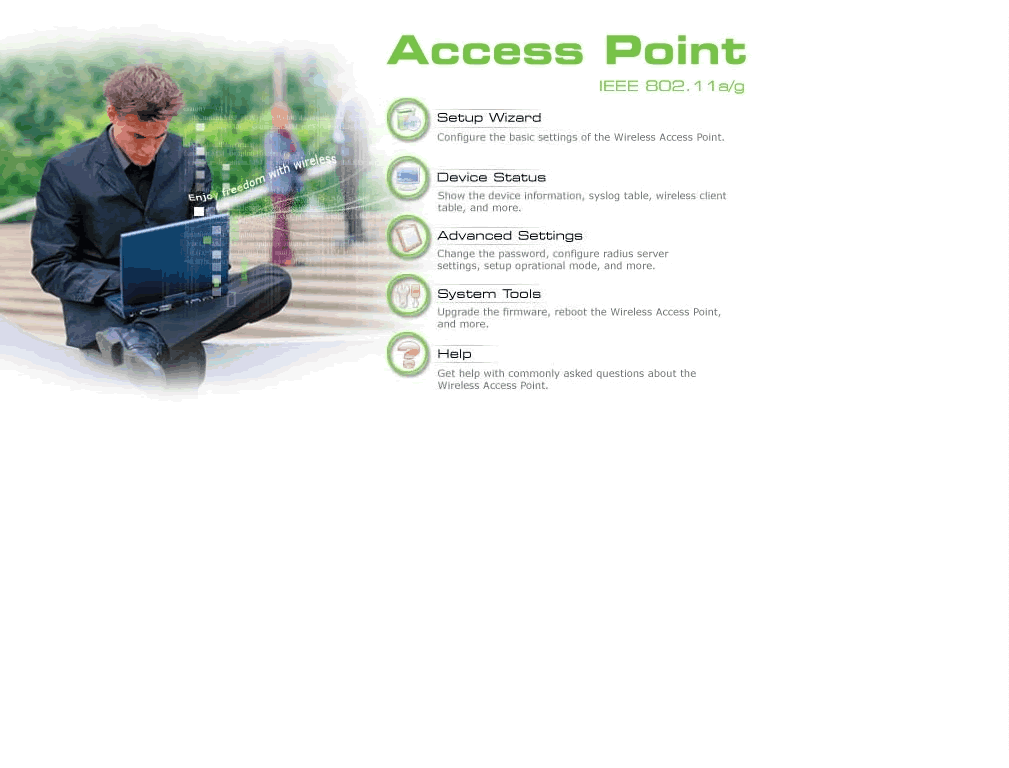

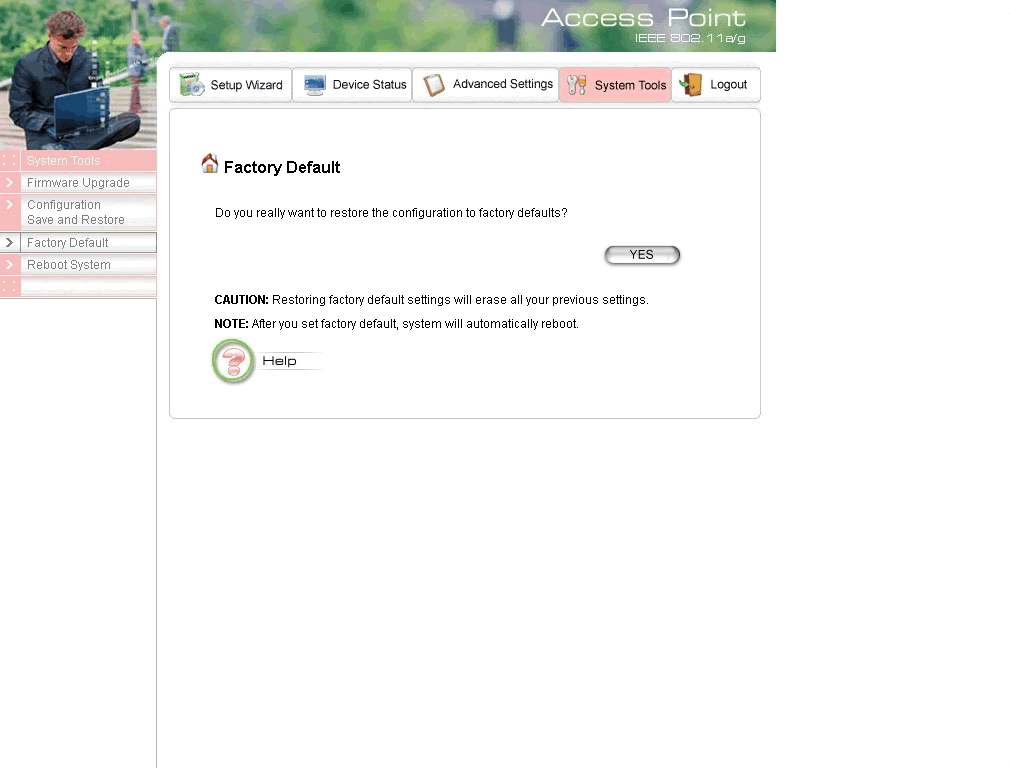

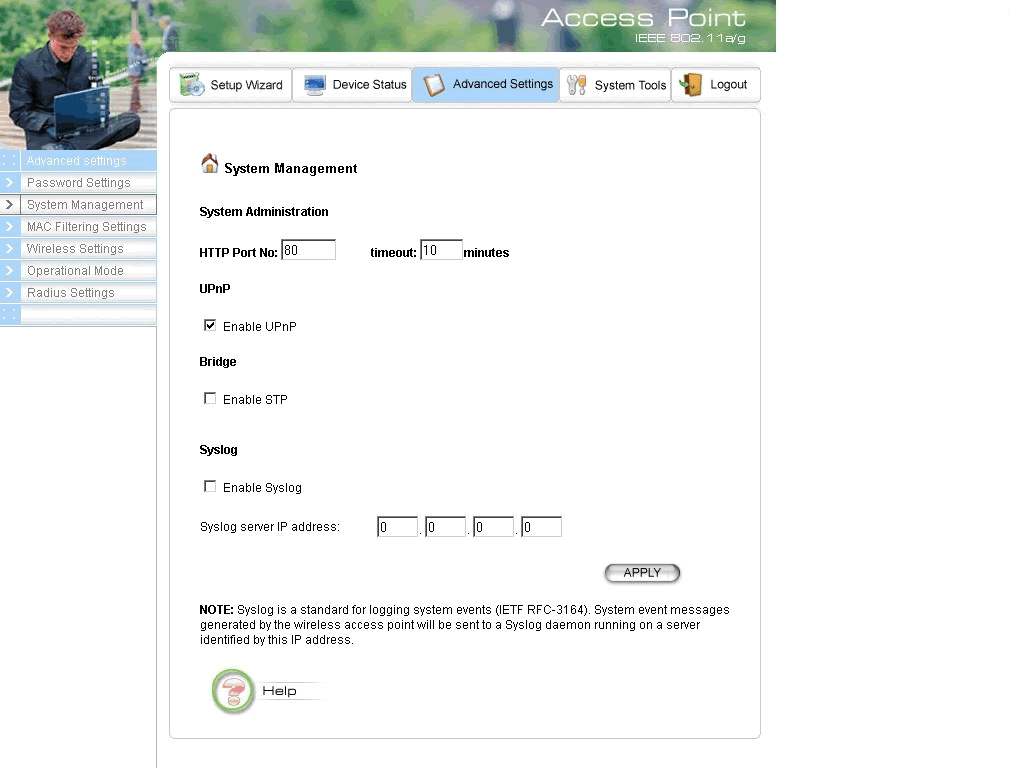

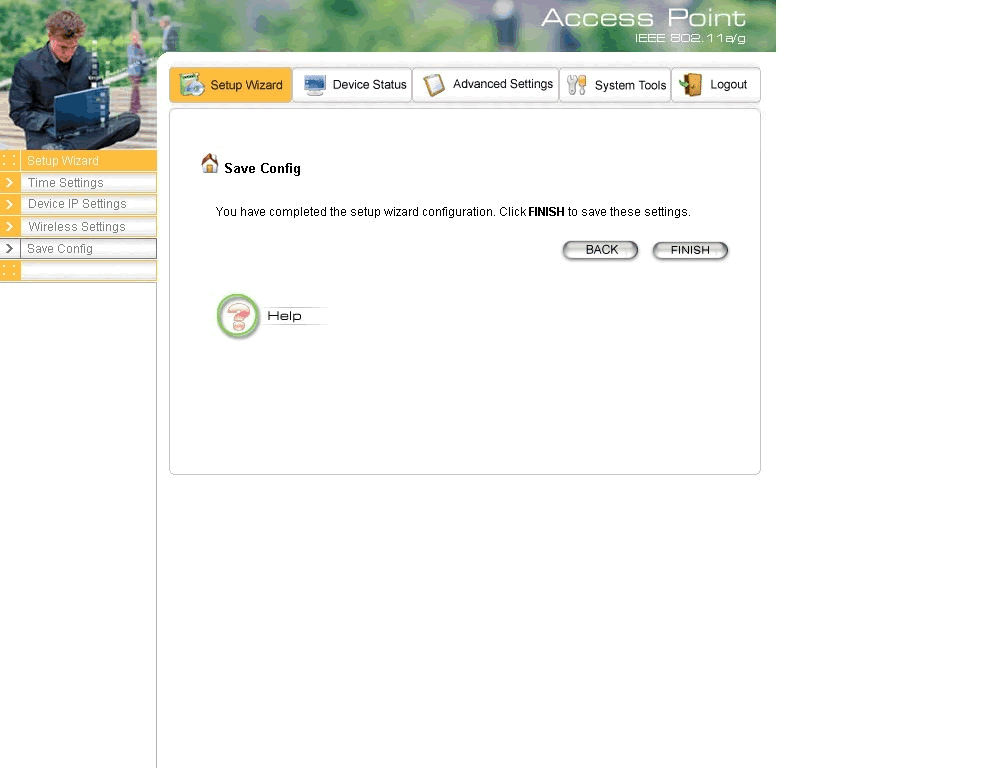

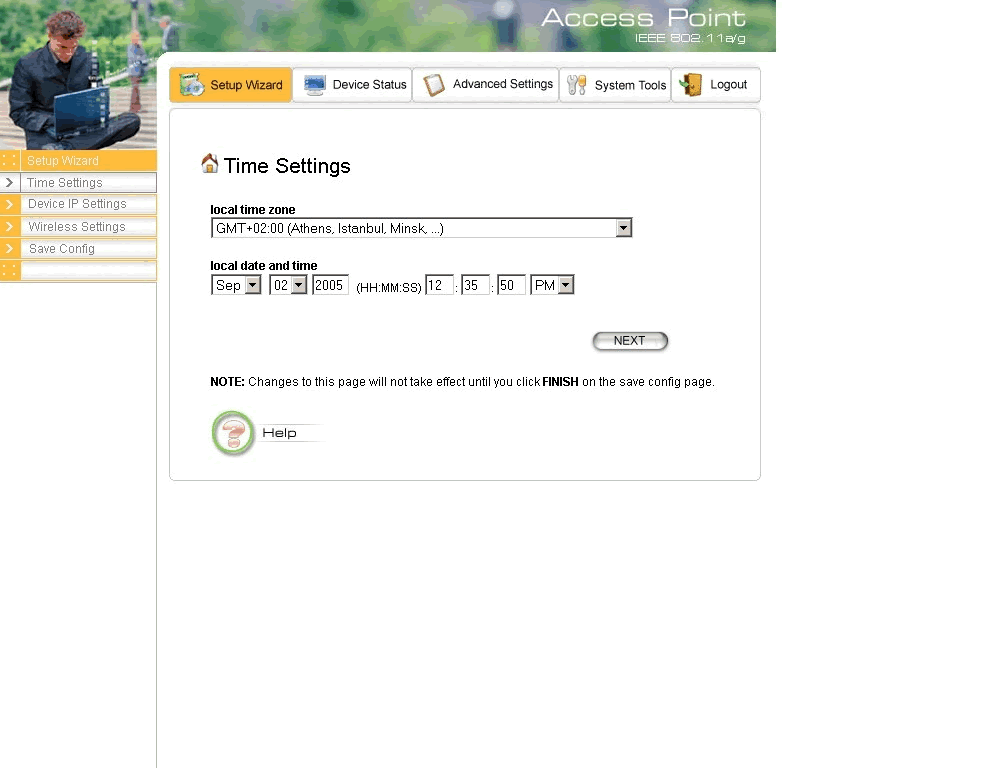

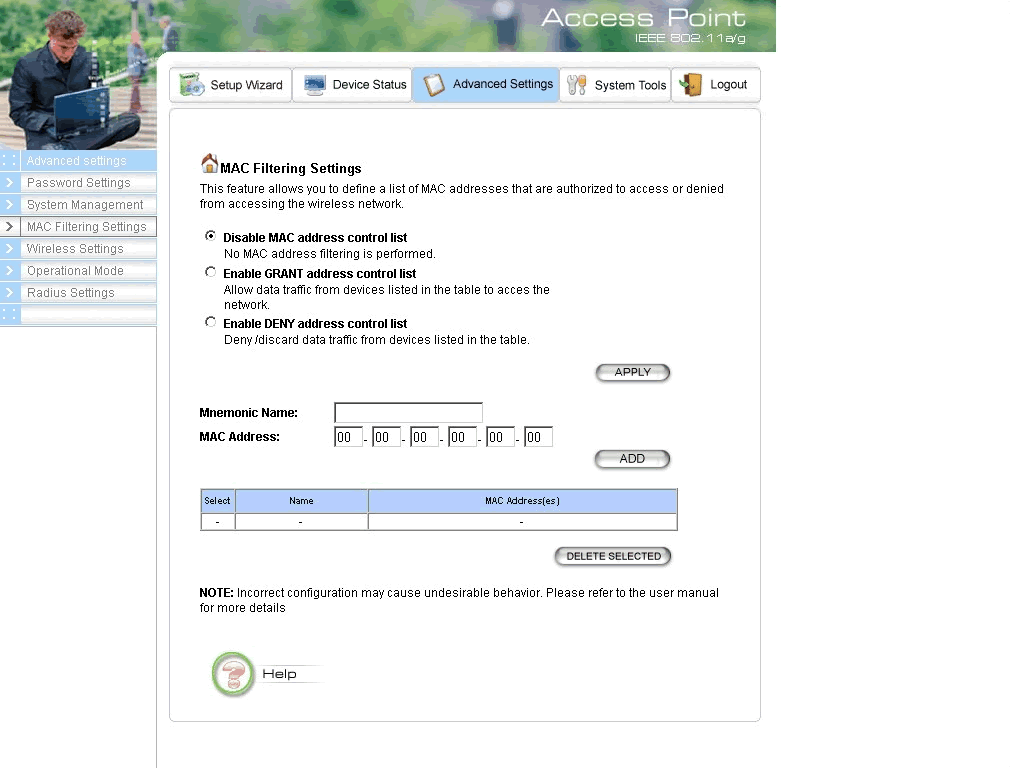

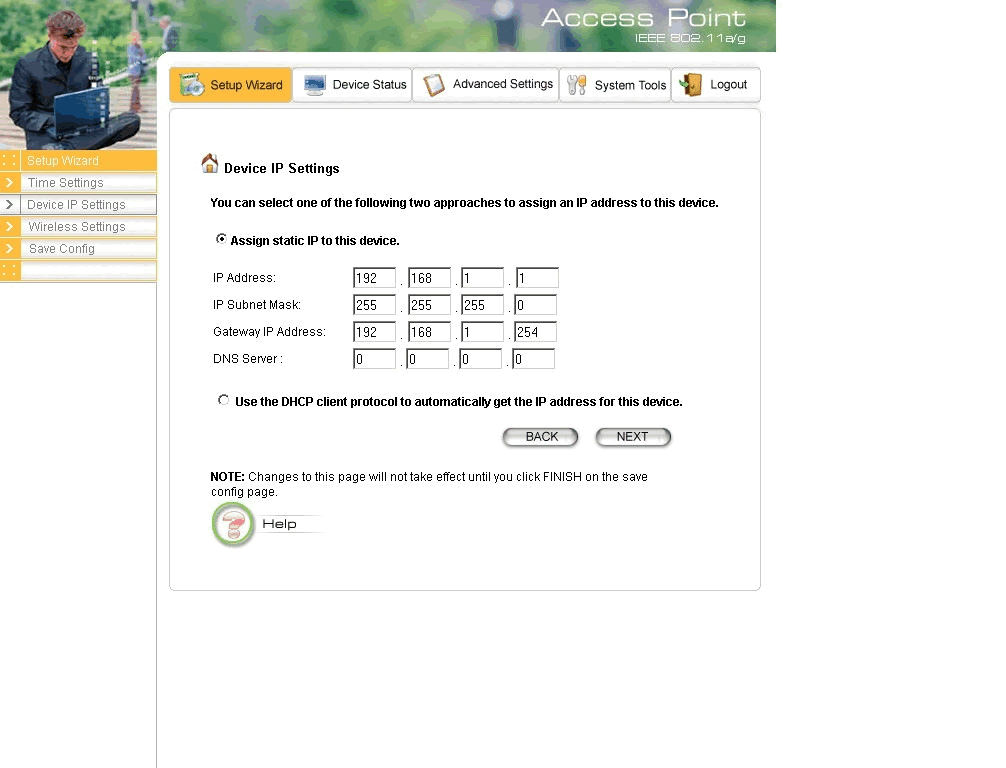

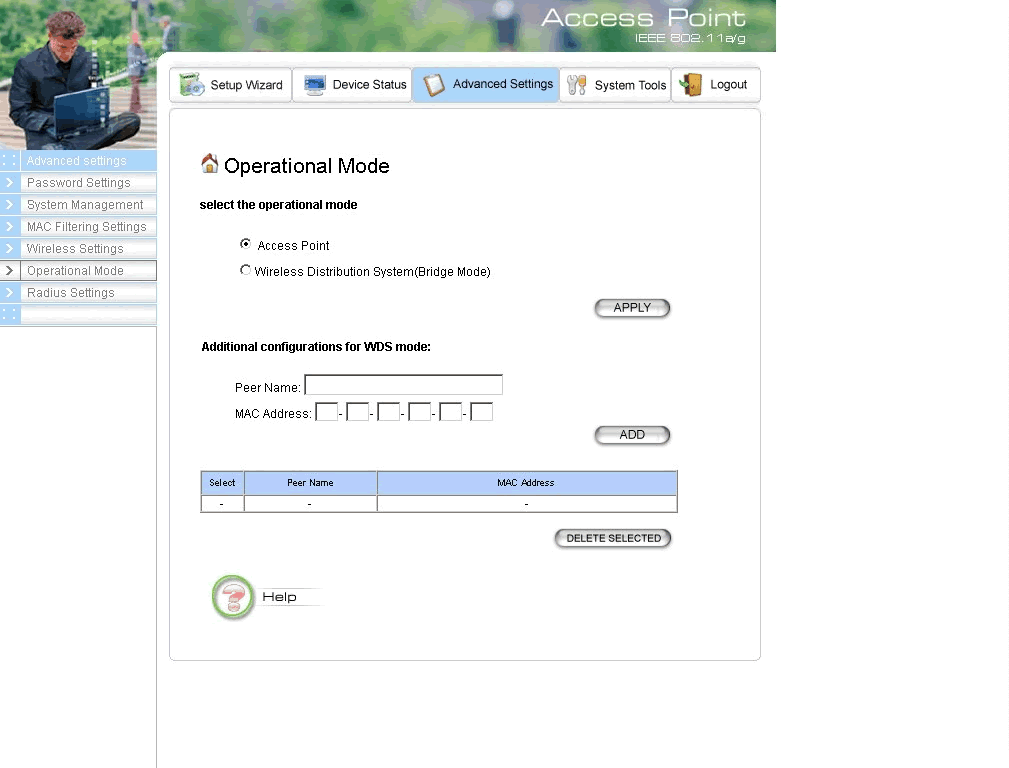

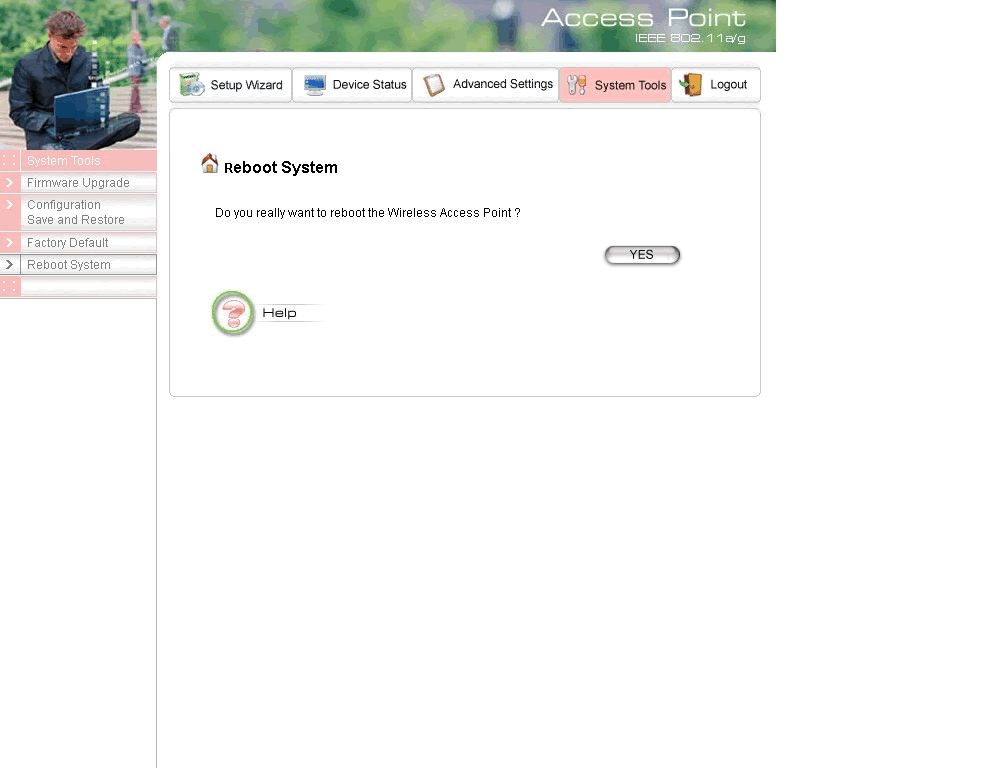

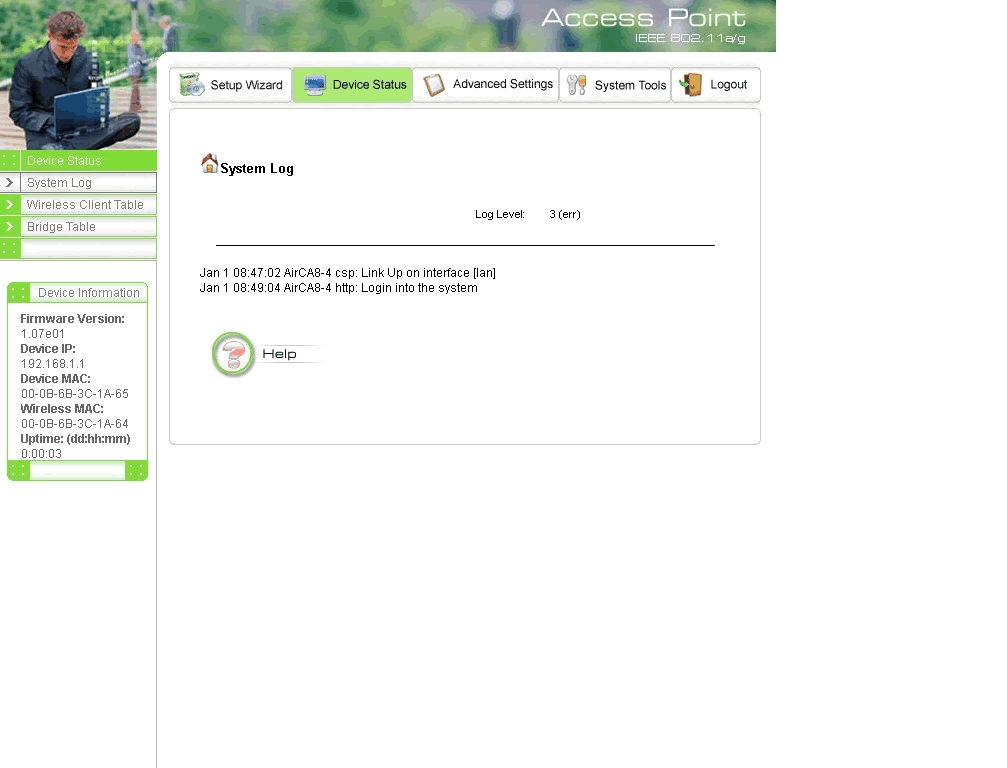

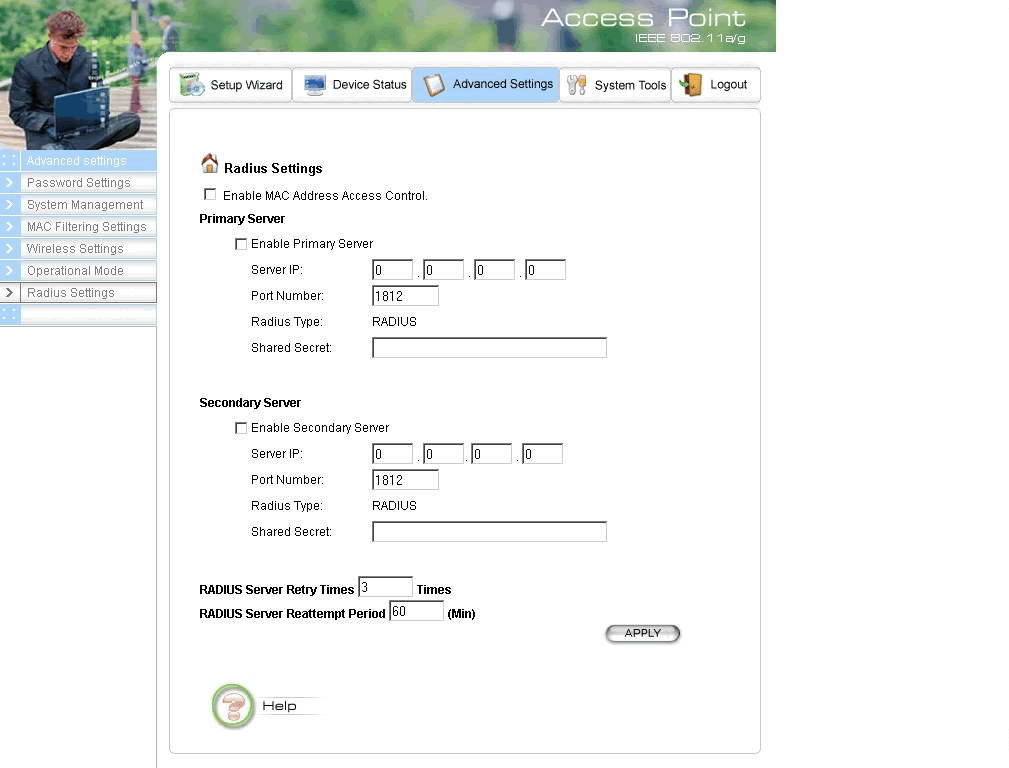

Main Screen Time Settings Device IP Settings Wireless Settings Save Config System Log Wireless Client Table Bridge Table Password Settings System Management MAC Filtering Settings Wireless Settings Operational Mode Radius Settings Firmware Upgrade Configuration Save and Restore Factory Default Reboot System
« previous product  |  next product »     » show on list«» Wireless active devices 2.4GHz «
Net Price: 11,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
