Wireless active devices 2.4GHzIWE1100-R8S17P

Wireless router PRO (Interepoch IWE1100-R8S17P)

Standard IEEE 802.3/u,
802.11b
Operational modes AP/Bridge,
Router w/PPPoE,
Router w/DHCP,
Router w/Static-IP,
Router w/Dial-up
WDS links 6x
Max. TX power [dBm] 17
Antenna / connector type detachable,
omnidirectional 3 dBi / SMA-RP(F)
TX power control yes
Ports 1x 10/100 Mbps RJ-45 LAN,
1x 10/100 Mbps RJ-45 WAN
Access control DHCP Server,
MAC Address Filtering,
Packet Type Filtering,
TCP/UDP Port Filtering,
NAT,
Virtual Server,
DMZ,
UPnP,
UPnP for NAT,
SPI Firewall
WLAN Security WPA (802.1x/TKIP),
WEP 64/128-bit,
ESSID Disable,
RADIUS
Management Status Monitoring,
WWW,
telnet,
Windows-based Management,
UPnP,
SNMP,
Antenna Alignment Assistance
Housing / case type indoor
Dimensions 175x140x40 mm
Operating temperature 0°C ÷ 55°C
Operating humidity 5% ÷ 95%,
non-condensing
Power external 5V DC 2A,
~230V AC 50Hz
Certificates CE,
FCC Class B
Warranty period 1 year
Manufacturer InterEpoch

User Manual (1,36 MB)
Software&Drivers
2007-07-20  Firmware v2.6.3.4352  (1,16 MB)
Configuration/Applications

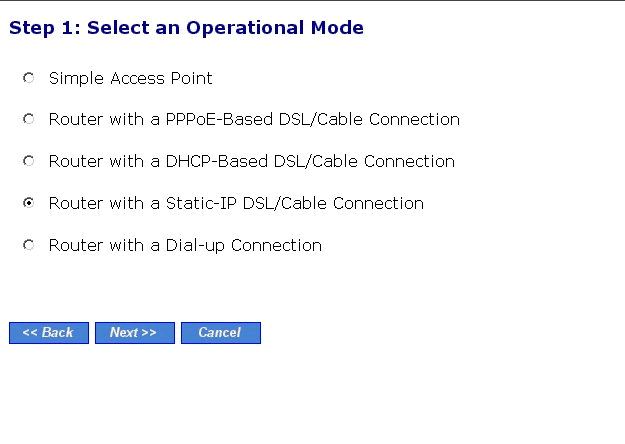

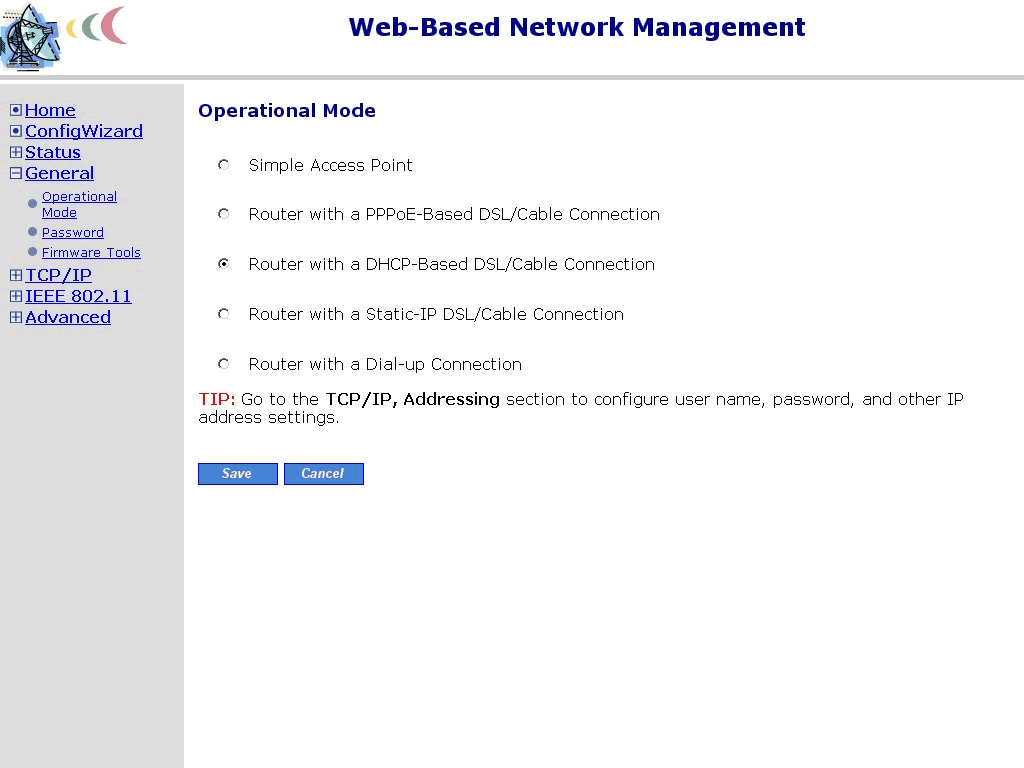

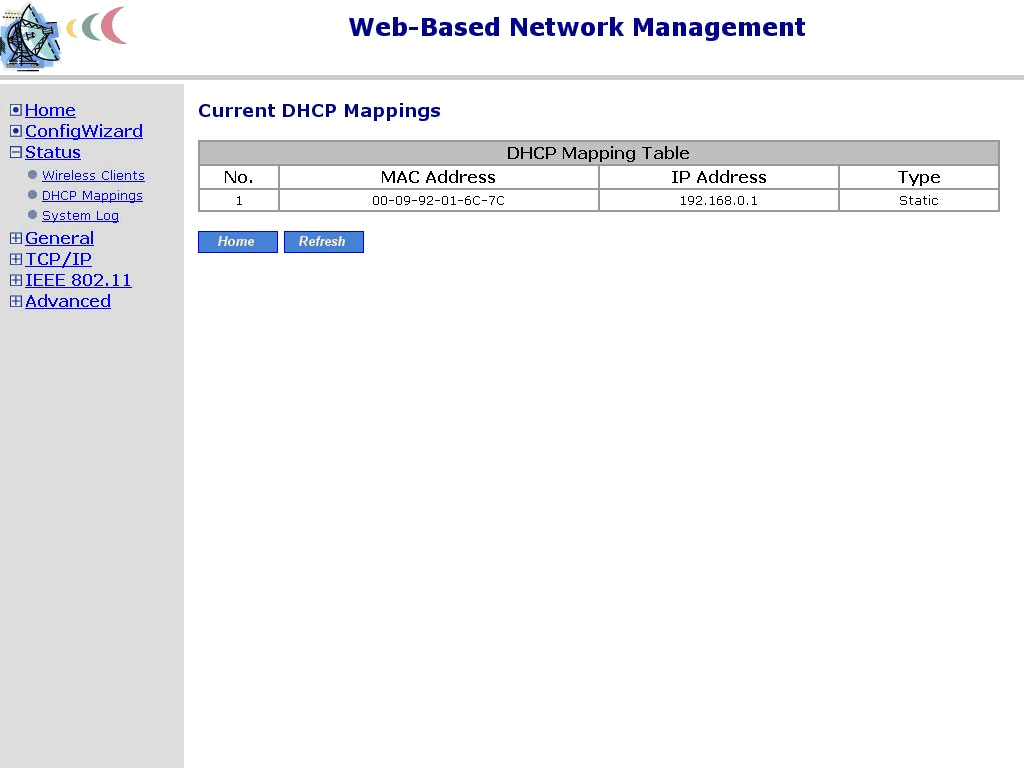

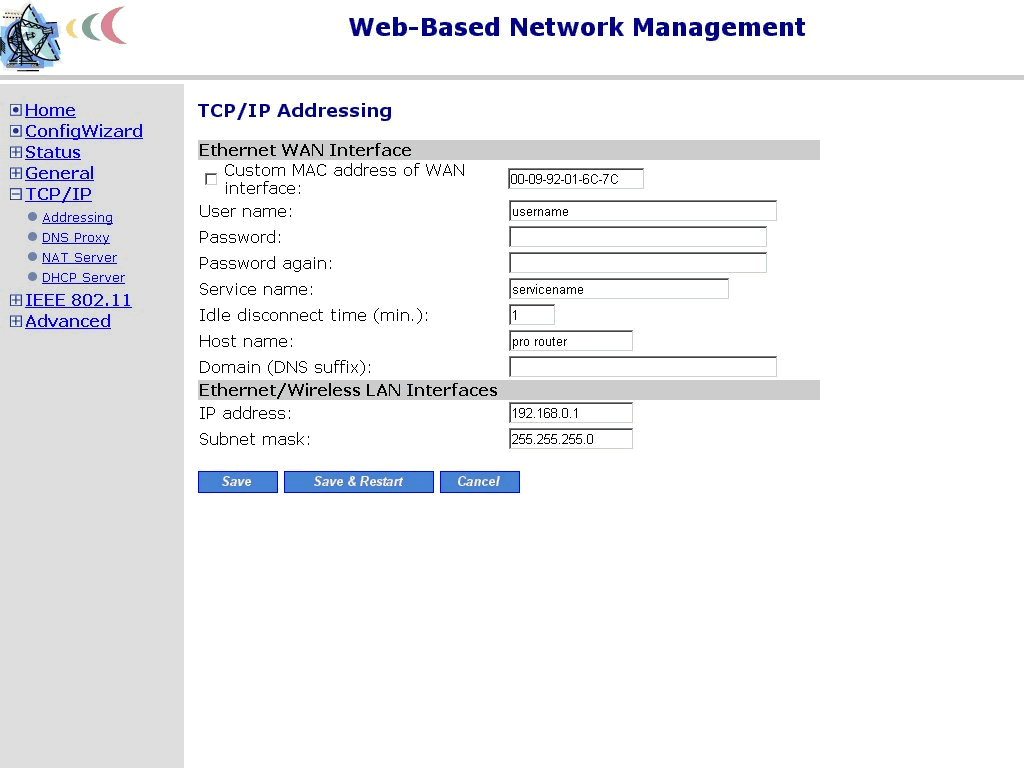

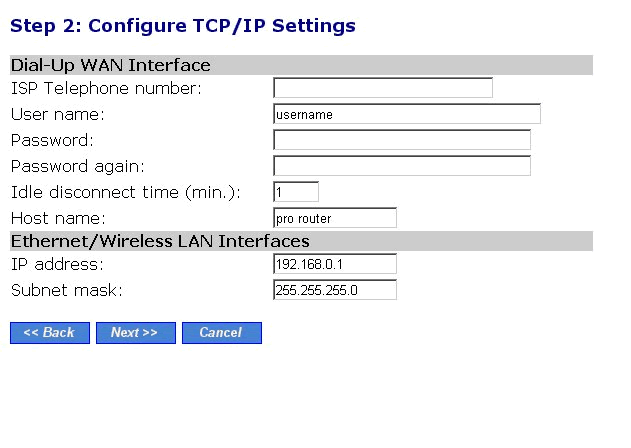

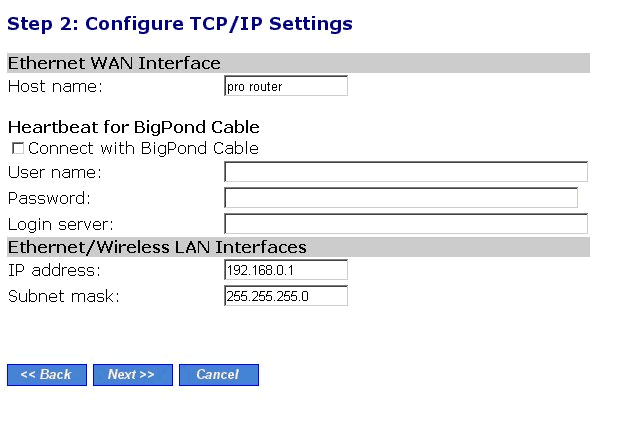

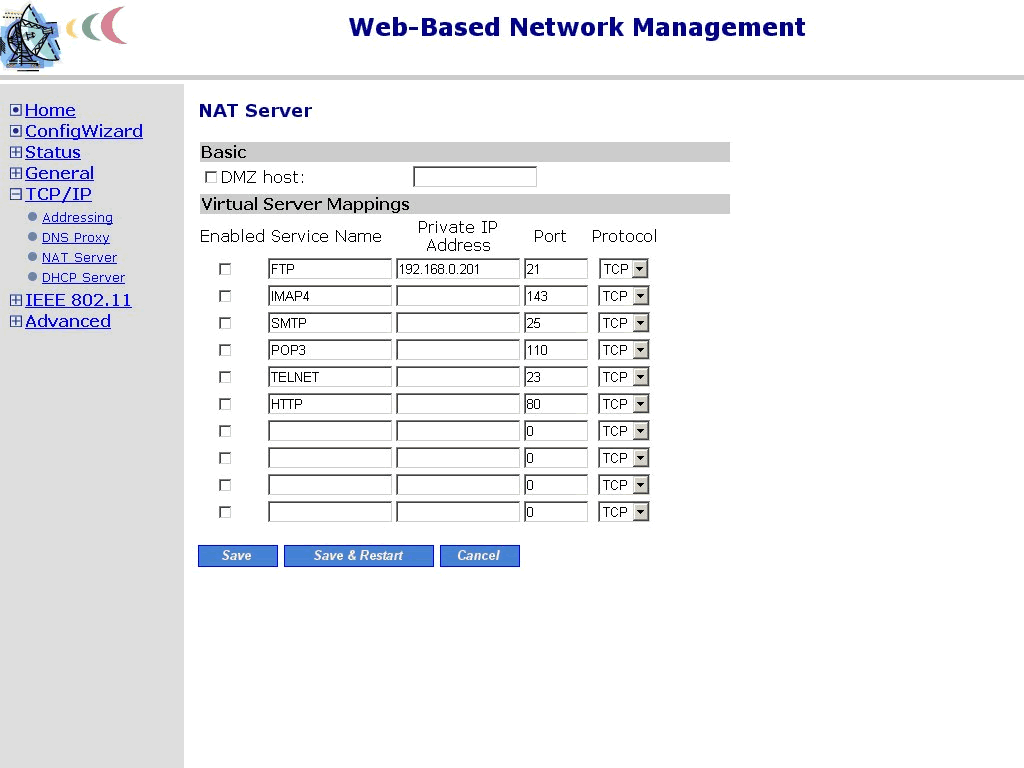

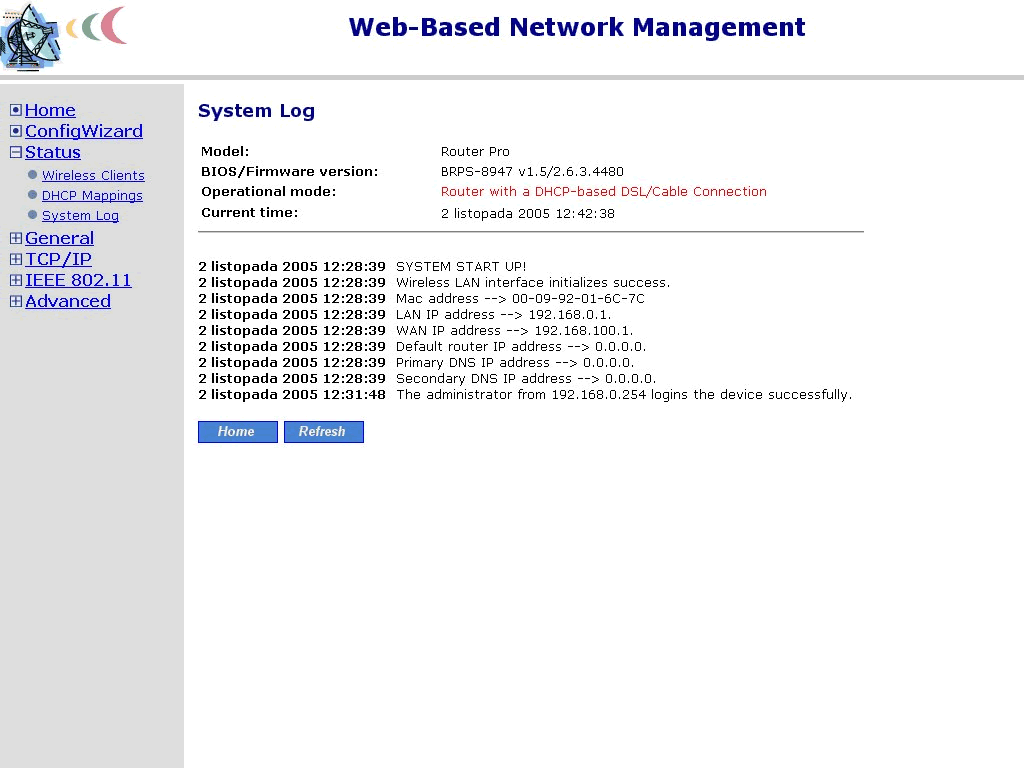

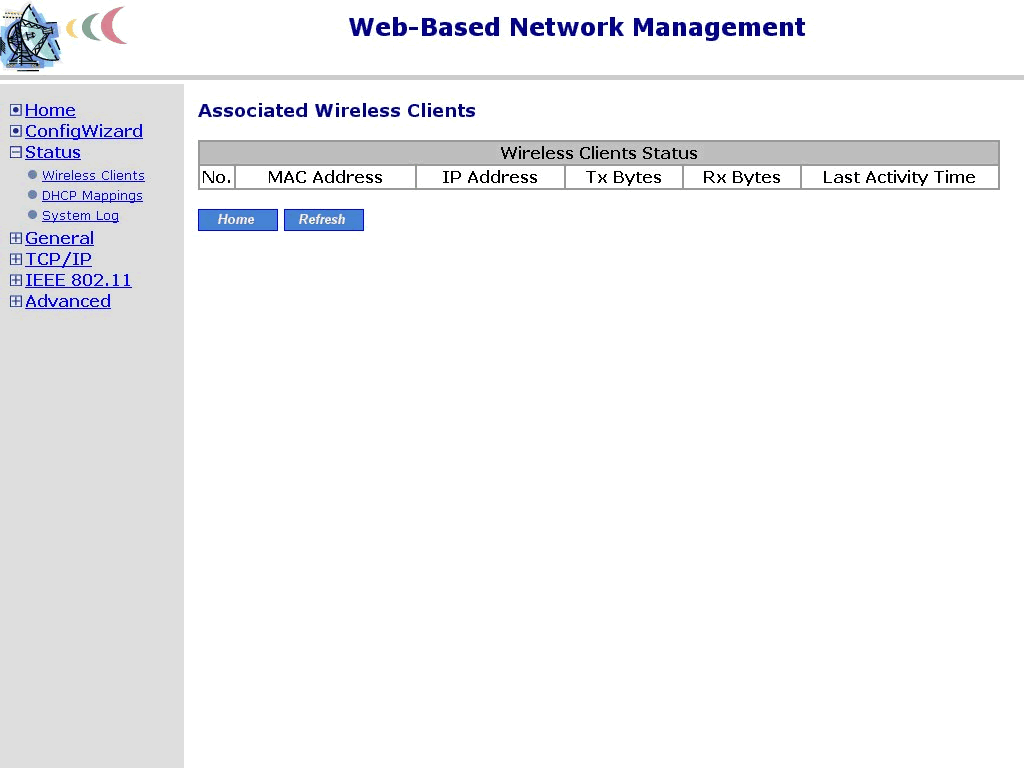

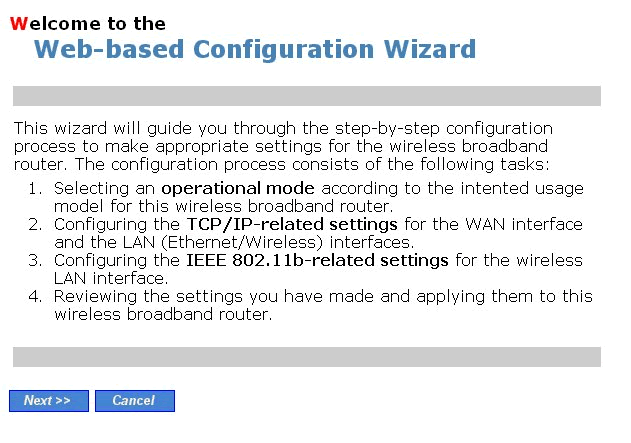

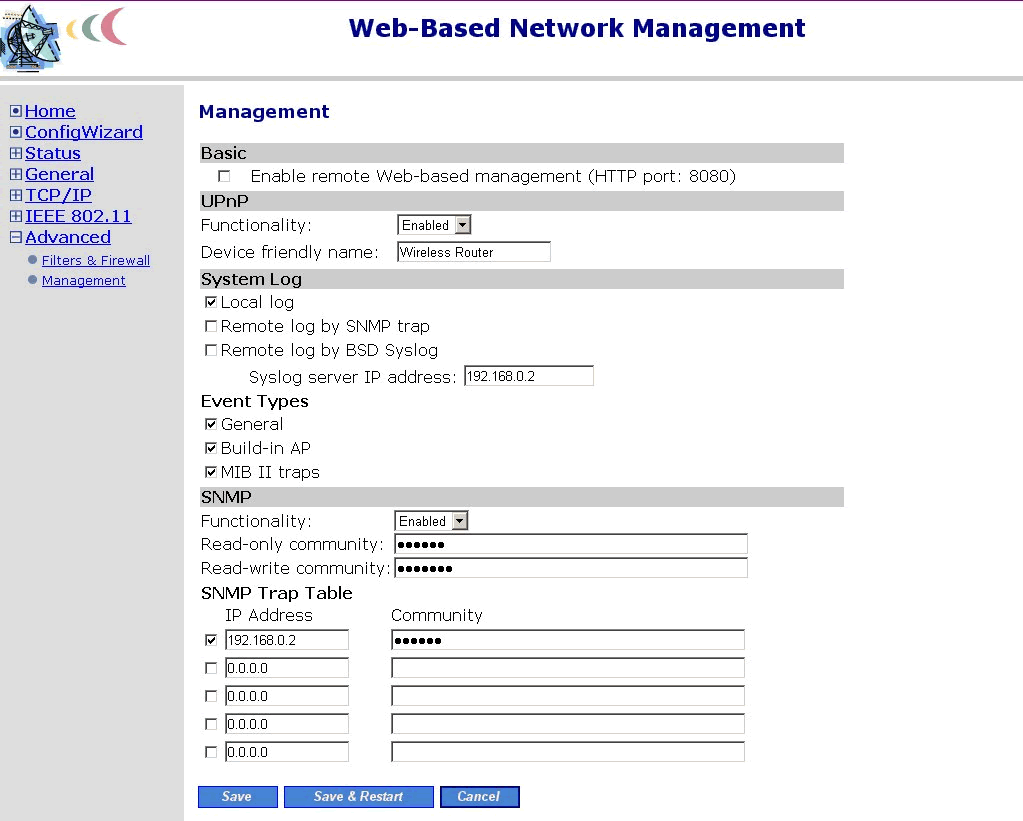

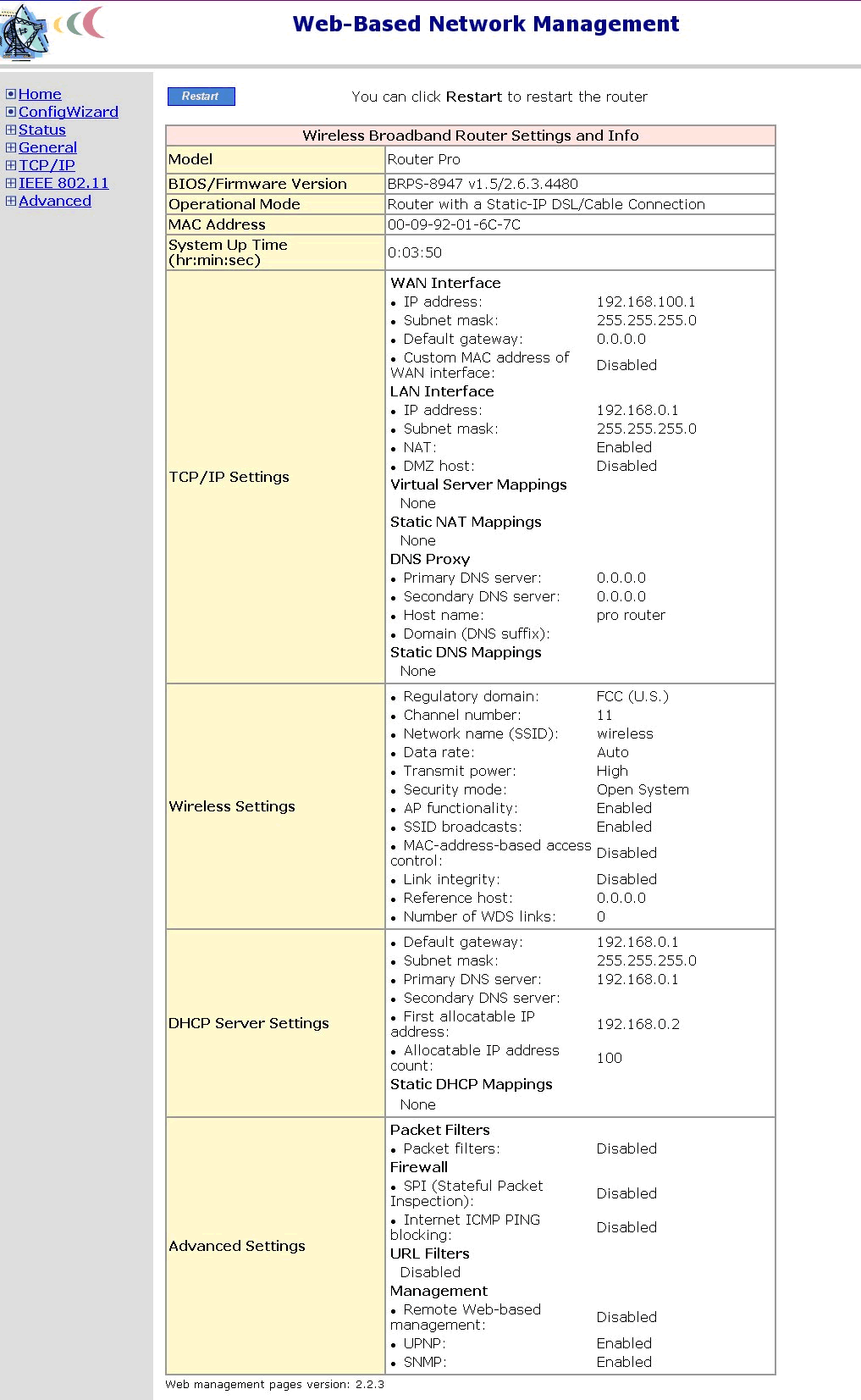

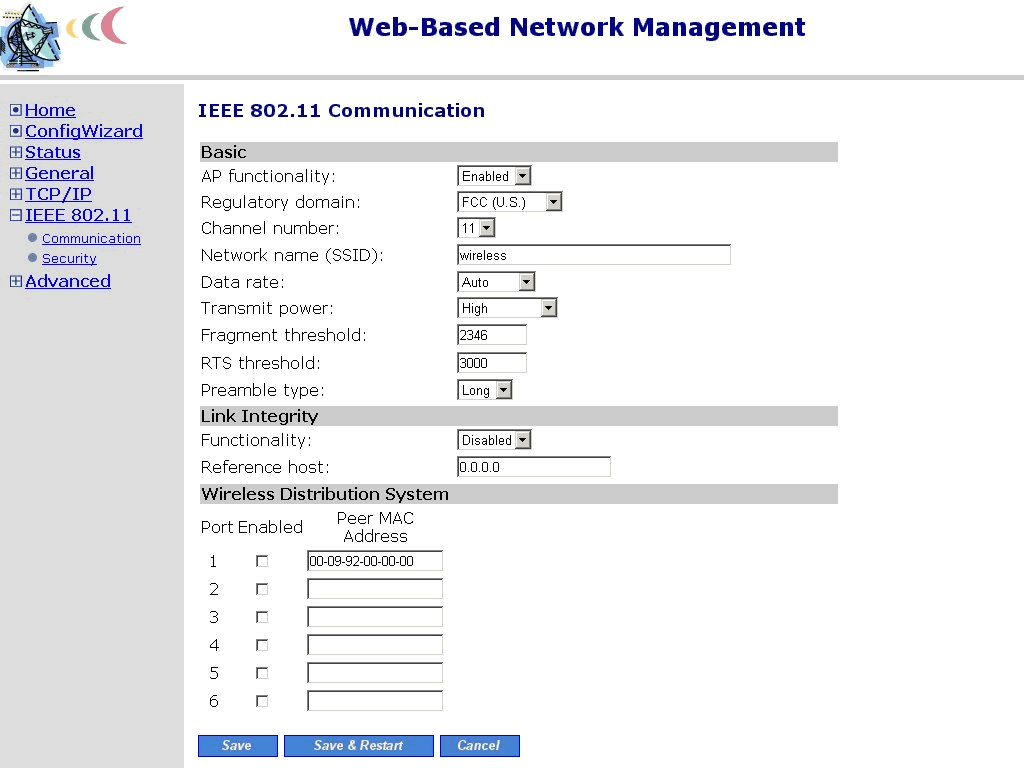

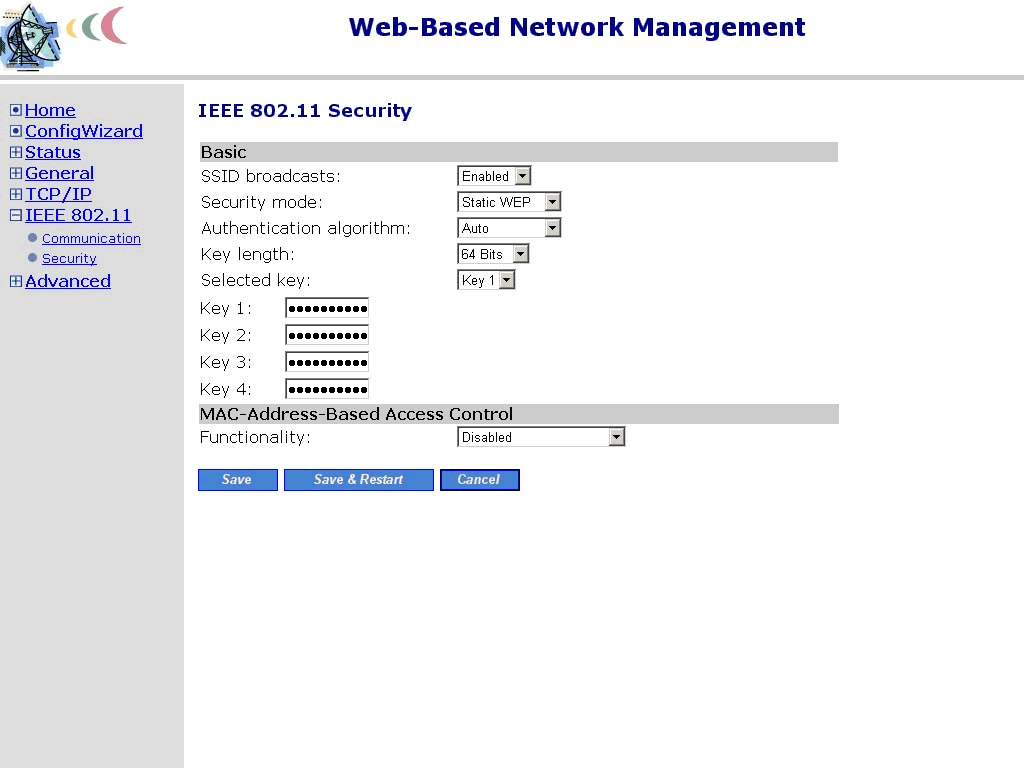

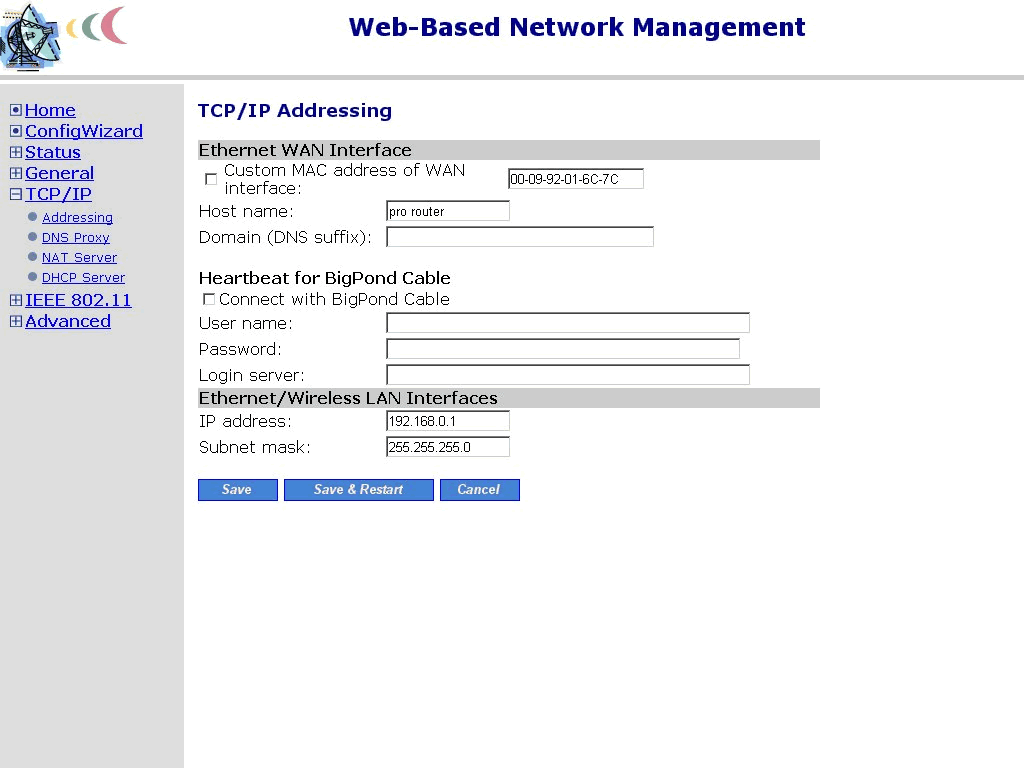

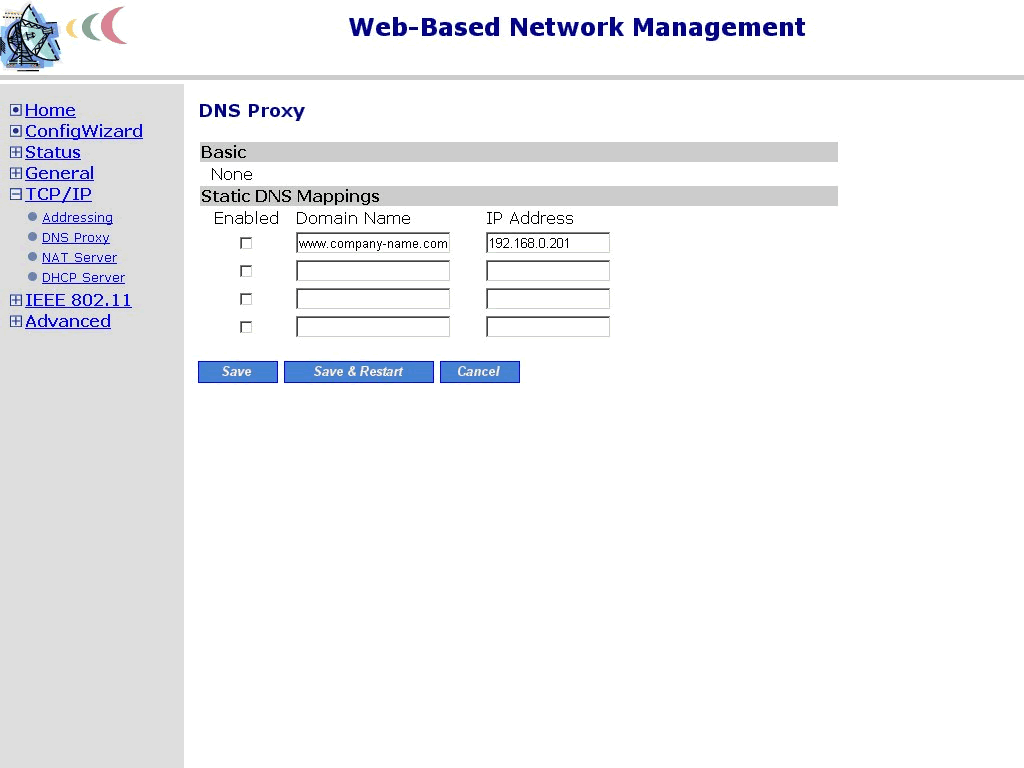

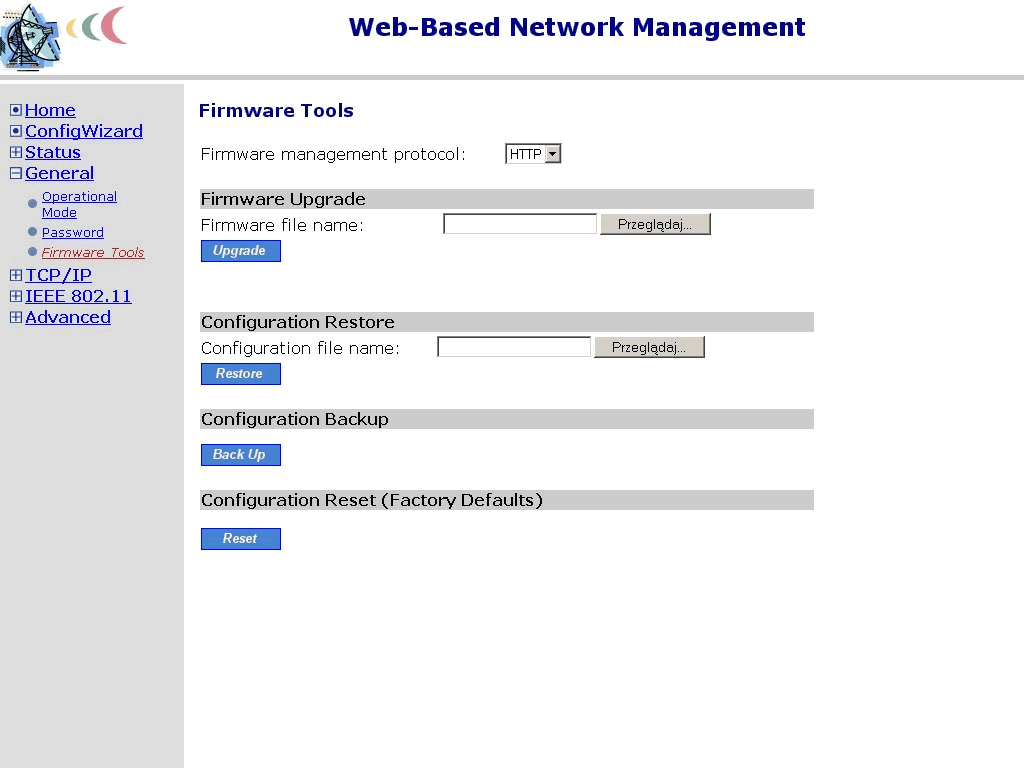

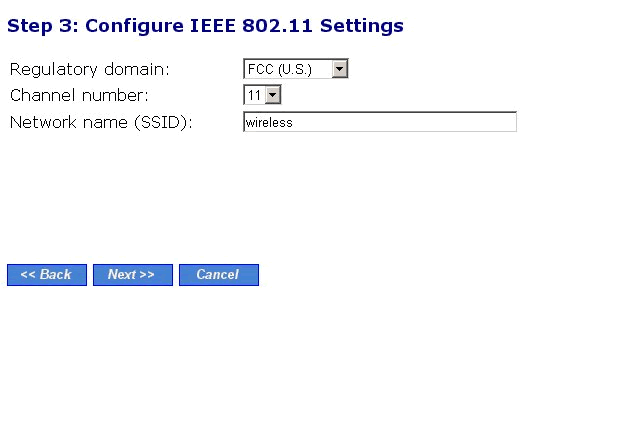

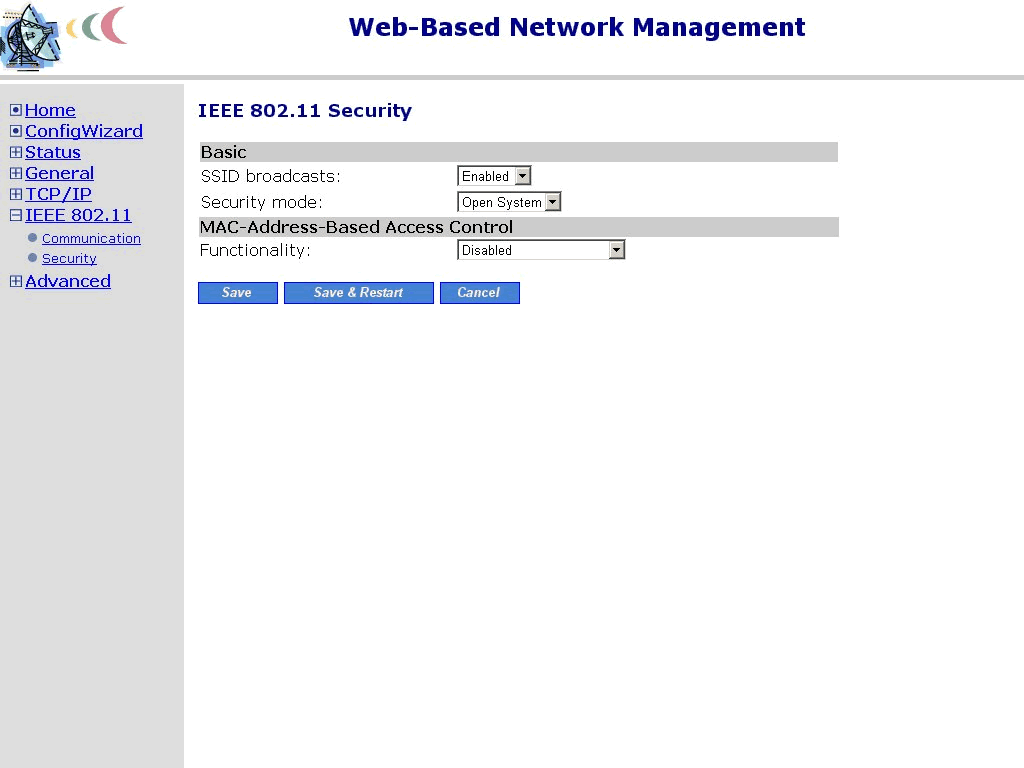

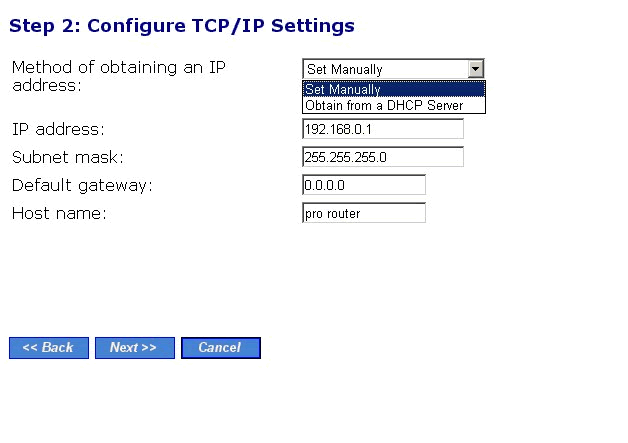

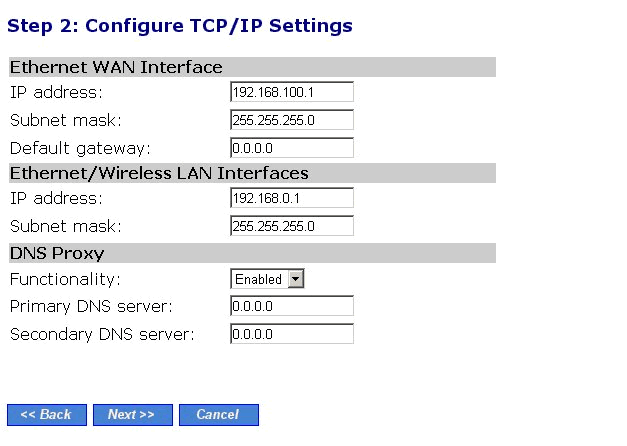

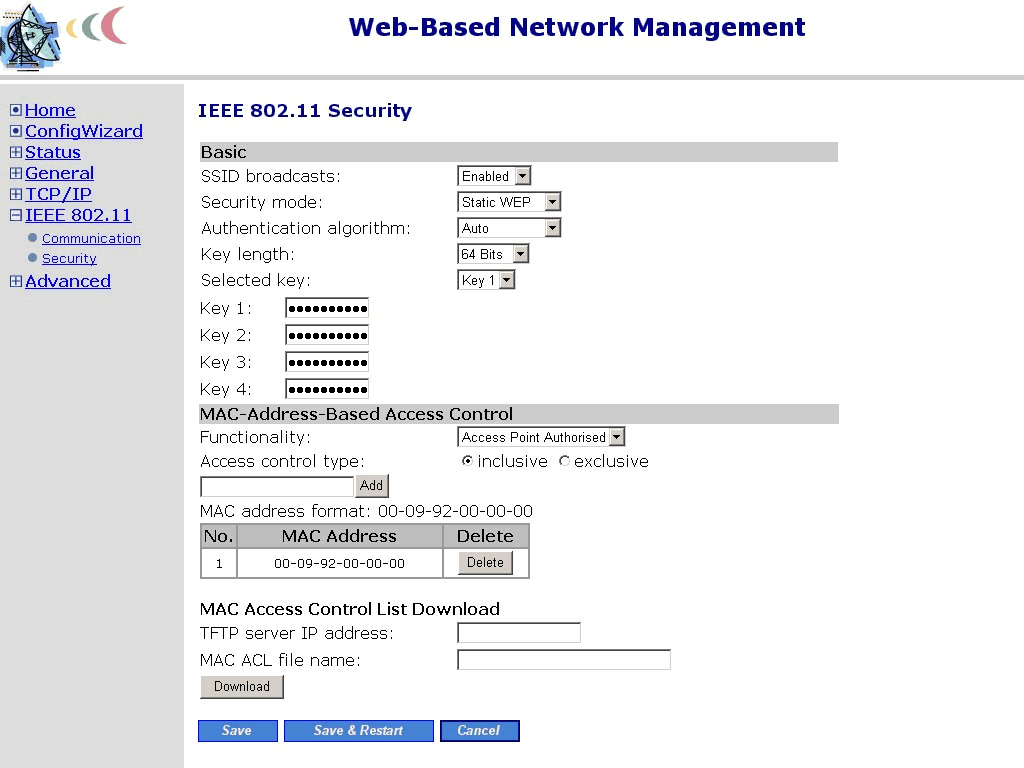

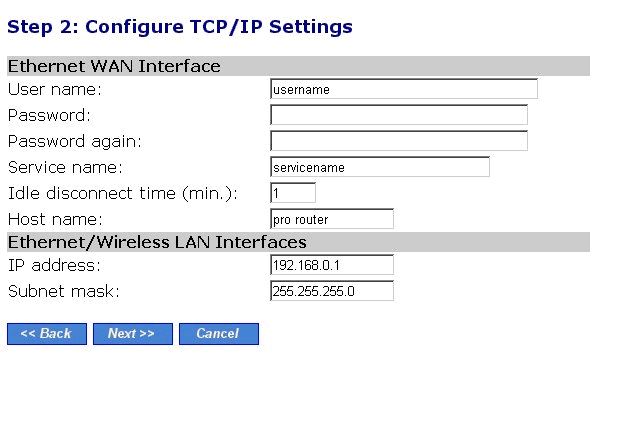

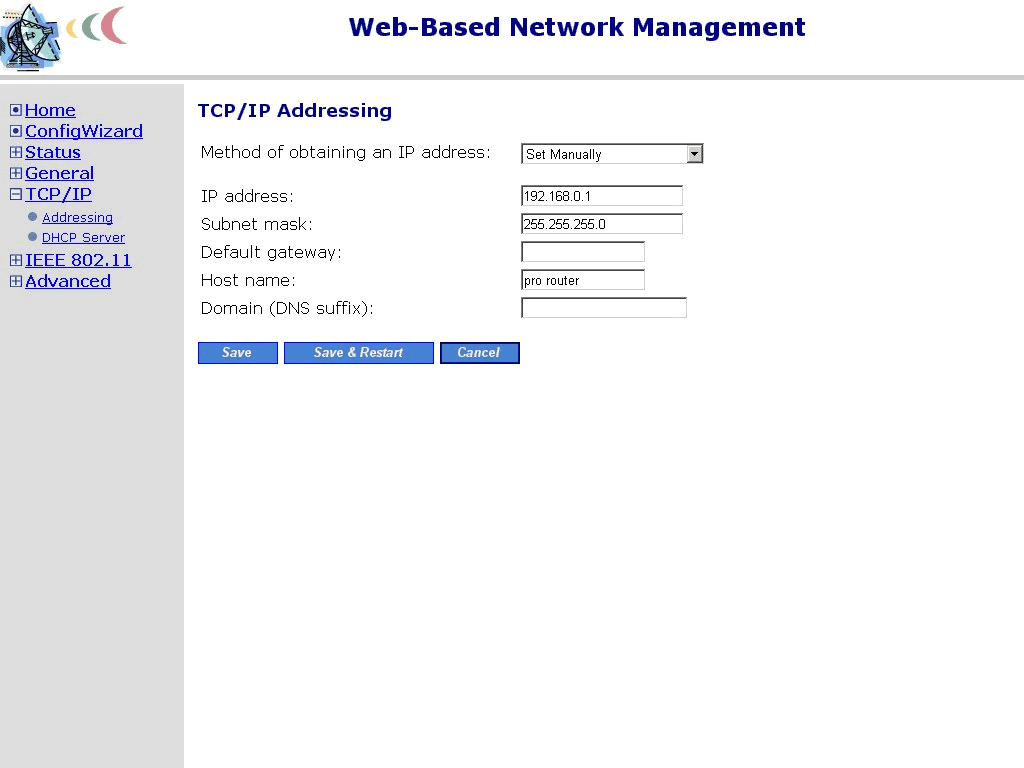

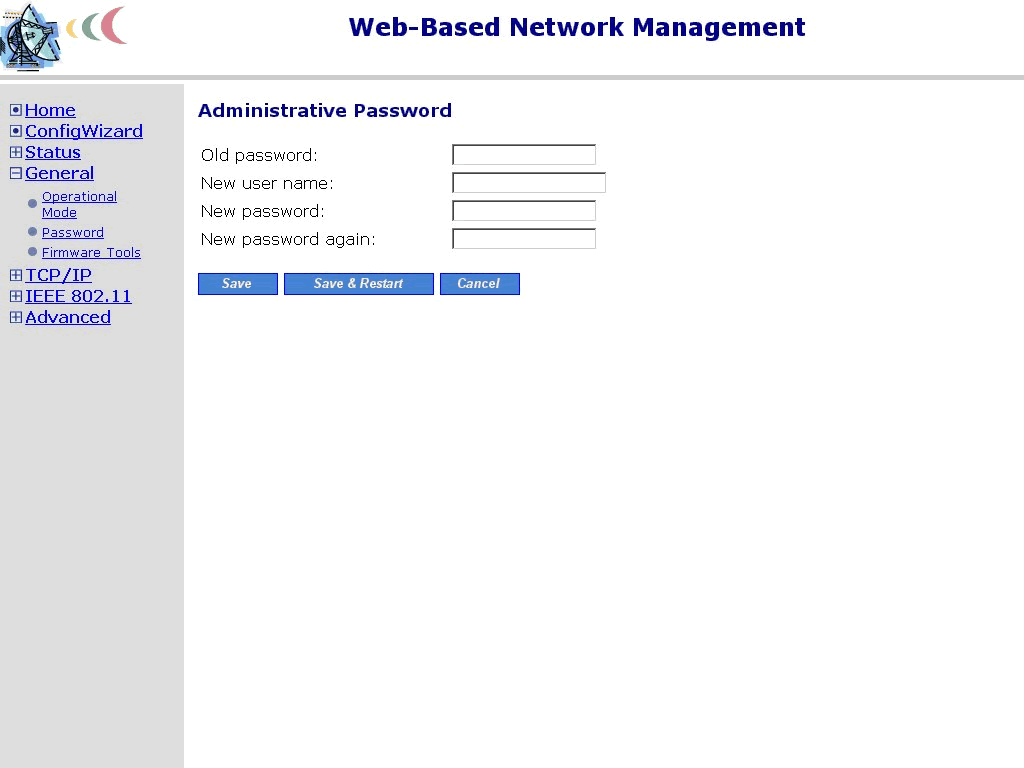

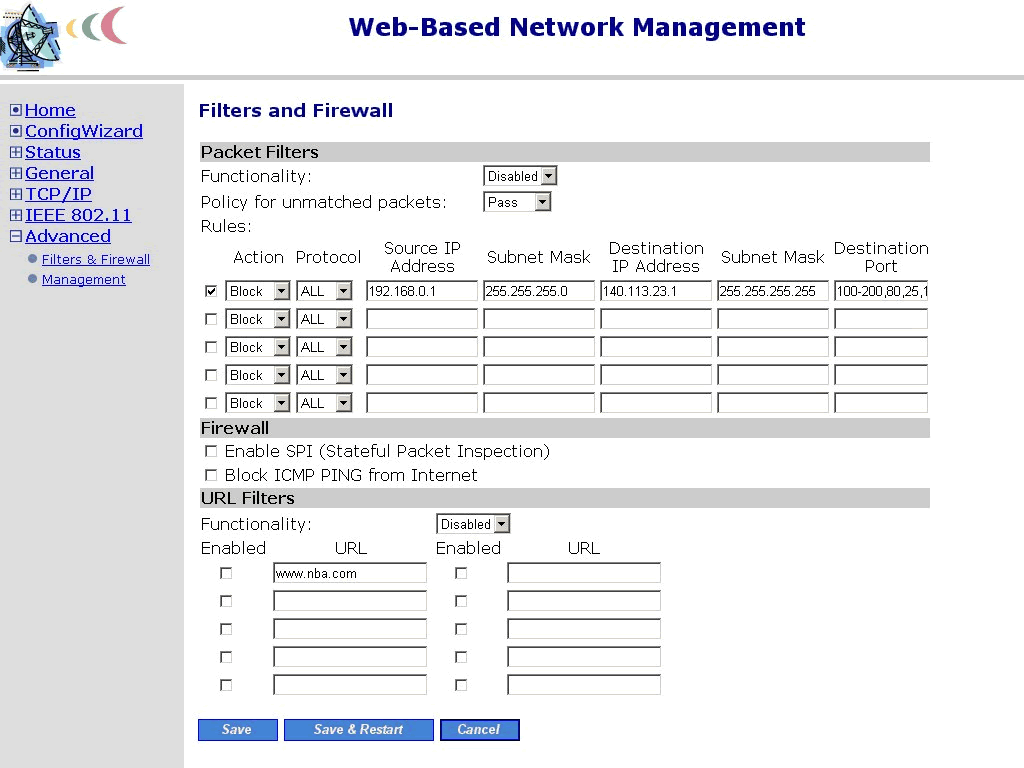

Home Wizard Wizard Wizard Wizard Wizard Wizard Wizard Wizard Associated Wireless Clients Current DHCP Mappings Operational Mode System Log Administrative Password Firmware Tools TCP IP Addressing TCP IP Addressing TCP IP Addressing DNS Proxy NAT Server DHCP Server IEEE 802.11 Communication IEEE 802.11 Security IEEE 802.11 Security IEEE 802.11 Security Filters and Firewall Management
Net Price: 11,40 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
