          #09563

          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, 19" (TP-Link SG5428X)

          • 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
          • 128 Gbps switching capacity per unit
          • Physical Stacking up to 8 units for built-in redundancy and performance**
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two internal fixed power supplies, VRRP, and ERPS
          • Centralized cloud management via the Omada SDN controller
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 24× 10/100/1000 Mbps RJ45 Ports,
          4× 1/10G SFP+ Slots,
          1× USB 2.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          Fan Quantity 0
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 128 Gbps
          Stacking Number 8,
          Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports),
          Stack Bandwidth Up to 80 Gb/s (4 stack ports)
          Packet Forwarding Rate 95,2 Mp/s
          MAC Address Table 16 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
          Operating temperature -5°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 19.6 W (220V/50Hz @ 25 °C)
          Max Heat Dissipation 66.87 BTU/hr (220V/50Hz @ 25 °C)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, 19" (TP-Link SG5428X)
          Net Price: 411,00 EUR
          product card»
          #09467

          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XMPP)

          • 4× 10 Gbps SFP+ slots
          • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
          • 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
          • 500 W total PoE budget
          • Centralized cloud management via the web or the Omada app
          • Standalone management via web, CLI, SNMP, and RMON
          • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
          • ERPS supports rapid protection and recovery in a ring topology
          • Durable metal casing and rack-mountable design
          Standards IEEE 802.3 10Base-T,
          IEEE802.3u 100Base-TX
          Copper ports 24x 10/100/1000 Mbps RJ-45 (8× PoE++,
          16× PoE+)
          Free slots 4x SFP+ 10G
          Additional ports 1× RJ45 Console Port,
          1× Micro-USB Console Port
          Fan Quantity 3
          Porty PoE+ (RJ45)
          Standard 802.3at/af/bt compliant
          PoE Ports PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port),
          PoE+ Ports Ports 9-24 (up to 30 W PoE Output per Port)
          Power Budget 500 W
          Max Power Consumption 605,5 W (110V/60Hz) ( with 500 W PD connected)
          Max Heat Dissipation 2064,96 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
          Performance
          Switching Capacity 128 Gbps
          Packet Forwarding Rate 95,23 Mpps
          MAC Address Table 16 K
          Packet Buffer Memory 12 Mbit
          Jumbo Frame 9 KB
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Housing / case type Rack Mountable
          Dimensions 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          100~230VAC 50/60Hz
          Certificates CE,
          FCC
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XMPP)
          Net Price: 527,00 EUR
          product card»
          #09466

          Managed switch, 24x 2,5G, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XPP-M2)

          • 8× 2.5G PoE++ ports (up to 60 W PoE out per port)
          • 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
          • 4× 10G SFP+ slots

            • -500 W total PoE budget

          • Centralized cloud management via the web or the Omada app
          • Standalone management via web, CLI, SNMP, and RMON
          • Static Routing helps route internal traffic for higher efficiency
          • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
          • ERPS supports rapid protection and recovery in a ring topology
          Standards IEEE 802.3 10Base-T,
          IEEE802.3u 100Base-TX
          Copper ports 24× 2.5 Gbps RJ45 Ports (8× PoE++,
          16× PoE+)
          Free slots 4x SFP+ 10G
          Additional ports 1× RJ45 Console Port,
          1× Micro-USB Console Port
          Fan Quantity 3
          Porty PoE+ (RJ45)
          Standard 802.3at/af/bt compliant
          PoE Ports 8 Ports,
          up to 60 W per port,
          PoE+ Ports (802.3at/af PoE) 16 Ports,
          up to 30 W per port
          Power Budget 500 W
          Max Power Consumption 629,1 W (110V/60Hz)
          Max Heat Dissipation 2153,45 BTU/hr (110 V/60 Hz)
          Performance
          Switching Capacity 200 Gbps
          Packet Forwarding Rate 148.80 Mpps
          MAC Address Table 32 K
          Packet Buffer Memory 16 Mbit
          Jumbo Frame 9 KB
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Housing / case type Rack Mountable
          Dimensions 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          100~230VAC 50/60Hz
          Certificates CE,
          FCC
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 24x 2,5G, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XPP-M2)
          Net Price: 724,00 EUR
          product card»
          #09463

          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, 19" (TP-Link SG6428X)

          • 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
          • 128 Gbps switching capacity per unit
          • Physical Stacking up to 8 units for built-in redundancy and performance**
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two internal fixed power supplies, VRRP, and ERPS
          • Centralized cloud management via the Omada SDN controller
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 24× 10/100/1000 Mbps RJ45 Ports,
          4× 1/10G SFP+ Slots,
          2× USB 2.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          1× RJ45 Management Port
          Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 128 Gbps
          Stacking Number 8,
          Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports),
          Stack Bandwidth Up to 80 Gb/s (4 stack ports)
          Packet Forwarding Rate 95,2 Mp/s
          MAC Address Table 32 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
          Operating temperature -5°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 28,4 W (220 V/50 Hz)
          Max Heat Dissipation 96,91 BTU/godz (220 V/50 Hz)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, 19" (TP-Link SG6428X)
          Net Price: 1 580,00 EUR
          product card»
          #09462

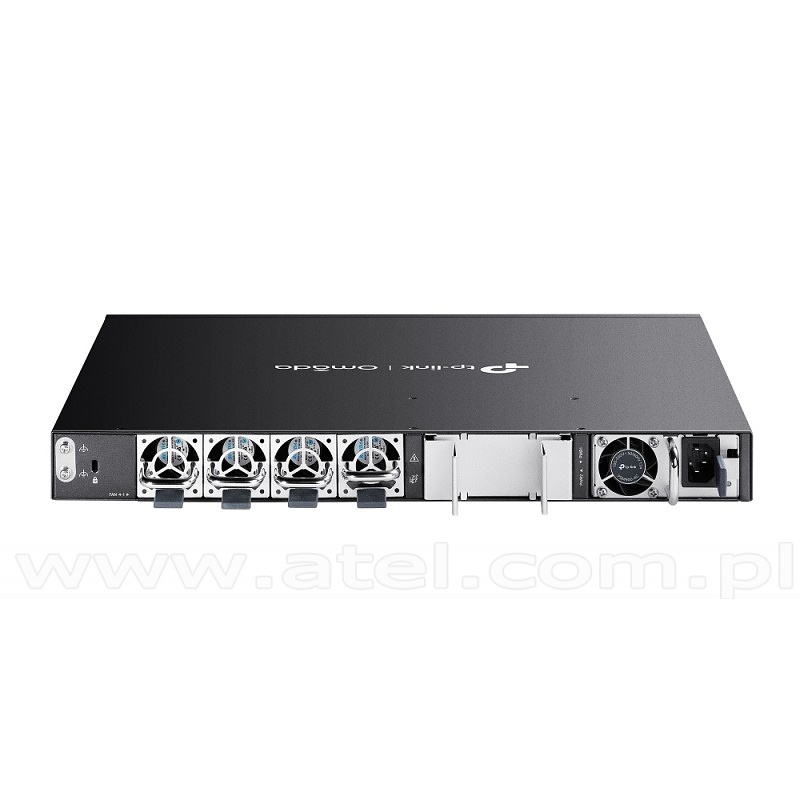

          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6428XHP)

          • 24× Gigabit RJ45 PoE+ ports
          • 4× 10 Gbps SFP+ slots
          • Up to 720 W total PoE budget
          • Fast PoE and Perpetual PoE
          • Physical Stacking up to 8 units for built-in redundancy and performance
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two field-replaceable power supplies, VRRP, and ERPS
          • Centralized cloud management via Omada SDN controllers
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 48× 10/100/1000 Mbps PoE+ RJ45 Ports,
          6× 1/10G SFP+ Slots,
          2× USB 2.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          1× RJ45 Management Port
          Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
          PoE Ports (RJ45) Standard 802.3at/af compliant,
          PoE+ Ports 48 Ports,
          up to 30 W per port,
          PoE Power Budget up to 720 W
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 128 Gbps
          Stacking Number 8,
          Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports),
          Stack Bandwidth Up to 80 Gbps (4 stack ports)
          Packet Forwarding Rate 95,2 Mp/s
          MAC Address Table 32 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
          Operating temperature -5°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 42.9 W (110 V/60 Hz) (With no PD connected),
          916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
          Max Heat Dissipation 146.29 BTU/hr (110 V/60 Hz) (With no PD connected),
          3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6428XHP)
          Net Price: 2 050,00 EUR
          product card»
          #09459

          Managed switch, 26x slide-in 10G SFP+ slot, 6 slide-in SFP28 10/25G slot, 19" (TP-Link SX6632YF)

          • 26× 10G SFP+ slots and 6× 25G SFP28 slots
          • 820 Gbps switching capacity
          • Physical Stacking up to 8 units for built-in redundancy and performance
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two field-replaceable power supplies, VRRP, and ERPS
          • Centralized cloud management via the Omada SDN controller
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 6× 10/25G SFP28 Slots,
          26× 1/10G SFP+ Slots,
          2× USB 3.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          1× RJ45 Management Port
          Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 820 Gbps
          Stacking Number 8,
          Stacking Port 25G SFP28,
          Stack Bandwidth Up to 300 Gbps (6 stack ports)
          Packet Forwarding Rate 610,1 Mp/s
          MAC Address Table 128 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
          Operating temperature -5°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 86.7 W (110 V/60 Hz)
          Max Heat Dissipation 295.85 BTU/hr (110 V/60 Hz)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 26x slide-in 10G SFP+ slot, 6 slide-in SFP28 10/25G slot, 19" (TP-Link SX6632YF)
          Net Price: 3 310,00 EUR
          product card»
          #09464

          Managed switch, 32x slide-in 10G SFP+ slot, 19" (TP-Link SX3032F)

          • 32× 10 Gbps SFP+ slots
          • 640 Gbps switching capacity
          • Two internal fixed power supply modules back each other up
          • Centralized cloud management via the web or the Omada app
          • Standalone management via web, CLI, SNMP, and RMON
          • Static Routing helps route internal traffic for higher efficiency
          • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
          • ERPS supports rapid protection and recovery in a ring topology
          • Durable metal casing and rack-mountable design
          Ports 32× 1/10G SFP+ Slots,
          1× RJ45 Console Port,
          1× microUSB Console Port
          Fan Quantity 2 internal fixed fans
          Software features
          Quality of Service 8 priority queues,
          802.1p CoS/DSCP priority,
          Queue scheduling SP (Strict Priority),
          WRR (Weighted Round Robin),
          SP+WRR,
          Bandwidth Control Port/Flow-based Rating Limiting,
          Smoother Performance,
          Action for Flows QoS remark (802.1P Remark,
          DSCP Remark)
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 640 Gbps
          Packet Forwarding Rate 240 Mp/s
          MAC Address Table 32 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3×13.0×1.7 in (440×330×44 mm)
          Operating temperature -5°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 1+1 Redundant Power Supply (internal fixed) (100–240 VAC,
          50/60 Hz)
          Max Power Consumption 49.4 W (110 V/60 Hz)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 32x slide-in 10G SFP+ slot, 19" (TP-Link SX3032F)
          Net Price: 724,00 EUR
          product card»
          #09465

          Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3452XMPP)

          • 4× 10 Gbps SFP+ slots
          • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
          • 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
          • 750 W total PoE budget*
          • Centralized cloud management via the web or the Omada app
          • Standalone management via web, CLI, SNMP, and RMON
          • Static Routing helps route internal traffic for higher efficiency
          • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
          • ERPS supports rapid protection and recovery in a ring topology
          • Durable metal casing and rack-mountable design
          Standards IEEE 802.3 10Base-T,
          IEEE802.3u 100Base-TX
          Copper ports 48x 10/100/1000 Mbps RJ-45 (8× PoE++,
          40× PoE+)
          Free slots 4x SFP+ 10G
          Additional ports 1× RJ45 Console Port,
          1× Micro-USB Console Port
          Fan Quantity 3
          Porty PoE+ (RJ45)
          Standard 802.3at/af/bt compliant
          PoE Ports PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port),
          PoE+ Ports Ports 9~48 (up to 30 W PoE Output per Port)
          Power Budget 750 W
          Max Power Consumption 913.4 W (110V/60Hz) ( with 750 W PD connected)
          Max Heat Dissipation 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected)
          Performance
          Switching Capacity 176 Gbps
          Packet Forwarding Rate 130.9 Mpps
          MAC Address Table 16 K
          Packet Buffer Memory 12 Mbit
          Jumbo Frame 9 KB
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Housing / case type Rack Mountable
          Dimensions 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power internal,
          100~230VAC 50/60Hz
          Certificates CE,
          FCC
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3452XMPP)
          Net Price: 838,00 EUR
          product card»
          #09461

          Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, 19" (TP-Link SG6654X)

          • 48× Gigabit RJ45 ports
          • 6× 10 Gbps SFP+ slots
          • Physical Stacking up to 8 units for built-in redundancy and performance
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two field-replaceable power supplies, VRRP, and ERPS
          • Centralized cloud management via the Omada SDN controller
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 48× 10/100/1000 Mbps RJ45 Ports,
          6× 1/10G SFP+ Slots,
          2× USB 2.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          1× RJ45 Management Port
          Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 216 Gbps
          Stacking Number 8,
          Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports),
          Stack Bandwidth Up to 120 Gbps (6 stack ports)
          Packet Forwarding Rate 160,7 Mp/s
          MAC Address Table 32 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
          Operating temperature -5°C ÷ 50°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 39,8 W (220 V/50 Hz)
          Max Heat Dissipation 135,81 BTU/godz. (220 V/50 Hz)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, 19" (TP-Link SG6654X)
          Net Price: 2 130,00 EUR
          product card»
          #09460

          Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6654XHP)

          • 48× Gigabit RJ45 PoE+ ports
          • 6× 10 Gbps SFP+ slots
          • Up to 1440W total PoE budget
          • Fast PoE and Perpetual PoE
          • Physical Stacking up to 8 units for built-in redundancy and performance
          • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
          • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
          • Highly Available with two field-replaceable power supplies, VRRP, and ERPS
          • Centralized cloud management via the Omada SDN controller
          • Standalone management via web, CLI, SNMP, and RMON
          Ports 48× 10/100/1000 Mbps PoE+ RJ45 Ports,
          6× 1/10G SFP+ Slots,
          2× USB 2.0 Ports,
          1× RJ45 Console Port,
          1× USB Type C Console Port,
          1× RJ45 Management Port
          Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
          PoE Ports (RJ45) Standard 802.3at/af compliant,
          PoE+ Ports 48 Ports,
          up to 30 W per port,
          PoE Power Budget up to 1440 W
          Software features
          Quality of Service Support 802.1p CoS/DSCP priority,
          Support 4 priority queues,
          Queue scheduling- SP,
          WRR,
          SP+WRR,
          Port/Flow- based Rate Limiting
          L3 Features IP Interfaces,
          IPv4 Max 256,
          IPv6 Max 256,
          Static Routing,
          IPv4 Max 2,048,
          IPv6 Max 1,024,
          Host Route Table Max 15,300 entries,
          RIP Version v1/v2,
          Max 102,400,
          RIPng Max 51,200,
          OSPF Version v2/v3;,
          v2 Max 102,400,
          v3 Max 51,200,
          VRRP Version v2/v3,
          Max 64 groups,
          ECMP 256 entries,
          max 32 ECMP Nexhops per Destination,
          Static ARP,
          1,024 static entries,
          Dynamic ARP,
          24,576 dynamic entries,
          Proxy ARP,
          DHCP Server,
          Max 64 IP Pools,
          Max 1,000 Manual Binding Entries. DHCP Relay,
          Relayed Interface,
          Relayed VLAN
          L2 and L2+ Features DHCP Relay,
          DHCP VLAN Relay,
          DHCP L2 Relay,
          Link Aggregation,
          Static link aggregation,
          802.3ad LACP,
          Up to 8 aggregation groups and up to 8 ports per group,
          Spanning Tree Protocol,
          802.1D STP,
          802.1w RSTP,
          802.1s MSTP,
          STP Security TC Protect,
          BPDU Filter/Protect,
          Root Protect,
          Loopback Detection,
          Flow Control,
          802.3x Flow Control,
          Mirroring,
          Port Mirroring,
          CPU Mirroring,
          One-to-One,
          Many-to-One,
          Flow-Based,
          Ingress/Egress/Both,
          Device Link Detect Protocol (DLDP),
          802.1ab LLDP/ LLDP-MED
          L2 Multicast 511 IPv4,
          IPv6 shared multicast groups,
          IGMP Snooping,
          IGMP v1/v2/v3 Snooping,
          Fast Leave,
          IGMP Snooping Querier,
          Static Group Config,
          Multicast VLAN Registration (MVR),
          Multicast Filtering,
          MLD Snooping,
          MLD v1/v2 Snooping,
          Fast Leave,
          MLD Snooping Querier,
          Static Group Config,
          Limited IP Multicast (256 profiles and 16 entries per profile)
          IPv6 Support IPv6 Dual IPv4/IPv6,
          Multicast Listener Discovery (MLD) Snooping,
          IPv6 neighbor discovery (ND),
          Path maximum transmission unit (MTU) discovery,
          Internet Control Message Protocol (ICMP) version 6,
          TCPv6/UDPv6,
          IPv6 applications,
          DHCPv6 Client,
          Ping6,
          Tracert6,
          Telnet (v6),
          IPv6 SNMP,
          IPv6 SSH,
          IPv6 SSL,
          Http/Https,
          IPv6 TFTP
          VLAN VLAN Group,
          Max. 4K VLAN Groups,
          802.1Q tag VLAN,
          MAC VLAN,
          Protocol VLAN,
          GVRP,
          Voice VLAN
          Security AAA,
          802.1X,
          Port based authentication,
          MAC (Host) based authentication,
          Authentication Method includes PAP/EAP-MD5,
          MAB,
          Guest VLAN,
          Support Radius authentication and accountability,
          IP/IPv6-MAC Binding,
          512 Binding Entries,
          DHCP Snooping,
          DHCPv6 Snooping,
          ARP Inspection,
          ND Detection,
          IP Source Guard,
          253 Entries,
          Source IP+Source MAC,
          IPv6 Source Guard,
          183 Entries,
          Source IPv6 Address+Source MAC,
          DoS Defend,
          Static/Dynamic/Permanent Port Security,
          Up to 64 MAC addresses per port,
          Broadcast/Multicast/Unicast Storm Control,
          kbps/ratio control mode,
          Port Isolation,
          Secure web management through HTTPS with SSLv3/TLS 1.2,
          Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
          IP/Port/MAC based access control
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Management Features Web-based GUI,
          Command Line Interface (CLI) through telnet,
          SNMPv1/v2c/v3,
          SNMP Trap/Inform,
          RMON (1,2,3,9 groups),
          SDM Template,
          DHCP/BOOTP Client,
          Dual Image,
          Dual Configuration,
          CPU Monitoring,
          Cable Diagnostics,
          EEE,
          SNTP,
          System Log
          Switching capacity [Gbps] 216 Gbps
          Stacking Number 8,
          Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports),
          Stack Bandwidth Up to 120 Gbps (6 stack ports)
          Packet Forwarding Rate 160,7 Mp/s
          MAC Address Table 32 K
          Jumbo Frame 9 KB
          Housing / case type Rack Mountable
          Dimensions 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
          Operating temperature -5°C ÷ 45°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC,
          50/60 Hz),
          *Ships with one PSM550-AC module by default,
          and another field-replaceable redundant power supply requires a separate purchase.
          Max Power Consumption 67.24 W (110 V/60 Hz) (With no PD connected),
          1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
          Max Heat Dissipation 229.29 BTU/hr (110 V/60 Hz) (With no PD connected),
          6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
          Certificates CE,
          FCC,
          RoHS
          Warranty period 5 years
          Manufacturer TP-Link
          TP-LINK
          Managed switch, 48x 10/100/1000 RJ-45, 6 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6654XHP)
          Net Price: 3 150,00 EUR
          product card»

top

Page 5 of 5
