#08190
Module, SFP+ 1x 10 Gbps LC SM, 20 km, WDM TX:1330nm, DDMI (Wave Optics, WO-PWL-9633-020K-D)
Insert SFP + 10G designed for transmission with one fiber of a single-mode fiber (SM) at a distance of up to 20km. TX wavelength 1330nm. The DDMI interface allows to monitor the connection status.
| Port | 1x 10 gbps LC SM |
|---|---|
| TX wavelength | 1330 nm |
| RX wavelength | 1270 nm |
| Max. distance | 20 km |
| Wave Division Multiplexing (WDM) | yes |
| Module type | SFP+ |
| Warranty period | 1 year |
| Manufacturer | Wave Optics |
#08191
Module, SFP+ 1x 10 Gbps LC SM, 40 km, WDM TX:1270nm, DDMI (Wave Optics, WO-PWL-9627-040K-D)
Insert SFP + 10G designed for transmission with one fiber of a single-mode fiber (SM) at a distance of up to 40km. TX wavelength 1270nm. The DDMI interface allows to monitor the connection status.
| Port | 1x 10 gbps LC SM |
|---|---|
| TX wavelength | 1270 nm |
| RX wavelength | 1330 nm |
| Max. distance | 40 km |
| Wave Division Multiplexing (WDM) | yes |
| Module type | SFP+ |
| Warranty period | 1 year |
| Manufacturer | Wave Optics |
#08192
Module, SFP+ 1x 10 Gbps LC SM, 40 km, WDM TX:1330nm, DDMI (Wave Optics, WO-PWL-9633-040K-D)
Insert SFP + 10G designed for transmission with one fiber of a single-mode fiber (SM) at a distance of up to 40km. TX wavelength 1330nm. The DDMI interface allows to monitor the connection status.
| Port | 1x 10 gbps LC SM |
|---|---|
| TX wavelength | 1330 nm |
| RX wavelength | 1270 nm |
| Max. distance | 40 km |
| Wave Division Multiplexing (WDM) | yes |
| Module type | SFP+ |
| Warranty period | 1 year |
| Manufacturer | Wave Optics |
#08477

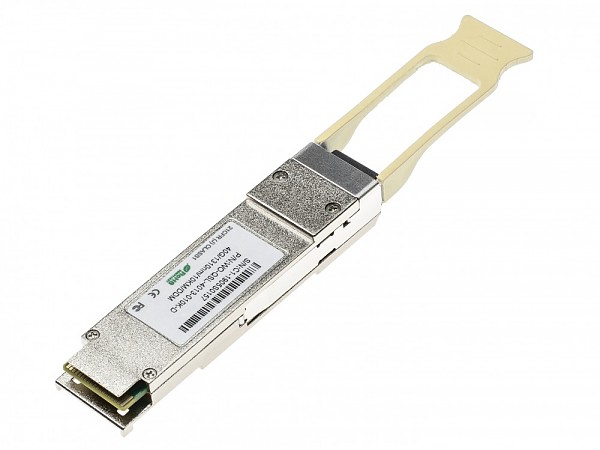

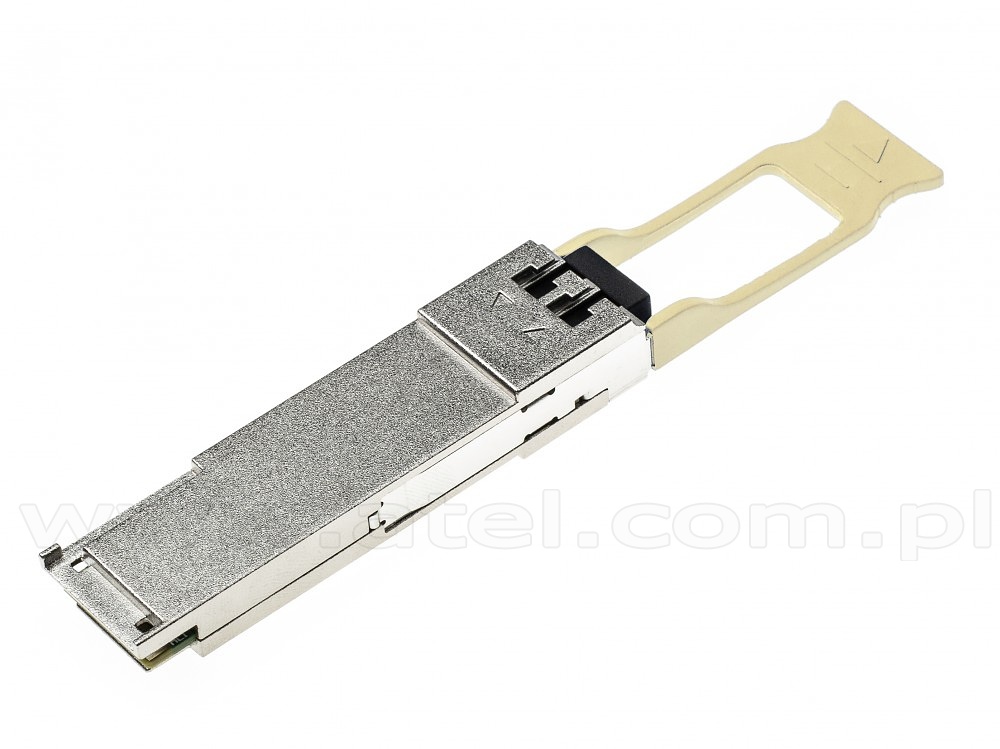

Module, QSFP+ 1x 40 Gbps MM, 150 m (WO-QSFP-SR4 )
Insert QSFP+ 1x 10G designed for transmission with double (duplex) multi-mode fiber (MM) at a distance of up to 100m (OM3) or 150m (OM4). The DDMI interface allows to monitor the connection status.
| Port | 1x 10Gbps MM MPO |
|---|---|
| TX wavelength | 850 nm |
| RX wavelength | 850 nm |
| Max. distance | up to 100 meters by OM3 fiber and 150M by OM4 fibe |
| Cable type | 50/125, 62,5/125 |
| DMI | yes |
| Module type | QSFP+ |
| Manufacturer | Wave Optics |
#06842
Module, SFP+ 1x 40 Gbps LC SM, 10km, Tx:1310nm, DDMI (Wave Optics, WO-QSL-4013-010K-D)
Insert SFP+ 40G designed for transmission with a double (duplex) single-mode fiber (SM) at a distance of up to 10km. TX wavelength 1310nm. The DDMI interface allows to monitor the connection status.
| Port | 1x 40 Gbps LC SM |
|---|---|
| TX wavelength | 1310nm |
| RX wavelength | 1310nm |
| Max. distance | 10km |
| Cable type | 8.3/125, 8.7/125, 9/125, 10/125 µm |
| DMI | yes |
| Module type | QSFP+ |
| Warranty period | 1 year |
| Manufacturer | Wave Optics |
#08500
QSFP+ Active Fiber Cable, 1,0 m (Wave Optics, WO-QSFP-40GB-AFO-01M)
Support for multi-gigabit data rates up to 40Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
| Power consumption | <0.5W |
|---|---|
| Power supply | +3.3V |
| Compatible |
QSFP+ MSA, RoHS |
| Operating case temperature | 0°C÷70°C |
| Length | 1m |
| Manufacturer | Wave Optics |
#08501
QSFP+ Active Fiber Cable, 2,0 m (Wave Optics, WO-QSFP-40GB-AFO-02M)
Support for multi-gigabit data rates up to 40Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
| Power consumption | <0.5W |
|---|---|
| Power supply | +3.3V |
| Compatible |
QSFP+ MSA, RoHS |
| Operating case temperature | 0°C÷70°C |
| Length | 2m |
| Manufacturer | Wave Optics |
#08502
QSFP+ Active Fiber Cable, 5,0 m (Wave Optics, WO-QSFP-40GB-AFO-05M)
Support for multi-gigabit data rates up to 40Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
| Power consumption | <0.5W |
|---|---|
| Power supply | +3.3V |
| Compatible |
QSFP+ MSA, RoHS |
| Operating case temperature | 0°C÷70°C |
| Length | 5m |
| Manufacturer | Wave Optics |
#08497

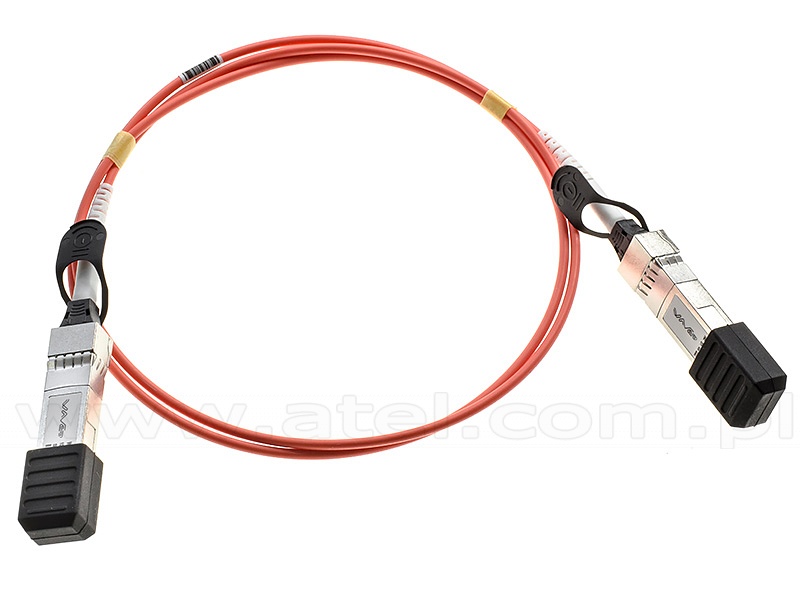

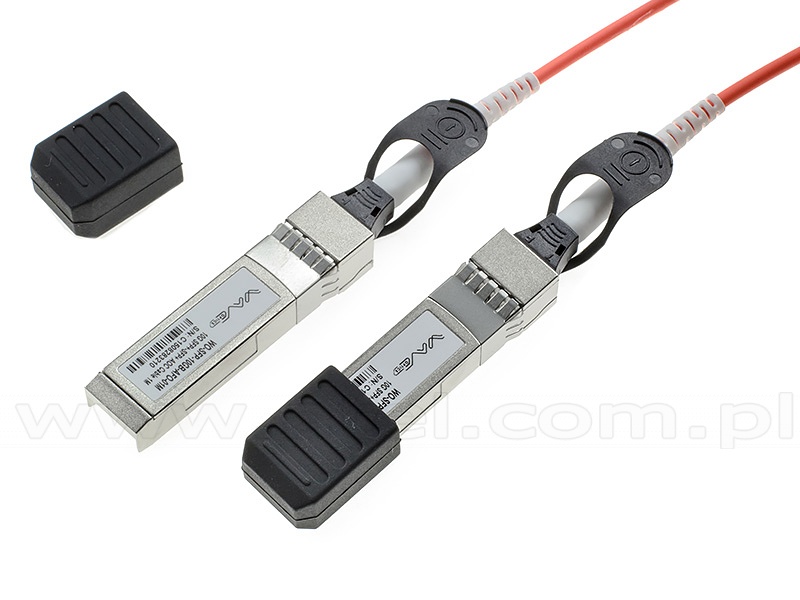

SFP+ Active Fiber Cable, 1,0 m (Wave Optics, WO-SFP-10GB-AFO-01M)
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
| Power consumption | <0.5W |
|---|---|
| Power supply | +3.3V |
| Compatible |
SFP+ MSA, RoHS |
| Operating case temperature | 0°C÷70°C |
| Length | 1m |
| Manufacturer | Wave Optics |
#08498
SFP+ Active Fiber Cable, 2,0 m (Wave Optics, WO-SFP-10GB-AFO-02M)
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PIN footprint
I/O Connector designed for high speed differential signal applications
Improved pluggable form factor(IPF) compliant for enhanced EMI/EMC performance
| Power consumption | <0.5W |
|---|---|
| Power supply | +3.3V |
| Compatible |
SFP+ MSA, RoHS |
| Operating case temperature | 0°C÷70°C |
| Length | 2m |
| Manufacturer | Wave Optics |
