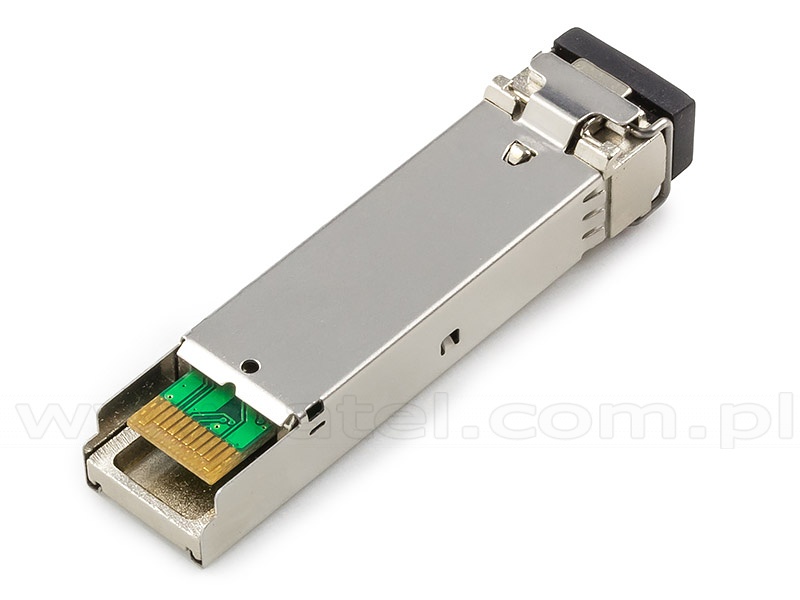

 SFP CWDM

#06116

Module, SFP 1x 1000 Mbps LC SM, 32dB (120 km), CWDM, TX: 1530 nm (Wave Optics, WO-SCL-1253-120K)

Insert type SFP (miniGBIC) designed for CWDM transmission with one fiber of a single-mode fiber (SM) over a distance of 120km. TX wavelength 1530 nm.
Port 1x 1000 Mbps LC SM
TX wavelength 1530 nm
RX wavelength 1530 nm
Max. distance 32dB (120km)
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Coarse Wave Division Multiplexing (CWDM) yes
Module type SFP
Warranty period 1 year
Manufacturer Wave Optics
This transceiver supports DDMI.
WAVE OPTICS
CWDM SFP Module, 1Gb, LC SM, 32dB, 120km, TX:1530nm, DDMI
* For special orders only
Net Price: 64,90 EUR  Unit: pcs  VAT: 23%
product card»
#06117

Module, SFP 1x 1000 Mbps LC SM, 32dB (120 km), CWDM, TX: 1550 nm (Wave Optics, WO-SCL-1255-120K)

Insert type SFP (miniGBIC) designed for CWDM transmission with one fiber of a single-mode fiber (SM) over a distance of 120km. TX wavelength 1550 nm.
Port 1x 1000 Mbps LC SM
TX wavelength 1550 nm
RX wavelength 1550 nm
Max. distance 32dB (120km)
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Coarse Wave Division Multiplexing (CWDM) yes
Module type SFP
Warranty period 1 year
Manufacturer Wave Optics
This transceiver supports DDMI.
WAVE OPTICS
CWDM SFP Module, 1Gb, LC SM, 32dB, 120km, TX:1550nm, DDMI
* For special orders only
Net Price: 64,90 EUR  Unit: pcs  VAT: 23%
product card»
#06118

Module, SFP 1x 1000 Mbps LC SM, 32dB (120 km), CWDM, TX: 1570 nm (Wave Optics, WO-SCL-1257-120K)

Insert type SFP (miniGBIC) designed for CWDM transmission with one fiber of a single-mode fiber (SM) over a distance of 120km. TX wavelength 1570 nm.
Port 1x 1000 Mbps LC SM
TX wavelength 1570 nm
RX wavelength 1570 nm
Max. distance 32dB (120km)
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Coarse Wave Division Multiplexing (CWDM) yes
Module type SFP
Warranty period 1 year
Manufacturer Wave Optics
This transceiver supports DDMI.
WAVE OPTICS
CWDM SFP Module, 1Gb, LC SM, 32dB, 120km, TX:1570nm, DDMI
* For special orders only
Net Price: 64,90 EUR  Unit: pcs  VAT: 23%
product card»
#06623

Module, SFP 1x 1000 Mbps LC SM, 32dB (120 km), CWDM, TX: 1590 nm (Wave Optics, WO-SCL-1259-120K)

Insert type SFP (miniGBIC) designed for CWDM transmission with one fiber of a single-mode fiber (SM) over a distance of 120km. TX wavelength 1590 nm.
Port 1x 1000 Mbps LC SM
TX wavelength 1590 nm
RX wavelength 1590 nm
Max. distance 32dB (120km)
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Coarse Wave Division Multiplexing (CWDM) yes
Module type SFP
Warranty period 1 year
Manufacturer Wave Optics
This transceiver supports DDMI.
WAVE OPTICS
CWDM SFP Module, 1Gb, LC SM, 32dB, 120km, TX:1590nm, DDMI
* For special orders only
Net Price: 55,30 EUR  Unit: pcs  VAT: 23%
product card»

 SFP+

top
#06918

Module, SFP+ 1x 10 Gbps LC MM, 300 m (Wave Optics, WO-PML-9685-300M-D)

Insert SFP + 10G designed for transmission of dual (duplex) multimode fiber (MM) at a distance of up to 300m. TX wavelength 850nm. The DDMI interface allows to monitor the connection status.
Port 1x 10 Gbps LC MM
TX wavelength 850 nm
RX wavelength 850 nm
Max. distance 300 m
Cable type 50/125, 62,5/125
DMI yes
Module type SFP+
Warranty period 1 year
Manufacturer Wave Optics
WAVE OPTICS
SFP+ Module, 10Gb, LC MM, 300m
Net Price: 12,40 EUR  Unit: pcs  VAT: 23%
product card»
#06917

Module, SFP+ 1x 10 Gbps LC SM, 10km, Tx:1310nm, DDMI (Wave Optics, WO-PSL-9613-010K-D)

Insert SFP + 10G designed for transmission of dual (duplex) single-mode fiber (SM) at a distance of up to 10km. TX wavelength 1310nm. The DDMI interface allows to monitor the connection status.
Port 1x 10 Gbps LC SM
TX wavelength 1310nm
RX wavelength 1310nm
Max. distance 10km
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
DMI yes
Module type SFP+
Warranty period 1 year
Manufacturer Wave Optics
WAVE OPTICS
SFP+ Module, 10Gb, LC SM, 10km, Tx:1310nm, DDMI
Net Price: 17,20 EUR  Unit: pcs  VAT: 23%
product card»
#08273

Module, SFP+ 1x 10 Gbps LC SM, 40km, Tx:1310nm, DDMI (Wave Optics, WO-PSL-9613-040K-D)

Insert SFP + 10G designed for transmission by dual (duplex) single-mode fiber (SM) at a distance of up to 40km. TX wavelength 1310nm. The DDMI interface allows to monitor the connection status.
Port 1x 10 Gbps LC SM
TX wavelength 1310nm
RX wavelength 1310nm
Max. distance 40km
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
DMI yes
Module type SFP+
Warranty period 1 year
Manufacturer Wave Optics
WAVE OPTICS
SFP+ Module, 10Gb, LC SM, 40km, Tx:1310nm, DDMI
* For special orders only
Net Price: 28,80 EUR  Unit: pcs  VAT: 23%
product card»
#08195

Module, SFP+ 1x 10 Gbps LC SM, 40km, Tx:1550nm, DDMI (Wave Optics, WO-PSL-9615-040K-D)

Port 1x 10 Gbps LC SM
TX wavelength 1550nm
RX wavelength 1550nm
Max. distance 40km
Module type SFP+
Warranty period 1 year
Manufacturer Wave Optics
WAVE OPTICS
SFP+ Module, 10Gb, LC SM, 40km, Tx:1550nm, DDMI
* For special orders only
Net Price: 95,30 EUR  Unit: pcs  VAT: 23%
product card»
#08489

Module, SFP+ ZR 1x 10 Gbps LC SM, 80km, Tx:1550nm, DDMI (Wave Optics, WO-PSL-9615-080K-D)

Port 1x 10 Gbps LC SM
TX wavelength 1550nm
RX wavelength 1550nm
Max. distance 80km
Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
DMI yes
Module type SFP+
Manufacturer Wave Optics
WAVE OPTICS
SFP+ ZR Module, 10Gb, LC SM, 80km, Tx:1550nm, DDMI
* For special orders only
Net Price: 126,00 EUR  Unit: pcs  VAT: 23%
product card»

 SFP+ WDM

top

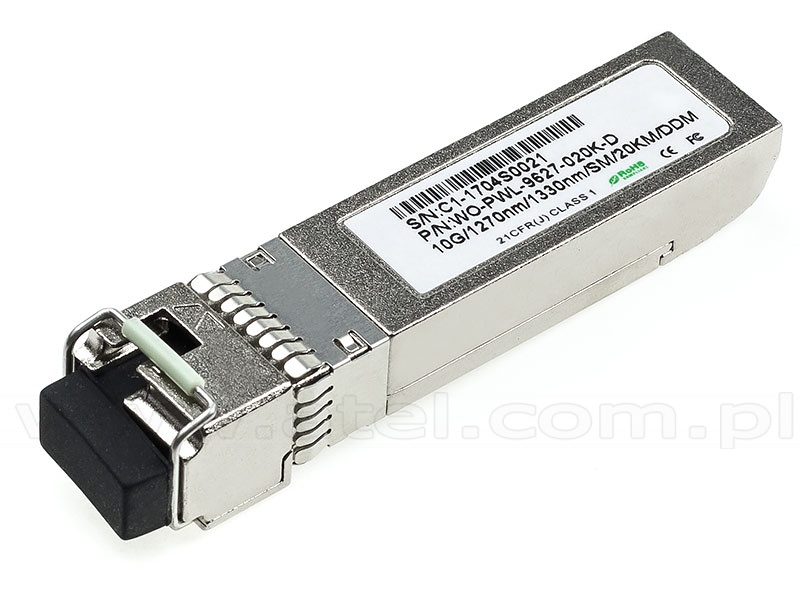

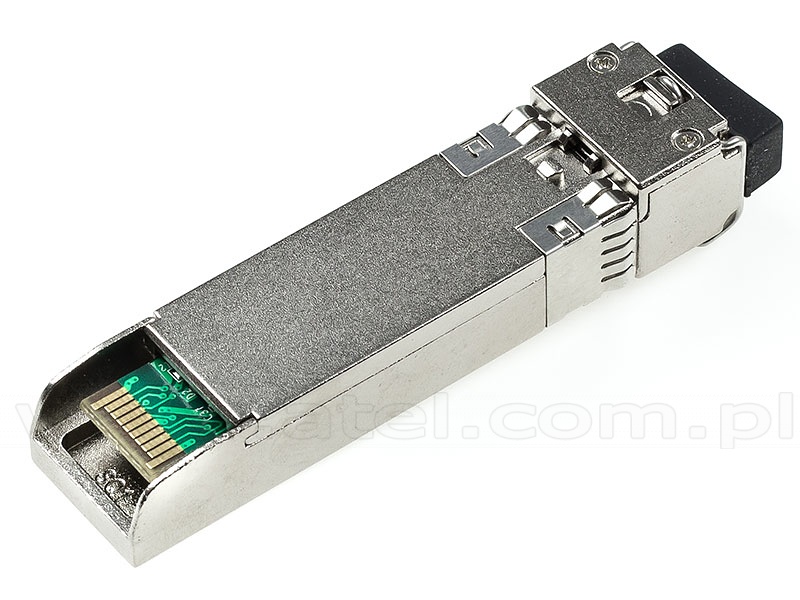

#08189

Module, SFP+ 1x 10 Gbps LC SM, 20 km, WDM TX:1270nm, DDMI (Wave Optics, WO-PWL-9627-020K-D)

Insert SFP + 10G designed for transmission with one fiber of a single-mode fiber (SM) at a distance of up to 20km. TX wavelength 1270nm. The DDMI interface allows to monitor the connection status.
Port 1x 10 gbps LC SM
TX wavelength 1270 nm
RX wavelength 1330 nm
Max. distance 20 km
Wave Division Multiplexing (WDM) yes
Module type SFP+
Warranty period 1 year
Manufacturer Wave Optics
WAVE OPTICS
WDM SFP+ Module, 10Gb, LC SM, 20km, TX:1270nm, DDMI
Net Price: 22,30 EUR  Unit: pcs  VAT: 23%
product card»
