#07013
Antennas 5 GHzUBIQUITI#07013

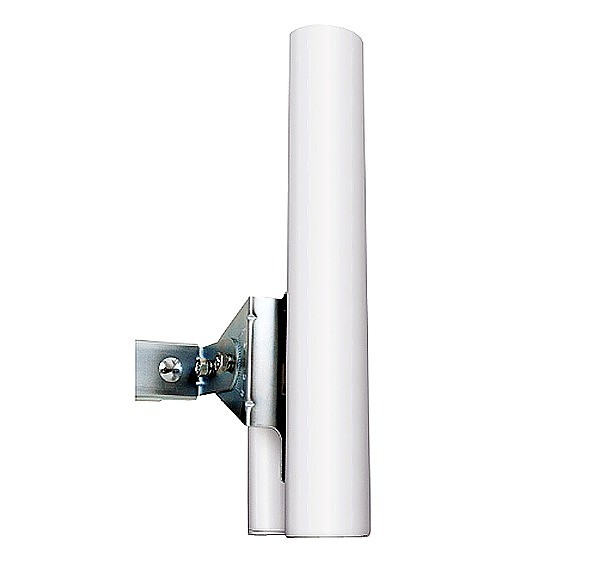

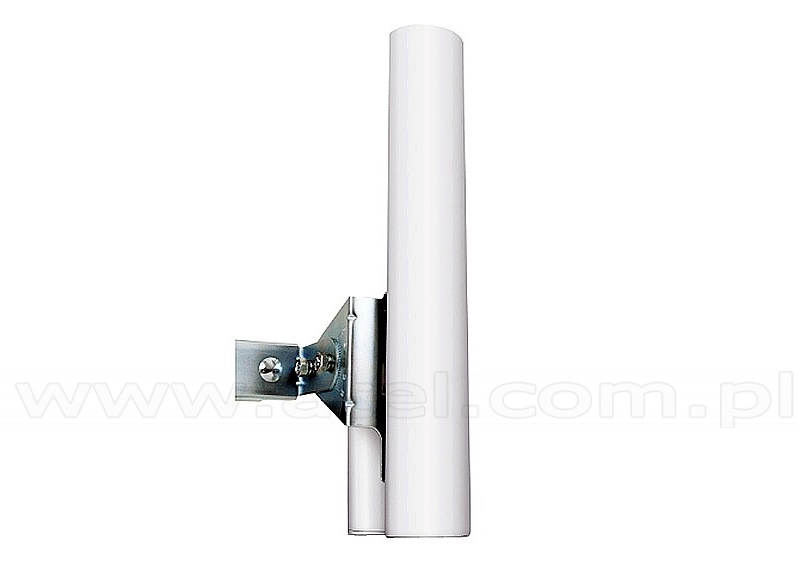

Airmax sector antenna 5 GHz, 16 dBi - 120 deg. (Ubiquiti 5G-120-16)

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Directional gain 16 dBi
Frequency range 5.1 - 5.9 GHz
Vertical beam width 8 degree
Horizontal beam width 118 degree
Polarization dual linear
Cross-pol izolation 22 db min.
Electrical downtilt 4 degree
VSWR 1,5
Windloading 120 mph
Connector SMA-RP(F)
Height 367 mm
Width 63 mm
Thickness 41 mm
Weight 1.1 kg
Manufacturer Ubiquiti
COMPATIBLE :
#07007 AIRMAX ROCKET M

Net Price: 63,20 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
