- » ANALOG SENSORS#08246
Smoke sensor (Vutlan VT560)
The sensor monitors occurrence of smoke.Technical specifications Sensitivity 0,05 - 0,2 db/m Features Installation On the bottom there are Ø5mm mounting holes for fastening the smoke sensor to the surface by 4.8×20mm screws or/and bracket and M4 screws. Connection Detector's jack RJ-11 is connected to an analog input of any system unit using patch-cable RJ-11. Determination of the sensor's type and connection occur automatically. The monitoring system allows to connect several smoke detectors into a linear circuit. For this purpose each detector has two jacks RJ-11 input and output. The first is connected to an analog input of the system unit using a patch-cable RJ-11,
the consequent is connected via patch-cable RJ-11 to an output of the first detector and so on. as one sensor with one address.Supply includes Detector,
4-wired cable RJ11 (2m),
2 screws and 2 nuts M4,
2 screws 4.8×20mm,
bracket,
double sided sticker.Net weight 290g Dimensions (LHW) Ø100×45 Max distance 150m
#08242Temperature sensor (Vutlan VT500)
The sensor is made for measurement of temperature indoors.
Measuring range: -10 ÷ 80°CTechnical specifications Operating temperature -10 ÷ 80°C Accuracy 1°C Features Installation On the bottom there is a ledge with Ø4.5mm and height 1mm and a Ø5mm mounting hole for fastening the sensor using a 4.8×16 mm screw. Connection Temperature sensor contains RJ-11 jack and is connected to an analog input of a system unit. Determination of type of sensor and connection occur automatically. Supply includes Sensor,
4-wired patch cable RJ11 (2m),
4.8×16mm screw,
double sided sticker.Net weight 50g Dimensions (LHW) 60×18×18mm Max distance 100m
- » CAN SENSORS#08295

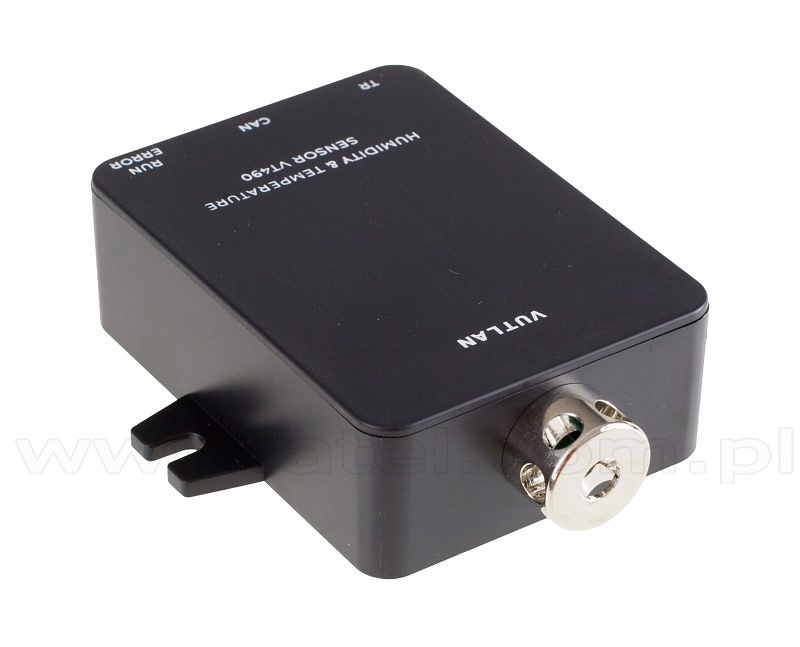

Humidity and temperature sensor (Vutlanl VT490)
Digital sensor made for monitoring temperature and humidity inside buildings, rack cabinets, etc.Technical specifications Measured temperature range -10 ÷ 80°C Accuracy ±0.4°C in –10 to 85 °C range Measured humidity range 0 - 95%RH Accuracy %RH ± 3% RH in 0 to 80% range Maximum distance from the appliance 225m Features Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-12 patch cable. Determination of sensor's type and connection occur automatically. The system enables connecting multiple sensors to a linear layout. For this purpose,
each sensor is equipped with two RJ-11 input and output sockets.Net weight 160g Dimensions 68 × 47 x 26 mm
#08237Smoke, humidity and temperature sensor (Vutlan VT460)
Digital sensor made for monitoring temperature and humidity and detecting smoke inside buildings, rack cabinets, etc.Technical specifications Smoke sensitivity 0,05 - 0,2 db/m Response time 10 sec Measured temperature range -10 to +75 °C Accuracy ±0.4°C in –10 to 85 °C range. Measured humidity range 0 - 95%. Accuracy %RH ± 3% RH in range of 0 - 80% Maximum distance from the appliance 225m Features Installation On the bottom there are mounting holes for fastening the smoke sensor to the surface using screws 4.8×20mm or/and bracket and M4 screws. Connection Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit. Set includes Sensor,
3-wired shielded patch cable RJ11 (2m),
bracket,
2 screws and 2 nuts M4,
2 screws 4.8×20mm,
double sided sticker.Net weight 310g Dimensions (LHW) Ø100×45mm
- » ADDITIONAL ACCESORIES#03152
RJS3 10m AWG24 6P4C straight cable
Patch cable for analog & CAN sensors, unshielded, 10m
#03150RJS3 3m AWG24 6P4C straight cable
Patch cable for analog & CAN sensors, unshielded, 3m
#03151RJS3 5m AWG24 6P4C straight cable
Patch cable for analog & CAN sensors, unshielded, 5m
#08288Sensor unit (Vutlan VT408)
Module allows to increase the number of sensors connected to the Vutlan master module. The expansion unit is connected to the CAN connector of the controller.Number of analog ports 8 Number of CAN ports 2 Maximum bus length 225 meters Maximum analog sensor cable length 50-150 meters,
depending on the sensor typeInstallation In the lower part of the casing there are Ø 5 mm holes for mounting the module, at a distance of 50 mm and 89 mm from the center. The cable is connected to the connector on the side wall. Connection Can be connected via RJ-12 cable to the CAN input of the control unit or another CAN sensor. The module is automatically detected on the first connection. Set includes module,
CAN cable RJ-12 (2m),
3.5x16mm screwsNet weight 0.6 kg Dimensions (LHW) 110×68×40 mm
#03133VT7670 LTE modem (Vutlan VT7670)
The VT7670 LTE modem slot module supports receiving and sending SMS messages via 2G and 3G networks, as well as providing Ethernet connectivity over LTE (4G). It ensures continuous communication by sending notifications over various channels like Ethernet, SMS, and SNMP. One of its critical functions is providing network redundancy; if the LAN connection fails, the module automatically switches to LTE 4G to maintain the Ethernet connection.
The VT7670 can be integrated into the latest Vutlan monitoring systems, including VT335t, VT336t, VT825t, and VT855t. Additionally, it features an embedded power cycling function, allowing remote rebooting of connected devices.
This module is ideal for network backup and ensuring communication reliability in mission-critical environments.
Antenna included.
-
