HARDWARE FEATURES: | |
---|---|
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
Power Requirements |
12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0) |
Power Consumption |
12V DC Max 11.5W, PoE Class 0 |
Dimensions( H X W X D ) | 74 × 184 × 74 mm |
General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
NETWORK: | |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
CAMERA: | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Lens | 2.8 mm |
Aperture | F1.6 |
Lens Mount | M12 |
Viewing Angle |
horizontal FOV 111.4°, vertical FOV 58.8°, diagonal FOV 134° |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
Weatherproof Rating | IP66 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE: | |
Video Compression |
Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
Frame Rate & Resolutions |
Frame Rate- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, Resolution- 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Video Streaming |
Main Stream, Sub-Stream |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate |
Main Stream 256 Kbps to 6 Mbps, Sub-Stream 64 Kbps to 512 Kbps |
SMART FEATURE-SET: | |
Smart Event |
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method |
Trigger Notification ONVIF, HTTPS |
Region of Interest | 1 Region |
OTHERS: | |
Built-in Microphone | Yes |
Built-in Speaker | Yes |
Certification | CE/BSMI/VCCI/ONVIF |
Package Contents |
VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Environment | Operating Temperature -30°~60° |
HARDWARE FEATURES: | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port (PoE) |
On-board Storage |
Built-in Memory Card Slot, Support MicroSD Card, Up to 512 GB |
Power Requirements |
12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug, PoE 802.3af/at, class 0, Max. 12.52 W |
Dimensions( H X W X D ) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Pan/Tilt Range |
Pan 0° to 360°, Tilt 0° to 85°, Rotate 0° to 360° |
NETWORK: | |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
CAMERA: | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Lens | 2.8 mm |
Aperture | F1.6 |
Lens Mount | M12 |
Viewing Angle |
Horizontal FOV 110°, Vertical FOV 58,1°, Diagonal FOV 133,5° |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
Weatherproof Rating | IP67 |
Vandal Resistant | IK10 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE: | |
Video Compression |
Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
Frame Rate & Resolutions |
Frame Rate- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution- 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Video Streaming |
Main Stream, Sub-Stream |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate | 64 Kbps to 4 Mbps |
SMART FEATURE-SET: | |
Smart Event |
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method |
Trigger Notification ONVIF, HTTPS |
Region of Interest | 1 Region |
OTHERS: | |
Certification | CE/BSMI/VCCI/ONVIF |
Package Contents |
Network Camera, Quick Start Guide, Mounting Accessories, Waterproof Cable Attachments |
Environment | Operating Temperature -30°~60° |
HARDWARE FEATURES: | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port (PoE) |
On-board Storage |
Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB |
Power Requirements |
12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug, PoE 802.3af/at, class 0, Max. 12.52 W |
Dimensions( H X W X D ) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Pan/Tilt Range |
Pan 0° to 360°, Tilt 0° to 85°, Rotate 0° to 360° |
NETWORK: | |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
CAMERA: | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Lens | 4 mm |
Aperture | F1.6 |
Lens Mount | M12 |
Viewing Angle |
Horizontal FOV 88°, Vertical FOV 46°, Diagonal FOV 105.4° |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
Weatherproof Rating | IP67 |
Vandal Resistant | IK10 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE: | |
Video Compression |
Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
Frame Rate & Resolutions |
Frame Rate- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution- 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Video Streaming |
Main Stream, Sub-Stream |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate | 64 Kbps to 4 Mbps |
SMART FEATURE-SET: | |
Smart Event |
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method |
Trigger Notification ONVIF, HTTPS |
Region of Interest | 1 Region |
OTHERS: | |
Certification | CE/BSMI/VCCI/ONVIF |
Package Contents |
VIGI Network Camera, Quick Start Guide, Mounting Accessories, Waterproof Cable Attachments |
Environment | Operating Temperature -30°~60° |
HARDWARE FEATURES: | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Power Requirements |
12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0) |
Power Consumption |
12V DC Max 18W, PoE Class 0 |
Dimensions( H X W X D ) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
NETWORK: | |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
CAMERA: | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Lens | 1.65 mm |
Aperture | F2.0 |
Lens Mount | M12 |
Viewing Angle |
Horizontal FOV 180°, Vertical FOV 86°, Diagonal FOV 180° |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
Weatherproof Rating | IP67 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE: | |
Video Compression |
Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
Frame Rate & Resolutions |
Frame Rate- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, Resolution- 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Video Streaming |
Main Stream, Sub-Stream |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate | 256 Kb/s to 6 Mb/s |
SMART FEATURE-SET: | |
Smart Event |
Area Intrusion Detection, Line-Crossing Detection |
Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method |
Trigger Notification ONVIF, HTTPS |
Region of Interest | 1 Region |
OTHERS: | |
Audio Input | Built-in Microphone |
Audio Output | Built-in Speaker |
Certification | CE/BSMI/VCCI/ONVIF |
Package Contents |
VIGI Network Camera, Quick Start Guide, Mounting Accessories |
Environment | Operating Temperature -30°~60° |
HARDWARE FEATURES: | |
---|---|
On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
Power Requirements |
12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0) |
Power Consumption | 12V/1A |
Dimensions( H X W X D ) |
Camera Dimensions 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm), Camera Dimensions with included antennas and bracket |
5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm) | |
NETWORK: | |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
CAMERA: | |
Image Sensor | 1/2.9" Progressive Scan CMOS |
Lens | 3,17 mm |
Aperture | F1.65 |
Viewing Angle |
122° (Diagonal), 105°(Horizontal), 59°(Vertical) |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Pan/tilt Range |
Pan Mechanical Range 340° (360° Pan Coverage), Tilt Mechanical Range 60° (130° Tilt Coverage) |
Minimum Illumination | Color 0.1 Lux@F2.0, 0 Lux with IR |
Weatherproof Rating | IP66 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE: | |
Video Compression |
Main stream- H.265+/H.265/H.264+/H.264, Sub-Stream- H.265/H.264 |
Frame Rate & Resolutions | 1920 × 1080 px |
Video Streaming |
Main Stream, Sub-Stream |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
SMART FEATURE-SET: | |
Smart Event |
Human & Vehicle Classification, Area Intrusion, Detection, Line-Crossing Detection, People, Detection, Vehicle Detection, Region Entering, Detection, Region Exiting Detection, Object, Abandoned Detection, Object Removal Detection |
Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method |
Trigger Notification ONVIF, HTTPS |
Region of Interest | 1 Region |
OTHERS: | |
Audio Input | Built-in Microphone |
Audio Output | Built-in Speaker |
Certification | CE/BSMI/VCCI/ONVIF |
Package Contents |
VIGI Network Camera, Quick Start Guide, Mounting Accessories |
Environment | Operating Temperature -30°~60° |
HARDWARE FEATURES: | |
---|---|
Button | Reset |
Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
Adapter Output |
9 V, 0.85 A (DC Power) |
Dimensions( H X W X D ) | 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm) |
WIRELESS FEATURES: | |
Wireless Data Rates | IEEE 802.11 b/g/n |
Frequency | 2.4-2.4835GHz |
Wireless Encryption | WPA/WPA2-PSK |
Security | 128 bit AES encryption with SSL/TLS |
CAMERA: | |
Image Sensor | 1/3'' CMOS |
Resolution | 3K 5MP (2880 × 1620) |
Lens |
Focal Length 3.2 mm, Aperture F1.6 |
Field of View |
112° (Diagonal), 95°(Horizontal), 53°(Vertical) |
Night Vision | 850 nm IR LED (98 ft / 29.9 m) Full-Color Night Vision |
Video Compression | H.264 |
Frame Rate | 15fps |
ACTIVITY NOTIFICATIONS | |
Input Trigger |
Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Tamper Detection |
Output Notification | Notification, Snapshot(Tapo care),Clips(Tapo care). |
AUDIO: | |
Audio Communication | 2-Way |
Audio Input | Built-in microphone |
Audio Output | Built-in speaker |
OTHERS: | |
Certification |
CE, FCC, RoHS, RCM |
Package Contents |

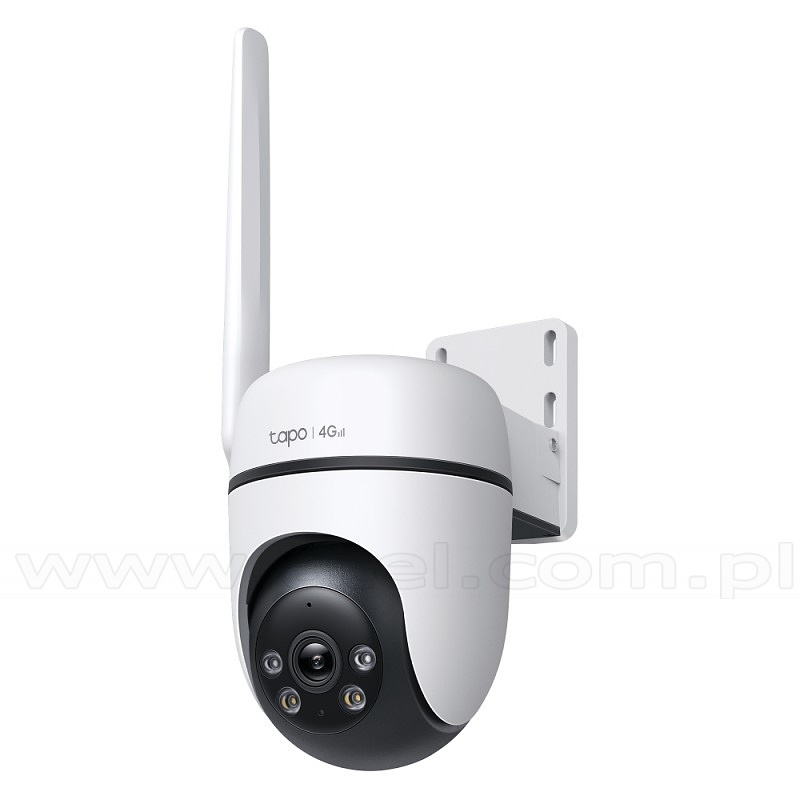

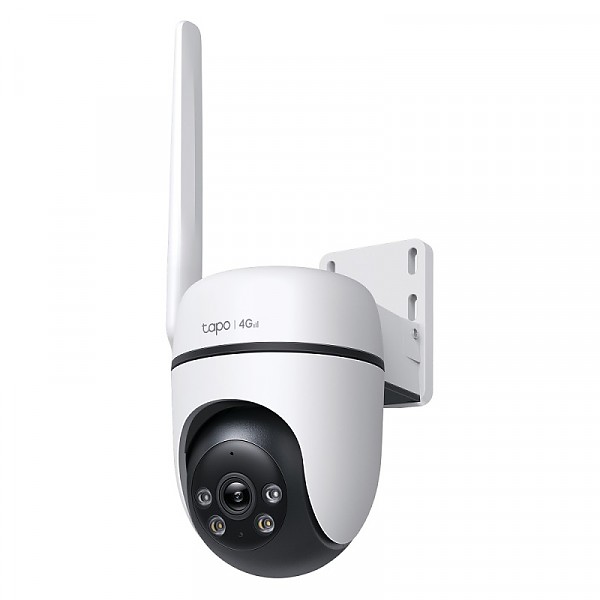

Tapo C530WS, Power Adapter, Mounting Template, Anchors and Screws, Waterproof Seal, Quick Start Guide |
Environment |
Operating Temperature -30°~60°, Storage Temperature -40°~60° (-40°~140°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Appearance | VIGI White |
---|---|
Weight | 533g |
Package Contents |
Junction Box, Mounting Accessories, Installation Guide |
Material |
Aluminum Alloy, SGCC |
Product Dimensions (L x W x H) | 7.1 × 5 .3 × 2.3 in (181 × 134 × 59 mm) |
HARDWARE FEATURES | |
---|---|
Compatibility |
Windows, macOS, Chrome OS, Linux OS and Andriod |
Connector | 1*USB 3.0 Type-C 5Gbps |
SD Interface |
1*SD, USH-I, up to 200 MB/s, 2TB Max |
microSD Interface |
1*microSD(TF), USH-I, up to 200 MB/s, 2TB Max |
Case | Aluminum Alloy Case |
Cable | 150 mm (5.9 in) Braided Cable |
Warranty | 2 years |
HARDWARE FEATURES | |
---|---|
Compatibility |
Windows, macOS, Chrome OS, Linux OS and Andriod |
Connector | 1*USB Type-C |
Interface |
1*HDMI, up to 4K@60Hz |
Warranty | 2 years |
HARDWARE FEATURES | |
---|---|
Compatibility |
Windows, macOS, Chrome OS, Linux OS and Andriod |
Connector | 1*USB 3.0 Type-C 5Gbps |
SD Interface |
1*SD, USH-I, up to 200 MB/s, 2TB Max |
microSD Interface |
1*microSD(TF), USH-I, up to 200 MB/s, 2TB Max |
Case | Aluminum Alloy Case |
Cable | 150 mm (5.9 in) Braided Cable |
Warranty | 2 years |
Page 7 of 16
|
