New Items in Atel Electronics

NEW ITEMS


  • Computer Network Accessories
    • GPON / EPON
        #09623

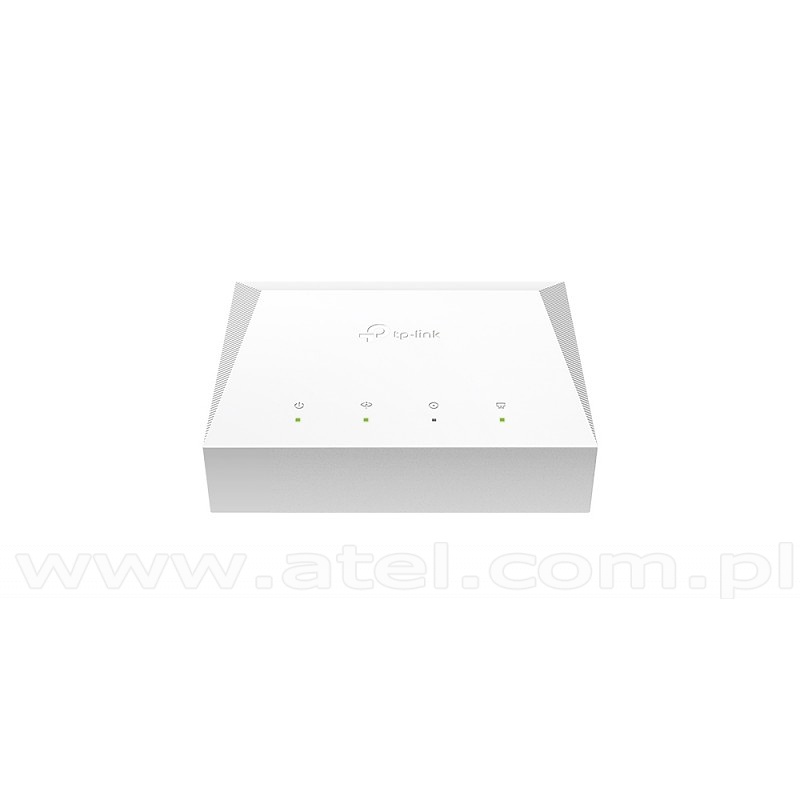

        XPON Terminal, 1-Port 10/100/1000 Mb/s (TP-Link XZ000-G7)

        • Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
        • XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
        • Ease of Use: Quick and hassle-free installation with intelligent power-saving.
        • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
        HARDWARE FEATURES:
        Standards and Protocols GPON ITU-T G.988,
        G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        IEEE Standards IEEE 802.3, 802.3u,
        802.1p,
        802.1Q
        Interface 1× PON Port,
        1× RJ45 10/100/1000 Mb/s
        Button 1× Power On/Off Button,
        1x RESET Button
        External Power Supply 9VDC / 0.6A
        Dimensions (W X D X H) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
        Distance 0~ 20Km
        Signal Rate Upstream 1.244Gbps,
        Downstream 2.488Gbps
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        RoHS
        Package Contents XZ000-G7,
        Power Adapter
        System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10,
        MAC OS,
        NetWare,
        UNIX or Linux,
        Internet Explorer 11,
        Firefox 12.0,
        Chrome 20.0,
        Safari 4.0,
        or other Java-enabled browser,
        Subscription with an internet service provider (for internet access)
        Environment Operating Temperature 0°~40° (32°~104°),
        Storage Temperature -40°~60° (-40°~140°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Warranty 3 years limited warranty.
        Manufacturer TP-Link
        TP-LINK
        XPON Terminal, 1-Port 10/100/1000 Mb/s (TP-Link XZ000-G7)
        Net Price: 17,00 EUR
        product card»
        #09622

        XPON Terminal, 1-Port 2.5G (TP-Link XZ005-G6)

        • High-Speed GPON Access: Enables multi-gig internet connections up to 2.5 Gbps downstream and 1.25 Gbps upstream.
        • XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
        • 2.5G Wired Connections: 1× 2.5 GbE LAN port enables fast network sharing and reliable connections.
        • Ease of Use: Quick and hassle-free installation with intelligent power-saving.
        • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
        HARDWARE FEATURES:
        Standards and Protocols GPON ITU-T G.988,
        G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        IEEE Standards IEEE 802.3, 802.3u,
        802.1p,
        802.1Q
        Interface 1× PON Port,
        1× 2.5 Gigabit RJ45 LAN Port
        Button 1× Power On/Off Button,
        1x RESET Button
        External Power Supply 9VDC / 0.6A
        Dimensions (W X D X H) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
        Distance 0~ 20Km
        Signal Rate Upstream 1.244Gbps,
        Downstream 2.488Gbps
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        FCC,
        RoHS
        Package Contents XZ005-G6,
        Power Adapter
        System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10,
        MAC OS,
        NetWare,
        UNIX or Linux,
        Internet Explorer 11,
        Firefox 12.0,
        Chrome 20.0,
        Safari 4.0,
        or other Java-enabled browser,
        Subscription with an internet service provider (for internet access)
        Environment Operating Temperature 0°~40° (32°~104°),
        Storage Temperature -40°~60° (-40°~140°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Warranty 3 years limited warranty
        Manufacturer TP-Link
        TP-LINK
        XPON Terminal, 1-Port 2.5G (TP-Link XZ005-G6)
        Net Price: 19,00 EUR
        product card»
        #09624

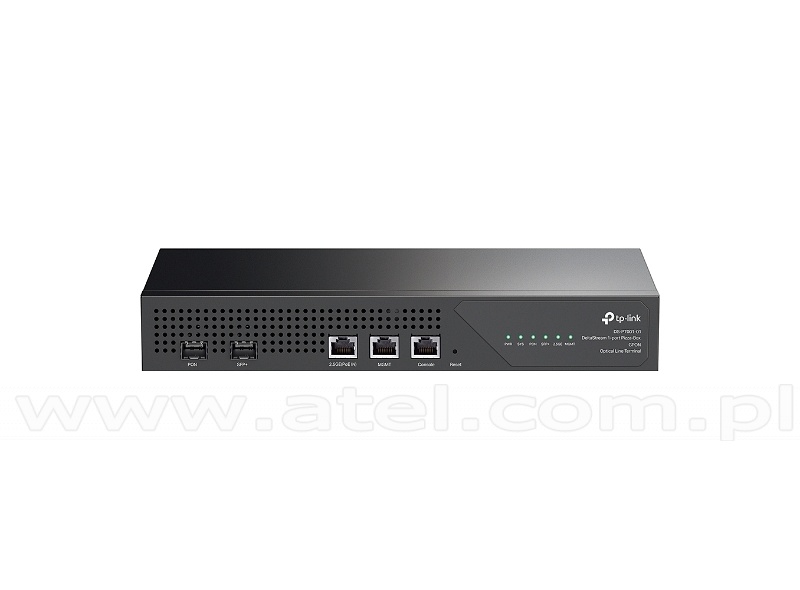

        DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal, 10G (TP-Link DS-P7001-01)

        • GPON Port: Supports 1:128 splitting ratio—up to 128 ONTs by one device—perfect for small businesses and home offices.
        • High-Speed Uplink Ports: 1× 10G SFP+ port and 1× 2.5 GbE uplink port offer high-bandwidth connectivity.
        • Flexible Deployment: Supports both DC and 802.3at PoE power supplies to fit various application scenarios.
        • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirements for different applications.
        • Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
        HARDWARE FEATURES:
        Interface 1× 2.5G PON Ports,
        1× 10 Gbps SFP+ Uplink Port,
        1× 10/100/1000 Mbps RJ45 Uplink Port,
        1× RJ45 Console Port,
        1× RJ45 MGMT Port,
        1× Alarm Port (Reserved)
        Button 1 RESET Button
        Power Supply Dual Power Supplies DC and 802.3at PoE,
        DC Adapter 12.0V/2.5A,
        802.3at PoE 42.5~57V/0.6A
        Power Consumption Max. 17W
        Dimensions (W X D X H) 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
        Distance 0~ 60Km
        Data rate Downstream 2.5 Gbps,
        Upstream 1.25 Gbps
        Wavelength Tx 1490 nm,
        Rx 1310 nm
        Interface type SC/UPC
        Fiber type 9/125μm SMF (Single Mode Fiber)
        GPON Standards ITU-T G.984.1,
        G.984.2,
        G.984.3,
        G.984.4
        Optical Module Class B+
        Receiver Super-TIA
        Transmitter DFB Laser
        Wavelength Upstream 1310nm,
        Downstream 1490nm
        SOFTWARE FEATURES:
        Quality of Service Service Flow Classification based on VLAN,
        Schedule rules Support SP/WRR,
        Upstream Priority Label Support 802.1D User Priority,
        Rate Limit and Traffic shaping,
        Congestion Control Support Tail-Drop
        VLAN 802.1Q tag VLAN,
        VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
        Authentication based on SN and Password,
        VLAN Auto Detect
        Security AES Encryption,
        Packet Filter based on VLAN
        Management Managed by Web,
        OMCI and Telnet,,
        Specified the management IP,
        Reset to Factory default by Reset button or Web UI,
        Real-time statistics,
        Optical Diagnostic
        Advanced Features Upstream and Downstream FEC,
        Dynamic Bandwidth Allocation(DBA) support NSR/SR,
        Up to 16 T-CONTs and 256 GEM Ports,
        Optical power detection,
        Dying Gasp,
        Terminal Silent mechanism,
        802.3az EEE Energy Conservation
        IGMP IGMP v1/v2/v3
        OTHERS:
        Certification CE,
        FCC
        Environment Operating Temperature 0°~50° (32°~122°),
        Storage Temperature -40°~70° (-40°~158°),
        Operating Humidity 10%~90% non-condensing,
        Storage Humidity 5%~90% non-condensing
        Manufacturer TP-Link
        TP-LINK
        DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal, 10G (TP-Link DS-P7001-01)
        Net Price: 767,00 EUR
        product card»
