          #09590

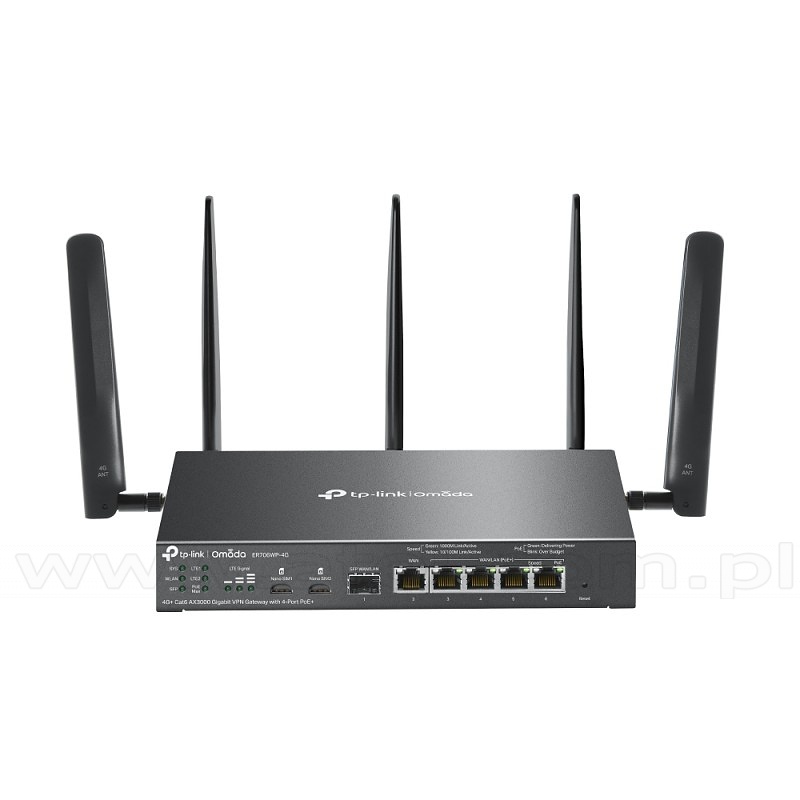

          3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link ER706WP-4G)

          • Support 4G+ Cat6 up to 300 Mbps (Not compatible with AT&T's Text & Data plans in the US).
          • AX3000 Dual-Band WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
          • 1× Gigabit WAN Port, 5× Gigabit WAN/LAN Ports
          • 5 × High-Gain Detachable Antennas
          • Centralized Management
          • Omada Mesh Technology.
          • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.
          Standards IEEE 802.3u/ab/z/x/q
          Copper ports 1 Gigabit SFP WAN/LAN Port,
          1 Gigabit WAN Port,
          4 Gigabit LAN/WAN Ports
          Flash 256 MB NAND
          DRAM 512 MB DDR4
          Antenna Wi-Fi Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas,
          LTE Two 4.0dBi omnidirectional detachable antennas
          4G
          Network Type LTE Band of EU,
          4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz),
          4G LTE-TDD B38/B40/B41 (2600/2300/2500 MHz),
          3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA B1/B3/B5/B8 (2100/1800/850/900 MHz),
          Carrier Aggregation of EU- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41,
          B3+B3/B5/B7/B8/B20/B28/B38/B40/B41,
          B5+B5/B7/B38/B40/B41,
          B7+B7/B8/B20/B28/B32,
          B8+B32/B38/B40/B41,
          B20+B32/B38/B40,
          B28+B32/B38/B40/B41,
          B38+B38,
          B40+B40,
          B41+B41,
          LTE Band of US- 4G LTE-FDD B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71,
          (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz),
          4G LTE-TDD B41/B48 (2500/3600 MHz),
          Carrier Aggregation of US- B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71,
          B4+B4/B5/B7/B12/B13/B29/B30/B71,
          B5+B5/B7/B25/B30/B41/B66,
          B7+B7/B12/B66,
          B12+B12/B25/B30/B66,
          B13+B66,
          B14+B30/B66,
          B25+B25/B26/B41,
          B26+B41,
          B29+B30/B66,
          B30+B66,
          B41+B41,
          B48+B48,
          B66+B66/B71
          SIM Type 2× Nano SIM Card( (4G+ Cat6)
          Frequency Downlink 300 Mbps; Uplink 50 Mbps
          Performance
          GRE Unencrypted 545.3Mbps,
          Encrypted 282.6Mbps
          WireGuard VPN 387,7Mb/s
          Concurrent Session 150,000
          New Sessions /Second 5,100
          NAT (Static IP) 947,1Mb/s / 940,1Mb/s
          NAT(DHCP) 949,2Mb/s / 941,1Mb/s
          NAT(PPPoE) 942,6Mb/s / 941,1Mb/s
          NAT (L2TP) 875,4Mb/s / 892,0Mb/s
          NAT (PPTP) 881,2Mb/s / 895,8Mb/s
          IPsec VPN Throughput ESP-SHA1-AES256 646,9 Mb/s,
          ESP-SHA256-AES256 642,8 Mb/s,
          ESP-SHA384-AES256 648,9 Mb/s,
          ESP-SHA512-AES256 658,4 Mb/s
          OpenVPN 115,5Mb/s
          L2TP VPN Throughput Unencrypted 990.0Mbps,
          Encrypted 475.0Mbps
          PPTP VPN Throughput Unencrypted 1177.9Mbps,
          Encrypted 177.4Mbps
          SSL VPN Throughput 122,5Mb/s
          66 Byte Packet forwarding rate 1,453,489 p/s / 1,453,488 p/s
          1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
          Basic functions
          WAN Connection Type Static/Dynamic IP,
          PPPoE,
          PPTP,
          L2TP
          MAC Clone Modify WAN/LAN MAC Address
          DHCP DHCP Server,
          DHCP Address Reservation,
          Multi-IP Interfaces,
          Multi-Net DHCP
          IPv6 Developing
          VLAN 802.1Q VLAN
          IPTV IGMP v2/v3 Proxy
          Advanced functions
          ACL IP/Port/Protocol/Domain Name Filtering
          Advanced Routing Static Routing,
          Policy Routing
          Bandwidth Control IP/Port-based Bandwidth Control,
          Guarantee & Limited Bandwidth
          Load Balance Intelligent Load Balance,
          Application Optimized Routing,
          Link Backup (Timing§,
          Failover),
          Online Detection
          NAT One-to-One NAT,
          Multi-Net NAT,
          Virtual Server,
          Port Triggering,
          NAT-DMZ,
          FTP/H.323/SIP/IPSec/PPTP ALG,
          UPnP
          Security SPI Firewall,
          VPN Passthrough,
          FTP/H.323/PPTP/SIP/IPsec ALG,
          DoS Defence,
          Ping of Death,
          Local Management
          Session Limit IP-based Session Limit
          VPN
          IPsec VPN 100 IPSec VPN Tunnels,
          LAN-to-LAN,
          Client-to-LAN,
          Main,
          Aggressive Negotiation Mode,
          DES,
          3DES,
          AES128,
          AES192,
          AES256 Encryption Algorithm,
          IKEv1/v2,
          MD5,
          SHA1 Authentication Algorithm,
          NAT Traversal (NAT-T),
          Dead Peer Detection (DPD),
          Perfect Forward Secrecy (PFS)
          PPTP VPN PPTP VPN Server,
          10 PPTP VPN Clients,
          50 Tunnels,
          PPTP with MPPE Encryption
          L2TP VPN L2TP VPN Server,
          10 L2TP VPN Clients,
          50 Tunnels,
          L2TP over IPSec
          OpenVPN OpenVPN Server,
          10 OpenVPN Clients,
          50 OpenVPN Tunnels
          Web Authentication No Authentication,
          Simple Password,
          Hotspot（Local User / Voucher* / SMS* / Radius*）,
          External Radius Sever,
          External Portal Sever,
          Facebook
          Management
          Omada App Yes
          Centralized Management Omada Cloud-Based Controller,
          Omada Hardware Controller (OC300),
          Omada Hardware Controller (OC200),
          Omada Software Controller
          Cloud Access Yes (Through OC300,
          OC200,
          Omada Cloud-Based Controller,
          or Omada Software Controller)
          Service Dynamic DNS (Dyndns,
          No-IP,
          Peanuthull,
          Comexe)
          Maintenance Web Management Interface,
          Remote Management,
          Export & Import Configuration,
          SNMP v1/v2c/v3,
          Diagnostics (Ping & Traceroute),
          NTP Synchronize,
          Syslog Support
          Management Features Automatic Device Discovery,
          Intelligent Network Monitoring,
          Abnormal Event Warnings,
          Unified Configuration,
          Reboot Schedule,
          Captive Portal Configuration,
          ZTP (Zero-Touch Provisioning)
          Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
          Operating temperature 0°C ÷ 40°C
          Operating humidity 10% ÷ 90%,
          non-condensing
          Power 4 Ports PoE+ Output,
          45 W PoE Budget
          Max Power Consumption 64.9W with PoE Max; 19.8W without PoE
          Certificates CE,
          FCC,
          RoHS
          Manufacturer TP-Link
          TP-LINK
          3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link ER706WP-4G)
          Net Price: 281,00 EUR
