#06506

Industrial Gigabit High Power Injector, 2x10/1000 M12 PoE (ORing TINJ-101GT-M12-24V)

ORing’s Transporter series PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TINJ-101GT-M12-24V PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provided 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial environments. TINJ-101GT-M12-24V EN50155 PoE Injector use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the TINJ-101GT-M12-24V PoE Injector. Typically, in Ethernet networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50V insertion, the installer doesn’t need to worry about voltage drops caused by cable length. The TINJ-101GT-M12-24V PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
Physical Ports
10/100/1000 Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX 1 (8-pin M12 female A-coding connector)
10/100/1000 Base-T(X) Port in M12 Auto MDI/MDIX 1 (8-pin M12 female A-coding connector)
Operating Voltage
Input Voltage Railway 24VDC (12 ~ 57 VDC) on 5-pin M12 female A-coding
Output Power 50V / 600mA,
30 Watts max. Per port
LED Indicators
Power indicator PWR / Ready 1 x LED,
Green On - Power is on and functioning Normally
PoE Indicators 1 x LED,
Blue On - PoE Device Link,
Blue Blinking - Detecting PoE Device,
Blue Off - None PoE Device Detected
Protection
Short Circuit Protection present
Over Load Protection present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 88.9 x 40 x 178.2 mm
Weight 446g
Environmental
Storage Temperature -4080C(-40176F)
Operating Temperature -2575C (-13167F)
Operating Humidity 5%90% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15 B,
EN 50155(EN 50121-1,
EN 50121-3-2)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15 B class A
EMS IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),
IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN 50155
MTBF 2,761,341 hrs.
Warranty
Warranty period 5 years
ORING NETWORKING
ORing TINJ-101GT-M12-24V, Industrial Gigabit High Power Injector, 2x10/1000 M12 PoE
* For special orders only
Net Price: 370,00 EUR  Unit: pcs  VAT: 23%

 UNMANAGED SWITCHES
#07649

Unmanaged switch, 5x 10/100 M12 (ORing TES-150-M12)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-150-M12 is an unmanaged Ethernet switch with 5x10/100Base-T(X) ports which is compliant with EN50155 request. It is specifically designed for the toughest industrial environments. TES-150-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. The TES-150-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for your network. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
10/100 Base-T(X) Ports w/Auto MDI/MDIX 5
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
Processing Store-and-Forward
LED Indicators
Power Indicator Green - Power LED x 1
10/100TX Port Indicator Green for port Link/Act,
Amber for Duplex/Collision
Power
Input power 12~48 VDC
Connector Type Waterproof M12
Power consumption (typical) 3W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 88.9 (W) x 40 (D) x 178.2 (H)mm
Weight 375g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6,
EN61373
Safety EN60950-1
Warranty
Warranty period 5 years

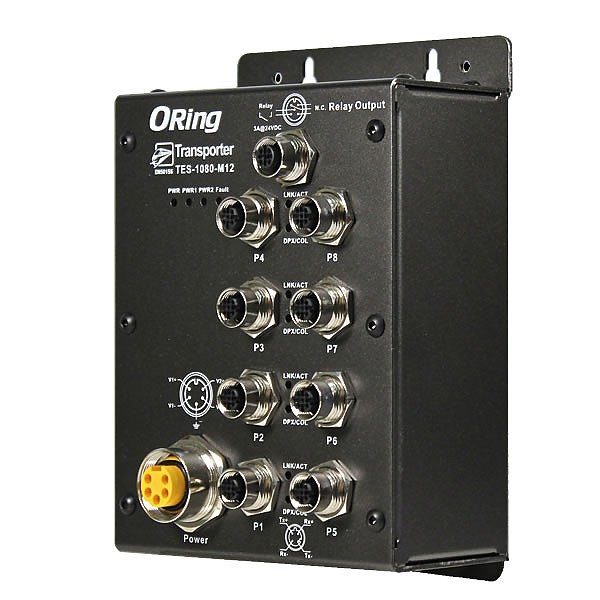

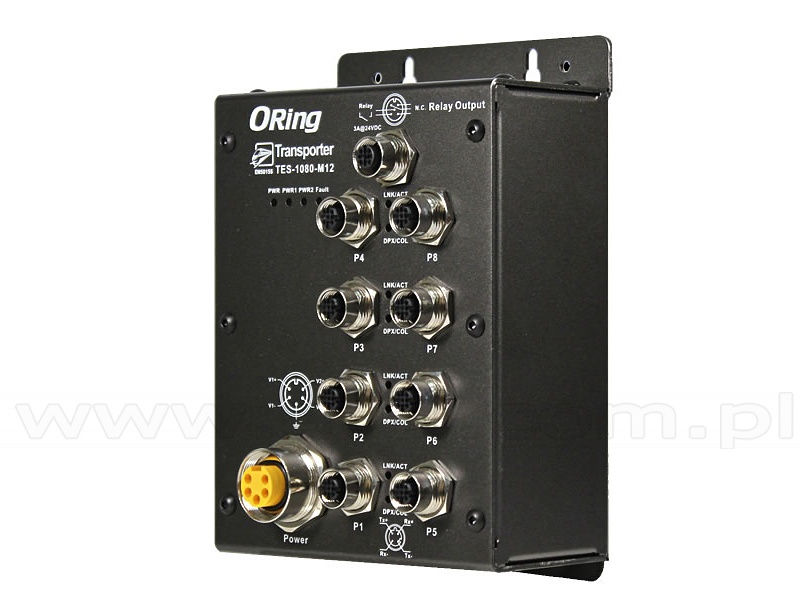

#08415

Unmanaged switch, 8x 10/100 M12 (ORing TES-1080-M12)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.
The TES-1080-M12 is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports with EN50155 certification.TES-1080-M12 rugged IP-40 aluminum enclosure.
All Ethernet ports on TES-1080-M12 are implemented with M12 connectors to ensure dust-tight connection,and to guarantee reliable operation against environmental disturbances, such as vibration and shock.
In addition, the wide operating temperature range from -40C to 70C can satisfy most of tough operating environments. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
10/100 Base-T(X) Ports w/Auto MDI/MDIX 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power Indicator Green - Power LED x 2,
Indicates power input
Ready / Ring Master Indicator Green - Indicate system ready and Ring master mode
O-Ring Indicator Green- Indicates port operating in O-Ring mode
10/100TX Port Indicator Green for port Link/Act. Amber for Collision/Duplex indicator
Power
Input power Dual 12~ 48 VDC
Connector Type Waterproof M12
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 125mm x 65mm x 196mm
Weight 896 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#07898

Unmanaged switch, 8x 10/100 M12 (ORing TES-180-M12)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-180-M12 is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. It is specifically designed for the toughest industrial environments. TES-180-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. The TES-180-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for your network. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
10/100 Base-T(X) Ports w/Auto MDI/MDIX 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
Processing Store-and-Forward
LED Indicators
Power Indicator Green - Power LED x 1
10/100TX Port Indicator Green for port Link/Act,
Amber for Duplex/Collision
Power
Input power 12~48 VDC
Connector Type Waterproof M12
Power consumption (typical) 4.32W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 88.9 (W) x 40 (D) x 178.2 (H)mm
Weight 510g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6,
EN61373
Safety EN60950-1
Warranty
Warranty period 5 years

#08416

Unmanaged switch, 8x 10/100 M12 Bypass, (ORing TES-1080-M12-BP2)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway. The TES-1080-M12-BP2, which is compliant with the EN50155 standard, is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports (4 of these ports also double as 2 sets of bypass ports).
TES-1080-M12-BP2 is constructed of a rugged aluminum case and designed with Ethernet ports (M12 type connector), which provide a dust-tight connection. TES-1080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.
TES-1080-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. Each set of these bypass ports includes Network ports and Monitor ports.
The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-linking local networking device. When the power is on, the operating mode of the Bypass ports is set to Normal, and the local networking device is connected with main-network. When power failure occurs, the Bypass ports are swiftly set to bypass mode to isolate the main-network from the local networking device.
In addition, the wide operating temperature range from -40C to 70C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 8 (Built-in 2 sets of bypass ports)
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power Indicator Green - Power LED x 2,
Indicates power input
Ready / Ring Master Indicator Amber LED - Light on for system ready / Blinking for system ready and Ring master mode - Light off for system failed
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
Power
Input power Dual 12~48VDC
Connector Type Waterproof M12
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 125mm x 65mm x 196mm
Weight 896 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

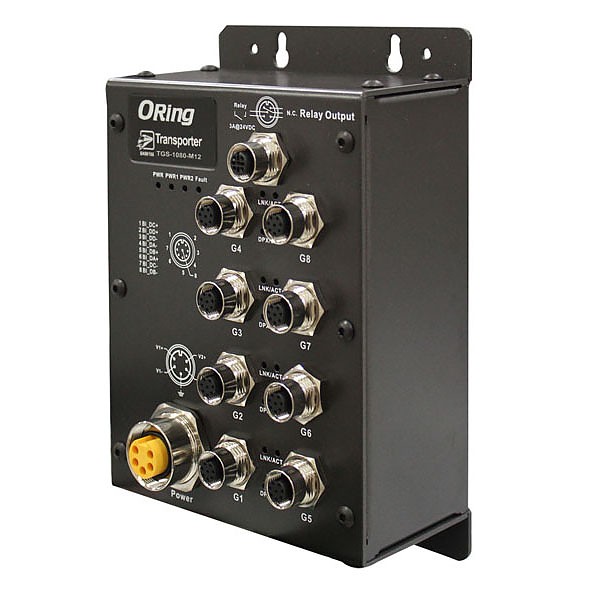

#07864

Unmanaged switch, 8x 10/100/1000 M12 (ORing TGS-1080-M12)

ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGS-1080-M12 is an un-managed Ethernet switch with 8x10/100/1000Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement. Each TGS-1080-M12 switch has 8X10/100/1000Base-T(X) ports. TGS-1080-M12 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock application.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 3
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) M12 port indicator Top for port Link/Act indicator. Green for 1000Mbps link,
Amber for 10/100 Mbps link,
Bottom Amber for Duplex / Collision indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual 12~48VDC on 5-pin M23 connector,
72~110VDC for TGS-1080-M12-MV
Power consumption (typical) 2.88W
Overload current protection present
Physical Characteristic
Dimension (W x D x H) 125 x 65 x 196 mm
Weight 967 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years
TGS-1080-M12-MV - version with 110VDC power input

#07850

Unmanaged switch, 8x 10/100/1000 M12 PoE (ORing TGXPS-1080-M12-24V)

ORing's TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGXPS-1080-M12-24V is an un-managed PoE Ethernet switch with 8x10/100/500/1000Base-T(X) P.S.E. which is specifically designed for the toughest and fully compliant with EN50155 requirement. TGXPS-1080-M12-24V also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TGXPS-1080-M12-24V switch has 8X10/100/500/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TGXPS-1080-M12-24V EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed PoE Ethernet application.
While installing in the train, TGXPS-1080-M12-24V is mainly used for in-train monitoring and Entertainment service due to its high speed Gigabit Ethernet
connection and PoE capability. Devices connected will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TGXPS-1080-M12-24V is not able and will not be used for any control related application. Its main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8
Connector Type M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
MAC Table 4k
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 3
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) M12 port indicator and PoE indicator Top for port Link/Act indicator. Green for 1000Mbps link,
Amber for 10/100 Mbps link,
Middle Amber for 500Mbps port Link/Act indicator,
Bottom blue for PoE Injected indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual 24 (12~57VDC)VDC on 5-pin M23 connector
Power consumption (typical) 8W
PoE Output Power 60W (12~24VDC) / 120W (24~57VDC)
Overload current protection present
Reverse polarity protection Present
Physical Characteristic
Dimension (W x D x H) 125 x 65 x 196 mm
Weight 979 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4075C (-40167F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15B,
EN 50121-3-2 (EN 50155)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN 50155
MTBF 442602 hrs
Warranty
Warranty period 5 years
ORING NETWORKING
ORing TGXPS-1080-M12-24V, Unmanaged switch, 8x 10/100/1000 M12 PoE
* For special orders only
Net Price: 825,00 EUR  Unit: pcs  VAT: 23%

#07851

Unmanaged switch, 8x 10/100/1000 M12 PoE (ORing TGXPS-1080-M12-MV)

ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGXPS-1080-M12-MV is an un-managed PoE Ethernet switch with 8x10/100/500/1000Base-T(X) P.S.E. which is specifically designed for the toughest and fully compliant with EN50155 requirement. TGXPS-1080-M12-MV also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TGXPS-1080-M12-MV switch has 8X10/100/500/1000Base-T(X) IEEE 802.3af/at P.S.E. (Power Sourcing Equipment) ports, but the PoE total power budget is 60Watts Max. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TGXPS-1080-M12-MV EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed PoE Ethernet application.
While installing in the train, TGXPS-1080-M12-MV is mainly used for in-train monitoring and Entertainment service due to its high-speed Gigabit Ethernet connection and PoE capability. Devices connected will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TGXPS-1080-M12-MV is not able and will not be used for any control related application. Its main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
MAC Table 4k
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 1
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) M12 port indicator and PoE indicator Top for port Link/Act indicator. Green for 1000Mbps link,
Amber for 10/100 Mbps link,
Middle Amber for 500Mbps port Link/Act indicator,
Bottom blue for PoE Injected indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power 72/110 (50.4-137.5) VDC on 5-pin 7/8-inch male connector
Power consumption (typical) 8W
PoE Output Power 60W (12~24VDC) / 120W (24~57VDC)
Overload current protection present
Reverse polarity protection Present
Physical Characteristic
Dimension (W x D x H) 150 x 65 x 196 mm
Weight 1320 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4075C (-40167F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15B,
EN 50121-3-2 (EN 50155)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN 50155
MTBF 229943 hrs
Warranty
Warranty period 5 years
ORING NETWORKING
ORing TGXPS-1080-M12-MV, Unmanaged switch, 8x 10/100/1000 M12 PoE
* For special orders only
Net Price: 1 440,00 EUR  Unit: pcs  VAT: 23%

#07865

Unmanaged switch, 8x 10/100/1000 M12, Bypass (ORing TGS-1080-M12-BP2)

ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGS-1080-M12-BP2 is an un-managed Ethernet switch with 8x10/100/1000Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement. Each TGS-1080-M12-BP2 switch has 8X10/100/1000Base-T(X) ports. TGS-1080-M12-BP2 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TGS-1080-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock application.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8 (bypass function included by last 4 ports)
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 3
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) M12 port indicator Top for port Link/Act indicator. Green for 1000Mbps link,
Amber for 10/100 Mbps link,
Bottom Amber for Duplex / Collision indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual 12~48VDC on 5-pin M23 connector,
72~110VDC for TGS-1080-M12-BP2-MV
Power consumption (typical) 6.24W
Overload current protection present
Physical Characteristic
Dimension (W x D x H) 125 x 65 x 196 mm
Weight 1007 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years
TGS-1080-M12-BP2-MV - version with 110VDC power input

#06629

Unmanaged switch, 8x 10/100/500/1000 M12 (ORing TGXS-1080-M12)

ORing’s Transporter series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGXS-1080-M12 is an un-managed Ethernet switch with 8x10/100/500/1000Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement. TGXS-1080-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40 oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application. While installing in the train, TGXS-1080-M12 is mainly used for in-train monitoring and Entertainment service due to its high speed Gigabit Ethernet connection. Devices connected will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TGXS-1080-M12 is not able and will not be used for any control related application. Its main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T
MAC Table 4k MAC addresses
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 3
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/500/1000Base-T(X) M12 port indicator Top for 10/100/1000Mbps port Link/Act indicator. Green for 1Gbps link,
Amber for 10/100 Mbps link,
Bottom Amber for 500Mbps port Link/Act indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual 12~48VDC on 5-pin M23 connector,
72~110VDC for TGS-1080-M12-MV
Power consumption (typical) 7W
Overload current protection present
Reverse Polarity Protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 125 x 65 x 196 mm
Weight 812 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4075C (-40167F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15B,
EN 50121-3-2 (EN 50155)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN50155
MTBF 409156 hrs
Warranty
Warranty period 5 years
TGS-1080-M12-MV - version with 110VDC power input
ORING NETWORKING
ORing TGXS-1080-M12, Unmanaged switch, 8x 10/100/500/1000 M12
* For special orders only
Net Price: 684,00 EUR  Unit: pcs  VAT: 23%

 MANAGED SWITCHES
#07648

Smart switch, 5x 10/100 M12, O-Ring <10ms (ORing TES-250-M12)

ORing’s Transporter series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-250-M12 is a lite-managed redundant ring Ethernet switch with 10/100Base-T(X) ports which is compliant with EN50155 request. With complete support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technologies. It is specifically designed for the toughest industrial environments. TES-250-M12 EN50155 Ethernet switch uses M12 connectors to ensure tight, robust connections and guarantees reliable operation against environmental disturbances, such as vibration and shock. TES-250-M12 can be managed centralized by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40~70C can satisfy most of operating environment. The TES-250-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet applications.
Physical Ports
10/100 Base-T(X) Ports w/Auto MDI/MDIX 5
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 2048 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 1.0 Gbps
VLAN Port Based
Security Features Enable/disable ports,
VLAN to segregate and secure network traffic,
SNMP v3 encrypted authentication and access security
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Open-Ring,
Fast recovery,
STP,
RSTP
LED Indicators
Power Indicator Green - Power LED x 1,
Indicates power input
Ready / Ring Master Indicator Amber LED - Light on for system ready / Blinking for system ready and Ring master mode - Light off for system failed
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
Power
Input power 12~ 48 VDC
Connector Type Waterproof M12
Power consumption (typical) 3W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 88.9 (W) x 40 (D) x 178.2 (H)mm
Weight 375g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#07897

Managed switch, 8x 10/100 M12 + 2x 10/100/1000 M12 Bypass (ORing TES-3082GT-M12-BP1)

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TES-3082GT-M12-BP1 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-3082GT-M12-BP1 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TES-3082GT-M12-BP1 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 8
10/100/1000 Base-T(X) Bypass Ethernet Auto MDI/MDIX 2
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 5.6Gbps
Max. Number of Available VLANs 4096
IGMP multicast groups 1024
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1Q ) to segregate and secure network traffic,
Supports Q-in-Q VLAN for performance & security to expand the VLAN space,
Radius centralized password management,
SNMP v1/v2c/v3 encrypted authentication and access security
Software Features STP/RSTP/MSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Open-Ring,
Fast recovery,
STP,
RSTP,
MSTP
LED Indicators
Power Indicator Green - Power LED x 2
Ready / Ring Master Indicator Green - Indicate system operated in O-Ring Master mode
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
10/100/1000TX Port Indicator Green for Link/Act. Amber for 100Mbps indicator
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Input power Dual 12~48VDC
Connector Type Waterproof M23
Power consumption (typical) 11W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 170mm x 75mm x 196mm
Weight 1338 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#07852

Managed switch, 8x 10/100 RJ-45 + 2 slide-in SFP slots / RJ-45, O/Open-Ring <10ms (ORing IES-3082GC)

IES-3082GC is managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports and 2xGigabit combo ports which is compliant with EN50155 request. The Ethernet switch is designed for industrial applications, such as rolling stock, vehicle, and railway applications. With completely support of Ethernet redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 7
1000 COMBO with SFP 3
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100Base-FX,
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1X for Authentication,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 5.6 Gbps
Max. Number of Available VLANs 4096
IGMP multicast groups 1024
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging and GVRP supported,
IGMP Snooping for multicast filtering,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security,
Modbus/TCP
Network Redundancy STP,
RSTP,
O-Ring,
Open-Ring,
O-RSTP,
O-Chain,
MRP
LED Indicators
Power / Ready indicator Green - Ready LED x 3
Ring Master indicator Green - indicates system operated in O-Ring Master mode
Fault indicator Amber - Indicates unexpected event occurred
10/100TX RJ45 port indicator Green for port Link/Act,
Amber for Duplex/Collision
10/100/1000TX RJ45 port indicator Green for port Link/Act,
Amber for 100Mbps
Fiber port indicator Green for port Link/Act
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 1248VDC on 6-pin terminal block
Power consumption (typical) 8.5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 74.3mm x 109.2mm x 153.6mm
Weight 1140g
Environmental
Storage Temperature -4085C(-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN50121-4,
EN55011)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#06501

Managed switch, 8x 10/100/1000 M12 PoE + 4x 10/100/1000 M12, Bypass (ORing TRGPS-9084GT-M12X-BP2-MV)

TRGPS-9084GT-M12X-BP2-MV is a Gigabit managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x10/100/1000Base-T(X), M12 connector and 2xbypass included. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And TRGPS-9084GT-M12X-BP2-MV supports wide operating temperature from -40C to 75C. TRGPS-9084GT-M12X-BP2-MV can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8 (bypass function included by last 4 ports)
RS-232 Serial Console Port RS-232 in 5-pin M12 connector with console cable. 115200bps,
8,
N,
1
Technology
Ethernet Standards IEEE 802.3i for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Flash Memory 128Mbits
DRAM Size 1Gbits
Jumbo frame Up to 9.6K Bytes
Priority Queues 8
Processing Store-and-Forward
Switch Properties
Switching latency 7 us
Switching bandwidth 24 Gbps
Max. Number of Available VLANs 4094
VLAN ID range VID 1 to 4094
IGMP multicast groups 128 for each VLAN
Port rate limiting User Define
Security Featues Device Binding security feature,
Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
MAC-based authentication (802.1x),
VLAN (802.1Q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security,
Https / SSH enhance network security,
Web and CLI authentication and authorization,
IP source guard
Software Features IEEE 802.1D Bridge,
auto MAC address learning/aging and MAC address (static),
MSTP (RSTP/STP compatible),
Redundant Ring (O-Ring) with recovery time less than 30ms,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging,
Guest VLAN,
IGMP v2/v3 Snooping,
Application-based QoS management,
DOS/DDOS auto prevention,
Port configuration,
status,
statistics,
monitoring,
security,
DHCP Server/Client/Relay
SMTP Client, NTP server
Network Redundancy O-Ring,
O-Chain,
MSTP (RSTP/STP compatible)
LED Indicators
Power Indicator (PWR) Green - Power LED x 1
Ring Master Indicator (R.M.) Green - Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
Green Blinking - Indicates that the Ring is broken.
Fault Indicator (Fault) Amber - Indicate unexpected event occurred
10/100/1000Base-T(X) M12 P.S.E. Port Indicator Top Green LED for Ethernet speed indicator- Green LED for 1000Mbps,
Amber for 100Mbps,
Middle Green LED for PoE enable indicator,
Bottom dual color LED for port Link/Act indicator
10/100/1000Base-T(X) M12 Port Indicator Top dual color LED for Ethernet speed indicator- Green LED for 1000Mbps,
Amber for 100Mbps,
Bottom Green LED for Link/Act indicator
Fault contact
Relay Relay output to carry capacity of 3A at 30VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power 72/110 (50.4-137.5) VDC on 4-pin S-coded M12 connector
PoE Output Power 60W
Power consumption (typical) 20W (not include PoE output)
Overload current protection present
Reverse Polarity Protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 438 x 250 x 44 mm
Weight 4550 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4075C (-40167F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15 B,
EN50155 (EN50121-3-2,
EN55011)
EMI EN 55032,
CISPR32,
EN 6100-3-2,
EN 6100-3-3, FCC Part 15B class A
EMS EN 55024 (IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF),
IEC 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN50155
MTBF 298,128 hours
Warranty
Warranty period 5 years
ORING NETWORKING
ORing TRGPS-9084GT-M12X-BP2-MV, Managed switch, 8x 10/100/1000 M12 PoE + 4x 10/100/1000 M12, Bypass
* For special orders only
Net Price: 2 610,00 EUR  Unit: pcs  VAT: 23%

#08414

Smart switch, 8x 10/100 M12 Bypass, O-Ring <10ms (ORing TES-3080-M12-BP2)

The TES-3080-M12-BP2 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
It is specifically designed for the toughest industrial environments. TES-3080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.
Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-1080-M12-BP2 included dual bypass ports, These bypass ports protect the network from failures and Network maintenance by ensuring network integrity during power loss. Each of these bypass ports includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operating mode of the Bypass ports is set to Normal , and the local networking device is connected with main-network. When power failure occurs, the Bypass ports is swiftly set to bypass mode to isolate the main-network from the local networking device.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 8 (Built-in 2 sets of bypass ports)
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 1.6 Gbps
VLAN Port Based
Security Features Enable/disable ports,
VLAN to segregate and secure network traffic,
SNMP v3 encrypted authentication and access security
Software Features STP/RSTP/MSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Open-Ring,
Fast recovery,
STP,
RSTP,
MSTP
LED Indicators
Power Indicator Green - Power LED x 2,
Indicates power input
Ready / Ring Master Indicator Green - Indicate system ready and Ring master mode
O-Ring Indicator Green- Indicates port operating in O-Ring mode
10/100TX Port Indicator Green for port Link/Act. Amber for Collision/Duplex indicator
Power
Input power Dual 12~48VDC on 5-pin M23 connector
Connector Type Waterproof M12
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 125mm x 65mm x 196mm
Weight 896 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#08422

Smart switch, 8x 10/100 M12, O-Ring <10ms (ORing TES-3080-M12)

ORing’s TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.
The TES-3080-M12 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. It is specifically designed for the toughest industrial environments.
TES-3080-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring.
TES-3080-M12 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40C to 70C can satisfy most of operating environment.
Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Physical Ports
10/100 Base-T(X) Ports w/Auto MDI/MDIX 8
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 1.6 Gbps
VLAN Port Based
Security Features Enable/disable ports,
VLAN to segregate and secure network traffic,
SNMP v3 encrypted authentication and access security
Software Features STP/RSTP/MSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Open-Ring,
Fast recovery,
STP,
RSTP,
MSTP
LED Indicators
Power Indicator Green - Power LED x 2,
Indicates power input
Ready / Ring Master Indicator Green - Indicate system ready and Ring master mode
O-Ring Indicator Green- Indicates port operating in O-Ring mode
10/100TX Port Indicator Green for port Link/Act. ,
Amber for Collision/Duplex indicator
Power
Input power Dual 12~48VDC
Connector Type Waterproof M12
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 125mm x 65mm x 196mm
Weight 896 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

#07939

Managed switch, 16x 10/100 M12 + 2x 10/100/1000 M12 Bypass (ORing TES-3162GT-M12-BP1)

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TES-3082GT-M12-BP1 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-3082GT-M12-BP1 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TES-3082GT-M12-BP1 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 16
10/100/1000 Base-T(X) Bypass Ethernet Auto MDI/MDIX 2
Connector Type Waterproof M12
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 7.2Gbps
Max. Number of Available VLANs 4096
IGMP multicast groups 1024
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1Q ) to segregate and secure network traffic,
Supports Q-in-Q VLAN for performance & security to expand the VLAN space,
Radius centralized password management,
SNMP v1/v2c/v3 encrypted authentication and access security
Software Features STP/RSTP/MSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Open-Ring,
Fast recovery,
STP,
RSTP,
MSTP
LED Indicators
Power Indicator Green - Power LED x 2
Ready / Ring Master Indicator Green - Indicate system operated in O-Ring Master mode
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
10/100/1000TX Port Indicator Green for Link/Act. Amber for 100Mbps indicator
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Input power Dual 12~48VDC
Connector Type Waterproof M23
Power consumption (typical) 12.48W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 260mm x 91,3mm x 216mm
Weight 2020 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

 WIRELESS ACCESS POINTS
#07878

Wireless access point, 2x 10/100/1000 M12 (LAN) PoE + 1x 802.11b/a/g/n (WLAN) (ORing TGAP-620+-M12)

ORing’s TransporterTM series access point is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TGAP-620-M12 is a reliable 802.11 a/b/g/n WLAN Access Point with 2 Ethernet 10/100/1000 ports. It can be configured to operate in AP/Client /Bridge /AP-Client Mode. TGAP-620-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. TGAP-620-M12 provides a dust-tight connection and reverses SMA-type connectors that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TGAP-620-M12 by WEB interface via LAN port or WLAN interface. TGAP-620-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. In addition, TGAP-620+-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAP-620-M12 is one of the best communication solutions for wireless applications.
Physical Ports
10/100/1000 Base-T(X) Ports in M-12 Auto MDI/MDIX 2 (Present at ETH2 Fully compliant with IEEE 802.3af PoE P.D)
DIDO port in M12 (5-pin A-coding) 2 (DI x 4 and DO x 4)
RS-232 Console port in M12 115200, 8 ,N ,1
WLAN interface
Operating Mode AP/Bridge/Repeater/AP-Client
Antenna Connector 2 x External reverse SMA-type antenna connector
Radio Frequency Type DSSS
Modulation IEEE802.11b CCK,
DQPSK,
DBPSK
Modulation IEEE802.11a/g OFDM
Modulation IEEE802.11n BPSK,
QPSK,
16QAM,
64QAM
Frequency Band America/FCC 2.412~2.462 GHz (11 channels),
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels),
Europe CE/ETSI 2.412~2.472 Ghz (13 channels),
5.180~5.240 GHz (4 channels)
Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 300 Mbps
Transmit Power 802.11a 12dBm ± 1.5dBm@54Mbps,
802.11b 17dBm ± 1.5dBm@11Mbps,
802.11g 16dBm ± 1.5dBm@54Mbps,
802.11gn HT20 15dBm ± 1.5dBm @MCS7,
802.11gn HT40 14dBm ± 1.5dBm @MCS7,
802.11an HT20 -74dBm ± 2dBm@MCS7,
802.11an HT40 -71dBm ± 2dBm@MCS7
Receiver Sensitivity 802.11b -85dBm ± 2dBm@11Mbps,
802.11g -76dBm ± 2dBm@54Mbps,
802.11gn HT20 -75dBm ± 2dBm@MCS7,
802.11gn HT40 -72dBm ± 2dBm@MCS7
Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supported
Wireless Security SSID broadcast disable
Protocol Support ARP,
BOOTP,
DHCP,
DNS,
HTTPs,
IP,
ICMP,
SNTP,
TCP,
UDP,
RADIUS,
SNMP,
STP (IEEE 802.1D),
RSTP,
PPPoE
LED Indicators
Power Indicator 2 x LEDs,
(PW1) Green On - Power is on,
(PW2) Green On - Power is on or power by PoE
100/1000Base-T(X) M-12 Port Indicator 2 x LEDs,
Green for port Link/ Act
WLAN LEDs 1 x LED,
Green for WLAN Link/ Act
Fault 1 x LED,
Red for Ethernet link down or power down indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC (5-pin M12 A-coding)
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.)
Power consumption (typical) 8.5W
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 125.6mm x 65mm x 196.1mm
Weight 960g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -2570C (-13158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-31
Vibration IEC60068-2-6,
EN61373
Rail Traffic EN50155
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty
Warranty period 5 years

 WIRELESS 3G/4G ROUTERS
#08188
SELL OUT

Wireless router 3G, 2x 10/100 RJ-45 (WAN + LAN) + 1x 802.11a/b/g (WLAN) + 1x USB (ORing TAR-3120-M12)

ORing’s Transporter series cellular VPN router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications.

TAR-3120-M12 is a reliable Dual-RF IEEE802.11a/b/g and IEEE 802.11b/g cellular VPN router with 2 ports LAN which is fully compliant with EN50155 certification. It supports 802.1X and MAC filter for security control. It can be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular Modem dial-up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem.

TAR-3120-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TAR-3120-M12 provides dual RF wireless interfaces, which can provide IEEE 802.11 a/b/g and IEEE 802.11 b/g dual band wireless communication and can be applied to fulfill any demands of wireless applications. TAR-3120-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports.
Physical Ports
10/100Base-T(X) Ports RJ45 Auto MDI/MDIX 2 (M12 connector – D coding)
WLAN Interface
WAN Connection Type Static/Dynamic IP,
PPPoE,
3G Modem dial-up
Antenna and Connector 2 x 2 dBi (b/g mode) / 3dBi (a mode) on Reverse SMA connector,
2 x 2 dBi (Cellular modem) on Reverse SMA connector
Radio Frequency Type DSSS,
OFDM
Modulation
IEEE 802.11a OFDM with BPSK,
QPSK,
16QAM,
64QAM
IEEE 802.11b CCK,
DQPSK,
DBPSK
IEEE 802.11g OFDM with BPSK,
QPSK,
16QAM,
64QAM
Frequency Band America / FCC 2.412~2.462 GHz (11 channels),
5.15 to 5.825 GHz (13 channels),
Europe CE / ETSI 2.412~2.472 Ghz (13 channels),
5.15 to 5.724 GHz (19 channels)
Transmission Rate
IEEE 802.11b 1 / 2 / 5.5 / 11 Mbps
IEEE 802.11a/g 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Transmit Power IEEE802.11a/b/g 20dBm max
Receiver Sensitivity
IEEE 802.11a -77dBm±2.0dB @ 54Mbps PER< 10%
IEEE 802.11b -86dBm±1.5dB @ 11Mbps PER< 8%;
IEEE 802.11g -78dBm±1.5dB @ 54Mbps PER< 10%
Encryption Security
WEP (64-bit and 128-bit key supported)
WPA/WPA2 802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
Wireless Security SSID broadcast disable
LED Indicators
Power Indicator Green for Power indicator
RJ45 Port Indicator Green for port Link/ Act at 100Mbps. Amber for port Link/ Act at 10Mbps.
WLAN LEDs Green for WLAN Link/ Act
Cellular modem LED Green for Cellular modem Link/ Act
Fault Contact
Relay Relay output to carry capacity of 3A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12~48VDC on M23 connector (24VDC typ)
Power Consumption 9.6 W
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-40
Dimensions (W x D x H) 125(W) x 65(D) x 196(H) mm (4.92 x 2.56 x 7.72 inch.)
Weight (g) 1050 g
Environmental
Storage Temperature -40 to 85C (-40 to 185F)
Operating Temperature -20 to 70C (-4 to 158F)
Operating Humidity 5% to 95% Non-condensing
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6,
EN61373
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty 3 years
ORING NETWORKING
TAR-3120-M12, Wireless router 3G, 2x 10/100 RJ-45 (WAN + LAN) + 1x 802.11a/b/g (WLAN) + 1x USB
Net Price: CallCall

#07885

Wireless router 4G, 2x 10/100/1000 M12 (LAN) + 1x 802.11b/a/g/n (WLAN) (ORing TGAR-1062+-4GS-M12)

ORing’s TransporterTM series cellular router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TGAR-1062-4G-M12 is reliable IEEE802.11 a/b/g/n router with 2 ports LAN which is fully compliant with EN50155 certification. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular modem dial up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem. TGAR-1062-4G-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, TGAR-1062+-4G-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAR-1062-4G-M12 is one of the most reliable choices for rolling stock applications on the wireless network.
Physical Ports
10/100/1000 Base-T(X) Ports in M-12 Auto MDI/MDIX 2
DIDO port in M12 (5-pin A-coding) 2 (DI x 4 and DO x 4)
SIM Card Slot 1
RS-232 Console port in M12 115200, 8 ,N ,1
WLAN interface
Antenna Connector 2 x External reverse SMA-type antenna connector
Radio Frequency Type DSSS,
OFDM
Modulation IEEE802.11a OFDM with BPSK,
QPSK,
QAM,
64QAM
Modulation IEEE802.11b CCK,
DQPSK,
DBPSK
Modulation IEEE802.11g OFDM with BPSK,
QPSK,
16QAM,
64QAM
Modulation IEEE802.11n BPSK,
QPSK,
16QAM,
64QAM
Frequency Band America/FCC 2.412~2.462 GHz (11 channels),
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels),
Europe CE/ETSI 2.412~2.472 Ghz (13 channels),
5.180~5.240 GHz (4 channels)
Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 300 Mbps
Transmit Power 802.11a 12dBm ± 1.5dBm@54Mbps,
802.11b 17dBm ± 1.5dBm@11Mbps,
802.11g 16dBm ± 1.5dBm@54Mbps,
802.11gn HT20 15dBm ± 1.5dBm @MCS7,
802.11gn HT40 14dBm ± 1.5dBm @MCS7,
802.11an HT20 -74dBm ± 2dBm@MCS7,
802.11an HT40 -71dBm ± 2dBm@MCS7
Receiver Sensitivity 802.11b -85dBm ± 2dBm@11Mbps,
802.11g -76dBm ± 2dBm@54Mbps,
802.11gn HT20 -75dBm ± 2dBm@MCS7,
802.11gn HT40 -72dBm ± 2dBm@MCS7
Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supported,
WPAPSK (256-bit key pre-shared key supported),
TKIP encryption
Wireless Security SSID broadcast disable
Cellular Interface
Cellular Standard GSM / GPRS/ EGPRS/EDGE / WCDMA /HSDPA / HSUPA/HSPA+ /LTE
Antenna Connector 1 x SMA Female
Band Option America(US) LTE - 700/1700/2100/MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 800/850/1900/2100MHz,
GSM/GPRS/EDGE - 850/900/1800/1900MHz,
Europe(EU) LTE - 800/900/1800/2100/2600MHz,
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 900/2100MHz,
GSM/GPRS/EDGE - 900/1800/1900MHz
Protocol Support ARP,
BOOTP,
DHCP,
DNS,
HTTPs,
IP,
ICMP,
SNTP,
TCP,
UDP,
RADIUS,
SNMP,
STP (IEEE 802.1D),
RSTP
LED Indicators
Power Indicator 2 x LEDs,
(PW1) Green On - Power is on,
(PW2) Green On - Power is on or power by PoE
100/1000Base-T(X) M-12 Port Indicator 2 x LEDs,
Green for port Link/ Act
WLAN LEDs 1 x LED,
Green for WLAN Link/ Act
WAN LED 1 x LED,
Green for Cellular modem Link/ Act
Fault 1 x LED,
Red for Ethernet link down or power down indicator
Fault Contact
Relay Relay output to carry capacity of 3A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.)
Power consumption (typical) 9.5W
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 125.6mm x 65mm x 196.1mm
Weight 968g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -2570C (-13158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-31
Vibration IEC60068-2-6,
EN61373
Rail Traffic EN50155
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty
Warranty period 5 years

#07887

Wireless router 4G, 2x 10/100/1000 M12 (LAN) + 1x 802.11b/a/g/n (WLAN) (ORing TGAR-2062+-4GS-M12)

ORing’s TransporterTM series cellular router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TGAR-2062-4G-M12 is reliable IEEE802.11 a/b/g/n router with 2 ports LAN which is fully compliant with EN50155 certification. It supports 802.1X and MAC filter for security control. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular modem dial up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem. TGAR-2062-4G-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, TGAR-2062+-4G-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAR-2062-4G-M12 is one of the most reliable choices for rolling stock applications on the wireless network.
Physical Ports
10/100/1000 Base-T(X) Ports in M-12 Auto MDI/MDIX 2
DIDO port in M12 (5-pin A-coding) 2 (DI x 4 and DO x 4)
SIM Card Slot 2
RS-232 Console port in M12 115200, 8 ,N ,1
WLAN interface
Antenna Connector 2 x External reverse SMA-type antenna connector
Radio Frequency Type DSSS,
OFDM
Modulation IEEE802.11a OFDM with BPSK,
QPSK,
QAM,
64QAM
Modulation IEEE802.11b CCK,
DQPSK,
DBPSK
Modulation IEEE802.11g OFDM with BPSK,
QPSK,
16QAM,
64QAM
Modulation IEEE802.11n BPSK,
QPSK,
16QAM,
64QAM
Frequency Band America/FCC 2.412~2.462 GHz (11 channels),
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels),
Europe CE/ETSI 2.412~2.472 Ghz (13 channels),
5.180~5.240 GHz (4 channels)
Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 300 Mbps
Transmit Power 802.11a 12dBm ± 1.5dBm@54Mbps,
802.11b 17dBm ± 1.5dBm@11Mbps,
802.11g 16dBm ± 1.5dBm@54Mbps,
802.11gn HT20 15dBm ± 1.5dBm @MCS7,
802.11gn HT40 14dBm ± 1.5dBm @MCS7,
802.11an HT20 -74dBm ± 2dBm@MCS7,
802.11an HT40 -71dBm ± 2dBm@MCS7
Receiver Sensitivity 802.11b -85dBm ± 2dBm@11Mbps,
802.11g -76dBm ± 2dBm@54Mbps,
802.11gn HT20 -75dBm ± 2dBm@MCS7,
802.11gn HT40 -72dBm ± 2dBm@MCS7
Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supported,
WPAPSK (256-bit key pre-shared key supported),
TKIP encryption
Wireless Security SSID broadcast disable
Cellular Interface
Cellular Standard GSM / GPRS/ EGPRS/EDGE / WCDMA /HSDPA / HSUPA/HSPA+ /LTE
Antenna Connector 2 x SMA Female
Band Option America(US) LTE - 700/1700/2100/MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 800/850/1900/2100MHz,
GSM/GPRS/EDGE - 850/900/1800/1900MHz,
Europe(EU) LTE - 800/900/1800/2100/2600MHz,
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 900/2100MHz,
GSM/GPRS/EDGE - 900/1800/1900MHz
Protocol Support ARP,
BOOTP,
DHCP,
DNS,
HTTPs,
IP,
ICMP,
SNTP,
TCP,
UDP,
RADIUS,
SNMP,
STP (IEEE 802.1D),
RSTP
LED Indicators
Power Indicator 2 x LEDs,
(PW1) Green On - Power is on,
(PW2) Green On - Power is on or power by PoE
100/1000Base-T(X) M-12 Port Indicator 2 x LEDs,
Green for port Link/ Act
WLAN LEDs 1 x LED,
Green for WLAN Link/ Act
WAN LED 2 x LED,
Green for Cellular modem Link/ Act
Fault 1 x LED,
Red for Ethernet link down or power down indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.)
Power consumption (typical) 15W
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 125.6mm x 65mm x 196.1mm
Weight 1030g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -2570C (-13158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-31
Vibration IEC60068-2-6,
EN61373
Rail Traffic EN50155
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty
Warranty period 5 years
