#08402
Power supply 120W 12VDC, P.F.C., DIN TS35 (Mean Well WDR-120-12)
DIN rail Mean Well WDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 12V |
| Rated current | 10A |
| Current Range | 0÷10A |
| Rated Power | 120W |
| Ripple & noise (max.) | 120mVp-p |
| Voltage adjustment range | 12÷15V |
| Voltage tolerance | ±1.5% |
| Line regulation | ±0.5% |
| Load regulation | ±0.5% |
| Setup & rise time |
2000ms & 70ms/400VAC at full load, 2000ms & 70ms/230VAC at full load |
| Hold up time (typ.) |
50ms/400VAC at full load, 50ms/230VAC at full load |
| Input | |
| Voltage range |
180÷550VAC, 254÷780VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 89,5% |
| AC current (typ.) |
0.55A/115VAC, 1.2A/230VAC |
| Inrush current (typ.) | 50A |
| Leakage current | <3,5mA/530VAC |
| Protection | |
| Overload |
105%÷130% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
16÷18V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
105°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 268000h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 40mm x 125,2mm x 113,5mm |
| Weight | 0,65kg |
#08405
Power supply 240W 24VDC, P.F.C., DIN TS35 (Mean Well WDR-240-24)
DIN rail Mean Well WDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 10A |
| Current Range | 0÷10A |
| Rated Power | 240W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 24÷28V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
800ms & 150ms/400VAC at full load, 1500ms & 150ms/230VAC at full load |
| Hold up time (typ.) |
18ms/400VAC at full load, 18ms/230VAC at full load |
| Input | |
| Voltage range |
180÷550VAC, 254÷780VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 91% |
| AC current (typ.) |
1A/400VAC, 2A/230VAC |
| Inrush current (typ.) | 50A |
| Leakage current | <3,5mA/530VAC |
| Protection | |
| Overload |
105%÷130% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
29÷33V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
90°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 268000h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 63mm x 125,2mm x 113,5mm |
| Weight | 1,06kg |
#08407
Power supply 480W 24VDC, P.F.C., DIN TS35 (Mean Well WDR-480-24)
DIN rail Mean Well WDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 20A |
| Current Range | 0÷20A |
| Rated Power | 480W |
| Ripple & noise (max.) | 100mVp-p |
| Voltage adjustment range | 24÷28V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
800ms & 150ms/400VAC at full load, 2000ms & 150ms/230VAC at full load |
| Hold up time (typ.) |
18ms/400VAC at full load, 16ms/230VAC at full load |
| Input | |
| Voltage range |
180÷550VAC, 254÷780VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 92% |
| AC current (typ.) |
1.6A/400VAC, 4A/230VAC |
| Inrush current (typ.) | 50A |
| Leakage current | <3,5mA/530VAC |
| Protection | |
| Overload |
105%÷130% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
29÷33V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
95°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 268000h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 85.5mm x 125.2mm x 128.5mm |
| Weight | 1.7kg |
#06674
Power supply 10W 24VDC, mini, DIN TS35 (Mean Well MDR-10-24)
DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 0.42A |
| Current Range | 0÷0.42A |
| Rated Power | 10W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage tolerance | ±2.0% |
| Line regulation | ±1.0% |
| Load regulation | ±2.0% |
| Setup & rise time |
500ms & 30ms/230VAC at full load, 1000ms & 30ms/115VAC at full load |
| Hold up time (typ.) |
120ms/230VAC at full load, 25ms/115VAC at full load |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 84% |
| AC current (typ.) |
0.33A/115VAC, 0.21A/230VAC |
| Inrush current (typ.) |
35A/115VAC cold start, 70A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
above 105% rated output power, protection type - Hiccup mode - recovers automatically after fault condition is removed |
| Overvoltage |
27.6÷32.4V, protection type - shut down o/p voltage & re-power on to recover |
| Function | |
| DC OK active signal | 18÷27V/20mA |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20÷90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, TUV EN60950-1, NEC class 2 / LPS |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-1, EN61204-3, light industry level criteria A |
| Others | |
| MTBF | min. 584000h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 22.5mm x 90mm x 100mm |
| Weight | 0.17kg |
| Warranty | 3 years |
#06675
Power supply 24W 24VDC, mini, DIN TS35 (Mean Well MDR-20-24)
DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 1A |
| Current Range | 0÷1A |
| Rated Power | 24W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷26.4V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Setup & rise time |
500ms & 30ms/230VAC at full load, 1000ms & 30ms/115VAC at full load |
| Hold up time (typ.) |
50ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 84% |
| AC current (typ.) |
0.55A/115VAC, 0.35A/230VAC |
| Inrush current (typ.) |
20A/115VAC cold start, 40A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
105%÷160% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
27.6÷32.4V, protection type - shut down o/p voltage & re-power on to recover |
| Function | |
| DC OK active signal | 18÷27V/20mA |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20÷90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, TUV EN60950-1, NEC class 2 / LPS |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-1, EN61204-3, light industry level criteria A |
| Others | |
| MTBF | min. 236900h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 22.5mm x 90mm x 100mm |
| Weight | 0.19kg |
| Warranty | 3 years |
#06676
Power supply 40W 24VDC, mini, DIN TS35 (Mean Well MDR-40-24)
DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 1.7A |
| Current Range | 0÷1.7A |
| Rated Power | 40.8W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 24÷30V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Setup & rise time |
500ms & 30ms/230VAC at full load, 500ms & 30ms/115VAC at full load |
| Hold up time (typ.) |
50ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 88% |
| AC current (typ.) |
1.1A/115VAC, 0.7A/230VAC |
| Inrush current (typ.) |
30A/115VAC cold start, 60A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
105%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
31.2÷36V, protection type - shut down o/p voltage & re-power on to recover |
| Function | |
| DC OK signal relay contact rating (max.) | 30V/1A resistive |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20÷90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1, NEC class 2 / LPS |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC 25°C 70%RH, I/P-FG 100MΩ/500VDC 25°C 70%RH, O/P-FG 100MΩ/500VDC 25°C 70%RH |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level criteria A |
| Others | |
| MTBF | min. 301700h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 40mm x 90mm x 100mm |
| Weight | 0.3kg |
#06677
Power supply 60W 24VDC, mini, DIN TS35 (Mean Well MDR-60-24)
DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 2.5A |
| Current Range | 0÷2.5A |
| Rated Power | 60W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 24÷30V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Setup & rise time |
500ms & 30ms/230VAC at full load, 500ms & 30ms/115VAC at full load |
| Hold up time (typ.) |
50ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 88% |
| AC current (typ.) |
1.8A/115VAC, 1A/230VAC |
| Inrush current (typ.) |
30A/115VAC cold start, 60A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
105%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
31.2÷36V, protection type - shut down o/p voltage & re-power on to recover |
| Function | |
| DC OK signal relay contact rating (max.) | 30V/1A resistive |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20÷90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1, NEC class 2 / LPS |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC 25°C 70%RH, I/P-FG 100MΩ/500VDC 25°C 70%RH, O/P-FG 100MΩ/500VDC 25°C 70%RH |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level criteria A |
| Others | |
| MTBF | min. 299200h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 40mm x 90mm x 100mm |
| Weight | 0.33kg |

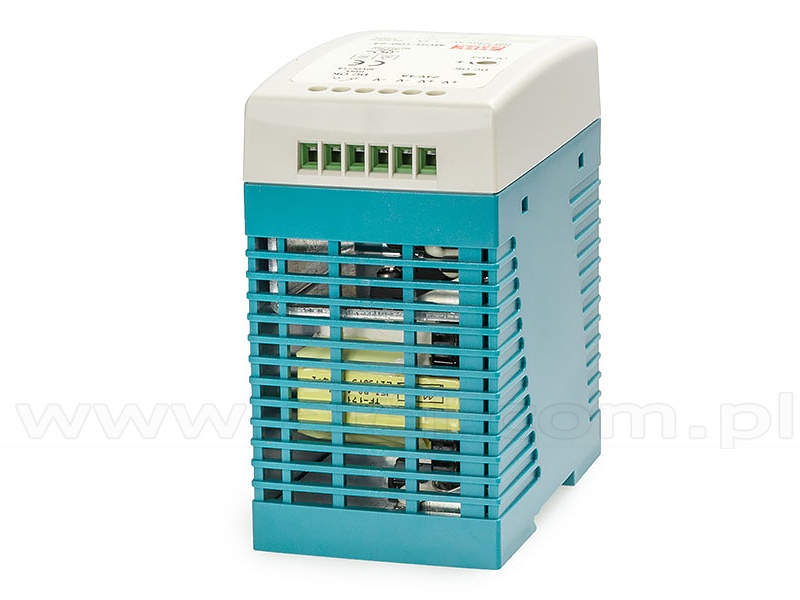

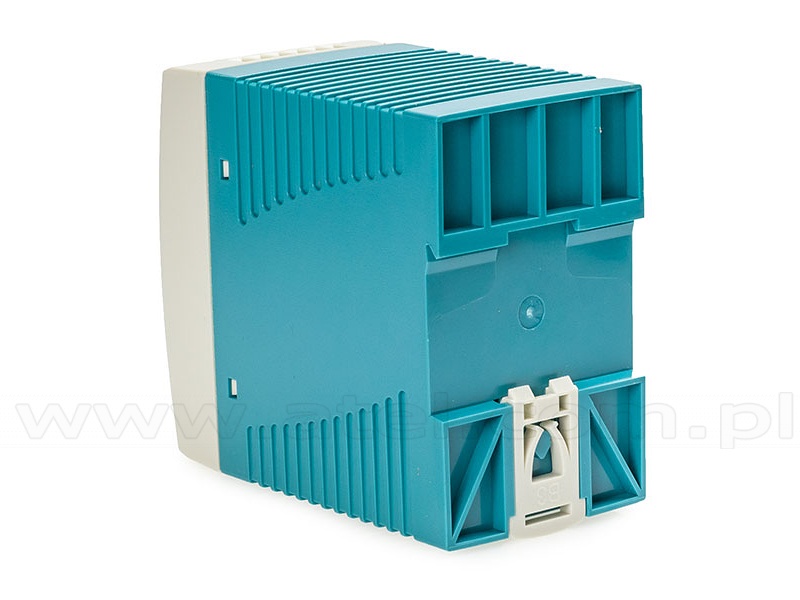

#06678

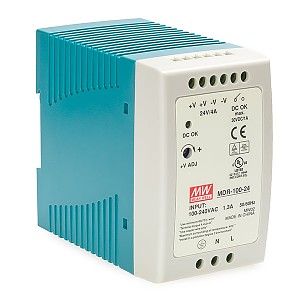

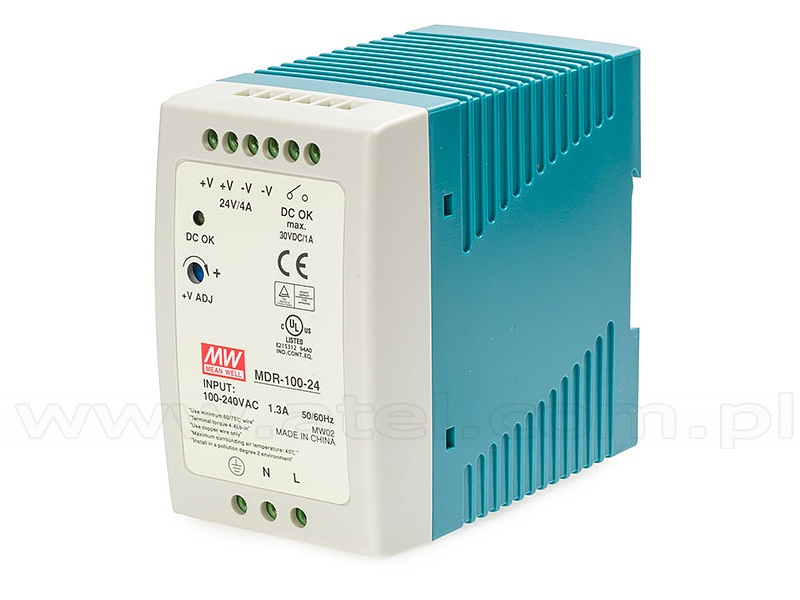

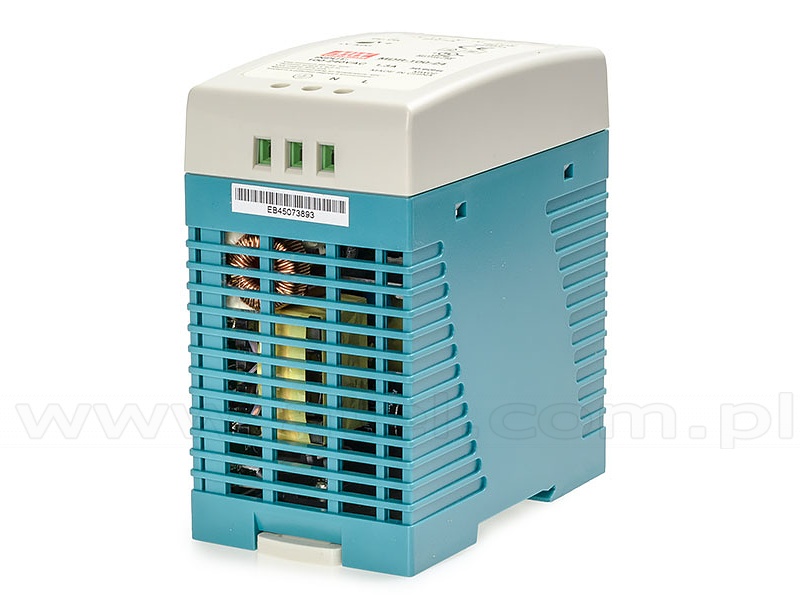

Power supply 96W 24VDC, mini, DIN TS35 (Mean Well MDR-100-24)
DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 4A |
| Current Range | 0÷4A |
| Rated Power | 96W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 24÷30V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Setup & rise time |
3000ms & 50ms/230VAC at full load, 3000ms & 50ms/115VAC at full load |
| Hold up time (typ.) |
50ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Frequency range | 47÷63Hz |
| Efficiency (typ.) | 86% |
| AC current (typ.) |
1.3A/115VAC, 0.8A/230VAC |
| Inrush current (typ.) |
30A/115VAC cold start, 60A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
105%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
31.2÷36V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
90°C ±10°C (RTH2) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Function | |
| DC OK signal relay contact rating (max.) | 30V/1A resistive |
| Environment | |
| Working temperature | -10°C ÷ 60°C |
| Working humidity | 20÷90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1, NEC class 2 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC 25°C 70%RH, I/P-FG 100MΩ/500VDC 25°C 70%RH, O/P-FG 100MΩ/500VDC 25°C 70%RH |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level criteria A |
| Others | |
| MTBF | min. 346000h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 55mm x 90mm x 100mm |
| Weight | 0.42kg |
#06910
Power supply 15W 24VDC, DIN TS35 (Mean Well HDR-15-24)
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 0.63A |
| Rated Power | 15W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷29.0V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 86% |
| Protection | |
| Overload |
105%÷160% rated output power, protection type - constant current limiting - recovers automatically |
| Overvoltage |
115%÷150%, protection type - shut down , clamp by zener diode |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Others | |
| MTBF | min. 441500h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 17.5mm x 90mm x 5.5mm |
#06911
Power supply 30W 24VDC, DIN TS35 (Mean Well HDR-30-24)
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 1.5A |
| Current Range | 0÷1.5A |
| Rated Power | 30W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷29.0V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 89% |
| Protection | |
| Overload |
105%÷160% rated output power, protection type - constant current limiting - recovers automatically |
| Overvoltage |
115%÷150%, protection type - shut down & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Others | |
| MTBF | min. 441500h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 35mm x 90mm x 5.5mm |
#06912
Power supply 60W 24VDC, DIN TS35 (Mean Well HDR-60-24)
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 2.5A |
| Current Range | 0÷2.5A |
| Rated Power | 60W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷29.0V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 60% |
| Protection | |
| Overload |
105%÷160% rated output power, protection type - constant current limiting - recovers automatically |
| Overvoltage |
115%÷150%, protection type - shut down & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Others | |
| MTBF | min. 441500h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 52.5mm x 90mm x 5.5mm |
#06669
Power supply 60W 48VDC, DIN TS35 (Mean Well HDR-60-48)
| Output | |
|---|---|
| DC Voltage | 48V |
| Rated current | 1.25A |
| Current Range | 0÷1.25A |
| Rated Power | 60W |
| Ripple & noise (max.) | 240mVp-p |
| Voltage adjustment range | 43.2÷55.2V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 91% |
| Protection | |
| Overload |
105%÷160% rated output power, protection type - constant current limiting - recovers automatically |
| Overvoltage |
115%÷150%, protection type - shut down & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Others | |
| MTBF | min. 441500h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 52.5mm x 90mm x 5.5mm |
#06694
Power supply 100W 24VDC, DIN TS35 (Mean Well HDR-100-24)
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 3,83A |
| Current Range | 0÷3,83A |
| Rated Power | 100W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷29.0V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 90% |
| Protection | |
| Overload |
102%÷110% rated output power, protection type - constant current limiting - recovers automatically |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL60950-1, IEC60950-1 approved, UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 3kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11 |
| Others | |
| Dimension (W x H x D) | 70mm x 90mm x 54.5mm |
#06670
Power supply 100W 48VDC, DIN TS35 (Mean Well HDR-100-48)
| Output | |
|---|---|
| DC Voltage | 48V |
| Rated current | 1.92A |
| Current Range | 0÷1.92A |
| Rated Power | 100W |
| Ripple & noise (max.) | 240mVp-p |
| Voltage adjustment range | 48.0÷48.7V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 90% |
| Protection | |
| Overload |
102%÷110% rated output power, protection type - constant current limiting - recovers automatically |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
UL60950-1, IEC60950-1 approved, UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 3kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11 |
| Others | |
| Dimension (W x H x D) | 70mm x 90mm x 54.5mm |
#08396
Power supply 120W 24VDC, DIN TS35, P.F.C. (Mean Well SDR-120-24)
DIN rail Mean Well SDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 5A |
| Current Range | 0÷5A |
| Rated Power | 120W |
| Ripple & noise (max.) | 100mVp-p |
| Voltage adjustment range | 24÷28V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
1500ms & 60ms/230VAC at full load, 3000ms & 40ms/115VAC at full load |
| Hold up time (typ.) |
20ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
88÷264VAC, 124÷370VDC |
| Frequency range | 47÷63Hz |
| Power factor (typ.) |
0.93/230VAC at full load, 0.96/115VAC at full load |
| Efficiency (typ.) | 91% |
| AC current (typ.) |
1.4A/115VAC, 0.7A/230VAC |
| Inrush current (typ.) |
35A/115VAC cold start, 70A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
110%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
29÷33V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
95°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 289900h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 40mm x 125,2mm x 113,5mm |
| Weight | 0,67kg |
#06695
Power supply 150W 24VDC, DIN TS35 (Mean Well HDR-150-24)
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 6,25A |
| Current Range | 0÷6,2A |
| Rated Power | 150W |
| Ripple & noise (max.) | 150mVp-p |
| Voltage adjustment range | 21.6÷29.0V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range |
85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 90,5% |
| Protection | |
| Overload |
105%÷130% rated output power, protection type - constant current limiting - recovers automatically |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards |
IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, IEC62368-1, EAC TP TC 004 approved, Design refer to En0178, TUV EN62368-1 |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards |
EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11 |
| Others | |
| Dimension (W x H x D) | 105mm x 90mm x 54.5mm |
#08398
Power supply 240W 24VDC, DIN TS35, P.F.C. (Mean Well SDR-240-24)
DIN rail Mean Well SDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 10A |
| Current Range | 0÷10A |
| Rated Power | 240W |
| Ripple & noise (max.) | 100mVp-p |
| Voltage adjustment range | 24÷28V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
1500ms & 60ms/230VAC at full load, 3000ms & 40ms/115VAC at full load |
| Hold up time (typ.) |
20ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
88÷264VAC, 124÷370VDC |
| Frequency range | 47÷63Hz |
| Power factor (typ.) |
0.93/230VAC at full load, 0.96/115VAC at full load |
| Efficiency (typ.) | 94% |
| AC current (typ.) |
2.6A/115VAC, 1.3A/230VAC |
| Inrush current (typ.) |
33A/115VAC cold start, 65A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
110%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
29÷33V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
95°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 169300h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 63mm x 125,2mm x 113,5mm |
| Weight | 1,03kg |
#08399
Power supply 240W 48VDC, DIN TS35, P.F.C. (Mean Well SDR-240-48)
DIN rail Mean Well SDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 48V |
| Rated current | 5A |
| Current Range | 0÷5A |
| Rated Power | 240W |
| Ripple & noise (max.) | 120mVp-p |
| Voltage adjustment range | 48÷55V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
1500ms & 60ms/230VAC at full load, 3000ms & 40ms/115VAC at full load |
| Hold up time (typ.) |
20ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
88÷264VAC, 124÷370VDC |
| Frequency range | 47÷63Hz |
| Power factor (typ.) |
0.93/230VAC at full load, 0.96/115VAC at full load |
| Efficiency (typ.) | 94% |
| AC current (typ.) |
2.6A/115VAC, 1.3A/230VAC |
| Inrush current (typ.) |
33A/115VAC cold start, 65A/230VAC cold start |
| Leakage current | <1mA/240VAC |
| Protection | |
| Overload |
110%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
56÷65V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
95°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 169300h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 63mm x 125,2mm x 113,5mm |
| Weight | 1,03kg |
#08400
Power supply 480W 24VDC, DIN TS35, P.F.C. (Mean Well SDR-480-24)
DIN rail Mean Well SDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 24V |
| Rated current | 20A |
| Current Range | 0÷20A |
| Rated Power | 480W |
| Ripple & noise (max.) | 100mVp-p |
| Voltage adjustment range | 24÷28V |
| Voltage tolerance | ±1.2% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
1500ms & 60ms/230VAC at full load, 3000ms & 40ms/115VAC at full load |
| Hold up time (typ.) |
14ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
90÷264VAC, 127÷370VDC |
| Frequency range | 47÷63Hz |
| Power factor (typ.) |
0.94/230VAC at full load, 0.99/115VAC at full load |
| Efficiency (typ.) | 94% |
| AC current (typ.) |
5A/115VAC, 2.5A/230VAC |
| Inrush current (typ.) |
40A/115VAC cold start, 80A/230VAC cold start |
| Leakage current | <0.8mA/240VAC |
| Protection | |
| Overload |
110%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
29÷33V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
105°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 112900h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 85.5mm x 125.2mm x 128.5mm |
| Weight | 1.6kg |
#08401
Power supply 480W 48VDC, DIN TS35, P.F.C. (Mean Well SDR-480-48)
DIN rail Mean Well SDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
PSU device is enclosed in a metal housing that is resistant to low and high temperatures. Power supplies of this group can withstand a load of 150% of the rated power for 3 seconds.
The power supply is cooled by the free flow of air, making it a highly fault-free - this is a very important feature when power supply is working continuously.
| Output | |
|---|---|
| DC Voltage | 48V |
| Rated current | 10A |
| Current Range | 0÷10A |
| Rated Power | 480W |
| Ripple & noise (max.) | 120mVp-p |
| Voltage adjustment range | 48÷55V |
| Voltage tolerance | ±1.2% |
| Line regulation | ±0.5% |
| Load regulation | ±1.0% |
| Setup & rise time |
1500ms & 60ms/230VAC at full load, 3000ms & 40ms/115VAC at full load |
| Hold up time (typ.) |
14ms/230VAC at full load, 20ms/115VAC at full load |
| Input | |
| Voltage range |
90÷264VAC, 127÷370VDC |
| Frequency range | 47÷63Hz |
| Power factor (typ.) |
0.94/230VAC at full load, 0.99/115VAC at full load |
| Efficiency (typ.) | 94% |
| AC current (typ.) |
5A/115VAC, 2.5A/230VAC |
| Inrush current (typ.) |
40A/115VAC cold start, 80A/230VAC cold start |
| Leakage current | <0.8mA/240VAC |
| Protection | |
| Overload |
110%÷150% rated output power, protection type - constant current limiting - recovers automatically after fault condition is removed |
| Overvoltage |
56÷65V, protection type - shut down o/p voltage & re-power on to recover |
| Over temperature |
105°C ±5°C (TSW1) detect on heatsink of power transistor, protection type - shut down o/p voltage & re-power on to recover |
| Environment | |
| Working temperature | -25°C ÷ 70°C |
| Working humidity | 20÷95% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10÷95% RH |
| Temperature coefficient | ±0.03%/°C (0÷50°C) |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Safety standards |
UL508, UL60950-1, TUV EN60950-1 |
| Withstand voltage |
I/P-O/P 3kVAC, I/P-FG 1.5kVAC, O/P-FG 0.5kVAC |
| Isolation resistance |
I/P-O/P 100MΩ/500VDC, I/P-FG 100MΩ/500VDC, O/P-FG 100MΩ/500VDC |
| EMI conduction & radiation |
EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic current |
EN61000-3-2, EN61000-3-3 |
| EMS immunity |
EN61000-4-2/3/4/5/6/8/11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level criteria A |
| Others | |
| MTBF | min. 112900h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 85.5mm x 125.2mm x 128.5mm |
| Weight | 1.6kg |

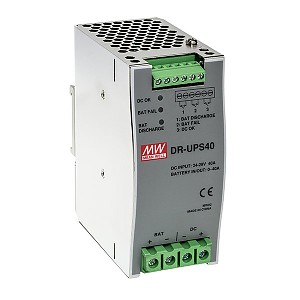

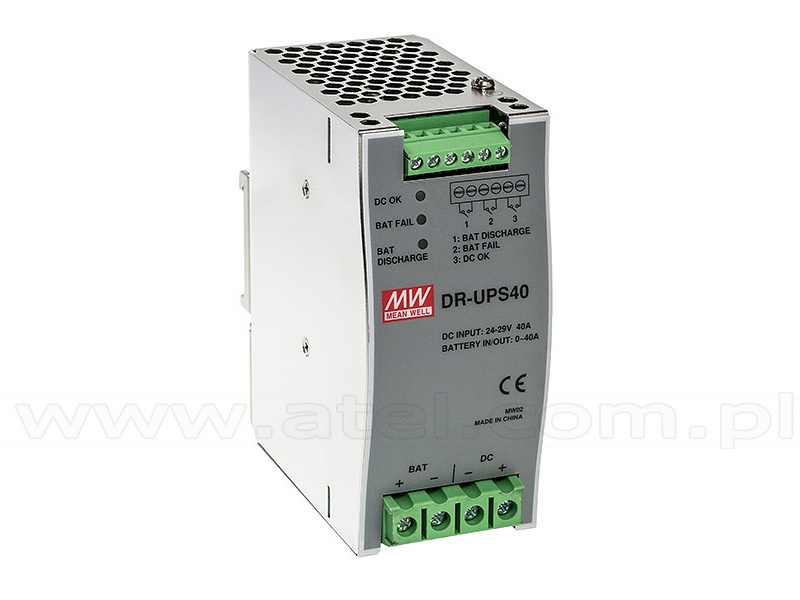

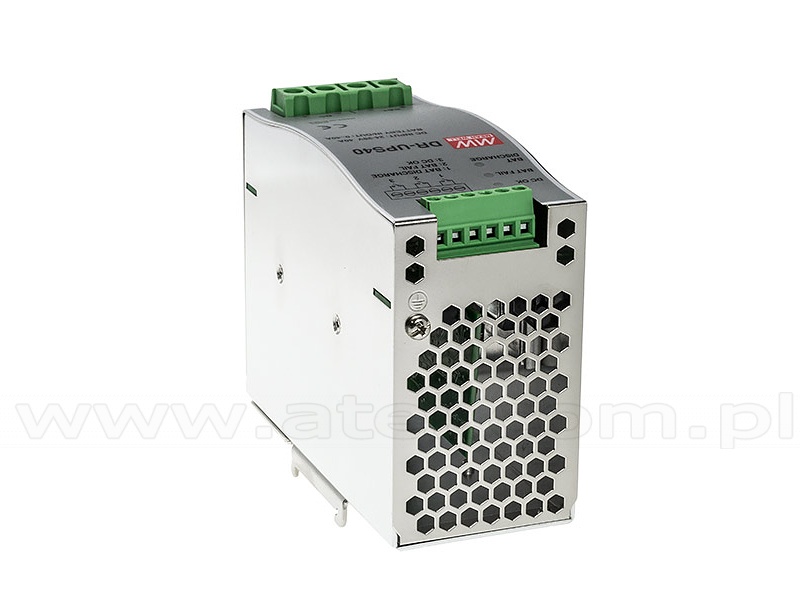

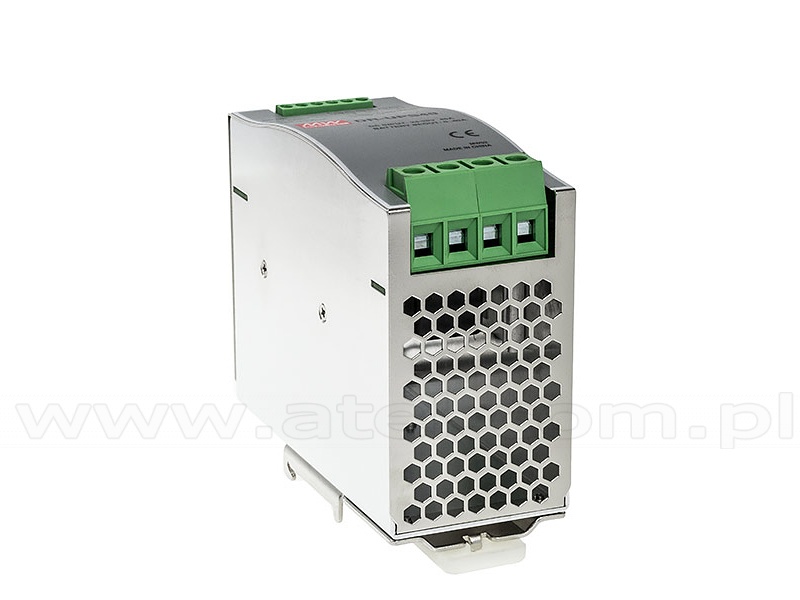

#06774

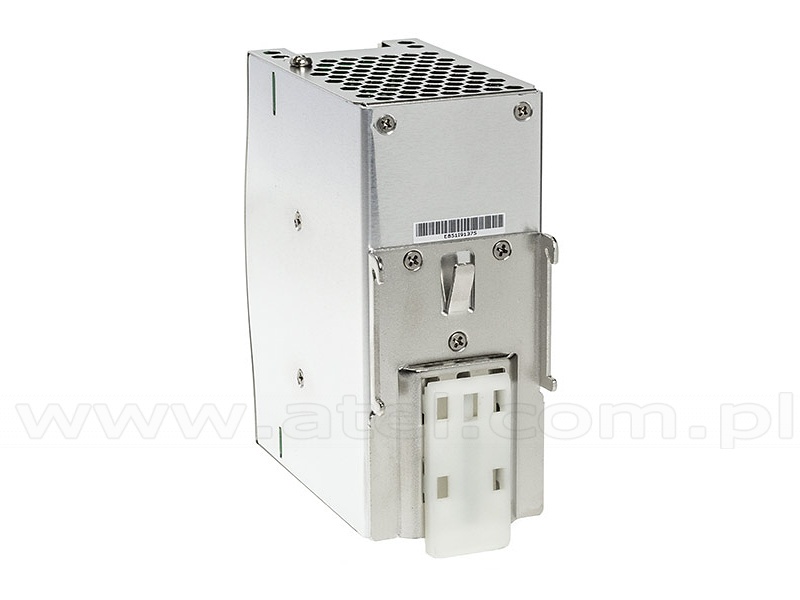

Battery controller for DIN Rail UPS system, 24VDC, 40A max, DIN TS35 (Mean Well DR-UPS40)
DR-UPS40 UPS modules are designed for UPS power supply systems (to control the battery and power system) and are suitable for voltage 24VDC and current up to 40A. They can be used in automation systems for controlling the power supply (battery + adapter), measuring instruments, among others, measuring transducers, gauges, controllers, recorders, etc. UPS modules operate in the system supply 24 ~ 29V, controlling the battery power system UPS, working with batteries 4Ah / 7Ah / 12Ah / 24VDC
| DC Input / DC BUS | |
|---|---|
| DC voltage (Typ.) | 24÷29V |
| Rated current | 40A |
| Battery input / Output | |
| Voltage range (Typ.) | 21÷29V |
| Current range | 0÷40A |
| Charge current (typ.) | 2A |
| External battery | 4/7/12Ah / 24V |
| Function | |
| Relay contact rating (max.) | 30VDC 1A |
| DC BUS OK - Relay contact |
short when DC voltage between 21÷29V (3%), relay contacts |
| DC BUS OK - LED (Green) |
DC BUS OK - light, DC BUS fail - dark |
| Battery fail - Relay contact |
short when battery failure is observed through the battery test function, relay contacts |
| Battery fail - LED (Red) |
battery over-discharge warning or battery broken - light, battery OK - dark |
| Battery discharge - Relay contact |
short when battery in discharge condition, relay contacts |
| Battery discharge - LED (Yellow) |
battery discharging - light, battery is not discharging or discharging current<2.0A - dark |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20% ÷ 90% RH non-condensing |
| Storage temperature | -20°C ÷ 85°C |
| Storage Humidity | 10% ÷ 95% RH |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Withstand voltage |
Terminal-Chassis 0.5kVAC, Relay contacts-Terminal 0.5kVAC |
| Isolation resistance | Terminal-Chassis >100MΩ/500VDC 25°C 70% RH |
| EMI conduction & radiation | EN55022 (CISPR22) Class B |
| EMS immunity |
EN61000-4-2/3/4/5/6/8, ENV50204, heavy industry level criteria A |
| Others | |
| MTBF | min. 161900h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 55.5mm x 125.2mm x 100mm |
| Weight | 0.55kg |
#06775

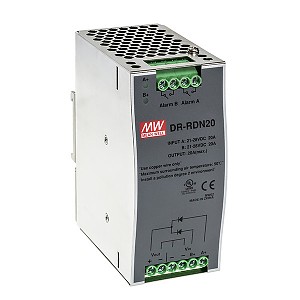

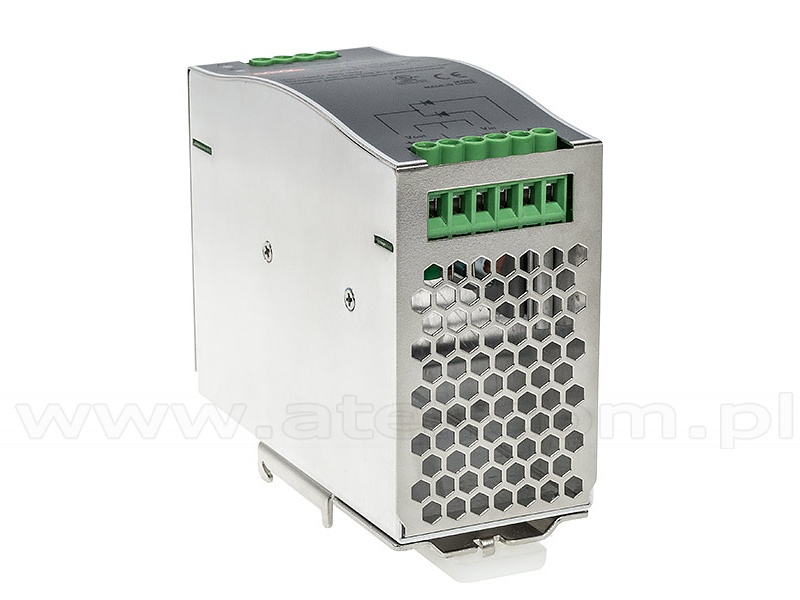

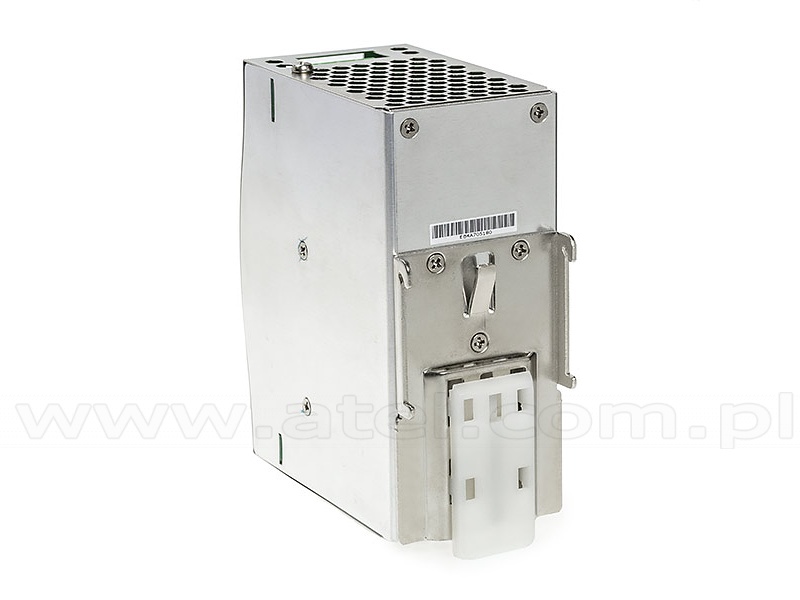

Power Supply Redundancy Module, 20A max, DIN TS35 (Mean Well DR-RDN20)
Redundant power supply modules targeted for devices serving as critical. Provide continuity of service in case of temporary failure or lack of power supply. DR-RDN20 module is designed for use in redundant power system.
| Output | |
|---|---|
| Reverse voltage (max.) | 30V |
| Output current (max.) | 20A |
| Voltage drop | 0.5V |
| LED indicators | two green LEDs indicating each input is "OK" or "fail" |
| Input | |
| Input voltage range | 21÷28V |
| Number of inputs | 2 |
| Input current | 20A per input |
| Function | |
| Input voltage alarm | when input is > 20V( 5%) or < 30V( 5%) relay contacts |
| Relay contact rating (max.) | 30VDC 1A |
| Environment | |
| Working temperature | -20°C ÷ 70°C |
| Working humidity | 20% ÷ 90% RH non-condensing |
| Storage temperature | -40°C ÷ 85°C |
| Storage Humidity | 10% ÷ 95% RH |
| Vibration (component) |
10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Vibration (mounting) | compliance to IEC60068-2-6 |
| Safety & EMC | |
| Withstand voltage |
Terminal-Chassis 0.5kVAC, Relay contacts-Terminal 0.5kVAC |
| Isolation resistance | Terminal-Chassis >100MΩ/500VDC 25°C 70% RH |
| EMI conduction & radiation | EN55022 (CISPR22) Class B |
| EMS immunity |
EN61000-4-2/3/4/5/6/8, ENV50204, heavy industry level criteria A |
| Others | |
| MTBF | min. 996800h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 55.5mm x 125.2mm x 100mm |
| Weight | 0.5kg |
#04677
RMC-1000 Chassis Power Supply 130W (ORing RPM-130-AC)
RMC-1000 Chassis (#08437) Power Supply
| Power | |
|---|---|
| PowerSingle output | with maximum 130Watts (cooling fan included) |
| Input Requirements | |
| Ethernet Standards | 100 ~ 240VAC |
| 100 ~ 240VAC | 47 ~ 63 Hz |
| Steady Current | 3.3 Arms max |
| Inrush Current (cold start 25°C) | 80A max |
| Leakage Current (DC-DC exclude) | 3.5mA max. |
| Output Requirements | |
| Specified O/P Voltage | 12VDC |
| Current Max. | 10.8A |
| Ripple & Noise | 120mV |
| Line Regulation | +1% ~ -1% |
| Load Regulation | +1% ~ -1% |
| Protection Requirements | |
| Over-Voltage Protection | +14.5V / -2.5V |
| Over-Temperature Protection | 130°C (typical) |
| Over-Current Protection | 10.8 ~ 21.6A |
| No Load Operation | Present |
| Short Circuit Protection | Present |
| Environmental | |
| Storage Temperature | -40÷85°C |
| Operating Temperature | -10÷70°C |
| Operating Humidity | 0%÷95% Non-condensing |
| Regulatory approvals | |
| EMI |
CISPR 22 class A, EN55022 class A, FCC parts 15 class A |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11, IEC-61000-3-2 class A & class D |
| Safety |
UL60950-1, EN60950-1, CUL - CAN/CSA C22.2 No.60950-1, HI-POT (L, N to DC output) - 42VDC, 1 minute, limit - 8mA, HI-POT (L, N to FG) - 21VDC, 1 minute, Ilimit - 8mA, I.R. - 50MΩ (min. at room temperature) / 500VDC |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) | 352648 |
| Warranty | |
| Warranty period | 5 years |
