#09128
1800Mbps Wireless Range Extender, AX1800 (TP-Link RE605X)
- RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
- Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Plug Type | EU |
| Button |
Reset Button, WPS Button |
| Power Consumption | About 10W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 74,0 × 46 × 124,8 mm |
| Antenna Type | 2 x External Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
574 Mbps at 2.4GHz, 1201 Mbps at 5GHz |
| EIRP |
CE 2,4 GHz ≤ 15 dBm, 5 GHz ≤ 21 dBm |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE605X, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09216
3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP650)
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports | 1× 1 Gbps Ethernet Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 2402Mbps, 2.4GHz Up to 574Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3.5dBi, 5GHz- 2*5dBi |
| Dimensions | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
| Power |
802.3at PoE, 12 V DC |
| Power Consumption | 13,5 W |
| Mounting |
Ceiling /Wall Mounting (Kits included), Junction Box Mounting |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP650, Power Adapter, Ceiling/Wall Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates |
CE, FCC, RoHS |
#09561
3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP650-Desktop)
- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. †
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- No Installation needed:Supports desktop installation without the need for additional setup.
- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
- Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports |
1× 1 Gbps Ethernet Port, 1× FXS Port (One Ethernet port supports PoE Out 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 2402Mbps, 2.4GHz Up to 574Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
Internal Omni 2.4 GHz 2× 5 dBi, 5 GHz 3× 4.7 dBi |
| Dimensions | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Weight | 452g (excluding mounting base) |
| Power | 802.3 af/at/bt PoE or 12V/1.5A DC |
| Power Consumption | 17.3W (PoE Out Off) |
| Mounting | Desktop / Wall mouting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP650-Desktop, Desktop/Wall Mounting Kit, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates |
CE, FCC, RoHS |
#09451
3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP653 UR)
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
| Ports | 1× Gigabit PoE+ Port |
|---|---|
| Button | Reset |
| Frequency range | 5 GHz and 2,4 GHz |
| Signal Rate |
5 GHz Up to 4804 Mbps, 2.4 GHz Up to 574 Mbps |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
Internal Omni, 2,4 GHz 2× 5 dBi, 5 GHz 3× 5 dBi |
| Dimensions | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Power |
802.3at PoE, 12V DC / 1.5 A (Power Adapter IS NOT included), 48V Passive PoE |
| Power Consumption | 14,2W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP653 UR, Ceiling/Wall Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates |
CE, FCC, RoHS, IC |
#09230
3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP653)
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports | 1× 1 Gbps Ethernet Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 2402Mbps, 2.4GHz Up to 574Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3.5dBi, 5GHz- 2*5dBi |
| Dimensions | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
| Power |
802.3at PoE, 12 V DC |
| Power Consumption | 13,5 W |
| Mounting |
Ceiling /Wall Mounting (Kits included), Junction Box Mounting |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP653, Ceiling/Wall Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates |
CE, FCC, RoHS |
#09253
3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP655-Wall)
- Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports |
10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 1201Mbps, 2.4GHz Up to 574Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Omada App | Yes |
| Centralized Management |
Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, or Omada Software Controller) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3dBi, 5GHz- 2*4dBi |
| Dimensions | 143 × 86 × 42,6mm (5.6 × 3.4 × 1,7 in) |
| Power | 802.3af/802.3at PoE |
| Power Consumption |
EU 10W (802.3at PoE, PoE Out off), US 11.5W (802.3at PoE, PoE Out off) |
| Mounting | Wall Plate Mounting |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP655-Wall, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
#09610

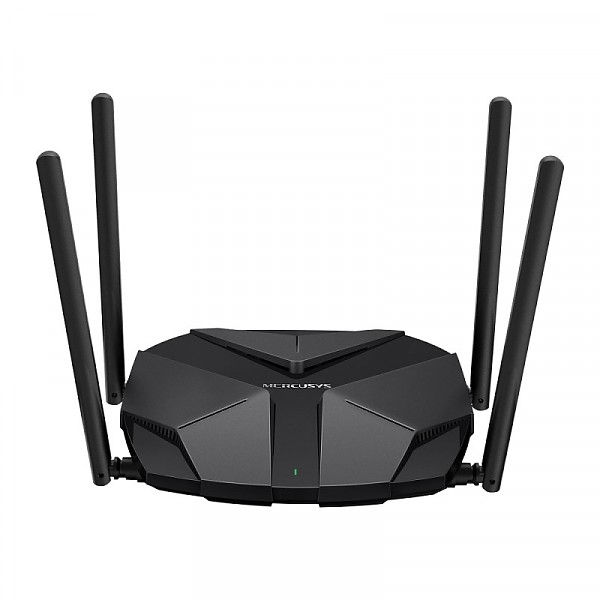

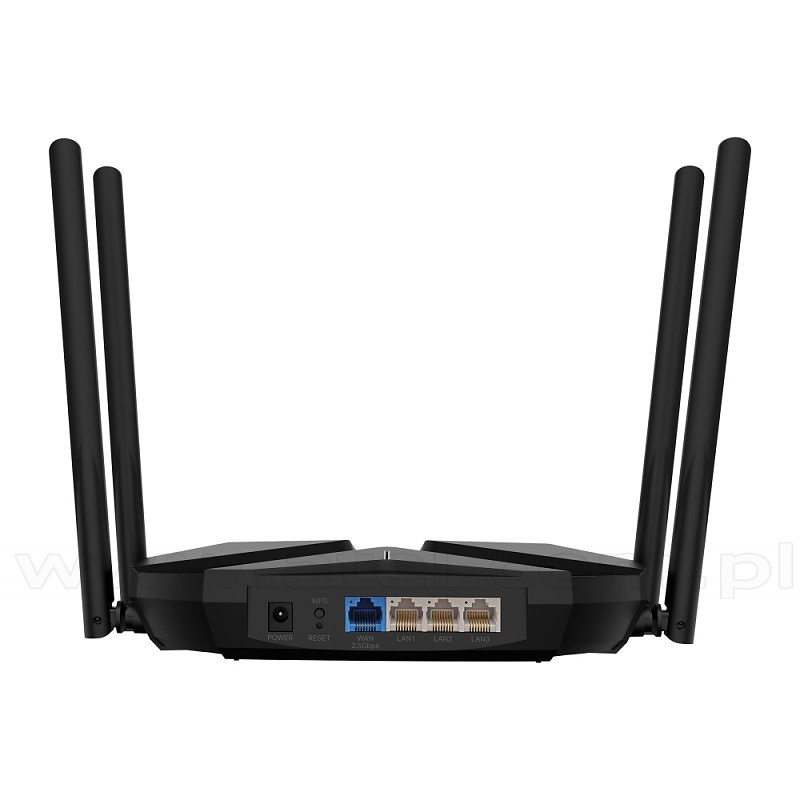

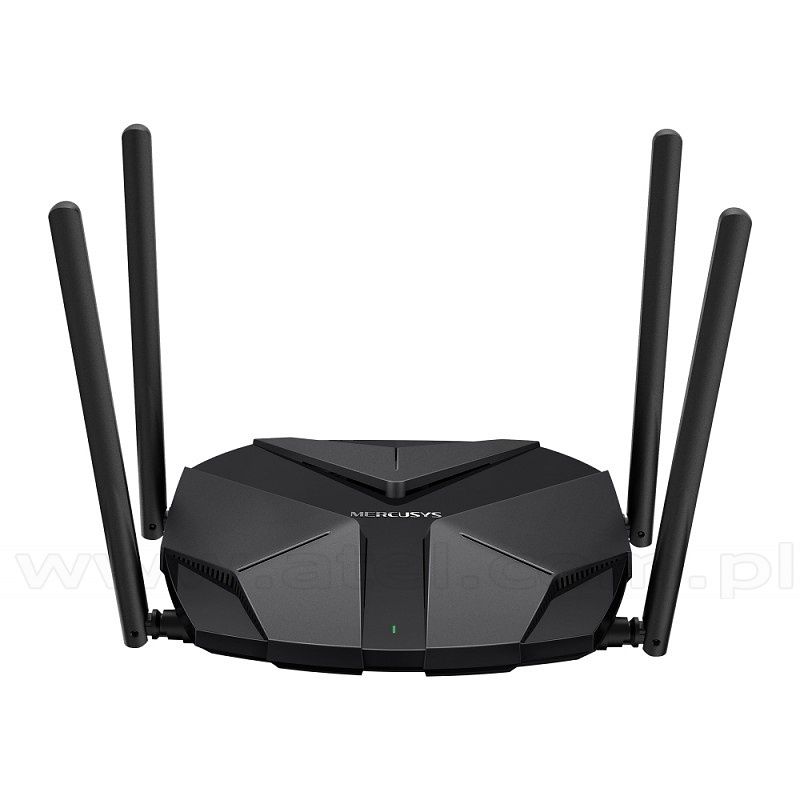

3000Mbps Wireless 2,5 Gigabit Router Dual-band AX3000, MU-MIMO (TP-Link Marcusys MR85X)
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 2.5G WAN Port |
| Button | WPS/Reset Button |
| Dimensions (W X D X H) | 8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) |
| Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 2402 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
| SOFTWARE FEATURES: | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List |
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security |
SPI Firewall, IP and MAC Address Binding |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Passthrough |
OpenVPN, PPTP supported |
| OTHERS: | |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09243
3000Mbps Wireless 2.5 Gigabit Router Dual-band AX3000, MU-MIMO (TP-Link Archer AX55 Pro)
- Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
- 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximized Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
- Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
- TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
- Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, 1 2.5G WAN Port, 1 USB-A 3.0 Port |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
| Power Supply | 12V/1.5A |
| Dimensions (W X D X H) | 261.1 × 134.5 × 41.0 mm |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 2402 Mbps (802.11ax), 2.4 GHz@ 574 Mbps (802.11ax) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
Unit: pcs VAT: 23%#04696
3000Mbps Wireless Access Point, AX3000 (TP-Link EAP650-Outdoor)
- Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
- Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
- Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
- PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
802.11ax 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160), 802.11ac 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80), 802.11n 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40), 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b 1, 2, 5.5, 11 Mbps, 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*5dBi |
| Dimensions | 280.4×106.5×56.8 mm (without antenna & mounting kit) |
| Power |
802.3at PoE, 48V/0.5A Passive PoE (PoE Adapter Included) |
| Power Consumption |
EU 12.5W (802.3at PoE or Passive PoE), US 14.7W (802.3at PoE or Passive PoE) |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
Access Point EAP650-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Waterproof Kits, Waterproof Antenna, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 10, Linux |
| Certificates |
CE, FCC, RoHS |
#09010
3000Mbps Wireless Dual Band PCI-Express AX3000, Wi-Fi 6, Bluetooth 5.0 (TP-Link Archer TX3000E)
- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
- Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
| HARDWARE FEATURES: | |
|---|---|
| Interface | PCI Express x1 |
| Antenna Type |
Two High-Gain Dual Band Antennas, Magnetized Antenna Base |
| Chipset | Intel Wi-Fi 6 Chipset |
| WIRELESS FEATURES: | |
| Wireless Standards |
5 GHz@ IEEE 802.11ax/ac/n/a, 2,4 GHz@ IEEE 802.11ax/n/g/b, Bluetooth 5.0/4.2/4.0 |
| Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
| Signal Rate |
2402Mbps at 5GHz, 574Mbps at 2.4GHz |
| EIRP |
5 GHz @ 27 dBm (FCC) / 23 dBm (CE) (EIRP), 2,4 GHz @ 26 dBm (FCC) / 20 dBm (CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS: | |
| Dimensions | 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
| Certification |
CE, FCC, RoHS, Wi-Fi |
| Package Contents |
Archer TX3000E, Magnetized Antenna Base with 1m RF Cable, Two 5 dBi High Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD |
| System Requirements |
Windows 7/8/8.1/10(32/64bits), Windows XP(32/64bits) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
Page 3 of 11
|
