CPU | Atheros AR7240 400MHz |
---|---|
Memory |
32MB, SDRAM |
Wireless standards |
Built in 5GHz AR9280 802.11a/n card, 1 MMCX/uFL connector (depends on model) |
Copper ports | 1x 10/100 Mbps RJ-45 |
Auto MDI/MDI-X | yes |
Bootloader | RouterBOOT |
Data storage |
64MB NAND, build-in |
Speaker | beeper |
Dimensions | 105x105 mm |
Power | PoE 10 V ÷ 28 V DC |
Power consumption | 4.5W |
Operating system | MikroTik Router OS 2.9 Level 4 |
Manufacturer | MikroTik |

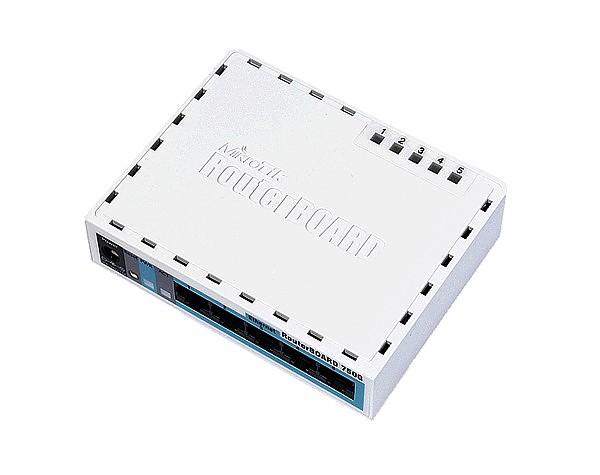

CPU | Atheros AR7240 300MHz (overlock 400MHz) |
---|---|
Memory | 32MB DDR SDRAM |
Data storage | 64 MB onboard NAND memory chip |
Copper ports | 5x 10/100 Mbps RJ-45 Ethernet ports |
Bootloader | RouterBOOT |
Speaker | beeper |
Power | PoE 9V ÷ 28V DC |
Power jack | 9V ÷ 28V DC |
Power consumption | max. 3W |
Dimensions | 113x89x28mm |
Operating system | MikroTik Router OS v3 Level 4 |
Manufacturer | MikroTik |
CPU | Atheros AR9344 600MHz CPU |
---|---|
Memory | 128MB DDR2 onboard memory |
Copper ports | 5x 10/100/1000 Mbps RJ-45 Ethernet ports |
USB ports | 1 |
LED Indicators |
Power, NAND activity, 5 Ethernet LEDs, wireless activity LED |
Power | PoE 9V ÷ 28V DC on Ethernet port 1 (Non802.3af) |
Power jack | 9V - 28 V DC |
Power consumption | max. 7W |
Antennas |
2x2 MIMO PIF antennas, max gain 2.5dBi |
RX sensitivity 802.11g | -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s |
802.11n | -96dBm @ MCS0 to -78dBm @ MCS7 |
TX power 802.11g | 30dBm @ 6Mbps to 25dBm @ 54 Mbps |
802.11n | 30dBm @ MCS0 to 23dBm @ MCS7 |
Modulations OFDM |
BPSK, QPSK, 16 QAM, 64QAM |
DSSS |
DBPSK, DQPSK, CCK |
Dimensions | 113x138x29mm |
Operating system | MikroTik Router OS v4 Level 4 |
Standards | IEEE 802.11b/g/n |
---|---|
Ports |
5x 10/100 Mbps RJ-45, 1x USB |
Chipset |
MIPSBE, QCA9531, 650 MHz |
Operating memory | 64MB DDR SDRAM |
Storage size | 16 MB |
Frequency range | 2.4 - 2.5GHz |
Antenna |
build-in, 2 dBi |
Beam width | 360° |
Dimensions | 113 x 89 x 28mm |
Mounting | mast or wall with the aid of antenna wall support |
Max. power consumption | 5 W |
Power | 6 V - 30 V (Jack or Passive PoE) |
Operating temperatures | -30°C ÷ 70°C |
Operating humidity |
5% ÷ 95%, non-condensing |
Certificates |
CE, FCC, IC, EAC, ROHS |
Manufacturer | MikroTik |
Standards | IEEE 802.11b/g/n |
---|---|
Ports | 1x 10/100 Mbps RJ-45 |
Chipset |
MIPSBE, QCA9533, 650 MHz |
Operating memory | 64MB DDR SDRAM |
Storage size | 16 MB |
Frequency range | 2.4 - 2.5GHz |
Antenna |
build-in, 2 dBi |
Beam width | 360° |
Dimensions | 185 x 85 x 30 mm |
Mounting | mast or wall with the aid of antenna wall support |
Max. power consumption | 4 W |
Power | PoE 11 V - 57 V (Passive PoE and 802.3af/at with unshielded cable) |
Operating temperatures | -40°C ÷ 70°C |
Operating humidity |
5% ÷ 95%, non-condensing |
Certificates |
FCC, IC |
Manufacturer | MikroTik |
Standards | IEEE 802.11b/g/n |
---|---|
Ports |
1x 10/100/1000 Mbps RJ-45, USB 2.0 |
Operating modes |
Access Point, Bridge, Client, Router |
Chipset | Atheros AR7241 400MHz CPU |
Operating memory | 32MB DDR SDRAM |
Frequency range | 2.4 - 2.5GHz |
Max. output powe |
802.11b/g - 32dBm @ 6Mbps do 29dBm @ 54 Mbps, 802.11n - 32dBm @ MCS0/8 do 25dBm @ MCS7/15 |
Receiver sensitivity |
802.11b/g - –96 dBm @ 6Mbps do -80 dBm @ 54 Mbps, 802.11n - –95 dBm @ MCS0 20MHz do –74 dBm @ MCS7 40MHz |
Antenna |
build-in, 10 dBi |
Beam width | 60°/60° |
Dimensions | 140x140x56mm |
Weight | 265g |
Mounting | mast or wall with the aid of antenna wall support |
Max. power consumption | 7 W |
Power | PoE 8-30V |
Operating temperatures | -30°C ÷ 80°C |
Operating humidity |
5% ÷ 95%, non-condensing |
Certificates |
FCC, CE, ROHS |
Manufacturer | MikroTik |
