#05859

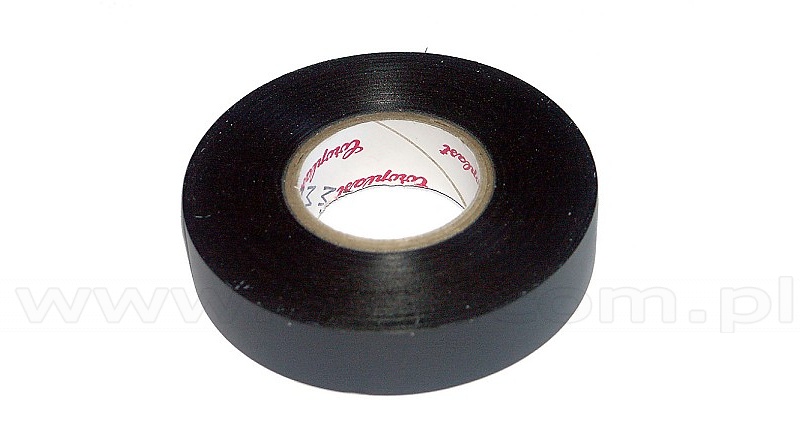

Self-adhesive insulation tapes#05859

Insulating tape, black, heat resistant, max 150 degree C

Insulating tape, based on a specially formed plasticized PVC foil with an acrylic adhesive layer, black, length 33 m.

Highly resistant to temperature (up to 150C) and to automotive chemicals, including oils.

For insulating places exposed to low and high temperatures, for longitudinal or spiral wrapping of cable bundles, for electric motors and transformers

Properties and advantages:

  • The parameters of the tape do not change despite changes in ambient temperatures
  • Lead-free and low-smoke
  • High temperature
  • Excellent resistance and elasticity in low temperatures
  • Flame-retardant and self-extinguishing,
  • Resistant to ageing
  • Resistant to chemicals
  • Resistant to fluids used in the automotive industry
  • High flexibility prevents the tape from folding
  • Solvent-free
Carrier specially formulated plasticized PVC film
Adhesive acrylic
Thickness 0.15 mm
Widths 19 mm
Tensile strength 22 N/mm2
Elongation at break 240%
Adhesion on steel 2.3 N/cm
Breakdown voltage > 40 kV/mm
Temperature range -40 up to 125 degree C (max 150 degree for 240 hours)

« previous product  |  next product »     » show on list« » Self-adhesive insulation tapes «
Net Price: 2,67 EUR  Unit: roll 33m
Minimal order quantity: 2 x roll 33m
Quantity in the smallest collective package: 1 x roll 33m
