MENU#04905
Other phone accessories › #04905

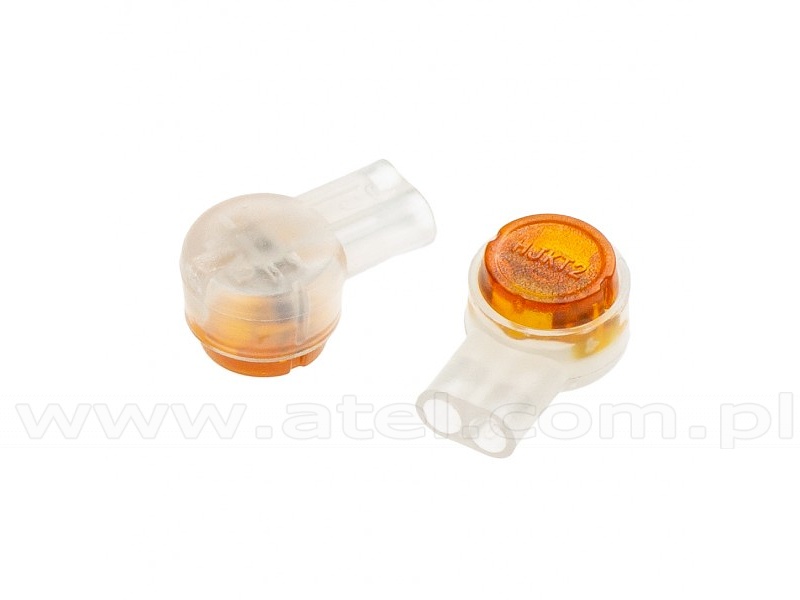

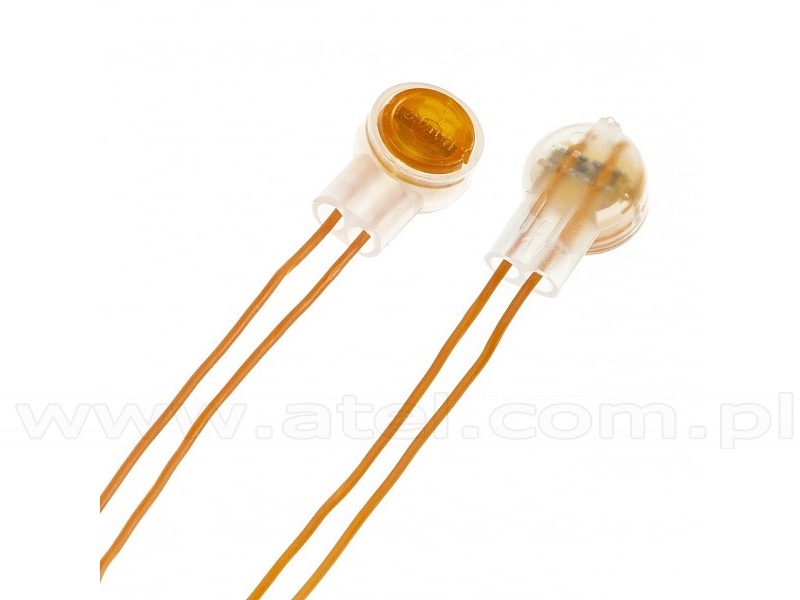

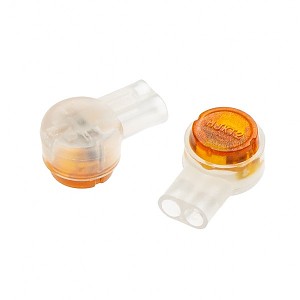

UY2 connector, 100pcs/bag
UY2 connectors enable connecting wires without the need of isolation stripping. They are filled with gel, which protects wires from corrosion.
UY2 connectors should be used for wires with external coat up to 1.52mm in diameter and 0.4-0.9 wire diameter.
Made of transparent polycarbonate with an orange clamp.
UY2 connectors should be used for wires with external coat up to 1.52mm in diameter and 0.4-0.9 wire diameter.
Made of transparent polycarbonate with an orange clamp.
| Purpose | connecting two wires |
|---|---|
| Maximum diameter of the external coat | 1.52mm |
| Core diameter | 0.4-0.9mm |
| Dimensions | 15x10x8mm (6mm after tightening) |
| Filling | hydrophobic gel, protecting against corrosion |
| Temperature range | -30°C ÷ +70°C |

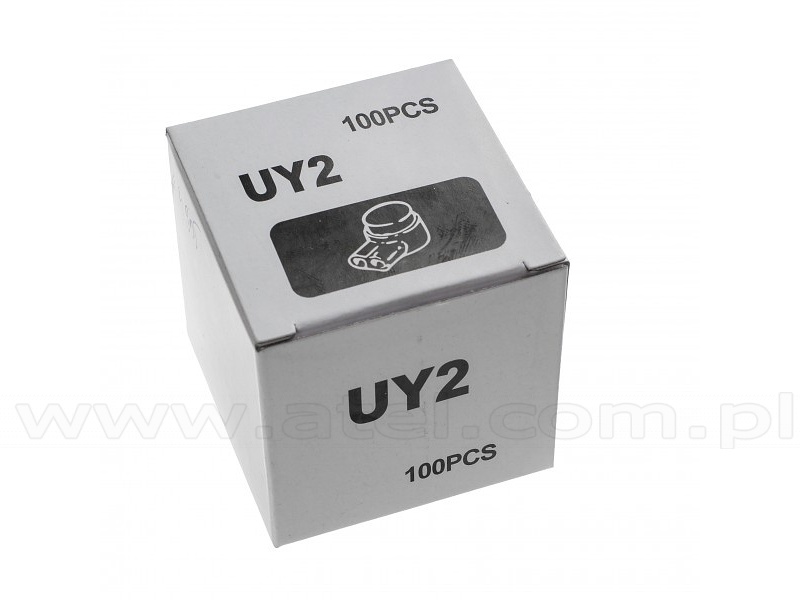

| Packaging | cardboard, 55x55x55mm |
Recommended crimping tools:
#03291- Splices crimping tool (Hanlong HT-105)
#02253- Splices crimping tool (Atex 311)
#03291- Splices crimping tool (Hanlong HT-105)
#02253- Splices crimping tool (Atex 311)
Net Price: 2,05 EUR Unit: 100pcs
|
|
Minimal order quantity: 1 x 100pcs Quantity in the smallest collective package: 1 x 100pcs |
