New Items in Atel Electronics

NEW ITEMS


  • Computer Network Accessories
    • Switch modules, SFP, SFP28, QSFP, GBIC
        #06843

        Module, QSFP28 1x 100 Gbps LC SM, 10km, Tx:1295-1309nm, DDMI (Wave Optics, WO-Q28SL-100G-010K-D)

        100G QSFP28 transceiver designed for transmission with a double (duplex) single-mode fiber (SM) at a distance of up to 10km. TX wavelengths 1295-1309nm. The DDMI interface allows to monitor the connection status. SQFP28 MSA compatible.
        Port 1x 100 Gbps LC SM
        TX wavelengths 1295, 1300, 1304 i 1309nm
        Max. distance 10km
        Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
        DMI yes
        Module type QSFP28
        Warranty period 1 year
        Manufacturer Wave Optics
        WAVE OPTICS
        Module, QSFP28 1x 100 Gbps LC SM, 10km, Tx:1295-1309nm, DDMI (Wave Optics, WO-Q28SL-100G-010K-D)
        for special orders only
        Net Price: 277,00 EUR
        product card»
      • » SFP+ WDM
          #09570

          Module, SFP 1x 10G LC SM, 10 km, WDM TX: 1270 nm (TP-Link SM5110LSB-10)

          • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
          • Single mode SFP+ LC Transceiver
          • Hot-Pluggable with maximum flexibility
          • Supports Digital Diagnostic Monitoring (DDM)
          • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)

            • Compatible with switches with 10G ports like SG3428X and SG3452X

          Standards and Protocols IEEE 802.3ae,
          SFF 8431,
          SFF 8432,
          SFF-8472
          TX Wave Length 1270nm
          RX Wave Length 1330nm
          Power Supply 3.3V
          Fiber Type 9/125um Single-Mode
          Max. Cable Length 10km
          Data Rate 10Gbps
          Port Type LC/UPC
          Safety & Emission FCC,
          CE
          Operating Temperature 0℃~70℃ (32℉~158℉)
          Storage Temperature -40℃~80℃ (-40℉~176℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Module, SFP 1x 10G LC SM, 10 km, WDM TX: 1270 nm (TP-Link SM5110LSB-10)
          Net Price: 30,50 EUR
          product card»
          #09569

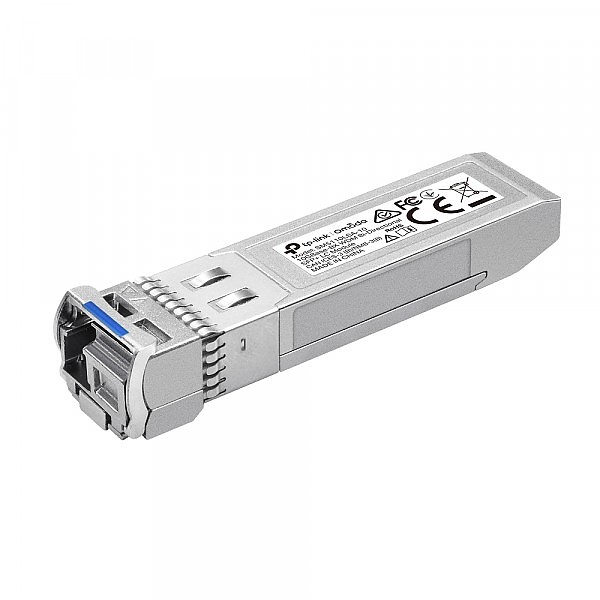

          Module, SFP 1x 10G LC SM, 10 km, WDM TX: 1330 nm (TP-Link SM5110LSA-10)

          • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
          • Single mode SFP+ LC Transceiver
          • Hot-Pluggable with maximum flexibility
          • Supports Digital Diagnostic Monitoring (DDM)
          • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)

            • Compatible with switches with 10G ports like SG3428X and SG3452X

          Standards and Protocols IEEE 802.3ae,
          SFF 8431,
          SFF 8432,
          SFF-8472
          TX Wave Length 1330nm
          RX Wave Length 1270nm
          Power Supply 3.3V
          Fiber Type 9/125um Single-Mode
          Max. Cable Length 10km
          Data Rate 10Gbps
          Port Type LC/UPC
          Safety & Emission FCC,
          CE
          Operating Temperature 0℃~70℃ (32℉~158℉)
          Storage Temperature -40℃~80℃ (-40℉~176℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Module, SFP 1x 10G LC SM, 10 km, WDM TX: 1330 nm (TP-Link SM5110LSA-10)
          Net Price: 30,50 EUR
          product card»
      • » SFP28
          #09484

          Module, SFP+/SFP28 1x 25G LC MM, 10 km, TX: 850 nm (TP-Link SM6110-SR)

          • Single-mode SFP+/SFP28 LC Transceiver
          • Hot-Pluggable with maximum flexibility
          • Supports Digital Diagnostic Monitoring (DDM)
          • Low Power Consumption no more than 1 W
          • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)

            • Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

          Standards and Protocols IEEE 802.3ae,
          802.3by,
          SFF-8402,
          SFF-8431,
          SFF-8432,
          SFF-8472,
          eCPRI,
          CPRI,
          TCP/IP
          Wave Length 850nm
          Power Supply 3.3V
          Fiber Type 50/125um or 62.5/125um Multi-mode
          Max. Cable Length 70m (OM3) @25.78Gbps,
          100m (OM4) @25.78Gbps,
          300m (OM3) @10.31Gbps
          Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
          Port Type LC/UPC
          DDM Yes
          SFP-MSA Yes
          Hot Swappable Yes
          Dimensions ( W x D x H ) 2.24*0.55*0.53 in (57*14*13,45 mm)
          Safety & Emission CE,
          FCC,
          RoHS
          Operating Temperature 0℃~70℃ (32℉~158℉)
          Storage Temperature -40℃~85℃ (-40℉~185℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Module, SFP+/SFP28 1x 25G LC MM, 10 km, TX: 850 nm (TP-Link SM6110-SR)
          Net Price: 42,80 EUR
          product card»
          #09483

          Module, SFP+/SFP28 1x 25G LC SM, 10 km, TX: 1310 nm (TP-Link SM6110-LR)

          • Single-mode SFP+/SFP28 LC Transceiver
          • Hot-Pluggable with maximum flexibility
          • Supports Digital Diagnostic Monitoring (DDM)
          • Low Power Consumption no more than 1.2 W
          • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)

            • Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

          Standards and Protocols IEEE 802.3ae,
          802.3cc,
          SFF-8402,
          SFF-8431,
          SFF-8432,
          SFF-8472,
          eCPRI,
          CPRI,
          TCP/IP
          Wave Length 1310nm
          Power Supply 3.3V
          Fiber Type 9/125um Single-Mode
          Max. Cable Length 10km
          Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
          Port Type LC/UPC
          DDM Yes
          SFP-MSA Yes
          Hot Swappable Yes
          Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12 mm)
          Safety & Emission CE,
          FCC,
          RoHS
          Operating Temperature 0℃~70℃ (32℉~158℉)
          Storage Temperature -40℃~85℃ (-40℉~185℉)
          Operating Humidity 10%~90% non-condensing
          Storage Humidity 5%~90% non-condensing
          Warranty 5 years
          Manufacturer TP-Link
          TP-LINK
          Module, SFP+/SFP28 1x 25G LC SM, 10 km, TX: 1310 nm (TP-Link SM6110-LR)
          Net Price: 74,90 EUR
          product card»
      • » SFP+, QSFP+, SFP28 COPPER CABLES
          #09485

          SFP+ Passive Direct Attach Cable, 1,0 m (TP-Link SM5220-1M)

          • 10G SFP+ connector on both sides
          • Drives 10 Gigabit Ethernet (1m distance)
          Data Rate 10 Gbps
          Compatible SFP+
          Operating case temperature 0°C÷70°C
          Storage Temperature -40–80 ℃ (-40–176 ℉)
          Operating Humidity 10–90% RH non-condensing
          Storage Humidity 5–90% RH non-condensing
          Conductor Silver Plated Copper
          Product Dimensions Plug 2.26*0.53*0.34 in (57.5*13.55*8.55 mm)
          Length 1m
          Manufacturer TP-Link
          TP-LINK
          SFP+ Passive Direct Attach Cable, 1,0 m (TP-Link SM5220-1M)
          Net Price: 21,40 EUR
          product card»
          #09568

          SFP+ Passive Direct Attach Cable, 3,0 m (TP-Link SM5220-3M)

          • 10G SFP+ connector on both sides
          • Drives 10 Gigabit Ethernet (3m distance)
          Data Rate 10 Gbps
          Compatible SFP+
          Operating case temperature 0°C÷70°C
          Storage Temperature -40–80 ℃ (-40–176 ℉)
          Operating Humidity 10–90% RH non-condensing
          Storage Humidity 5–90% RH non-condensing
          Conductor Silver Plated Copper
          Product Dimensions Plug 2.26*0.53*0.34 in (57.5*13.55*8.55 mm)
          Length 3m
          Manufacturer TP-Link
          TP-LINK
          SFP+ Passive Direct Attach Cable, 3,0 m (TP-Link SM5220-3M)
          Net Price: 24,60 EUR
          product card»
