HARDWARE FEATURES: | |
---|---|
Interface | PCI Express x1 |
Antenna Type | 1 Detachable External Antenna |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
Signal Rate |
433Mbps at 5GHz, 200Mbps at 2.4GHz |
Wireless Modes | Infrastructure mode |
Wireless Security |
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS: | |
Dimensions | 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm) |
Certification |
CE, FCC, RoHS, Wi-Fi |
Package Contents |
Wireless Adapter Archer T2E, Resource CD, Quick Installation Guide |
System Requirements | Windows 11/10 |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
Button | WPS/Reset Button |
External Power Supply | 12VDC / 1A |
Dimensions (W X D X H) | 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |
Antenna | 4 Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 400Mbps |
EIRP |
CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB |
Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
Package Contents |
Archer A64, Power supply unit, Quick Installation Guide, Ethernet Cable |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Manufacturer | TP-Link |
HARDWARE FEATURES: | |
---|---|
Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Interface |
4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
External Power Supply | 12VDC / 1A |
Dimensions (W X D X H) | 9.6 × 6.4 × 1.3 in (243 × 160.6 × 32.5 mm) |
Antenna | 3 Omni Directional Antennas |
WIRELESS FEATURES: | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps |
EIRP | <20dBm(EIRP) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
SOFTWARE FEATURES: | |
WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management |
Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
OTHERS: | |
Certification |
CE, FCC, IC, RoHS |
Package Contents |
Archer A8, 2 antennas, Power supply unit, Quick Installation Guide, Ethernet Cable |
System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7,8,10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |

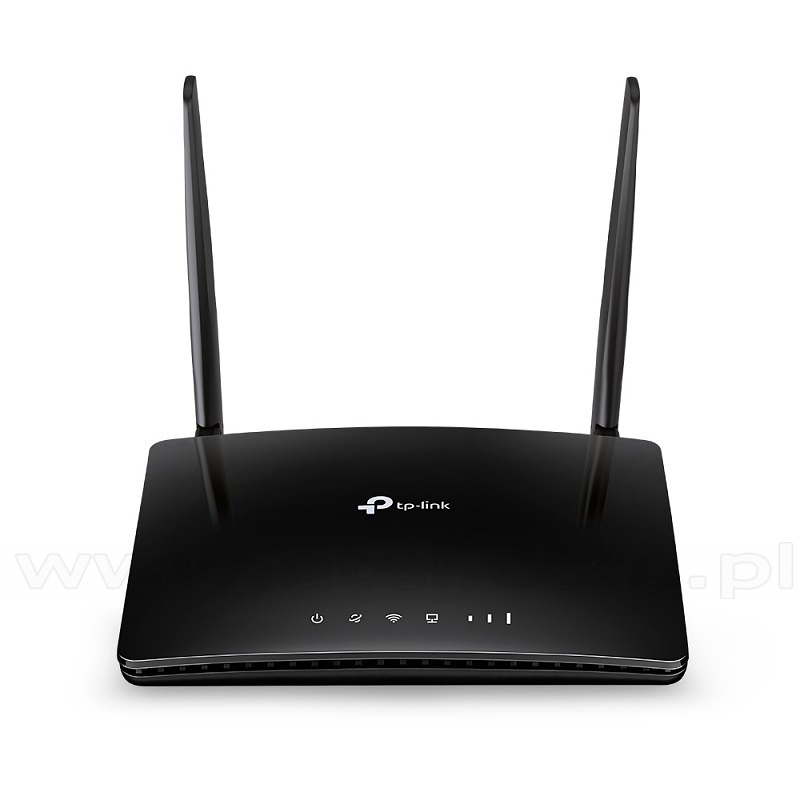

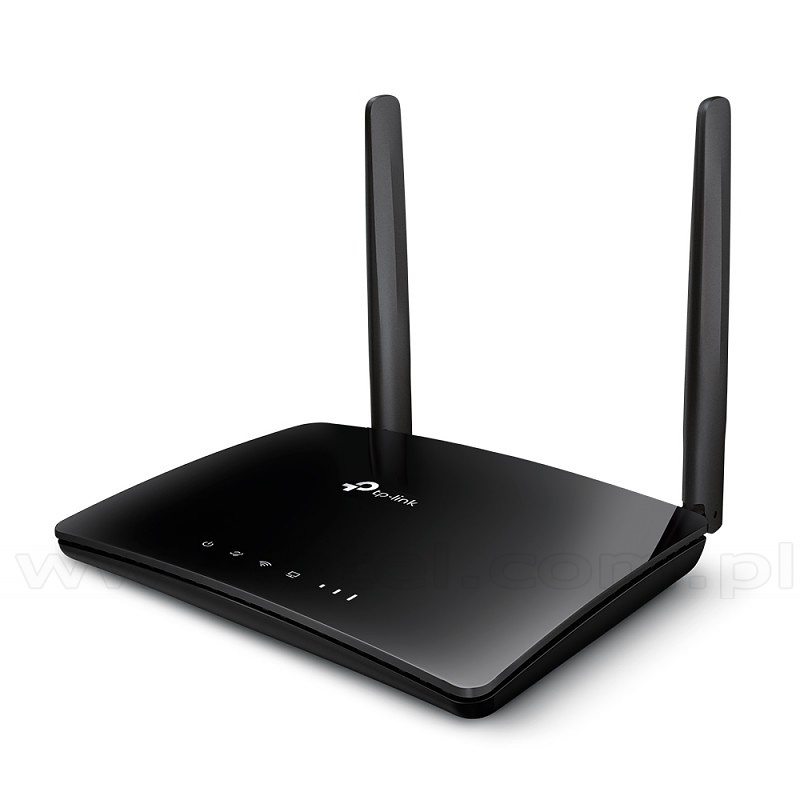

HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN Ports, 1 SIM Card Slot |
Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
External Power Supply | 12VDC/1A |
Dimensions ( W x D x H ) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
Antenna Type |
3 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4GHz and 5GHz |
EIRP |
<20dBm, <23dBm(5GHz) |
Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
Network Type |
4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G EDGE/GPRS/GSM (850/900/1800/1900MHz) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
3G/4G Wireless AC Router, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN Ports, 1 SIM Card Slot, 2× External SMA-F Antenna Interface |
Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
External Power Supply | 12VDC/1A |
Dimensions ( W x D x H ) | 7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm) |
Antenna Type |
3 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4GHz and 5GHz |
EIRP |
<20dBm, <23dBm(5GHz) |
Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
Network Type |
4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G EDGE/GPRS/GSM (850/900/1800/1900MHz) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
3G/4G Wireless AC Router, 1 Antenna, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100/1000Mbps LAN/WAN Port, 2 10/100/1000Mbps LAN Ports, 1 nano-SIM Card Slot |
Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
External Power Supply | 12VDC/1.5A |
Dimensions ( W x D x H ) | 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
Antenna Type | 2 × External SMA-F Antenna Interface |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4GHz and 5GHz |
EIRP |
<20dBm, <23dBm(5GHz) |
Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
Wireless Security |
64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise |
SOFTWARE FEATURES: | |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
Network Type |
4G FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz), TDD-LTE B38/B40/B41 (2600/2300/2500MHz), 3G DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
4G Wireless AC Router, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Ports | 1 * 10/100M Ethernet Port (RJ45) |
Plug Type | EU |
Button |
WPS Button, Reset Button |
Power Consumption | About 9,5W |
Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) | 3.5×1.4×4.9 in. (89×35.0×124.1 mm) |
Antenna Type | 2 x external |
WIRELESS FEATURES | |
Frequency | 2.4GHz & 5GHz |
Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs |
EIRP | <17dBm(2,4GHz) <17dBm(5GHz) |
Reception Sensitivity |
5GHz 11a 6Mbps -91dBm@10% PER, 11a 54Mbps -74dBm@10% PER, 11ac HT20 mcs8 -68dBm@10% PER, 11ac HT40 mcs9 -63dBm@10% PER, 11ac HT80 mcs9 -59dBm@10% PER, 2,4GHz 11g 54M -79dBm@10% PER, 11n HT20 mcs7 -77dBm@10% PER, 11n HT40 mcs7 -74dBm@10% PER |
Wireless Modes | Range Extender |
Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
OTHERS | |
Certification |
CE, FCC, RoHS |
Package Contents |
RE315, Quick Installation Guide, |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10,11, MAC OS, NetWare, UNIX or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Manufacturer | TP-Link |
