 ADDITIONAL MODULES

#06085

KVM module cat.5, Wave KVM , 16 to 1, PS/2 or USB console, rack 19"

Removable KVM cat.5 module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 16 ports and an additional IP communication module.
Description 16 PC to 1 user
Console ports 16x RJ45(F),
2x USB A(F)
PC port type (keyboard/mouse) PS/2 or USB
Transmission distance up to 60m
Console Connector DB 37PIN
Max. resolution 1920 x 1200 @ 60 Hz Local & Remote
Housing 19",
metal
Power 12V DC 4A,
~230V AC 50Hz
Warranty 2 years
Manufacturer Wave KVM
Matching dongles:
#07130 KVM cat.5 USB dongle (Wave KVM WK-C5USB)
#07131 KVM cat.5 PS/2 dongle (Wave KVM WK-C5PS2)

Optional module:
#07391 IP module for KVM (Wave KVM KI-3101)
WAVE KVM
KVM module cat.5, Wave KVM , 16 to 1, PS/2 or USB console, rack 19"
Net Price: 305,00 EUR  Unit: pcs  VAT: 23%
product card»
#06084

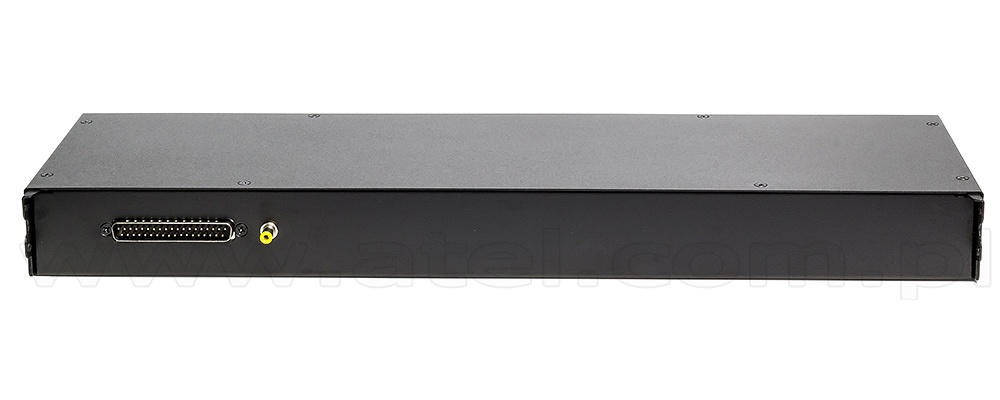

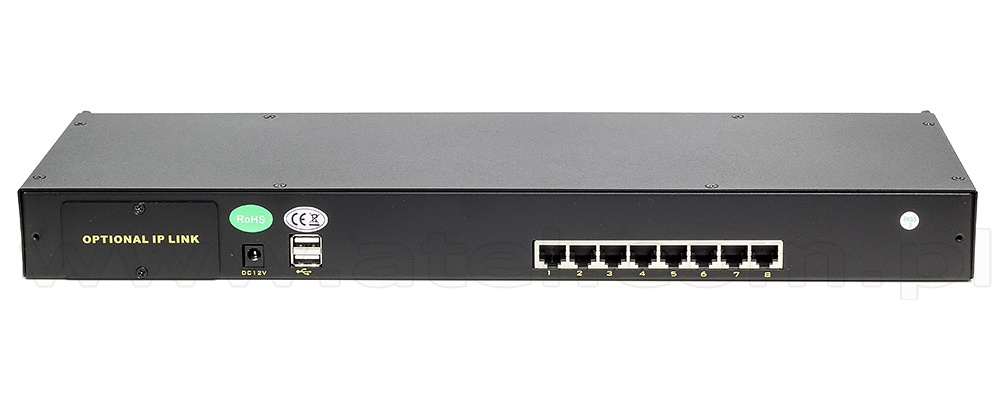

KVM module cat.5, Wave KVM , 8 to 1, PS/2 or USB console, rack 19"

Removable KVM cat.5 module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 8 ports and an additional IP communication module.
Description 8 PC to 1 user
Console ports 8x RJ45(F),
2x USB A(F)
PC port type (keyboard/mouse) PS/2 or USB
Transmission distance up to 60m
Console Connector DB 37PIN
Max. resolution 1920 x 1200 @ 60 Hz Local & Remote
Housing 19",
metal
Power 12V DC 4A,
~230V AC 50Hz
Warranty 2 years
Manufacturer Wave KVM
Matching dongles:
#07130 KVM cat.5 USB dongle (Wave KVM WK-C5USB)
#07131 KVM cat.5 PS/2 dongle (Wave KVM WK-C5PS2)

Optional module:
#07391 IP module for KVM (Wave KVM KI-3101)
WAVE KVM
KVM module cat.5, Wave KVM , 8 to 1, PS/2 or USB console, rack 19"
Net Price: 267,00 EUR  Unit: pcs  VAT: 23%
product card»
#06082

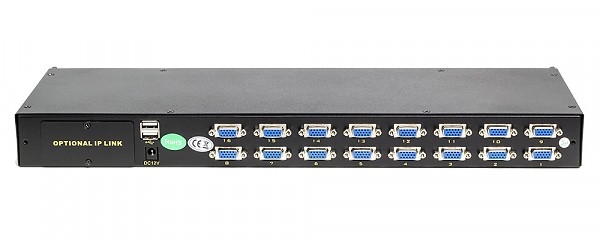

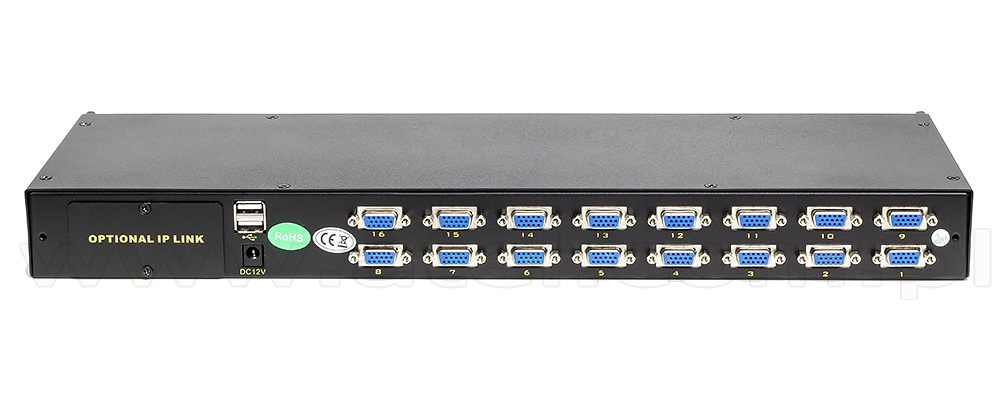

KVM module, Wave KVM, 16 to 1, PS/2 or USB console, rack 19"

Removable KVM module for 19" rack consoles with 17"" or 19" screen diagonals. It allows to expand the console by up to 16 ports and an additional IP communication module.
Description 16 PC to 1 user
Console ports 16x DB15(F),
2x USB A(F)
PC port type (keyboard/mouse) PS/2 or USB
Console Connector DB 37PIN
Max. resolution 1920 x 1200 @ 60 Hz
Housing 19",
metal
Power 12V DC 4A,
~230V AC 50Hz
Warranty 2 years
Manufacturer Wave KVM
Matching cables:
#07128 KVM cable, combo (PS/2 + USB), 1,8 m (Wave KVM WK-C18)
#07129 KVM cable, combo (PS/2 + USB), 3,0 m (Wave KVM WK-C30)

Optional module:
#07391 IP module for KVM (Wave KVM KI-3101)
WAVE KVM
KVM module, Wave KVM, 16 to 1, PS/2 or USB console, rack 19"
Net Price: 279,00 EUR  Unit: pcs  VAT: 23%
product card»
#06081

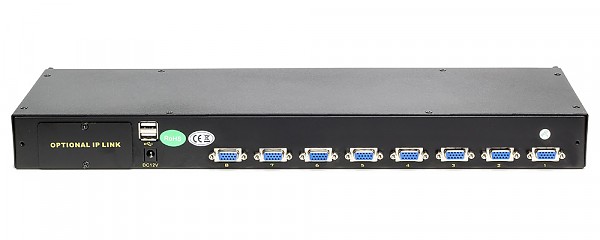

KVM module, Wave KVM, 8 to 1, PS/2 or USB console, rack 19"

Removable KVM module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 8 ports and an additional IP communication module.
Description 8 PC to 1 user
Console ports 8x DB15(F),
2x USB A(F)
PC port type (keyboard/mouse) PS/2 or USB
Console Connector DB37
Max. resolution 1920 x 1200 @ 60 Hz
Housing 19",
metal
Power 12V DC 4A,
~230V AC 50Hz
Warranty 2 years
Manufacturer Wave KVM
Matching cables:
#07128 KVM cable, combo (PS/2 + USB), 1,8 m (Wave KVM WK-C18)
#07129 KVM cable, combo (PS/2 + USB), 3,0 m (Wave KVM WK-C30)

Optional module:
#07391 IP module for KVM (Wave KVM KI-3101)
WAVE KVM
KVM module, Wave KVM, 8 to 1, PS/2 or USB console, rack 19"
Net Price: 207,00 EUR  Unit: pcs  VAT: 23%
product card»
