#07324

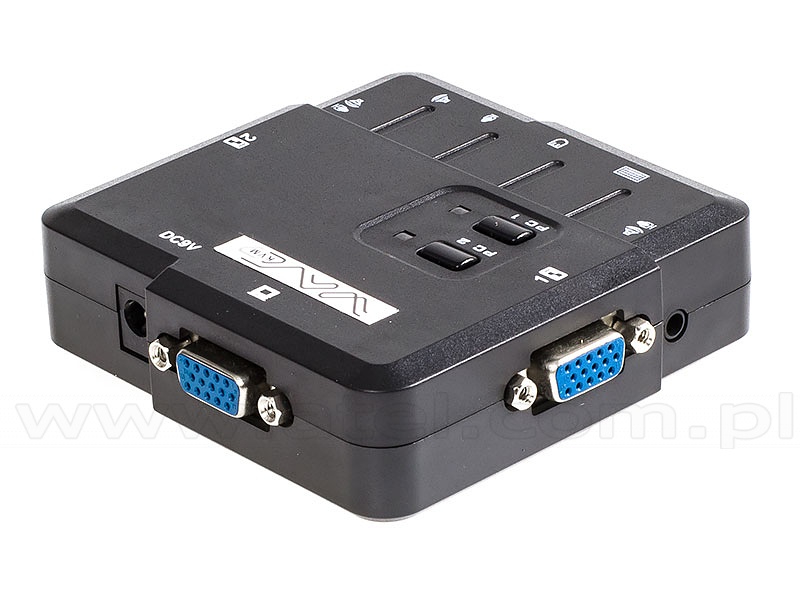

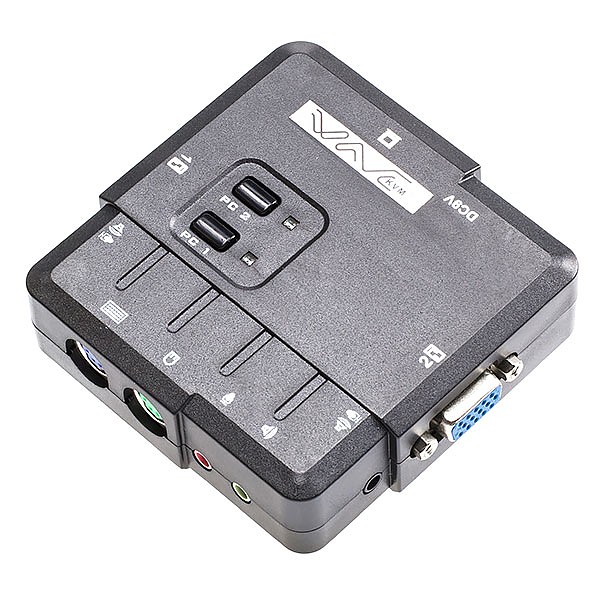

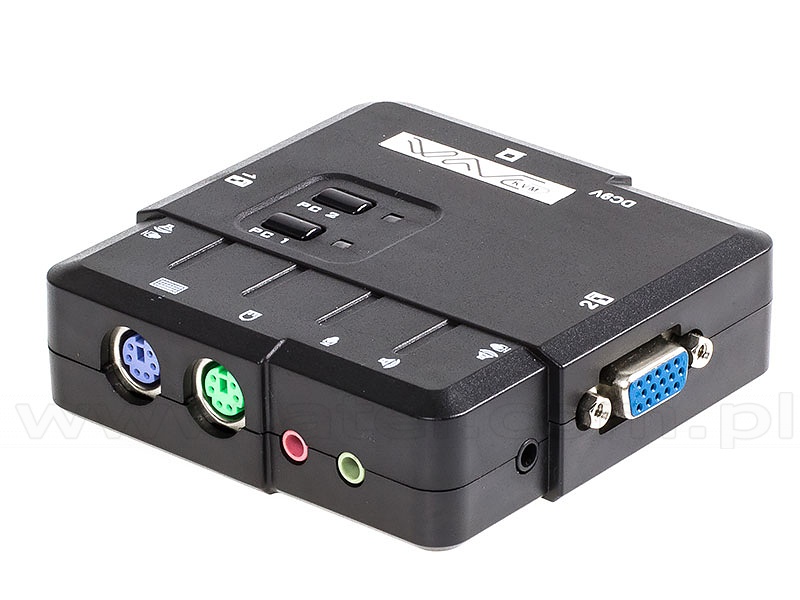

KVM switch, Wave KVM , 2 to 1, PS/2, audio
KVM switch allows to manage up to 2 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons.
| Description | 2 PC to 1 user |
|---|---|
| PC selection |
keyboard shortcut, buttons on front panel |
| Console connectors |
2x PS/2(F), 1x HDB-15(F), 1x 3,5mm jack (audio in), 1x 3,5mm jack (audio out) |
| PC connectors |
2x HDB-15(M), 2x 3.5mm jack (audio) |
| Max. resolution | 1280 × 1024 |
| Power | from ports |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

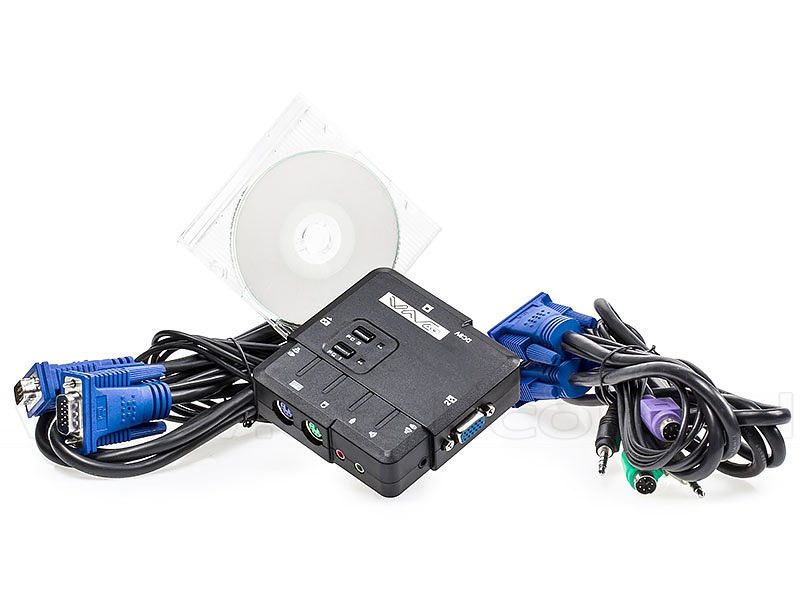

Cables included
#07326

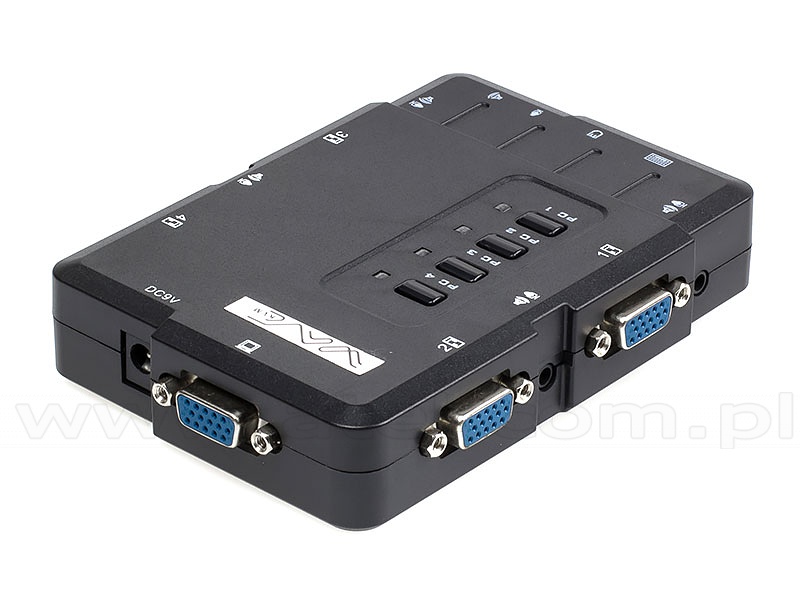

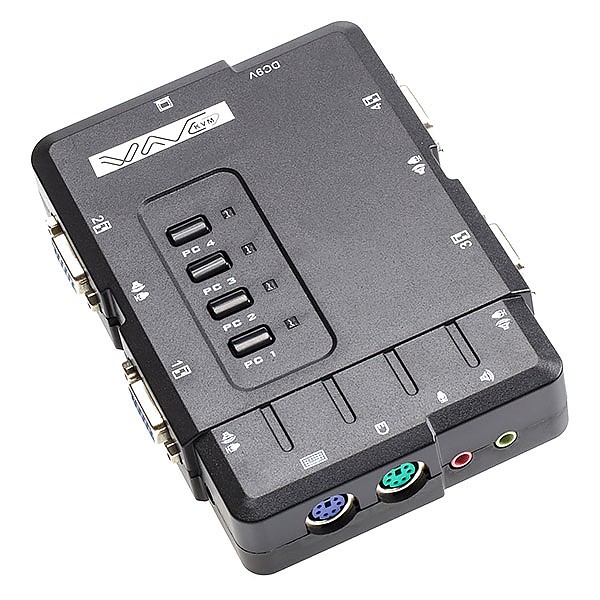

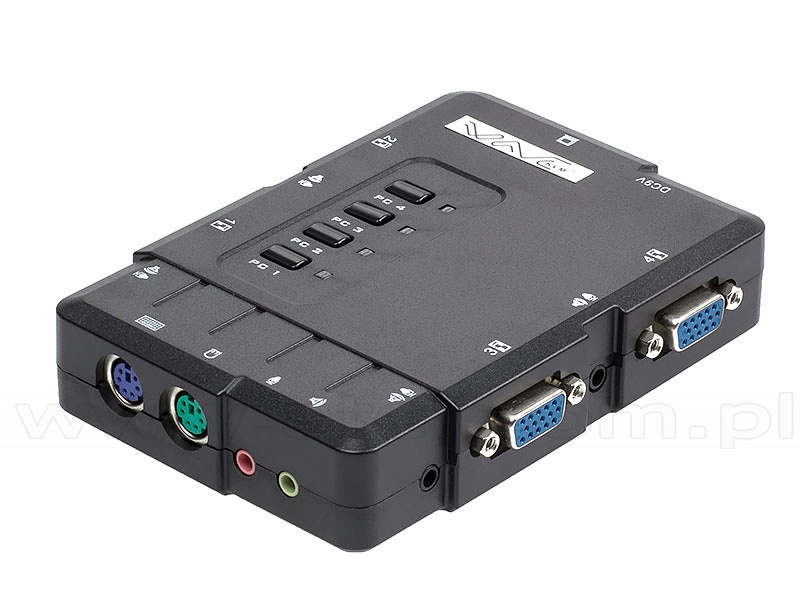

KVM switch, Wave KVM , 4 to 1, PS/2, audio
KVM switch allows to manage up to 4 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons.
| Description | 4 PC to 1 user |
|---|---|
| PC selection |
keyboard shortcut, buttons on front panel |
| Console connectors |
2x PS/2(F), 1x HDB-15(F), 1x 3,5mm jack (audio in), 1x 3,5mm jack (audio out) |
| PC connectors |
4x HDB-15(M), 4x 3.5mm jack (audio) |
| Max. resolution | 1280 × 1024 |
| Power | from USB ports |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#06088
KVM dongle, Wave KVM , RJ-45 to USB+DVI , kat.5 (WK-C5DVI)
DVI Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x DVI + 1x USB mini DIN 6(F) |
| PC port type (keyboard/mouse) | USB |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from USB ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#06087

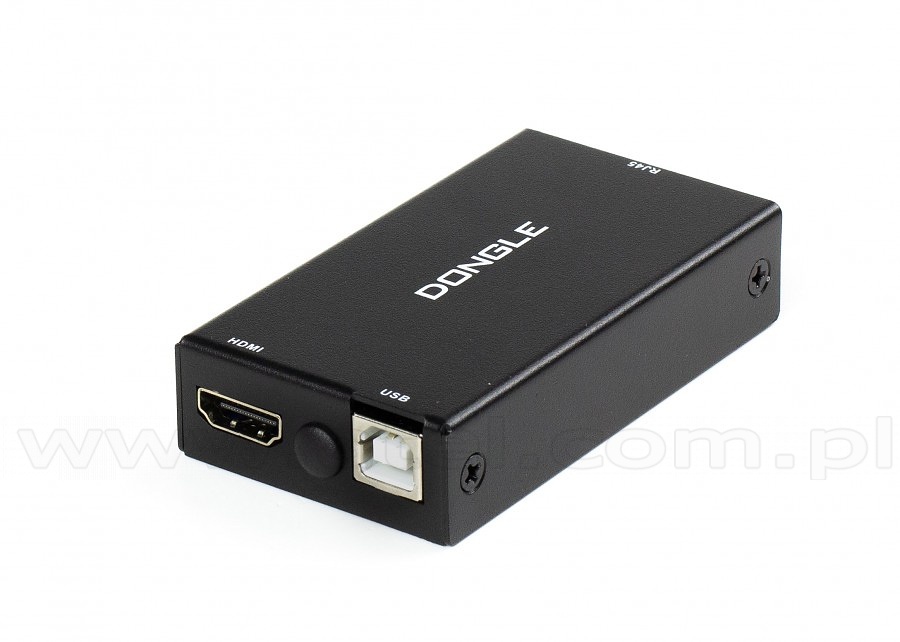

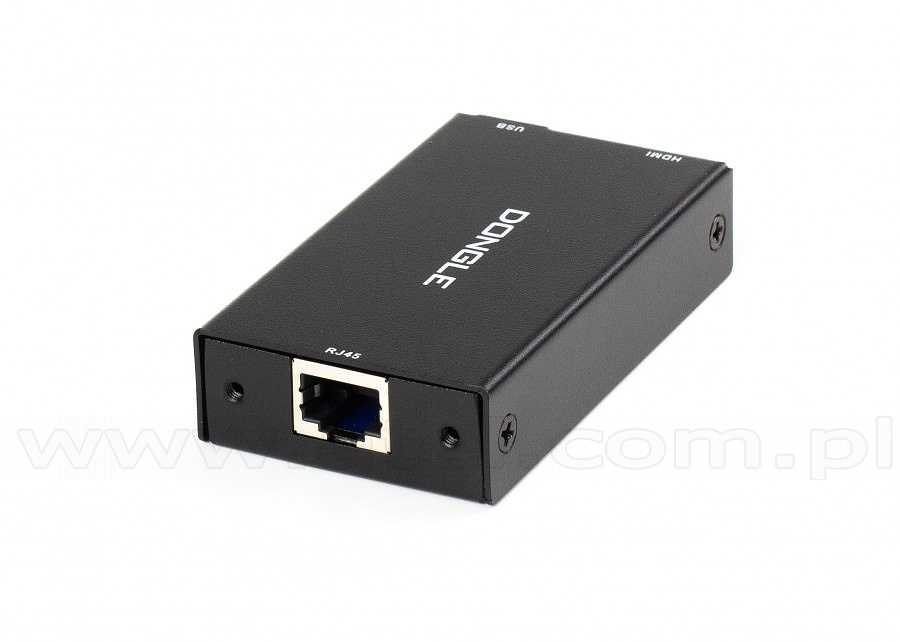

KVM dongle, Wave KVM , RJ-45 to USB+HDMI , kat.5 (WK-C5HDMI)
HDMI Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x HDMI + 1x USB mini DIN 6(F) |
| PC port type (keyboard/mouse) | USB |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from USB ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07130

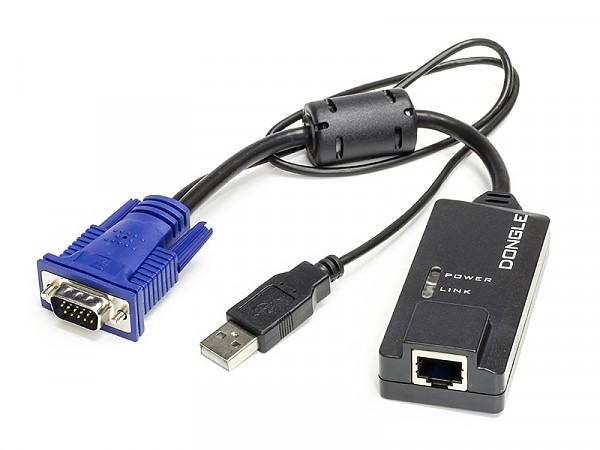

KVM dongle, Wave KVM , RJ-45 to USB+VGA , Cat.5 (WK-C5USB)
USB Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x VGA HDB15(F) + 1x USB mini DIN 6(F) |
| PC port type (keyboard/mouse) | USB |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from USB ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07128
KVM cable, Wave KVM , M-P15F, combo, 1.8 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 2x MD-6M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#07124

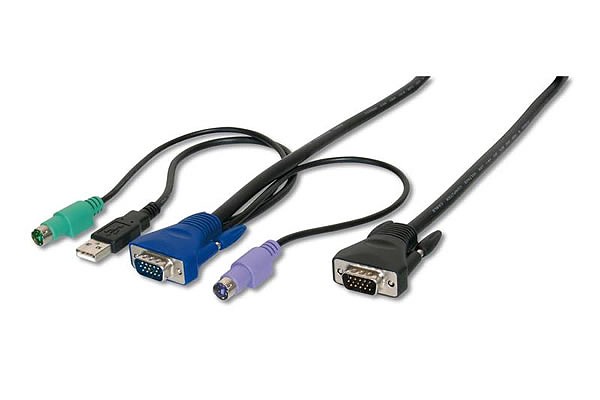

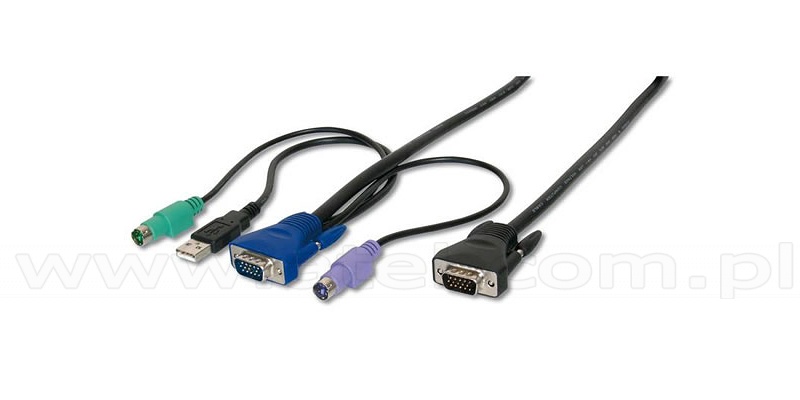

KVM cable, Wave KVM , M-P15F, combo, 5.0 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 2x MD-6M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#07129

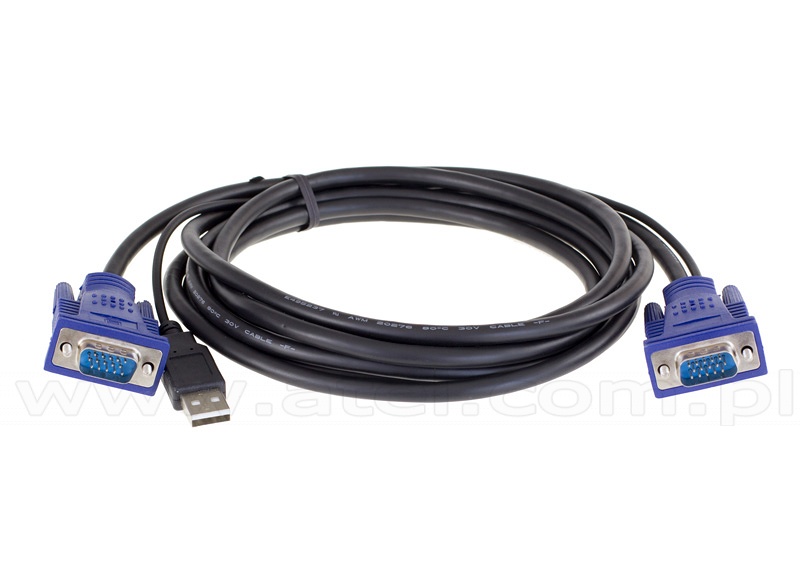

KVM cable, Wave KVM , M-P15F, USB, 3.0 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#07391
IP module for KVM (Wave KVM KI-3101)
The module is intended to connect to the KVM console or switch over IP network.
The module is only compatible with old consoles. Ask at the Sales Department for details.
The module is only compatible with old consoles. Ask at the Sales Department for details.
Unit: pcs VAT: 23%#06086

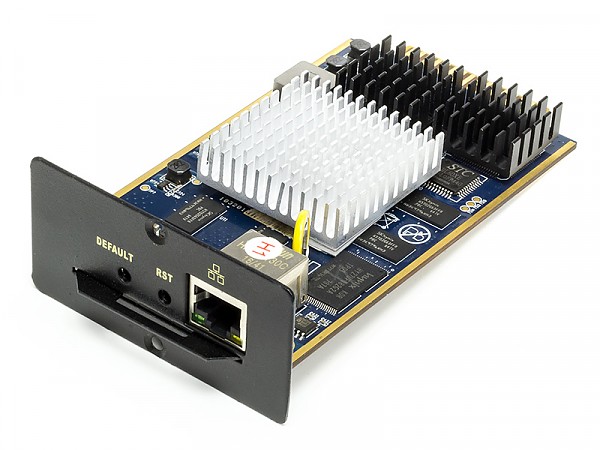

IP module for KVM (Wave KVM KI-4101)
The module is designed to connect to a switch or a KVM console via an IP network. Thanks to the 1 Gbps interface, it supports resolutions up to 1080p.
